Configure a VPN IPsec com OCSP para status de revogação de certificados
Este exemplo mostra como melhorar a segurança configurando dois pares usando o Protocolo de status de certificado on-line (OCSP) para verificar o status de revogação dos certificados usados nas negociações de Fase 1 para o túnel VPN IPsec.
Requisitos
Em cada dispositivo:
Obtenha e inscreva um certificado local. Isso pode ser feito manualmente ou usando o Protocolo simples de inscrição de certificados (SCEP).
Opcionalmente, habilite a renovação automática do certificado local.
Configure políticas de segurança para permitir o tráfego de e para o dispositivo peer.
Visão geral
Em ambos os pares, um perfil OCSP-ROOT de autoridade de certificado (CA) está configurado com as seguintes opções:
O nome CA é OCSP-ROOT.
A URL de inscrição é http://10.1.1.1:8080/scep/OCSP-ROOT/. Esta é a URL onde são enviadas solicitações de SCEP à CA.
A URL do servidor OCSP é http://10.157.88.56:8210/OCSP-ROOT/.
O OCSP é usado primeiro para verificar o status de revogação do certificado. Se não houver resposta do servidor OCSP, então a lista de revogação de certificados (CRL) é usada para verificar o status. A URL CRL é http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45.
O certificado de CA recebido em resposta ao OCSP não é verificado para revogação do certificado. Os certificados recebidos em uma resposta OCSP geralmente têm vida útil mais curta e uma verificação de revogação não é necessária.
Tabela 1 mostra as opções de Fase 1 usadas neste exemplo.
Opção |
Peer A |
Peer B |
|---|---|---|
Proposta de IKE |
ike_prop |
ike_prop |
Método de autenticação |
Assinaturas RSA |
Assinaturas RSA |
Grupo DH |
group2 |
grupo2 |
Algoritmo de autenticação |
SHA 1 |
SHA 1 |
Algoritmo de criptografia |
3DES CBC |
3DES CBC |
Política de IKE |
ike_policy |
ike_policy |
Modo |
agressivo |
agressivo |
Proposta |
ike_prop |
ike_prop |
Certificado |
localcert1 de certificado local |
localcert1 de certificado local |
Gateway IKE |
jsr_gateway |
jsr_gateway |
Política |
ike_policy |
ike_policy |
Endereço do gateway |
198.51.100.50 |
192.0.2.50 |
Identidade remota |
localcert11.example.net |
- |
Identidade local |
- |
localcert11.example.net |
Interface externa |
reth1 |
ge-0/0/2,0 |
Versão |
v2 |
v2 |
Tabela 2 mostra as opções de Fase 2 usadas neste exemplo.
Opção |
Peer A |
Peer B |
|---|---|---|
Proposta de IPsec |
ipsec_prop |
ipsec_prop |
Protocolo |
ESP |
ESP |
Algoritmo de autenticação |
HMAC SHA1-96 |
HMAC SHA1-96 |
Algoritmo de criptografia |
3DES CBC |
3DES CBC |
Segundos de vida útil |
1200 |
1200 |
Kilobytes vitalícios |
150.000 |
150.000 |
Política de IPsec |
ipsec_policy |
ipsec_policy |
Chaves PFC |
grupo2 |
grupo2 |
Proposta |
ipsec_prop |
ipsec_prop |
VPN |
test_vpn |
test_vpn |
Interface de vinculação |
st0.1 |
st0.1 |
Gateway IKE |
jsr_gateway |
jsr_gateway |
Política |
ipsec_policy |
ipsec_policy |
Estabelecer túneis |
- |
imediatamente |
Topologia

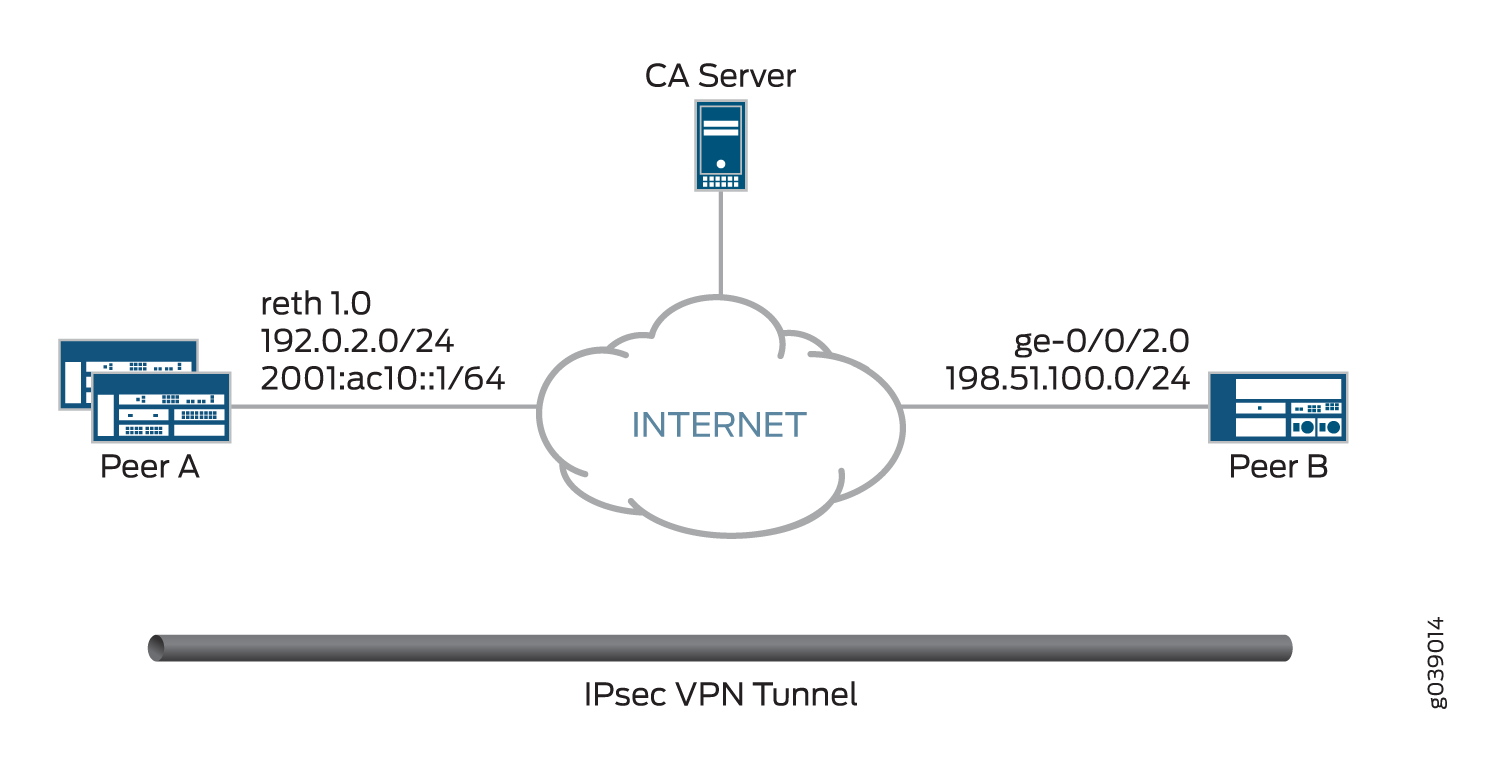

Figura 1 mostra os dispositivos peer que estão configurados neste exemplo.
Configuração
Configuração do Peer A
Configuração rápida da CLI
Para configurar rapidamente o peer A de VPN para usar o OCSP, copiar os seguintes comandos, cole-os em um arquivo de texto, remover quaisquer quebras de linha, alterar quaisquer detalhes necessários para combinar com a configuração da sua rede, copiar e colar os comandos no CLI no nível [edit] de hierarquia e, em seguida, entrar no commit modo de configuração.
set interfaces ge-0/0/3 gigether-options redundant-parent reth1 set interfaces ge-9/0/3 gigether-options redundant-parent reth1 set interfaces lo0 unit 0 family inet address 172.16.1.100/24 set interfaces lo0 redundant-pseudo-interface-options redundancy-group 1 set interfaces reth1 redundant-ether-options redundancy-group 1 set interfaces reth1 unit 0 family inet address 192.0.2.50/24 set interfaces st0 unit 1 family inet address 172.18.1.100/24 set security pki ca-profile OCSP-ROOT ca-identity OCSP-ROOT set security pki ca-profile OCSP-ROOT enrollment url http://10.1.1.1:8080/scep/OCSP-ROOT/ set security pki ca-profile OCSP-ROOT revocation-check ocsp url http://10.157.88.56:8210/OCSP-ROOT/ set security pki ca-profile OCSP-ROOT revocation-check use-ocsp set security pki ca-profile OCSP-ROOT revocation-check ocsp disable-responder-revocation-check set security pki ca-profile OCSP-ROOT revocation-check ocsp connection-failure fallback-crl set security pki ca-profile OCSP-ROOT revocation-check crl url http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45 set security ike proposal ike_prop authentication-method rsa-signatures set security ike proposal ike_prop dh-group group2 set security ike proposal ike_prop authentication-algorithm sha1 set security ike proposal ike_prop encryption-algorithm 3des-cbc set security ike policy ike_policy mode aggressive set security ike policy ike_policy proposals ike_prop set security ike policy ike_policy certificate local-certificate localcert1 set security ike gateway jsr_gateway ike-policy ike_policy set security ike gateway jsr_gateway address 198.51.100.50 set security ike gateway jsr_gateway remote-identity hostname localcert11.example.net set security ike gateway jsr_gateway external-interface reth1 set security ike gateway jsr_gateway version v2-only set security ipsec proposal ipsec_prop protocol esp set security ipsec proposal ipsec_prop authentication-algorithm hmac-sha1-96 set security ipsec proposal ipsec_prop encryption-algorithm 3des-cbc set security ipsec proposal ipsec_prop lifetime-seconds 1200 set security ipsec proposal ipsec_prop lifetime-kilobytes 150000 set security ipsec policy ipsec_policy perfect-forward-secrecy keys group2 set security ipsec policy ipsec_policy proposals ipsec_prop set security ipsec vpn test_vpn bind-interface st0.1 set security ipsec vpn test_vpn ike gateway jsr_gateway set security ipsec vpn test_vpn ike ipsec-policy ipsec_policy
Procedimento passo a passo
O exemplo a seguir exige que você navegue por vários níveis na hierarquia de configuração. Para obter instruções sobre como fazer isso, veja Usando o Editor de CLI no modo de configuração no Guia de usuário do Junos OS CLI.
Para configurar VPN peer A para usar OCSP:
Configure interfaces.
[edit interfaces] set ge-0/0/3 gigether-options redundant-parent reth1 set ge-9/0/3 gigether-options redundant-parent reth1 set lo0 unit 0 family inet address 172.16.1.100/24 set lo0 redundant-pseudo-interface-options redundancy-group 1 set reth1 redundant-ether-options redundancy-group 1 set reth1 unit 0 family inet address 192.0.2.0/24 set st0 unit 1 family inet address 172.18.1.100/24
Configure o perfil da CA.
[edit security pki ca-profile OCSP-ROOT] set ca-identity OCSP-ROOT set enrollment url http://10.1.1.1:8080/scep/OCSP-ROOT/ set revocation-check ocsp url http://10.157.88.56:8210/OCSP-ROOT/ set revocation-check use-ocsp set revocation-check ocsp disable-responder-revocation-check set revocation-check ocsp connection-failure fallback-crl set revocation-check crl url http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45
Configure as opções de Fase 1.
[edit security ike proposal ike_prop] set authentication-method rsa-signatures set dh-group group2 set authentication-algorithm sha1 set encryption-algorithm 3des-cbc [edit security ike policy ike_policy] set mode aggressive set proposals ike_prop set certificate local-certificate localcert1 [edit security ike gateway jsr_gateway] set ike-policy ike_policy set address 198.51.100.50 set remote-identity hostname localcert11.example.net set external-interface reth1 set version v2-only
Configure as opções de Fase 2.
[edit security ipsec proposal ipsec_prop] set protocol esp set authentication-algorithm hmac-sha1-96 set encryption-algorithm 3des-cbc set lifetime-seconds 1200 set lifetime-kilobytes 150000 [edit security ipsec policy ipsec_policy] set perfect-forward-secrecy keys group2 set proposals ipsec_prop [edit security ipsec vpn test_vpn] set bind-interface st0.1 set ike gateway jsr_gateway set ike ipsec-policy ipsec_policy
Resultados
A partir do modo de configuração, confirme sua configuração entrando noshow interfaces, show security pki ca-profile OCSP-ROOTshow security ikee show security ipsec comandos. Se a saída não exibir a configuração pretendida, repita as instruções de configuração neste exemplo para corrigi-la.
[edit]
user@host# show interfaces
ge-0/0/3 {
gigether-options {
redundant-parent reth1;
}
}
ge-9/0/3 {
gigether-options {
redundant-parent reth1;
}
}
lo0 {
unit 0 {
family inet {
address 172.16.1.100/24;
}
}
redundant-pseudo-interface-options {
redundancy-group 1;
}
}
reth1 {
redundant-ether-options {
redundancy-group 1;
}
unit 0 {
family inet {
address 192.0.2.0/24;
}
}
}
st0 {
unit 1 {
family inet {
address 172.18.1.100/24;
}
}
}
[edit]
user@host# show security pki ca-profile OCSP-ROOT
ca-identity OCSP-ROOT;
enrollment {
url http://10.1.1.1:8080/scep/OCSP-ROOT/;
}
revocation-check {
crl {
url http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45;
}
ocsp {
disable-responder-revocation-check;
url http://10.157.88.56:8210/OCSP-ROOT/;
}
use-ocsp;
}
[edit]
user@host# show security ike
proposal ike_prop {
authentication-method rsa-signatures;
dh-group group2;
authentication-algorithm sha1;
encryption-algorithm 3des-cbc;
}
policy ike_policy {
mode aggressive;
proposals ike_prop;
certificate {
local-certificate localcert1;
}
}
gateway jsr_gateway {
ike-policy ike_policy;
address 10.10.2.50;
remote-identity hostname localcert11.example.net;
external-interface reth1;
version v2-only;
}
[edit]
user@host# show security ipsec
proposal ipsec_prop {
protocol esp;
authentication-algorithm hmac-sha1-96;
encryption-algorithm 3des-cbc;
lifetime-seconds 1200;
lifetime-kilobytes 150000;
}
policy ipsec_policy {
perfect-forward-secrecy {
keys group2;
}
proposals ipsec_prop;
}
vpn test_vpn {
bind-interface st0.1;
ike {
gateway jsr_gateway;
ipsec-policy ipsec_policy;
}
}
Se você terminar de configurar o dispositivo, entre no commit modo de configuração.
Configuração do Peer B
Configuração rápida da CLI
Para configurar rapidamente o peer B de VPN para usar o OCSP, copiar os seguintes comandos, cole-os em um arquivo de texto, remover quaisquer quebras de linha, alterar quaisquer detalhes necessários para combinar com a configuração da sua rede, copiar e colar os comandos no CLI no nível [edit] de hierarquia e, em seguida, entrar no commit modo de configuração.
set interfaces ge-0/0/2 unit 0 family inet address 198.51.100.0/24 set interfaces lo0 unit 0 family inet address 172.17.1.100/24 set interfaces st0 unit 1 family inet address 172.18.1.1/24 set security pki ca-profile OCSP-ROOT ca-identity OCSP-ROOT set security pki ca-profile OCSP-ROOT enrollment url http://10.1.1.1:8080/scep/OCSP-ROOT/ set security pki ca-profile OCSP-ROOT revocation-check ocsp url http://10.157.88.56:8210/OCSP-ROOT/ set security pki ca-profile OCSP-ROOT revocation-check use-ocsp set security pki ca-profile OCSP-ROOT revocation-check ocsp disable-responder-revocation-check set security pki ca-profile OCSP-ROOT revocation-check ocsp connection-failure fallback-crl set security pki ca-profile OCSP-ROOT revocation-check crl url http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45 set security ike proposal ike_prop authentication-method rsa-signatures set security ike proposal ike_prop dh-group group2 set security ike proposal ike_prop authentication-algorithm sha1 set security ike proposal ike_prop encryption-algorithm 3des-cbc set security ike policy ike_policy mode aggressive set security ike policy ike_policy proposals ike_prop set security ike policy ike_policy certificate local-certificate localcert11 set security ike gateway jsr_gateway ike-policy ike_policy set security ike gateway jsr_gateway address 192.0.2.50 set security ike gateway jsr_gateway local-identity hostname localcert11.example.net set security ike gateway jsr_gateway external-interface ge-0/0/2.0 set security ike gateway jsr_gateway version v2-only set security ipsec proposal ipsec_prop protocol esp set security ipsec proposal ipsec_prop authentication-algorithm hmac-sha1-96 set security ipsec proposal ipsec_prop encryption-algorithm 3des-cbc set security ipsec proposal ipsec_prop lifetime-seconds 1200 set security ipsec proposal ipsec_prop lifetime-kilobytes 150000 set security ipsec policy ipsec_policy perfect-forward-secrecy keys group2 set security ipsec policy ipsec_policy proposals ipsec_prop set security ipsec vpn test_vpn bind-interface st0.1 set security ipsec vpn test_vpn ike gateway jsr_gateway set security ipsec vpn test_vpn ike ipsec-policy ipsec_policy set security ipsec vpn test_vpn establish-tunnels immediately
Procedimento passo a passo
O exemplo a seguir exige que você navegue por vários níveis na hierarquia de configuração. Para obter instruções sobre como fazer isso, veja Usando o Editor de CLI no modo de configuração no Guia de usuário do Junos OS CLI.
Para configurar VPN peer B para usar OCSP:
Configure interfaces.
[edit interfaces] set ge-0/0/2 unit 0 family inet address 198.51.100.0/24 set lo0 unit 0 family inet address 172.17.1.100/24 set st0 unit 1 family inet address 172.18.1.1/24
Configure o perfil da CA.
[edit security pki ca-profile OCSP-ROOT] set ca-identity OCSP-ROOT set enrollment url http://10.1.1.1:8080/scep/OCSP-ROOT/ set revocation-check ocsp url http://10.157.88.56:8210/OCSP-ROOT/ set revocation-check use-ocsp set revocation-check ocsp disable-responder-revocation-check set revocation-check ocsp connection-failure fallback-crl set revocation-check crl url http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45
Configure as opções de Fase 1.
[edit security ike proposal ike_prop] set authentication-method rsa-signatures set dh-group group2 set authentication-algorithm sha1 set encryption-algorithm 3des-cbc [edit security ike policy ike_policy] set mode aggressive set proposals ike_prop set certificate local-certificate localcert1 [edit security ike gateway jsr_gateway] set ike-policy ike_policy set address 192.0.2.50 set local-identity hostname localcert11.example.net set external-interface ge-0/0/2.0 set version v2-only
Configure as opções de Fase 2.
[edit security ipsec proposal ipsec_prop] set protocol esp set authentication-algorithm hmac-sha1-96 set encryption-algorithm 3des-cbc set lifetime-seconds 1200 set lifetime-kilobytes 150000 [edit security ipsec policy ipsec_policy] set perfect-forward-secrecy keys group2 set proposals ipsec_prop [edit security ipsec vpn test_vpn] set bind-interface st0.1 set ike gateway jsr_gateway set ike ipsec-policy ipsec_policy set establish-tunnels immediately
Resultados
A partir do modo de configuração, confirme sua configuração entrando noshow interfaces, show security pki ca-profile OCSP-ROOTshow security ikee show security ipsec comandos. Se a saída não exibir a configuração pretendida, repita as instruções de configuração neste exemplo para corrigi-la.
[edit]
user@host# show interfaces
ge-0/0/2 {
unit 0 {
family inet {
address 198.51.100.0/24;
}
}
}
lo0 {
unit 0 {
family inet {
address 172.17.1.100/24;
}
}
}
st0 {
unit 1 {
family inet {
address 172.18.1.1/24;
}
}
}
[edit]
user@host# show security pki ca-profile OCSP-ROOT
ca-identity OCSP-ROOT;
enrollment {
url http://10.1.1.1:8080/scep/OCSP-ROOT/;
}
revocation-check {
crl {
url http://10.1.1.1:8080/crl-as-der/currentcrl-45.crlid=45;
}
ocsp {
disable-responder-revocation-check;
url http://10.157.88.56:8210/OCSP-ROOT/;
}
use-ocsp;
}
[edit]
user@host# show security ike
proposal ike_prop {
authentication-method rsa-signatures;
dh-group group2;
authentication-algorithm sha1;
encryption-algorithm 3des-cbc;
}
policy ike_policy {
mode aggressive;
proposals ike_prop;
certificate {
local-certificate localcert11;
}
}
gateway jsr_gateway {
ike-policy ike_policy;
address 192.0.2.50;
local-identity hostname localcert11.example.net;
external-interface ge-0/0/2.0;
version v2-only;
}
[edit]
user@host# show security ipsec
proposal ipsec_prop {
protocol esp;
authentication-algorithm hmac-sha1-96;
encryption-algorithm 3des-cbc;
lifetime-seconds 1200;
lifetime-kilobytes 150000;
}
policy ipsec_policy {
perfect-forward-secrecy {
keys group2;
}
proposals ipsec_prop;
}
vpn test_vpn {
bind-interface st0.1;
ike {
gateway jsr_gateway;
ipsec-policy ipsec_policy;
}
establish-tunnels immediately;
}
Se você terminar de configurar o dispositivo, entre no commit modo de configuração.
Verificação
Confirme se a configuração está funcionando corretamente.
- Verificação de certificados de CA
- Verificação de certificados locais
- Verificação do status da Fase 1 do IKE
- Verificando o status da Fase 2 do IPsec
Verificação de certificados de CA
Propósito
Verifique a validade de um certificado ca em cada dispositivo peer.
Ação
A partir do modo operacional, entre no show security pki ca-certificate ca-profile OCSP-ROOT ou show security pki ca-certificate ca-profile OCSP-ROOT detail no comando.
user@host> show security pki ca-certificate ca-profile OCSP-ROOT
Certificate identifier: OCSP-ROOT
Issued to: OCSP-ROOT, Issued by: C = US, O = example, CN = OCSP-ROOT
Validity:
Not before: 11-15-2013 22:26 UTC
Not after: 11-14-2016 22:26 UTC
Public key algorithm: rsaEncryption(2048 bits)
user@host> show security pki ca-certificate ca-profile OCSP-ROOT detail
Certificate identifier: OCSP-ROOT
Certificate version: 3
Serial number: 0000a17f
Issuer:
Organization: example, Country: US, Common name: OCSP-ROOT
Subject:
Organization: example, Country: US, Common name: OCSP-ROOT
Subject string:
C=US, O=example, CN=OCSP-ROOT
Validity:
Not before: 11-15-2013 22:26 UTC
Not after: 11-14-2016 22:26 UTC
Public key algorithm: rsaEncryption(2048 bits)
30:82:01:0a:02:82:01:01:00:c6:38:e9:03:69:5e:45:d8:a3:ea:3d
2e:e3:b8:3f:f0:5b:39:f0:b7:35:64:ed:60:a0:ba:89:28:63:29:e7
27:82:47:c4:f6:41:53:c8:97:d7:1e:3c:ca:f0:a0:b9:09:0e:3d:f8
76:5b:10:6f:b5:f8:ef:c5:e8:48:b9:fe:46:a3:c6:ba:b5:05:de:2d
91:ce:20:12:8f:55:3c:a6:a4:99:bb:91:cf:05:5c:89:d3:a7:dc:a4
d1:46:f2:dc:36:f3:f0:b5:fd:1d:18:f2:e6:33:d3:38:bb:44:8a:19
ad:e0:b1:1a:15:c3:56:07:f9:2d:f6:19:f7:cd:80:cf:61:de:58:b8
a3:f5:e0:d1:a3:3a:19:99:80:b0:63:03:1f:25:05:cc:b2:0c:cd:18
ef:37:37:46:91:20:04:bc:a3:4a:44:a9:85:3b:50:33:76:45:d9:ba
26:3a:3b:0d:ff:82:40:36:64:4e:ea:6a:d8:9b:06:ff:3f:e2:c4:a6
76:ee:8b:58:56:a6:09:d3:4e:08:b0:64:60:75:f3:e2:06:91:64:73
d2:78:e9:7a:cb:8c:57:0e:d1:9a:6d:3a:4a:9e:5b:d9:e4:a2:ef:31
5d:2b:2b:53:ab:a1:ad:45:49:fd:a5:e0:8b:4e:0b:71:52:ca:6b:fa
8b:0e:2c:7c:7b:02:03:01:00:01
Signature algorithm: sha1WithRSAEncryption
Distribution CRL:
http://10.1.1.1:8080/crl-as-der/currentcrl-45.crl?id=45
Authority Information Access OCSP:
http://10.1.1.1:8090/OCSP-ROOT/
Use for key: CRL signing, Certificate signing, Key encipherment, Digital signature
Fingerprint:
ed:ce:ec:13:1a:d2:ab:0a:76:e5:26:6d:2c:29:5d:49:90:57:f9:41 (sha1)
af:87:07:69:f0:3e:f7:c6:b8:2c:f8:df:0b:ae:b0:28 (md5)
Neste exemplo, os endereços IP são usados nas URLs na configuração do perfil da CA. Se os endereços IP não forem usados com certificados emitidos por CA ou certificados de CA, o DNS deve ser configurado na configuração do dispositivo. A DNS deve ser capaz de resolver o host no CRL de distribuição e na URL ca na configuração do perfil ca. Além disso, você deve ter a acessibilidade de rede para o mesmo host para receber verificações de revogação.
Significado
A saída mostra os detalhes e a validade do certificado de CA em cada peer da seguinte forma:
C— País.O— Organização.CN— Nome comum.Not before— Data de início da validade.Not after— Data de término da validade.
Verificação de certificados locais
Propósito
Verifique a validade de um certificado local em cada dispositivo peer.
Ação
A partir do modo operacional, entre no show security pki local-certificate certificate-id localcert1 detail comando.
user@host> show security pki local-certificate certificate-id localcert1 detail
Certificate identifier: localcert1
Certificate version: 3
Serial number: 013e3f1d
Issuer:
Organization: example, Country: US, Common name: OCSP-ROOT
Subject:
Organization: example, Organizational unit: example, State: california1, Locality: sunnyvale1, Common name: localcert1, Domain component: domain_component1
Subject string:
DC=domain_component1, CN=localcert1, OU=example, O=example, L=sunnyvale1, ST=california1, C=us1
Alternate subject: "localcert1@example.net", localcert1.example.net, 10.10.1.50
Validity:
Not before: 01-28-2014 22:23 UTC
Not after: 03-29-2014 22:53 UTC
Public key algorithm: rsaEncryption(1024 bits)
30:81:89:02:81:81:00:a6:df:c1:57:59:f8:4d:0f:c4:a8:96:25:97
03:c4:a0:fb:df:d5:f3:d5:56:b6:5a:26:65:b8:1a:ec:be:f6:c6:5f
b3:d7:d3:59:39:48:52:4a:e3:1b:e4:e0:6d:24:c3:c1:50:8c:55:3b
c0:c1:29:a0:45:29:8e:ec:3e:52:2f:84:b3:e8:89:9a:0f:8b:7d:e8
90:4b:c1:28:48:95:b3:aa:11:ab:b4:8c:a8:80:ce:90:07:2a:13:a2
2f:84:44:92:3b:be:7d:39:5b:2f:9a:4c:7a:2f:2d:31:8b:12:6d:52
34:7d:6b:e4:69:7e:f3:86:55:e2:89:31:98:c9:15:02:03:01:00:01
Signature algorithm: sha1WithRSAEncryption
Distribution CRL:
http://10.1.1.1:8080/crl-as-der/currentcrl-45.crl?id=45
Authority Information Access OCSP:
http://10.1.1.1/:8090/OCSP-ROOT/
Fingerprint:
00:c6:56:64:ad:e3:ce:8e:26:6b:df:17:1e:de:fc:14:a4:bb:8c:e4 (sha1)
7f:43:c6:ed:e4:b3:7a:4f:9a:8c:0b:61:95:01:c9:52 (md5)
Auto-re-enrollment:
Status: Disabled
Next trigger time: Timer not started
Significado
A saída mostra os detalhes e a validade de um certificado local em cada peer da seguinte forma:
DC— Componente de domínio.CN— Nome comum.OU— Unidade organizacional.O— Organização.L— LocalidadeST— Estado.C— País.Not before— Data de início da validade.Not after— Data de término da validade.
Verificação do status da Fase 1 do IKE
Propósito
Verifique o status da Fase 1 do IKE em cada dispositivo peer.
Ação
A partir do modo operacional, entre no show security ike security-associations comando.
user@host> show security ike security-associations Index State Initiator cookie Responder cookie Mode Remote Address 6534660 UP 3e62e05abd6a703f c552b238e8a26668 IKEv2 198.51.100.50
A partir do modo operacional, entre no show security ike security-associations detail comando.
user@host> show security ike security-associations detail
IKE peer 198.51.100.50, Index 6534660, Gateway Name: jsr_gateway
Role: Responder, State: UP
Initiator cookie: 3e62e05abd6a703f, Responder cookie: c552b238e8a26668
Exchange type: IKEv2, Authentication method: RSA-signatures
Local: 192.0.2.50:500, Remote: 198.51.100.50:500
Lifetime: Expires in 26906 seconds
Peer ike-id: localcert11.example.net
Xauth assigned IP: 0.0.0.0
Algorithms:
Authentication : hmac-sha1-96
Encryption : 3des-cbc
Pseudo random function: hmac-sha1
Diffie-Hellman group : DH-group-2
Traffic statistics:
Input bytes : 2152
Output bytes : 2097
Input packets: 4
Output packets: 4
Flags: IKE SA is created
IPSec security associations: 4 created, 0 deleted
Phase 2 negotiations in progress: 0
Negotiation type: Quick mode, Role: Responder, Message ID: 0
Local: 192.0.2.50:500, Remote: 198.51.100.50:500
Local identity: 192.0.2.50
Remote identity: localcert11.example.net
Flags: IKE SA is created
Significado
O flags campo na saída mostra que a associação de segurança IKE foi criada.
Verificando o status da Fase 2 do IPsec
Propósito
Verifique o status da Fase 2 do IPsec em cada dispositivo peer.
Ação
A partir do modo operacional, entre no show security ipsec security-associations comando.
user@host> show security ipsec security-associations Total active tunnels: 1 ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway <131073 ESP:3des/sha1 9d1066e2 252/ 150000 - root 500 198.51.100.50 >131073 ESP:3des/sha1 82079c2c 252/ 150000 - root 500 198.51.100.50
A partir do modo operacional, entre no show security ipsec security-associations detail comando.
user@host> show security ipsec security-associations detail
ID: 131073 Virtual-system: root, VPN Name: test_vpn
Local Gateway: 192.0.2.50, Remote Gateway: 198.51.100.50
Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
Version: IKEv2
DF-bit: clear
Bind-interface: st0.1
Port: 500, Nego#: 2, Fail#: 0, Def-Del#: 0 Flag: 0x600a29
Last Tunnel Down Reason: Delete payload received
Direction: inbound, SPI: 9d1066e2, AUX-SPI: 0
, VPN Monitoring: -
Hard lifetime: Expires in 249 seconds
Lifesize Remaining: 150000 kilobytes
Soft lifetime: Expires in 10 seconds
Mode: Tunnel(0 0), Type: dynamic, State: installed
Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
Anti-replay service: counter-based enabled, Replay window size: 64
Direction: outbound, SPI: 82079c2c, AUX-SPI: 0
, VPN Monitoring: -
Hard lifetime: Expires in 249 seconds
Lifesize Remaining: 150000 kilobytes
Soft lifetime: Expires in 10 seconds
Mode: Tunnel(0 0), Type: dynamic, State: installed
Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
Anti-replay service: counter-based enabled, Replay window size: 64Significado
A saída mostra os detalhes das associações de segurança ipsec.
