Channelized E1/T1 Circuit Emulation MIC

• Junos OS Release 12.3x52-D11 and later

• Sixteen E1 or T1 ports

• Per-MIC E1/T1 framing

• DS1 channelization per MIC:

  • 1 DS1 channel

  • 24 DS0 channels

• E1 channelization per PIC:

  • 1 E1 channel

  • 32 DS0 channels

• Internal and loop clocking

• Power requirement: 2.21 A @ 12 V (26.55 W)

• Weight: 1.57 lb (0.71 kg)

• Model number: ACX-MIC-16CHE1-T1-CE

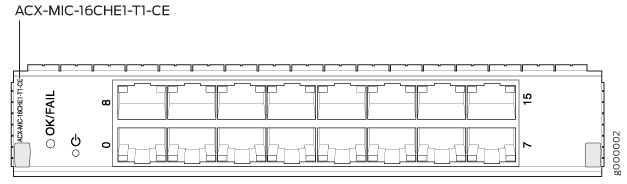

• Ports are numbered:

  • Top row: 8 and 15 from left to right

  • Bottom row: 0 and 7 from left to right

• Full bit error rate test (BERT)

• DS1 and E1 interfaces are selectable on a per-port granularity

• Per-port framing is not supported

• You can configure the following framing modes using the CLI:

  • T1—SF, ESF, D4/superframe, ESF (extended superframe)

  • E1—G704, G704–no-crc4, unframed

• Local, remote, and per-port loopback diagnostics

• Encapsulations:

  • Pseudowire Emulation Edge to Edge (PWE3) Architecture (RFC 3985)

  • Requirements for Pseudowire Emulation Edge to Edge (PWE3) (RFC 3916)

  • Structure-Agnostic Time Division Multiplexing (TDM) over Packet (SAToP) (RFC 4553)

  • Structure-Aware Time Division Multiplexed (TDM) Circuit Emulation Service over Packet-Switched Network (CESoPSN) (RFC 5086)

  • Pseudowire Emulation Edge to Edge (PWE3) Control Word for Use over an MPLS PSN (RFC 4385)

• RJ-48 connector

OK/FAIL LED, one bicolor:

• Green—MIC is functioning normally.

• Yellow—MIC has failed.

One tricolor per port:

• Off—Not enabled.

• Green—Online with no alarms or failures.

• Yellow—Online with alarms for remote failures.

• Red—Active with a local alarm; router has detected a failure.

• Structure-agnostic alarms for T1 and E1 interface:

  • Alarm indication signal (AIS)

  • Loss of signal (LOS)

• Structure-aware alarms for T1 and E1 interface:

  • Loss of signal (LOS)

  • Alarm indication signal (AIS)

  • Loss of frame (LOF)

  • Remote alarm indication signal (RAIS)

• Structure-agnostic error detection for T1 and E1 interface:

  • Errored seconds (ES)

  • Line code violation (LCV)

  • Line errored seconds (LES)

  • Severely errored seconds (SES)

  • Unavailable seconds (UAS)

  • Loss of signal seconds (LOSS)

• Structure-aware error detection for T1 and E1 interface:

  • Severely errored frame (SEF)

  • Block error event (BEE)

  • Line code violation (LCV)

  • Path code violation (PCV)

  • Line errored seconds (LES)

  • Errored seconds (ES)

  • Severely errored seconds (SES)

  • Severely errored frame seconds (SEFS)

  • Bursty errored seconds (BES)

  • Unavailable seconds (UAS)

  • Loss of signal seconds (LOSS)

  • Loss of framing seconds (LOFS)

  • Far-end block error (FEBE) (E1 only)

  • CRC errors (E1 only)
