Connect ACX7100-48L to Power

Connect Earth Ground to ACX7100-48L Routers

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must ground the router properly before connecting power. The ACX7100-48L routers have a separate protective earthing terminal provided on the chassis and on the DC power supply module (PSM) in addition to the grounding pin of the AC PSM cord.

You must install the ACX7100-48L in a restricted-access location and ensure that the chassis is always properly grounded. The ACX7100-48L has a two-hole protective grounding terminal provided on the chassis. See Figure 2. Under all circumstances, use this grounding connection to ground the chassis. For AC-powered systems, you must also use the grounding wire in the AC power cord along with the two-hole grounding lug connection. This tested system meets or exceeds all applicable EMC regulatory requirements with the two-hole protective grounding terminal.

To connect earth ground to ACX7100-48L routers, see Connect Earth Ground to ACX7100-48L Routers. However, if you are unable to access the chassis grounding point by using the two-holed grounding lug, you can ground the chassis using the DC protective earthing terminal on the DC PSM.

Connect Earth Ground to ACX7100-48L Routers

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must ground the router properly before connecting power.

Before you connect earth ground to the protective earthing terminal of a ACX7100-48L router, ensure that a licensed electrician has attached an appropriate grounding lug to the grounding cable.

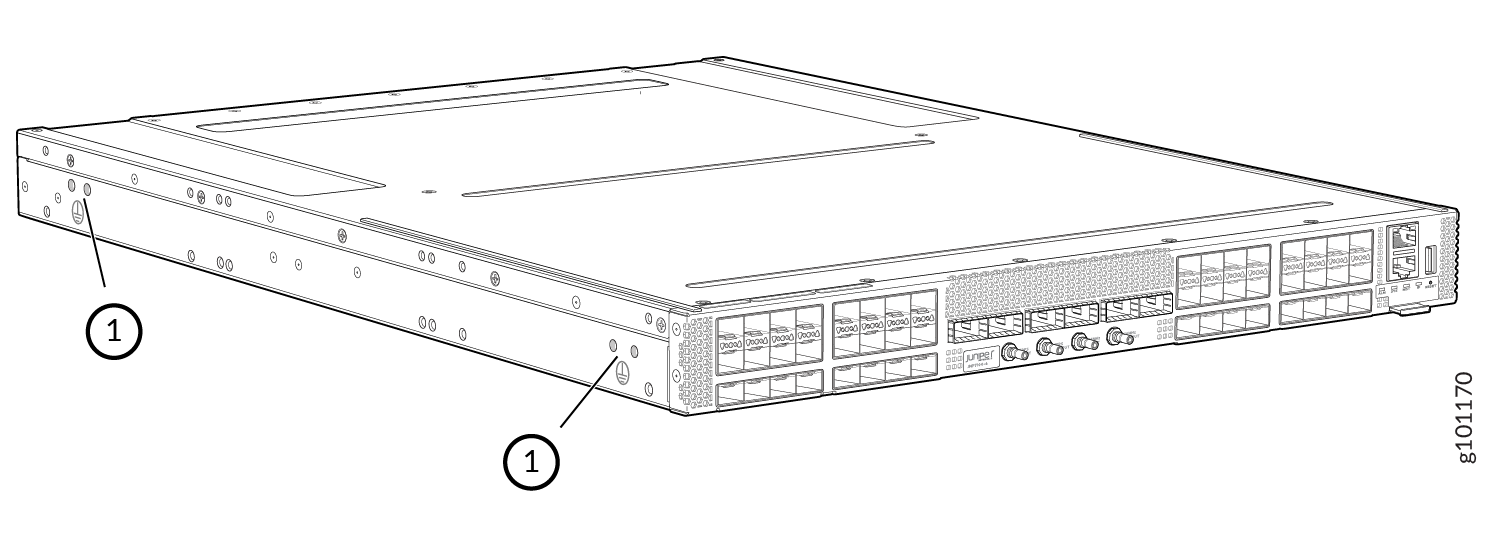

Figure 1 shows the grounding points on ACX7100-48L routers.

Figure 1: Grounding Points on the ACX7100-48L RouterGrounding Points on the ACX7100-48L Router
  1
—

Grounding points



The grounding points are in the form of studs that are sized for #10-32 screws. (You need to provide these screws with integrated washers as we do not ship them in the accessory kit).

You ground the router by connecting one end of a grounding cable to earth ground and then attaching the other end to the chassis grounding points by using #10-32 screws. You must provide the grounding cables.

Note:

The grounding lug required is a Panduit LCD10-10A-L or equivalent (not provided). The grounding lug accommodates 14–10 AWG (2–5.3 mm²) stranded wire. The grounding cable that you provide for the chassis must be the same size or heavier than the input wire of each power supply. Minimum recommendation is 14–10 AWG (2–5.3 mm²) stranded wire for the ACX7100-48L router

To ground the ACX7100-48L router:

  1. Verify that a licensed electrician has attached the cable lug provided with the router to the grounding cable.
  2. Ensure that all grounding surfaces are clean and brought to a bright finish before grounding connections are made.
  3. Connect the grounding cable to a proper earth ground.

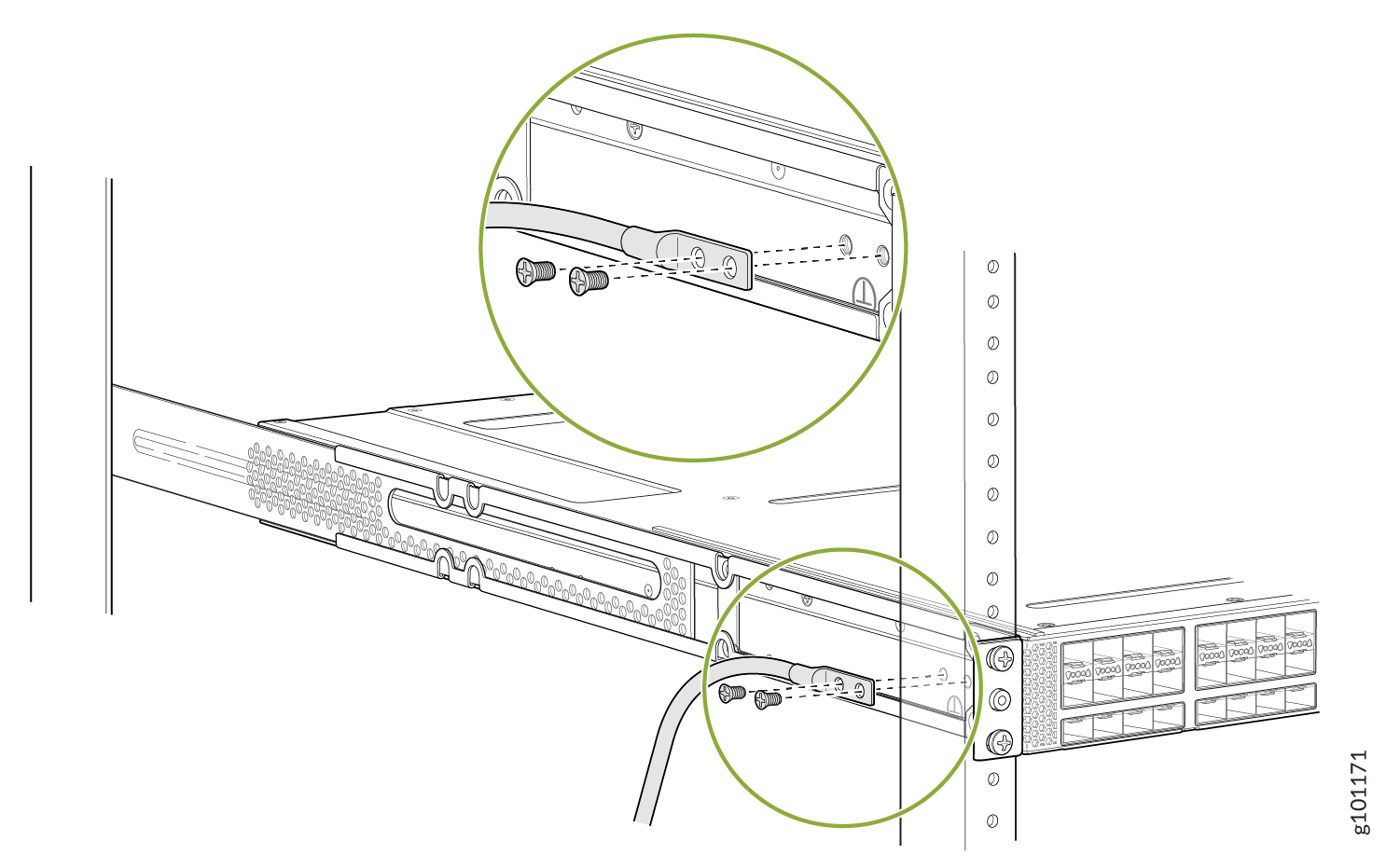

  4. Place the grounding cable lug over the grounding points on the side of the chassis (see Figure 2).
    Figure 2: Connect the Grounding Cable to the ACX7100-48L RouterConnect the Grounding Cable to the ACX7100-48L Router
  5. Secure the grounding cable lug with the screws. Apply 30-33 lb-in of torque to the screws.
  6. Dress the grounding cable and verify that it does not touch or block access to router components, and that it does not drape where people could trip over it.

Connect Earth Ground to DC PSM Protective Earthing Terminal

You attach the protective earthing terminal lug to the DC PSM protective earthing terminal to provide a protective earthing connection.

You ground the DC PSM protective earthing terminal by connecting one end of a grounding cable to earth ground and then attaching the other end to the protective earthing terminal on the DC PSM by using a #10-32 screw. You must provide the grounding cables.

Note:

The protective earthing terminal lug accommodates 14–10 AWG (2–5.3 mm²) standard wire. The grounding cable that you provide for the protective earthing terminal of the DC PSM must be of the same size or heavier than the input wire of each PSM. The minimum recommendations for the ACX7100-48L router are 14–10 AWG (2–5.3 mm²) standard wire.

To ground the chassis using the protective earthing terminal on the DC PSM:

  1. Verify that a licensed electrician has attached the cable lug provided with the router to the grounding cable.
  2. Ensure that all grounding surfaces are clean and brought to a bright finish before grounding connections are made.
  3. Connect the grounding cable to a proper earth ground.
  4. Place the grounding cable lug over the protective earthing terminal on the DC PSM.
  5. Secure the grounding cable lug with #10-32 screw.
  6. Dress the grounding cable and verify that it does not touch or block access to router components, and that it does not drape where people could trip over it.

Connect AC Power to an ACX7100-48L Router

Ensure that you have a power cord appropriate for your geographical location available to connect AC power to the router.

Before you begin connecting AC power to the router:

  • Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see Prevention of Electrostatic Discharge Damage).

  • Ensure that you have connected the router chassis to earth ground.

    CAUTION:

    Before you connect power to the router, a licensed electrician must attach a cable lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router (for example, by causing a short circuit).

    To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect the chassis to earth ground before you connect it to power. Under all circumstances, use the protective earthing terminal on the router chassis to connect to the earth ground. The router gains additional grounding when you plug the PSM in the router to a grounded AC power outlet by using the AC power cord appropriate for your geographical location.

  • Install the PSM in the chassis.

The power supply module (PSM) in an ACX7100-48L router is a hot-removable and hot-insertable field-replaceable unit (FRU). You can remove and replace it without powering off the router or disrupting routing functions.

Note:

You must connect each PSM to a dedicated power source outlet.

To connect AC power to an ACX7100-48L router:

  1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to the ESD point on the chassis.
  2. Power off the AC input appliance inlet on the source power supply.
  3. Connect the power cord to the power source outlet.
    Note:

    Each power supply must be connected to a dedicated AC power feed and a dedicated customer-site 2-pole circuit breaker. We recommend that you use a dedicated customer-site circuit breaker rated for 20 A (110 VAC) or 16 A (220 VAC) minimum, or as required by local code.

  4. Push the end of the AC power cord retainer strip into the hole next to the inlet on the power supply faceplate on the router until it snaps into place. Ensure that the loop in the retainer strip faces toward the power cord (see Figure 3).

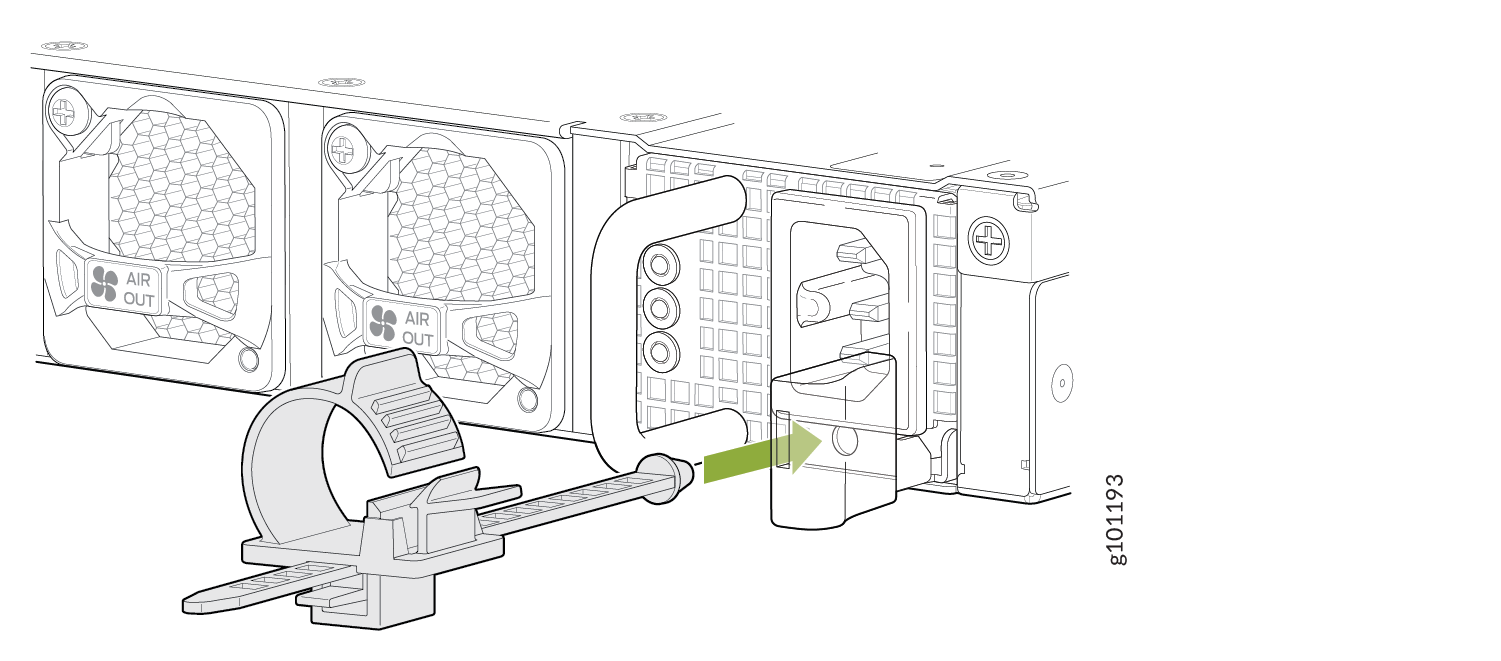

    Figure 3: Insert Power Cord Retainer Strip on the AC PSMInsert Power Cord Retainer Strip on the AC PSM
  5. Press the small tab on the retainer strip to loosen the loop. Slide the loop until you have enough space to insert the power cord coupler into the inlet.
  6. Insert the power cord coupler firmly into the inlet.
  7. Slide the loop toward the PSM until it is snug against the base of the coupler.
  8. Press the tab on the loop and draw out the loop into a tight circle (see Figure 4).
  9. Route the power cord appropriately. Verify that the power cord does not block the air exhaust and access to router components, or drape where people could trip over it.
  10. Power on the source power supply.
  11. Repeat Step 3 through Step 9 for installing the remaining PSM.
Figure 4: Connect an AC Power Cord to an ACX7100-48LConnect an AC Power Cord to an ACX7100-48L

Connect DC Power to an ACX7100-48L Router

Before you begin connecting DC power to the router:

  • Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see Prevention of Electrostatic Discharge Damage).

  • Ensure that you have connected the router chassis to earth ground.

    CAUTION:

    Before you connect power to the router, a licensed electrician must attach a cable lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router (for example, by causing a short circuit).

    To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect the chassis to earth ground before you connect it to power. Under all circumstances, use the protective earthing terminal on the router chassis to connect to the earth ground.

  • Install the PSM in the chassis.

Ensure that you have the following parts and tools available:

  • Phillips (+) screwdriver, number 2 (not provided)

  • Multimeter (not provided)

The power supply module (PSM) in an ACX7100-48L router is a hot-removable and hot-insertable field-replaceable unit (FRU). You can remove and replace it without powering off the router or disrupting routing functions.

Warning:

DC-powered ACX7100-48L routers are intended for installation only in a restricted-access location.

Note:

The battery returns of the DC power supply must be connected as an isolated DC return (DC-I).

To connect DC power to an ACX7100-48L router:

  1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to the ESD point on the chassis.
  2. Verify that the DC power cables are correctly labeled before making connections to the power supply. In a typical power distribution scheme where the return is connected to chassis ground at the battery plant, you can use a multimeter to verify the resistance of the –48V and RTN DC cables to chassis ground:

    • The cable with very low resistance (indicating a closed circuit) to chassis ground is positive (+). You install this cable on the V+ (return) DC power input terminal.

    • The cable with very high resistance (indicating an open circuit) to chassis ground is negative (–). You install this cable on the V– (input) DC power input terminal.

    CAUTION:

    You must ensure that power connections maintain the proper polarity. The power source cables might be labeled (+) and (–) to indicate their polarity. There is no standard color coding for DC power cables. The color coding used by the external DC power source at your site determines the color coding for the leads on the power cables that attach to the DC power input terminals on each PSM.

  3. Install heat-shrink tubing insulation around the power cables.

    To install heat-shrink tubing:

    1. Slide the tubing over the portion of the cable where it is attached to the lug barrel. Ensure that tubing covers the end of the wire and the barrel of the lug attached to it.

    2. Shrink the tubing with a heat gun. Ensure that you heat all sides of the tubing evenly so that it shrinks around the cable tightly.

    Figure 5 shows the steps to install heat-shrink tubing.

    Note:

    Do not overheat the tubing.
    Figure 5: How to Install Heat-Shrink Tubing How to Install Heat-Shrink Tubing
  4. Ensure that the input circuit breaker is open so that the voltage across the DC power source cable leads is 0 V and that the cable leads do not become active while you are connecting DC power.
    Note:

    The V+ terminals are referred to as +RTN, and V– terminals are referred to as –48 V in DC Power Wiring Sequence Warning.

  5. Ensure that the PSMs are fully inserted in the chassis.
  6. Remove the terminal block cover. The terminal block cover is a piece of clear plastic that snaps into place over the terminal block (see Figure 6).
  7. Remove the screws on the terminals by using the screwdriver. Save the screws.
    Warning:

    Ensure that the power cables do not block access to device components or drape where people can trip over them.

  8. Connect each PSM to the power sources. Secure power source cables to the PSMs by screwing the ring lugs attached to the cables to the appropriate terminals by using the screw from the terminals (see Figure 6).
    Note:

    Ring lug required is a KST P/N: RNYBS8-4 or equivalent (not provided).

    The ACX7100-48L router is designed to operate with a DC PSM that has a single, non-redundant, feed input. For source redundancy, you must install two DC PSMs in the ACX7100-48L; connect source (A) to one PSM and source (B) to the second PSM. This configuration provides the commonly deployed A/B feed redundancy for the system.

    CAUTION:

    The connection between each power source and PSM must include a circuit breaker. We recommend that you use a customer-site 2-pole circuit breaker rated for 25A, or as required by local electrical code.

    Do not connect two sources to a single PSM because doing so can potentially cause circulating current in feed wires whenever there is any difference in the voltage of the two sources.
    Note:

    To connect the DC source to an ACX7100-48L router, use a 10-12 AWG wire.

    1. Secure the ring lug of the positive (+) DC power source cable to the V+ terminal on the DC PSM.
    2. Secure the ring lug of the negative (–) DC power source cable to the V– terminal on the DC PSM.
    3. Tighten the screws on the PSM terminals until snug using the screwdriver. Do not overtighten the screws.
  9. Replace the terminal block cover.
  10. Close the input circuit breaker.
    Note:

    The switch powers on as soon as power is provided to the PSM. There is no power switch on the device.

  11. Verify that the IN and OUT LEDs on the PSM are lit green and are on steadily.
Figure 6: Connect DC Power Cable to an ACX7100-48L RouterConnect DC Power Cable to an ACX7100-48L Router
