CTP151 Cooling System

The CTP151 device has front-to-back airflow. The air intake to cool the chassis is located on the front of the chassis. Air is pulled into the chassis and pushed toward the fans, which are built-in. Hot air exhausts from the rear of the chassis. See Figure 1.

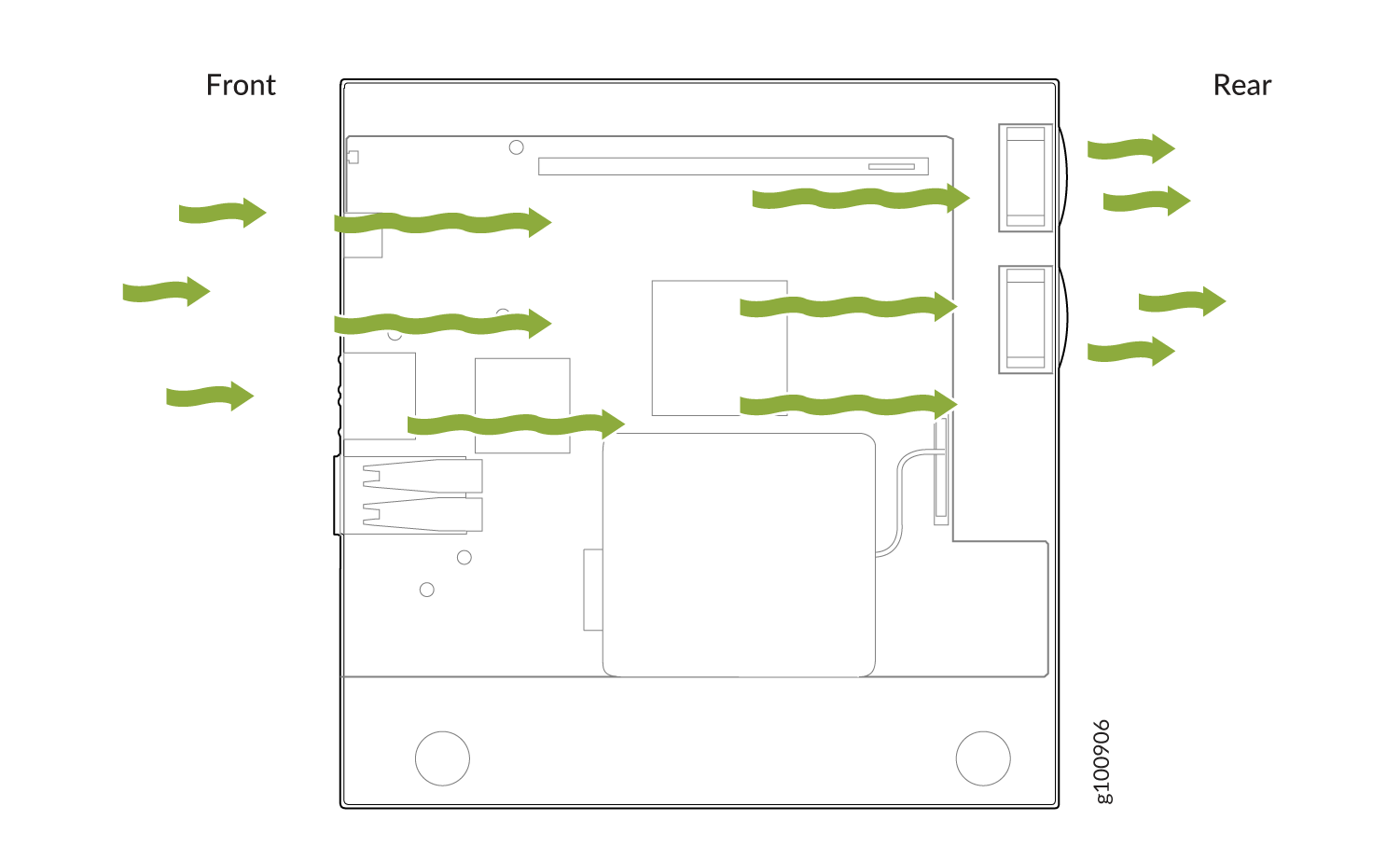

Figure 1: Front-to-Back Airflow Through the CTP151 Chassis Front-to-Back Airflow Through the CTP151 Chassis
