Mounting a CTP151 Device on Two Posts in a Rack
Before mounting a CTP151 device on two posts in a rack:
Place the rack in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the building structure.
Read CTP Safety Guidelines and Warnings.
Remove the device from the shipping carton.
Ensure that you have the following parts and tools available:
Phillips (+) screwdriver, number 2
2 mounting brackets and 8 mounting screws (provided in the accessory box shipped with the device)
Screws to secure the chassis to the rack (not provided)
You can mount a CTP151 device on two posts of a 19-in. rack (either a two-post or a four-post rack). One pair of mounting brackets for mounting the device on two posts of a rack is supplied with each device. For mounting the device on a four-post rack, you can use the supplied two-post rack-mounting kit and secure the device to two of the posts.
One person must be available to lift the device while another secures the device to the rack.
If you are mounting multiple devices on a rack, mount a device in the bottom of the rack first and proceed to mount the rest of the devices from bottom to top.
To mount the device on two posts in a rack:
- Align the mounting brackets along the front, rear, or
center of the side panels of the device chassis depending on how you
want to mount the device. For example, if you want to front-mount
the device, align the brackets along the front of the side panel.

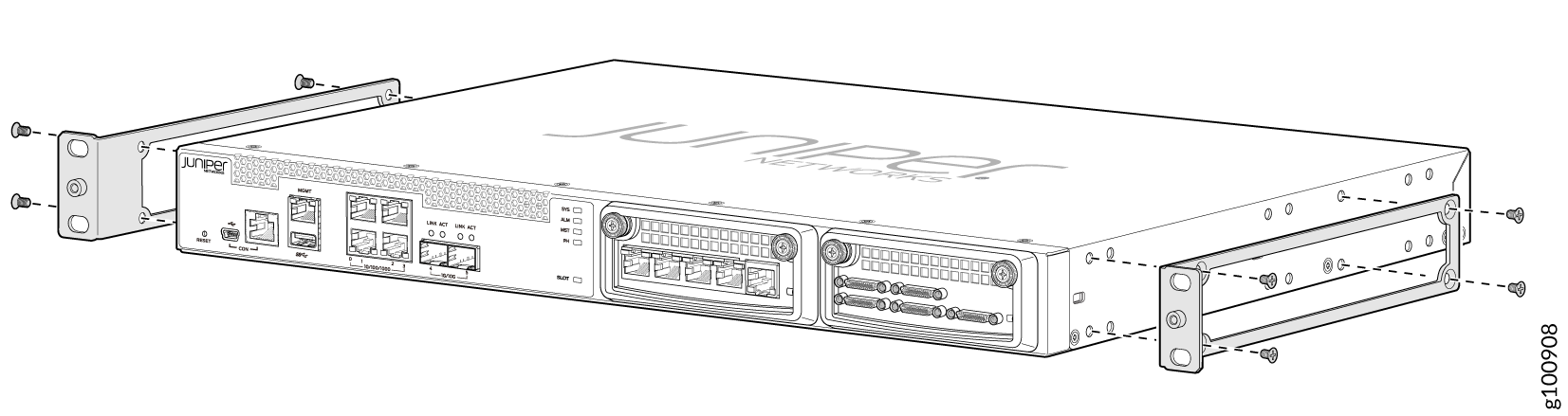

See Figure 1.Figure 1: Attaching the Mounting Brackets to the Side Panels of the CTP151 Device
- Have one person grasp both sides of the device, lift the
device, and position it in the rack, aligning the mounting bracket
holes with the threaded holes in the rack or cabinet rail. Align the
bottom hole in both the mounting brackets with a hole in each rack

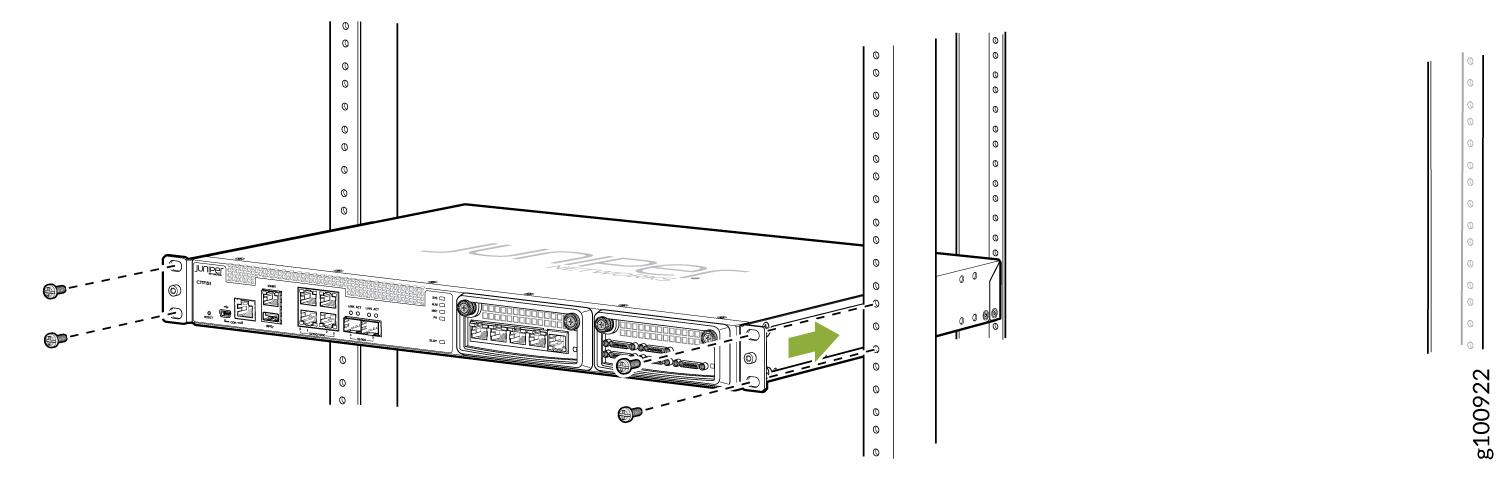

rail, making sure the chassis is level. See Figure 2 and Figure 3.Figure 2: Mounting the Device on Two Posts in a Two-Post Rack

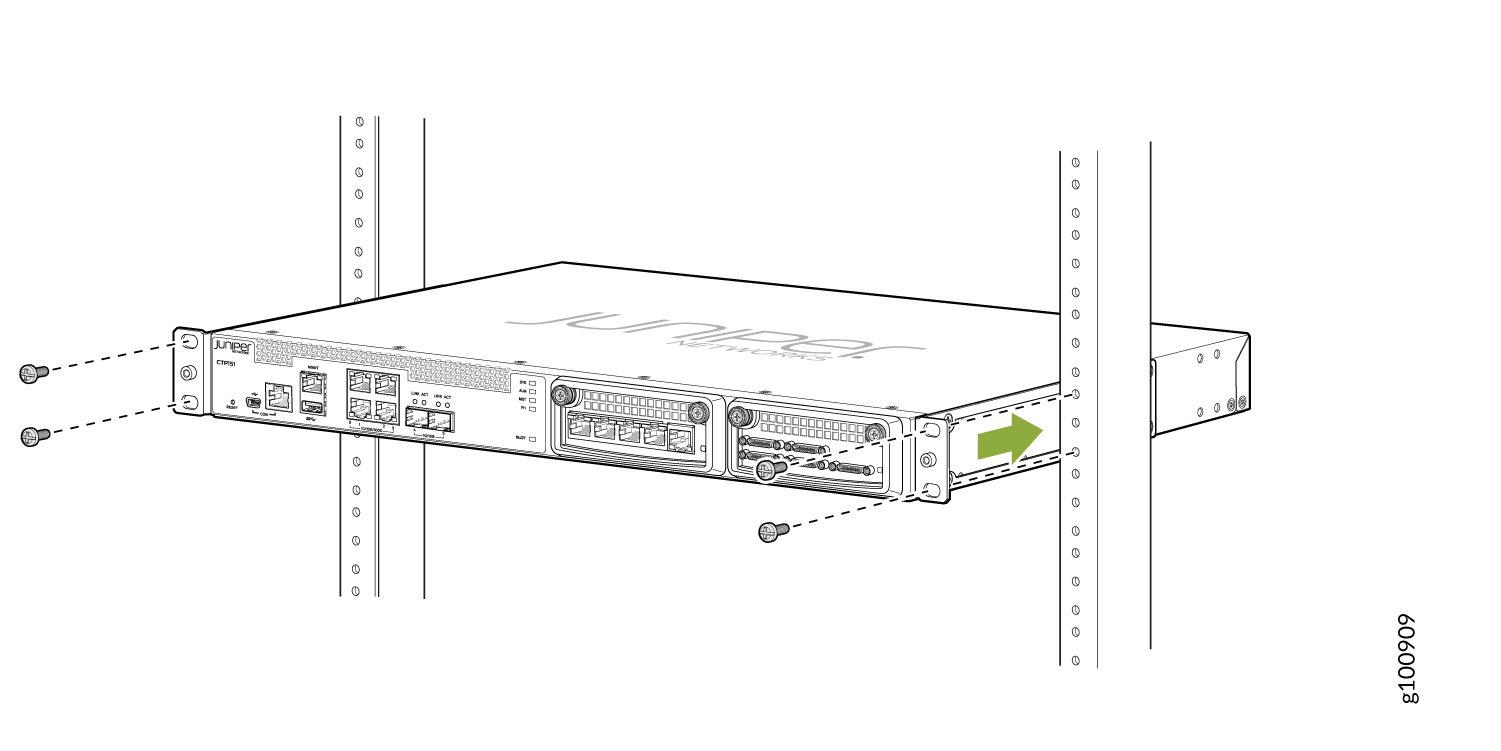

Figure 3: Mounting the Device on Two Posts in a Four-Post Rack
