Fast Track to Rack Installation and Power

SUMMARY This procedure guides you through the simplest steps for the most common installation to get your EX9214 switch in a rack and connect it to power. Have more complex installation needs? See Installing and Connecting an EX9214 Switch

Installing the EX9214 Switch in a Rack

You can install the switch in a 19-in. equipment rack or cabinet by using the front-mounting bracket attached to the chassis. Before installation of the EX9214 switch in a rack or cabinet, review the following information:

You can mount the switch in a rack or cabinet using a mechanical lift.

Mounting an EX9214 Switch on a Rack or Cabinet Using a Mechanical Lift

Before you install the switch:

Ensure that you have the following parts and tools available to install the switch:

  • A mechanical lift

  • 7/16-in. (11-mm) nut driver

  • Phillips (+) screwdrivers, number 1 and 2

  • ESD grounding wrist strap

Because of the size and weight of the switch, we strongly recommend using a mechanical lift to install the switch.

CAUTION:

Do not install line cards in the chassis until after you mount the chassis securely on a rack or cabinet.
CAUTION:

Before front-mounting the switch on a rack or cabinet, have a qualified technician verify that the rack or cabinet is strong enough to support the weight of the switch and is adequately supported at the installation site.
CAUTION:

If you are installing more than one switch in a rack or cabinet, install the first switch at the bottom of the rack.

To install the switch using a mechanical lift:

  1. Attach the ESD grounding strap to your bare wrist and connect the strap to the ESD point on the chassis.

  2. Ensure that the rack or cabinet is placed in its permanent location and is secured to the building. Ensure that the installation site allows adequate clearance for both airflow and maintenance.

  3. Load the switch onto the lift, making sure it rests securely on the lift platform.

  4. Using the lift, position the switch in front of the rack or cabinet, centering it in front of the mounting shelf installed in the rack.

  5. Lift the chassis approximately 0.75 in. (1.9 cm) above the surface of the mounting shelf and position it as close as possible to the shelf.

  6. Carefully slide the switch onto the mounting shelf so that the bottom of the chassis and the mounting shelf overlap by approximately two inches.

  7. Slide the switch onto the mounting shelf until the mounting brackets contact the rack rails. The shelf ensures that the holes in the mounting brackets of the chassis align with the holes in the rack rails.

  8. Move the lift away from the rack.

  9. Install a mounting screw into each of the open front-mounting holes aligned with the rack, starting from the bottom.

  10. Visually inspect the alignment of the switch. If the switch is installed properly in the rack, all the mounting screws on one side of the rack are aligned with the mounting screws on the opposite side and the switch is level.

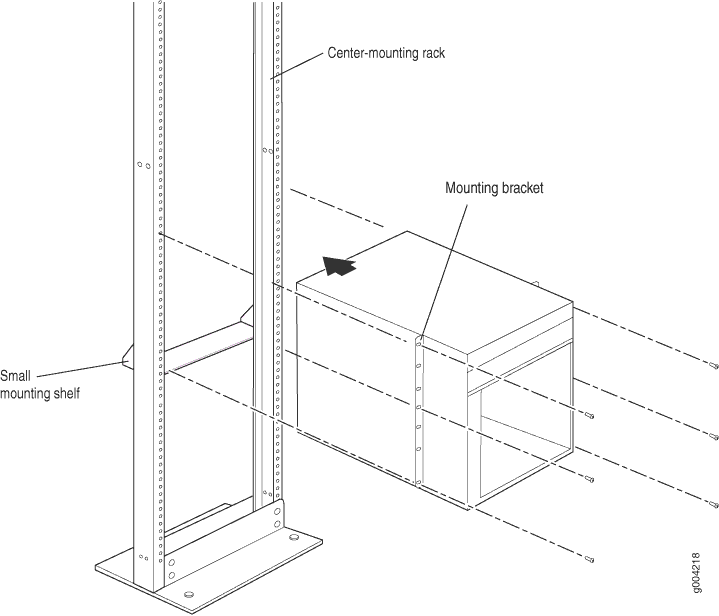

  11. The following Figure 1 shows installing an EX9208 switch in an open-frame rack. The procedure is the same for all EX9200 switches.

    Figure 1: Installing the Switch in an Open-Frame Rack

Connect to Power

Ground the EX9214 Switch

To connect earth ground to an EX9214 series switch:

  1. Verify that a licensed electrician has attached the cable lug to the grounding cable.

  2. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the switch is mounted.

  3. Attach an ESD grounding strap to your bare wrist, and connect the strap to the ESD grounding point on the switch.

  4. Place the grounding lug attached to the grounding cable over the protective earthing terminal, see Figure 2.

    Figure 2: Connecting a Grounding Cable to an EX Series Switch Connecting a Grounding Cable to an EX Series Switch

  5. Secure the grounding lug to the protective earthing terminal with the washers and screws.

  6. Dress the grounding cable and ensure that it does not touch or block access to other switch components and that it does not drape where people could trip over it.

Connect the EX9214 Switch to Power

Depending on the requirements as appropriate for your site, connect AC or DC power to the EX9214 switch. The following section instructs you how to connect the switch to an AC power source. Read Connecting DC Power to an EX9214 Switch to read on how to connect DC power to the EX9214 switch.

Connecting AC Power to an EX9214 Switch

Before you begin to connect power to the switch:

Ensure that you have the following parts and tools available:

  • ESD grounding strap

  • If you are using the power supply in one-feed mode, one AC nominal 220 VAC 20 A power cord appropriate for your geographical location. If you are using the power supply in two-feed mode, two AC nominal 220 VAC 20 A power cords appropriate for your geographical location. See AC Power Cord Specifications for an EX9214 Switch to identify the power cord with the type of plug appropriate for your geographical location.

You can install up to four AC power supplies in EX9214 switches.

CAUTION:

Do not mix different types of power supplies (AC and DC) in the same chassis.
Note:

Each power supply must be connected to a dedicated AC power source outlet and a dedicated customer site circuit breaker.
Warning:

Ensure that the power cords do not block access to switch components or drape where people can trip on them.

To connect AC power to an EX9214 switch:

  1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

  2. Ensure that the power supply is fully inserted and latched securely in the chassis. See Installing an AC Power Supply in an EX9214 Switch.

  3. Rotate the metal cover next to the appliance inlet on the power supply faceplate away to expose the input mode switch.

  4. Move the input mode switch to 0 for one feed and 1 for two feeds. See Figure 3.

  5. Set the power switch of the power supply and the AC input switch located on the chassis above the power supply to the Off (O) position.

  6. Ensure that the power cords with the type of plug are appropriate for your geographical location.

  7. If you are using the power supply in one-feed mode, insert the coupler end of the power cord into the AC appliance inlet located on the chassis above the power supply. This is the recommended inlet when using the power supply in one-feed mode. If you are using the power supply in two-feed mode, insert the coupler end of the other power cord into the AC appliance inlet on the power supply faceplate also.

    Note:

    Each power supply must be connected to a dedicated AC power source outlet and a dedicated customer site circuit breaker.

  8. If the AC power source outlet has a power switch, set it to the Off (O) position.

  9. Insert the power cord plug into an AC power source outlet and switch on the dedicated customer site circuit breaker.

  10. If the AC power source outlet has a power switch, set it to the On (|) position.

    Move the AC input switch located on the chassis above the power supply to the On (|) position. This is the only switch you have to turn on if you using the power supply in one-feed mode. If you are using the power supply in two-feed mode, set the power switch on the power supply faceplate also to the On (|) position.

  11. If the power supply is correctly installed and functioning normally, the AC-1 OK, AC-2 OK (in two-feed model only), and DC OK LEDs glow steadily in green color and the PS FAIL LED is not lit.

  12. Dress the cord appropriately. Ensure that the cord does not block the air exhaust and access to switch components, or drape where people could trip on it.

    Figure 3: Connecting AC Power to an EX9214 Switch Connecting AC Power to an EX9214 Switch

Powering on the Switch

Before you power on the switch, ensure that:

  • You have installed all required switch components.

  • You have installed the required number of power supplies to support redundant operation for the switch configuration.

  • You understand how to protect the switch from electrostatic discharge (ESD) damage. See Prevention of Electrostatic Discharge Damage.

Ensure that you have the following parts and tools available:

To power on the switch:

  1. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to the ESD point on the switch.

  2. Connect the external management device to the Ethernet management (<...>) port on the primary RE module.

  3. Turn on the power to the external management device.

  4. Ensure that the power supplies are fully inserted in the chassis and that each of their handles is flush against the faceplate.

  5. Ensure that the source power cord is inserted securely into the appliance inlet for each AC power supply.

  6. Switch on the dedicated customer site circuit breakers for the power supplies. Follow the ESD and safety instructions for your site.

  7. Flip the AC input switch on the power supply to the On (|) position. Observe the power supply faceplate LEDs. If the power supply is installed correctly and functioning normally, the AC OK and DC OK LEDs glow steady green. The PS FAIL LED does not glow.

  8. Repeat Step 7 for the remaining power supplies installed in the switch.

    If any of the status LEDs indicates that the power supply is not functioning normally, repeat the installation and cabling procedures. See Connecting AC Power to an EX9214 Switch.

  9. On the external management device, monitor the startup process to ensure that the system boots properly.

Note:

After you power on a power supply, wait for at least 60 seconds before you turn it off. After you power off a power supply, wait for at least 60 seconds before you turn it back on.

If the system is completely powered off when you switch on a power supply, the RE module boots as the power supply completes its startup sequence. If the Routing Engine finishes booting and you need to power off the system again, first issue the CLI request system halt command.

After you power on a power supply, it can take up to 60 seconds for status indicators such as power supply LEDs and the show chassis operational mode CLI command display to indicate that the power supply is functioning normally. Ignore any error indicators that might appear during the first 60 seconds.
