Front-and-Rear Mounting the JA2500 Junos Space Appliance Flush to a Rack

date_range 06-May-21

arrow_backward

arrow_forward

This mounting option is used for larger chassis that require additional support when mounted on the rack-mount system.

To mount the JA2500 appliance front and rear flush to a rack, do the following:

Insert four rack-mount screws on each side of the appliance to secure the front of the chassis to the equipment rack.
Slide the rear-mount rail brackets into the backs of the front rails on either side of the chassis and align with your rear equipment rack posts, as shown in Figure 1.
Secure the rear-mount rail brackets to your equipment rack with two rack-mount screws each.
Insert locking screws on the sides of the rear-mount brackets to secure the front and rear mounting brackets in place.

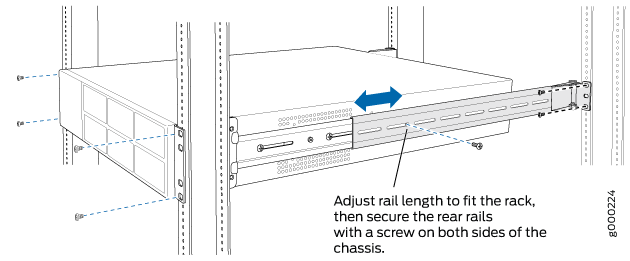

Figure 1: Front-and-Rear Mounting Flush to a Rack
Verify that the mounting screws on one side of the rack are aligned with the mounting screws on the opposite side and that the appliance is level.

arrow_backward PREVIOUS Mounting the JA2500 Junos Space Appliance

NEXT arrow_forward Front-and-Rear Mounting the JA2500 Junos Space Appliance Recessed in a Rack
