JRR200 Power System
JRR200 Route Reflector AC Power Supply
The JRR200 Route Reflector is shipped with two redundant AC power supply units pre-installed in the rear panel of the chassis. The AC power supply unit is a field-replaceable unit (FRU) and you can install it without powering off the JRR200 route reflector or disrupting the route reflector function. If one power supply unit fails or is removed, the other power supply unit redistributes the electrical load without interruption. Each power supply unit is cooled by its own internal cooling system.

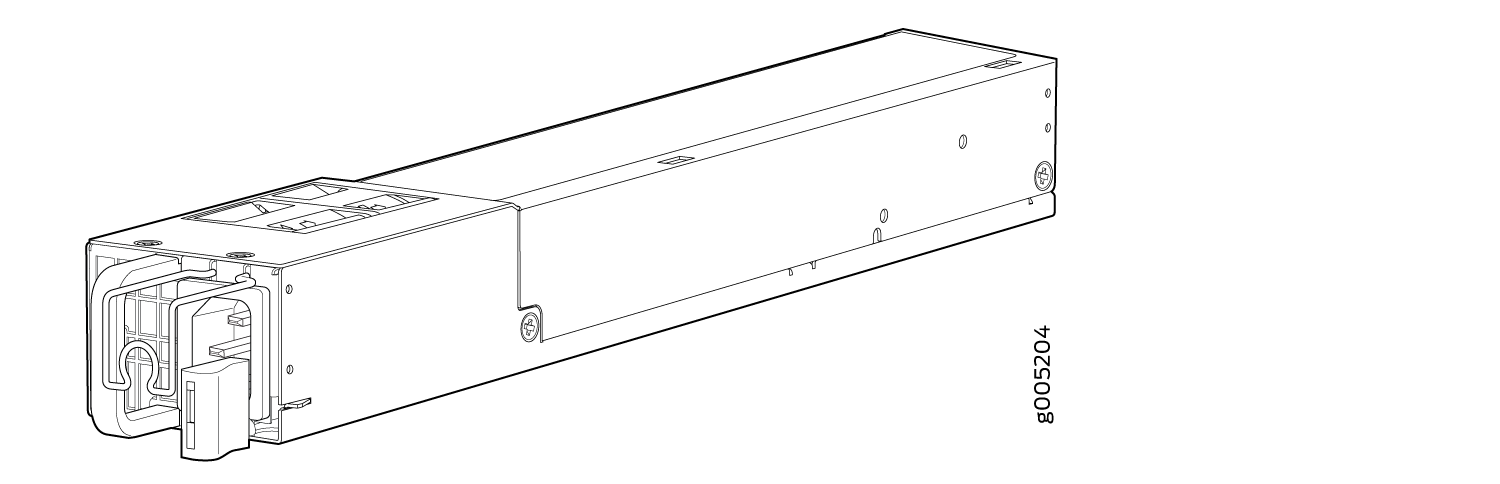

Each AC power supply unit weighs approximately 2.3 lb and consists of one AC appliance inlet, a fan, and LEDs for monitoring the status of the power supply unit. It gives an output of 650 W and supports both low line voltage (100–127 VAC) and high line voltage (200–240 VAC). Figure 1 shows the AC power supply unit.

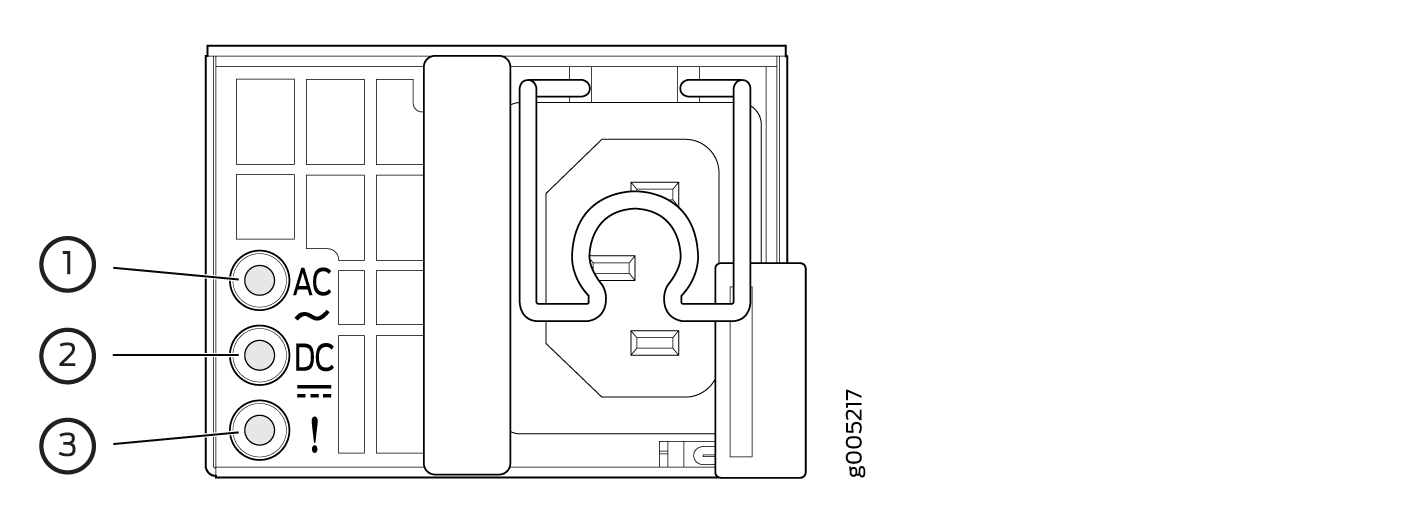

Each AC power supply unit faceplate contains three LEDs that indicate the status of the power supply. Figure 2 shows the location of the LEDs on an AC power supply unit.
Table 1 describes the AC power supply unit LEDs.
LED |
Color |
State |
Description |
---|---|---|---|
AC |
Unlit |
Off |
Indicates one of the following:
|
Green |
Steady |
Input power present and is within the normal operating range. |
|
DC |
Unlit |
Off |
No DC power output or abnormal DC output. |
Green |
On steadily |
DC power output is within the normal operating range. |
|
! (Fault) |
Amber |
On steadily |
Power supply unit failure. |
Blinking |
Invalid power supply unit. |
||
Unlit |
Off |
Power supply unit is functioning normally. |
If both the AC LED and the DC LED are unlit, either the AC power cord is not installed properly or the power supply unit fuse has failed.
If the AC LED is lit and the DC LED is unlit, the AC power supply unit is installed properly, but the power supply unit has an internal failure.
JRR200 Route Reflector AC Power Supply Specifications
Table 2 lists the specifications for an AC power supply.
Item |
Specification |
---|---|
AC input voltage |
Operating range:
|
AC input line frequency |
50–60 Hz |
AC input current rating |
|
AC output power |
|
Maximum System Power Requirement |
440 W |
System Thermal Output = (Maximum System Power Requirement ) * 3.41 Note: 1 W = 3.41 BTU/Hour |
1500 BTU/Hour |
JRR200 Route Reflector AC Power Cord Specifications
A detachable AC power cord is supplied with the AC power supplies. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320.
In North America, AC power cords must not exceed 4.5 m (approximately 14.75 ft) in length, to comply with National Electrical code (NEC) Section 400-8 (NFPA 75, 5-2.2) and 210-52, and Canadian Electrical Code (CEC) Section 4-010(3).
Table 3 provides power cord specifications, and Figure 3 depicts the plug on the AC power cord provided for each country or region.
Country |
Electrical Specification |
Plug Standards |
---|---|---|
Australia |
250 VAC, 10 A, 50 Hz |
AS/NZ 3112-1993 |
China |
250 VAC, 10 A, 50 Hz |
GB2099.1 1996 and GB 1002 1996 (CH1-10P) |
Europe (except Italy and United Kingdom) |
250 VAC, 10 A, 50 Hz |
CEE (7) VII |
Italy |
250 VAC, 10 A, 50 Hz |
CEI 23-16/VII |
Japan |
125 VAC, 12 A, 50 or 60 Hz |
JIS 8303 |
North America |
125 VAC, 10 A, 60 Hz |
NEMA 5-15 |
United Kingdom |
250 VAC, 10 A, 50 Hz |
BS 1363A |
Power cords and cables must not block access to the JRR200 route reflector components or drape where people might trip on them.
The AC power cord for the JRR200 route reflector is intended for use with the route reflector only and not for any other use.
JRR200 Route Reflector DC Power Supply
The JRR200 Route Reflector is shipped with two redundant DC power supply units pre-installed in the rear panel of the chassis. The DC power supply unit is a field-replaceable unit (FRU) and you can install it without powering off the JRR200 route reflector or disrupting the route reflector function. If one power supply unit fails or is removed, the other power supply unit redistributes the electrical load without interruption. Each power supply unit is cooled by its own internal cooling system.
Each DC power supply unit weighs approximately 2.2 lb and has two independent pairs of DC input lugs, a fan, and LEDs for monitoring the status of the power supply. It gives an output of 650 W. Figure 4 shows the DC power supply unit.

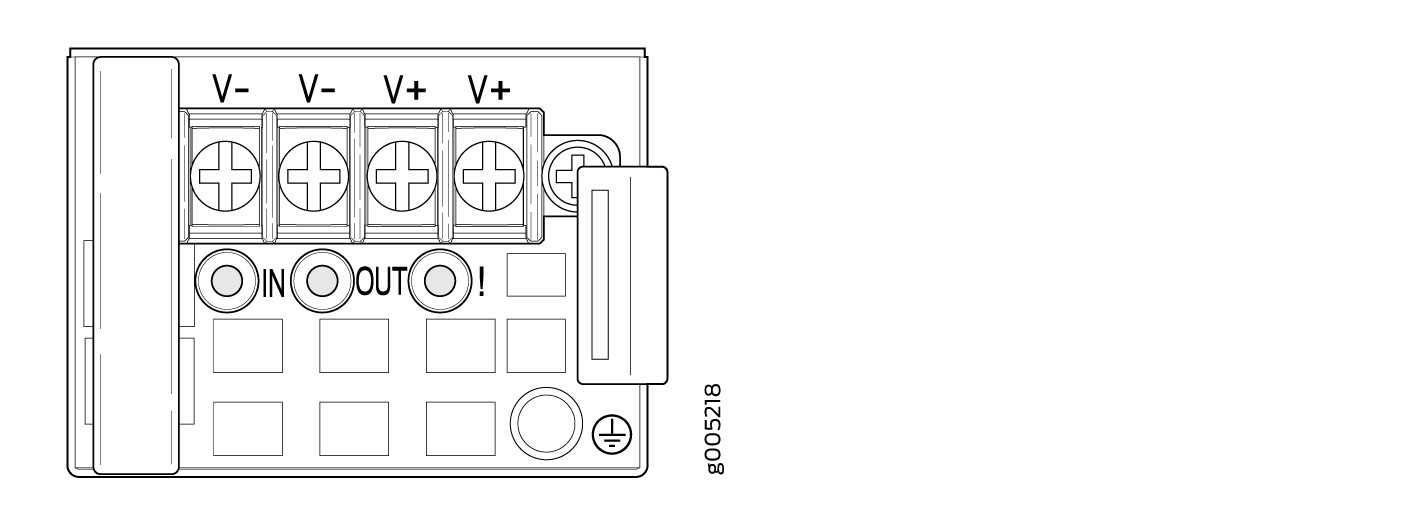

Each DC power supply unit faceplate contains three LEDs that indicate the status of the power supplies. Figure 5 shows the location of the LEDs on a DC power supply unit.
Table 4 describes the DC power supply unit LEDs.
LED |
Color |
State |
Description |
---|---|---|---|
IN |
Unlit |
Off |
Indicates one of the following:
|
Green |
On steadily |
Input power present and is within the normal operating range. |
|
OUT |
Unlit |
Off |
No DC power output or abnormal DC output. |
Green |
On steadily |
DC power output is within the normal operating range. |
|
! (Fault) |
Amber |
On steadily |
Power supply unit failure. |
Blinking |
Invalid power supply unit. |
||
Unlit |
Off |
Power supply unit is functioning normally. |
JRR200 Route Reflector DC Power Supply Specifications
Table 5 lists the power supply specifications for a DC power supply.
Item |
Specifications |
---|---|
DC input voltage |
|
DC input current rating |
9 A maximum at nominal operating voltage |
Output power |
650 W |
