LWC Power System

Power Supply in LWC Devices

The LWC device uses a fixed, internal AC power supply, which is not field-replaceable. The power supply distributes different output voltages to the device components according to their voltage requirements.

The power supply has a single AC appliance inlet that requires a dedicated AC power feed. The AC power cord inlet is on the rear panel of the device.

AC Power Supply Specifications for an LWC Device

Table 1 describes the AC power specifications for an LWC device.

Table 1: AC Power Specifications for an LWC Device

Item

Specification

AC input voltage

Operating range: 100 through 240 VAC

AC input line frequency

50–60 Hz nominal

AC input current rating

3 A at 240 VAC

Maximum power consumption

140 W

AC Power Cord Specifications for an LWC Device

A detachable AC power cord is supplied with the AC power supplies. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320. The plug at the plug end of the power cord fits into the power source outlet that is standard for your geographical location.

CAUTION:

Use the AC power cord (provided with each power supply) only with the power supply for which it is intended.

Note:

In North America, AC power cords must not exceed 4.5 meters in length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords supplied with the switch are in compliance.

Table 2 gives the AC power cord specifications for the countries and regions listed in the table.

Table 2: AC Power Cord Specifications

Country/Region

Electrical Specifications

Plug Standards

Juniper Model Number

Argentina

250 VAC, 10 A, 50 Hz

IRAM 2073 Type RA/3

CBL-EX-PWR-C13-AR

Australia

250 VAC, 10 A, 50 Hz

AS/NZZS 3112 Type SAA/3

CBL-EX-PWR-C13-AU

Brazil

250 VAC, 10 A, 50 Hz

NBR 14136 Type BR/3

CBL-EX-PWR-C13-BR

China

250 VAC, 10 A, 50 Hz

GB 1002-1996 Type PRC/3

CBL-EX-PWR-C13-CH

Europe (except Italy, Switzerland, and United Kingdom)

250 VAC, 10 A, 50 Hz

CEE (7) VII Type VIIG

CBL-EX-PWR-C13-EU

India

250 VAC, 10 A, 50 Hz

IS 1293 Type IND/3

CBL-EX-PWR-C13-IN

Israel

250 VAC, 10 A, 50 Hz

SI 32/1971 Type IL/3G

CBL-EX-PWR-C13-IL

Italy

250 VAC, 10 A, 50 Hz

CEI 23-16 Type I/3G

CBL-EX-PWR-C13-IT

Japan

125 VAC, 12 A, 50 Hz or 60 Hz

JIS 8303

CBL-EX-PWR-C13-JP

Korea

250 VAC, 10 A, 50 Hz or 60 Hz

CEE (7) VII Type VIIGK

CBL-EX-PWR-C13-KR

North America

125 VAC, 13 A, 60 Hz

NEMA 5-15 Type N5-15

CBL-EX-PWR-C13-US

South Africa

250 VAC, 10 A, 50 Hz

SABS 164/1:1992 Type ZA/13

CBL-EX-PWR-C13-SA

Switzerland

250 VAC, 10 A, 50 Hz

SEV 6534-2 Type 12G

CBL-EX-PWR-C13-SZ

Taiwan

125 VAC, 11 A and 15 A, 50 Hz

NEMA 5-15P Type N5-15P

CBL-EX-PWR-C13-TW

United Kingdom

250 VAC, 10 A, 50 Hz

BS 1363/A Type BS89/13

CBL-EX-PWR-C13-UK

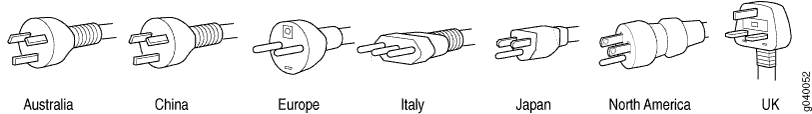

Figure 1 illustrates the plug on the power cord for some of the countries or regions listed in Table 2.

Figure 1: AC Plug TypesAC Plug Types
