MPC1E Q

Software release

  • MX240, MX480, and MX960 routers: Junos OS Release 11.2R4 and later

  • MX2010 and MX2020 router: Junos OS Release 12.3 and later

For information on which MICs are supported on this MPC, MIC/MPC Compatibility.

Description

  • Power requirement: 3.65 A @ 48 V (175 W)

  • Weight: 13.8 lb (6.3 kg)

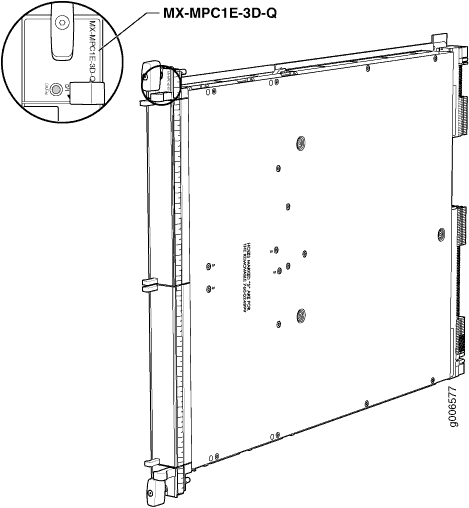

  • Model number: MX-MPC1E-3D-Q

  • Name in the CLI: MPCE Type 1 3D Q

Hardware features

  • Two slots for MICs labeled PIC 0/1 and PIC 2/3

  • One Junos Trio chipset for increased scaling for bandwidth, subscribers, and services

  • LAN-PHY mode at 10.3125 Gbps

  • WAN-PHY mode at 9.953 Gbps

Software features

LEDs

OK/FAIL LED, one bicolor:

  • Steady green—MPC is functioning normally.

  • Blinking green—MPC is transitioning online or offline.

  • Red—MPC has failed.
