MPC2E P

Software release

• MX240, MX480, and MX960 routers : Junos OS Release 12.2 and later

• MX2010 and MX2020 router: Junos OS Release 12.3 and later

For information on which MICs are supported on this MPC, MIC/MPC Compatibility.

Description

• Power requirement: 6.13 A @ 48 V (294 W)

• Weight: 14 lb (6.4 kg)

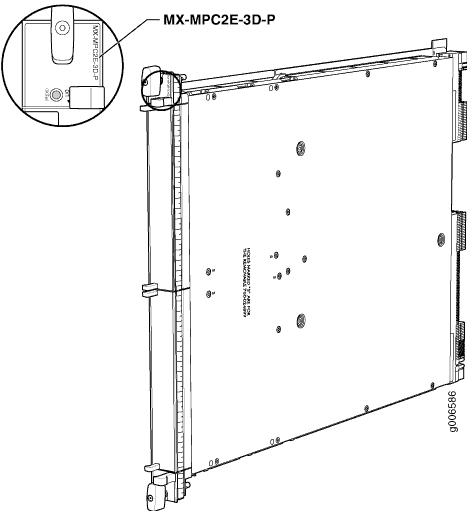

• Model number: MX-MPC2E-3D-P

• Name in the CLI: MPCE Type 2 3D P

Hardware features

• Two slots for MICs labeled PIC 0/1 and PIC 2/3

• Two Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services

• LAN-PHY mode at 10.3125 Gbps

• WAN-PHY mode at 9.953 Gbps

Software features

• See Protocols and Applications Supported by the MX240, MX480, MX960, MX2010, and MX2020 MPC2E for information about the protocols and applications that this MPC supports.

LEDs

OK/FAIL LED, one bicolor:

• Steady green—MPC is functioning normally.

• Blinking green—MPC is transitioning online or offline.

• Red—MPC has failed.
