Mount the Juniper Networks MX10004 Router Using the JNP10K-RMK-4PST-XT Rack-Mount Kit

date_range 24-Feb-25

arrow_backward

arrow_forward

You can mount a Juniper Networks MX10004 router in a four-post closed-frame rack or a four-post open-frame rack by using a rack-mount kit (RMK) with the part number JNP10K-RMK-4PST-XT. The JNP10K-RMK-4PST-XT is an extended depth RMK with the rail spacing range from 850 mm (33.5 in) up to 1054 mm (41.5 in). In this topic, we describe how to mount the router by using the JNP10K-RMK-4PST-XT rack mount kit.

Note:

JNP10K-RMK-4PST-XT is not certified for the GR-63 Zone 4 earthquake requirements.

The router chassis weighs approximately 123 lb (56 kg) with only the fan tray controllers installed.

You can mount an MX10004 manually or by using a mechanical lift. Because of the router's size and weight, we strongly recommend that you use a mechanical lift to mount the MX10004.

If you are mounting the router by using a lift, ensure that you have a mechanical lift rated for 250 lbs (113.4 kg).

If you are mounting the router manually, ensure that at least three people are available to lift the chassis together.

Before you mount the MX10004 router:

Prepare the site for installation as described in .
Unpack the router as described in .
Review the chassis lifting guidelines in .

Ensure that you have the following parts and tools available:

Rack mount screws appropriate for your rack to secure the mounting trays and chassis to the rack (not provided)
A Phillips (+) screwdriver, number 1, 2, or 3, depending on the size of your rack mount screws (not provided)

The rack mount kit consists of the following components:

Two mounting trays
20 Phillips 8-32 x .375 flat-head screws

CAUTION:

Install line cards and other components in the chassis only after you mount the chassis securely.

CAUTION:

Before mounting the router on a rack, have a qualified technician verify that the rack is strong enough to support the router's weight and is adequately supported at the installation site.

CAUTION:

If you are mounting multiple units on a rack, plan to mount the first router at the bottom of the rack. Mount the heaviest unit at the bottom of the rack and mount the other units from the bottom of the rack to the top in decreasing order of the weight of the units.

To mount the router:

Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to a site ESD point.

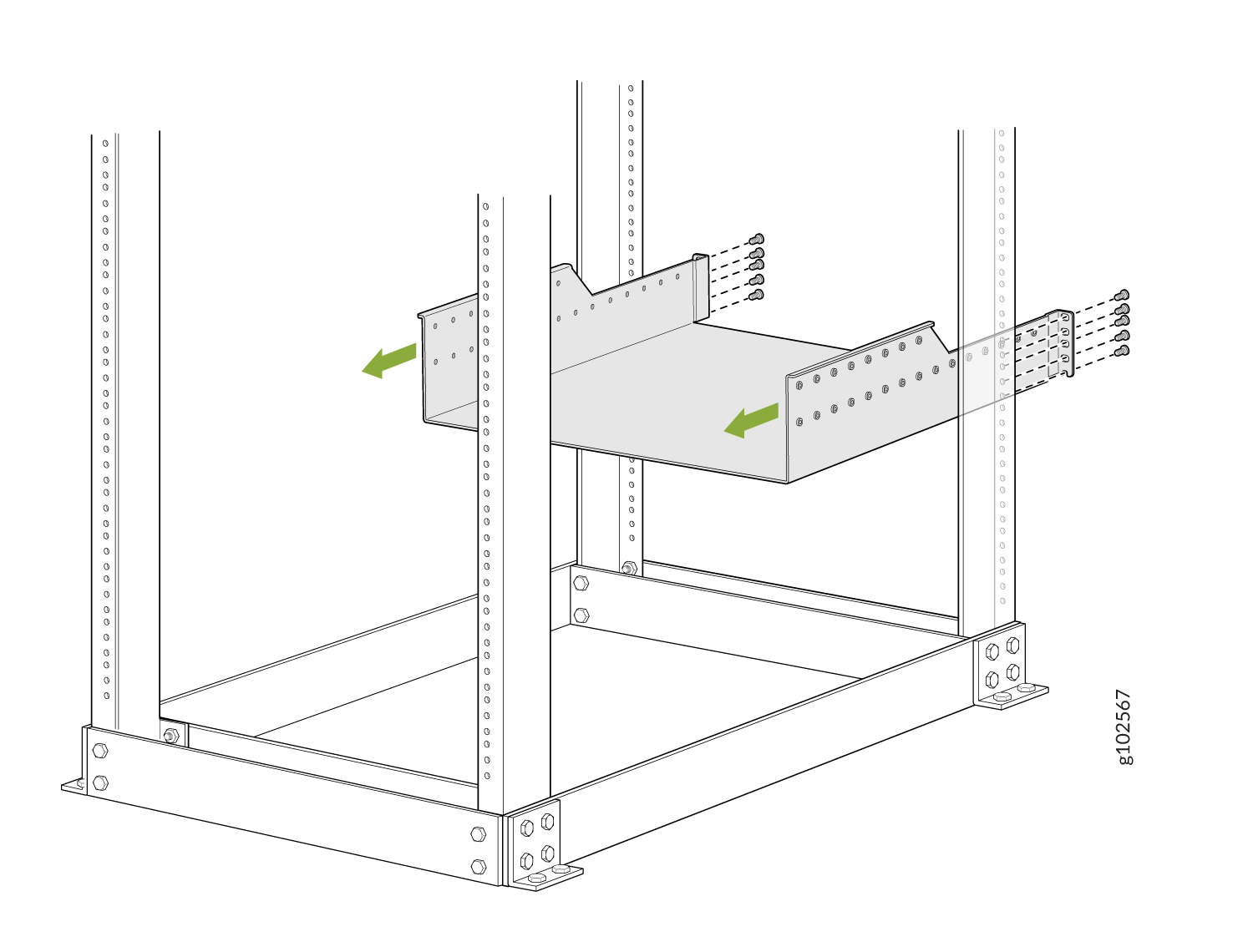

From the rear of the rack, slide the rear mounting tray into the rear posts of the rack and attach the tray to the rear rack posts by using the rack mount screws appropriate for your rack.
Figure 1: Attach the Rear Mounting Tray

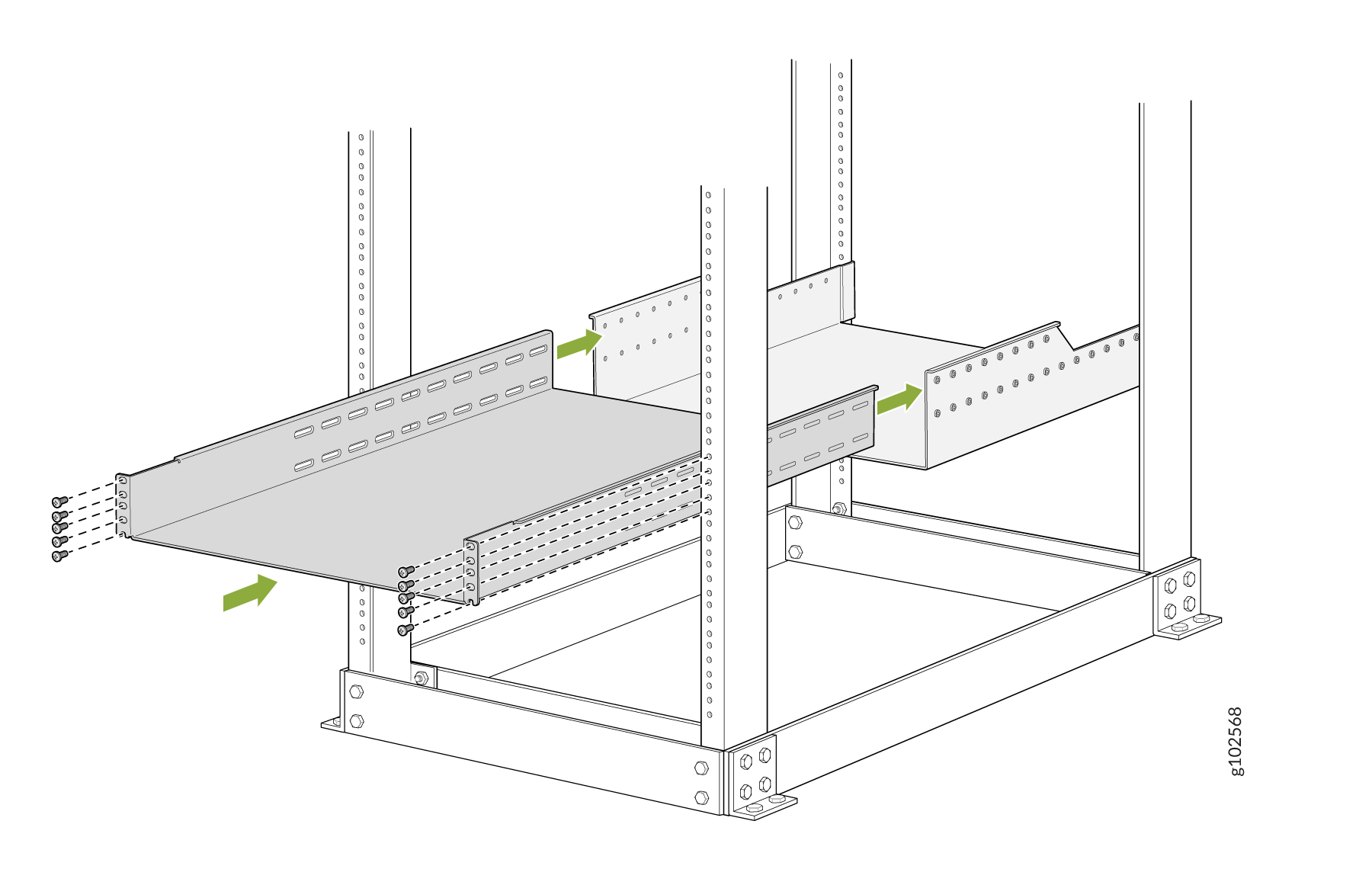

From the front of the rack, slide the front mounting tray into the front posts of the rack and attach the tray to the front rack posts by using the rack mount screws appropriate for your rack.
Figure 2: Attach the Front Mounting Tray
Check that the mounting trays are in level.

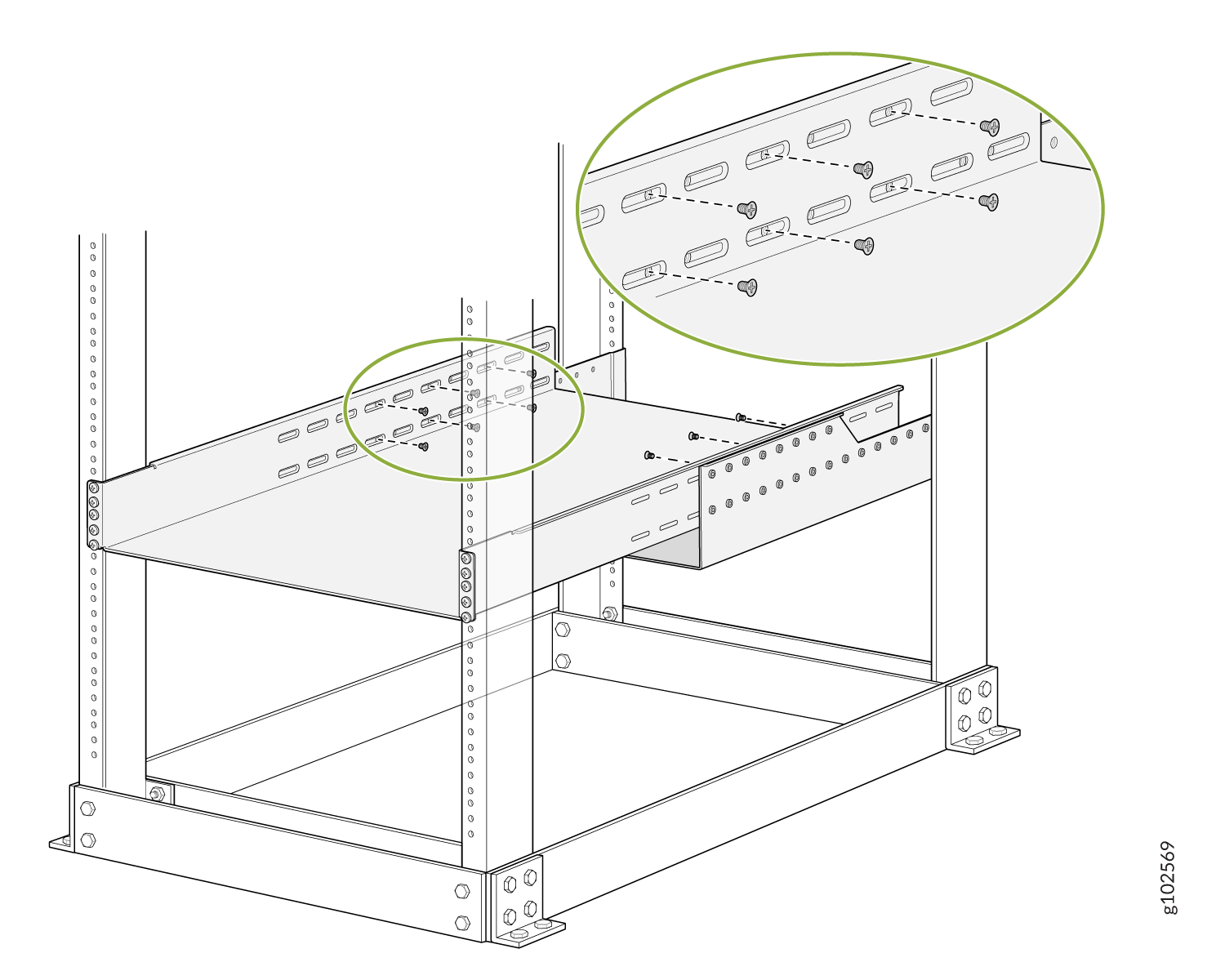

Attach the front mounting tray to the rear mounting tray using the 20 Phillips 8-32 x .375 in. flat-head screws.

Note:
We recommend that you use 6 to 10 screws on each side of the trays. The location to install the screws can vary depending on rack depth and overlap between front and rear trays.

Figure 3: Attach the Front Mounting Tray to the Rear Mounting Tray

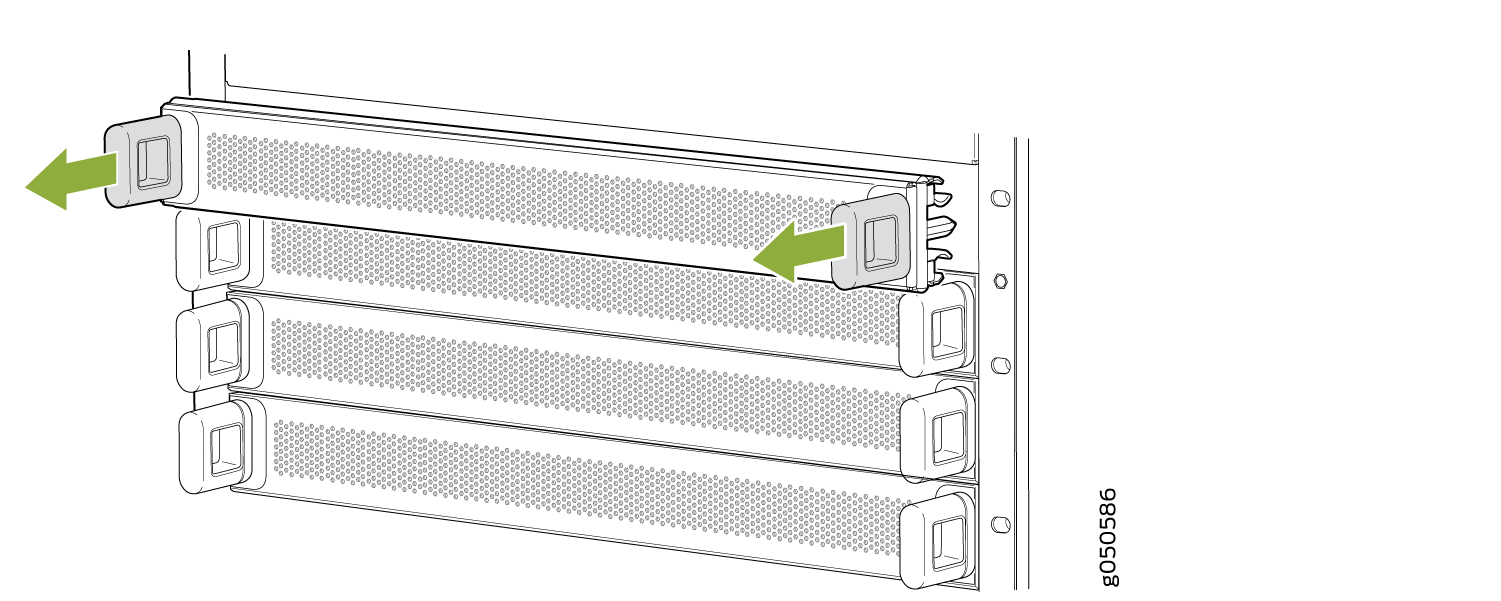

Remove the line card slot covers by grasping the handles and pulling the covers straight out. Store the covers.
Figure 4: Remove the Line Card Slot Covers
If you are mounting the router by using a lift:
1. Load the router onto the lift, making sure it rests securely on the lift platform.
  Figure 5: Load the MX10004 onto a Mechanical Lift
2. By using the lift, align the router in front of the rack, centering it in front of the mounting tray.
3. Lift the chassis approximately 0.75 in. (1.9 cm) above the surface of the mounting tray. Align the chassis as close as possible to the mounting tray.
If you are mounting the router manually:
1. Align the router in front of the rack, centering it in front of the mounting tray. Use a pallet jack if one is available.

  Warning:
  To prevent injury, keep your back straight and lift with your legs, not your back. Do not twist your body as you lift. Balance the load evenly and be sure that your footing is firm.

  CAUTION:
  If you are mounting more than one router, mount the first one at the bottom of the rack. Do not attempt to mount a router manually in an upper position in a rack.

  Note:
  The chassis has two handles that are designed for subtle positioning of the chassis. Do not lift the chassis by the handles.
2. With one person on each side and one person in the rear, hold the bottom of the chassis and carefully lift it onto the mounting tray.
  Figure 6: Lift the MX10004 Manually

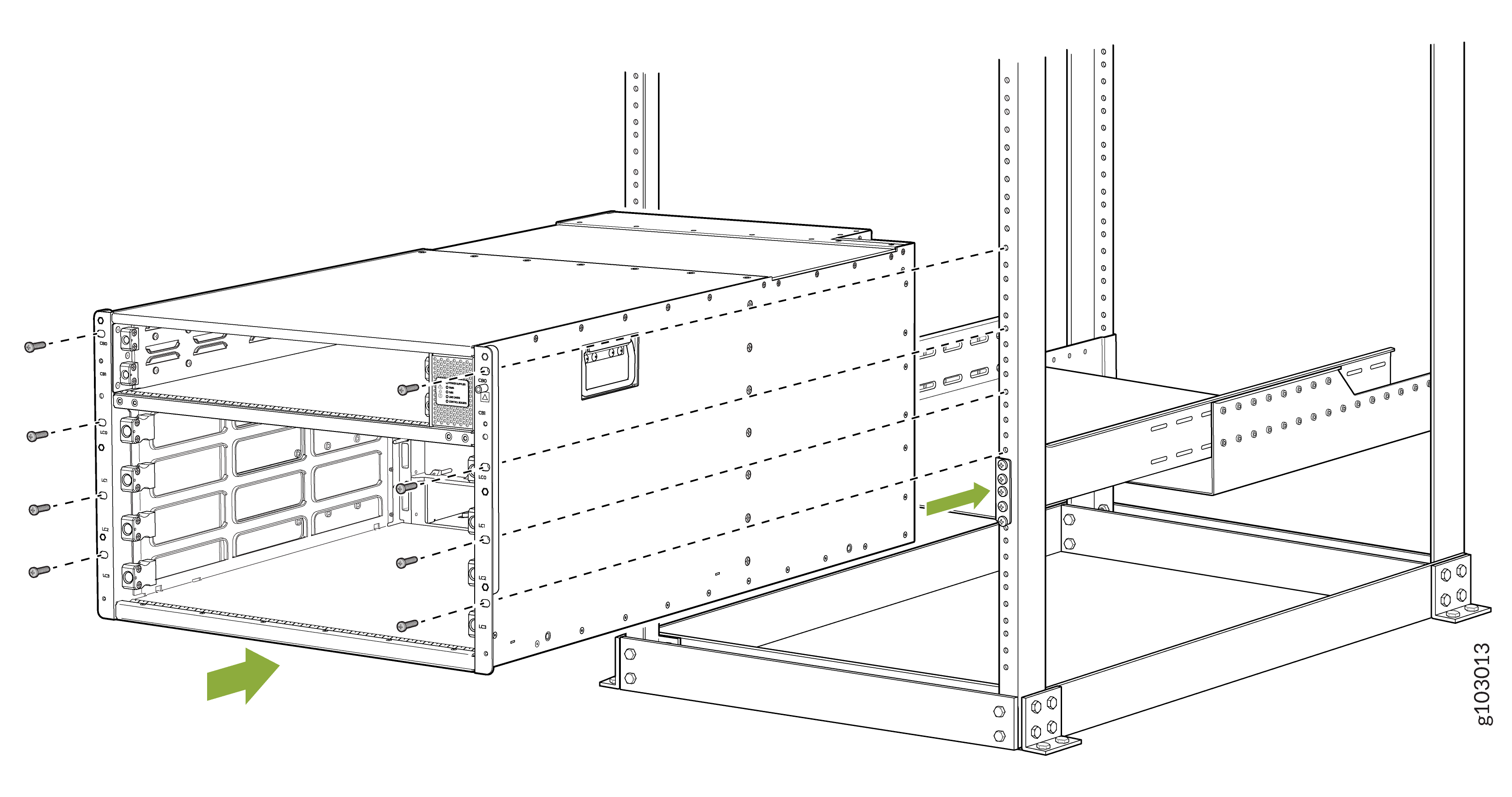

Carefully slide the chassis onto the mounting tray until the chassis flanges contact the rack rails.
Secure the chassis to the rack using the rack mount screws through the open flange hole and rack hole.
Figure 7: Attach the Chassis to the Rack
If you used a lift to mount the router, move the lift away from the rack.
Check the alignment of the router. The rack mount screws on each side of the rack should line up, and the router should be level. Tighten the screws.
