Replacing the MX2010 Extended Cable Manager

Removing the MX2010 Extended Cable Manager

To remove the extended cable manager:

Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
To remove the cover, loosen the two captive screws on the extended cable manager cover. Set the extended cable manager cover aside.
Remove the eight screws that secure the extended cable manager to the chassis as shown in Figure 1.
Pull the extended cable manager away from the chassis.

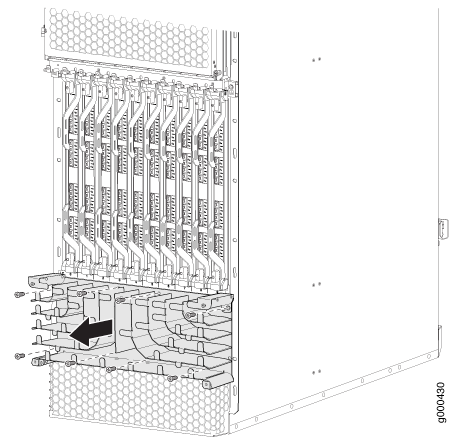

Figure 1: Removing the Extended Cable Manager

To remove the extended DC cable manager (see Figure 2):

Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
Using a Phillips (+) screwdriver (number 1 or 2), loosen the two captive screws on the DC cable manager.
Grasp the extended DC cable manager, lift up and pull straight out from the DC PDM on the rear of the chassis.
Place the extended DC cable manager into an electrostatic bag and set it aside.

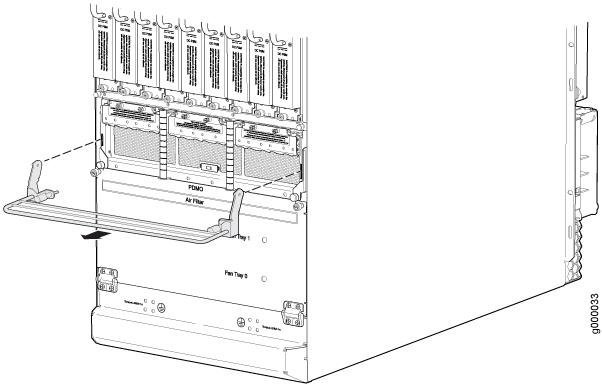

Figure 2: Removing the Extended DC Cable Manager

To remove the cable manager for the DC PDM (240 V China) and the universal (HVAC/HVDC) PDM (see Figure 3):

Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point. See the instructions for your site.
Using a screwdriver, loosen the two screws on each side of the cable manager (see Figure 3

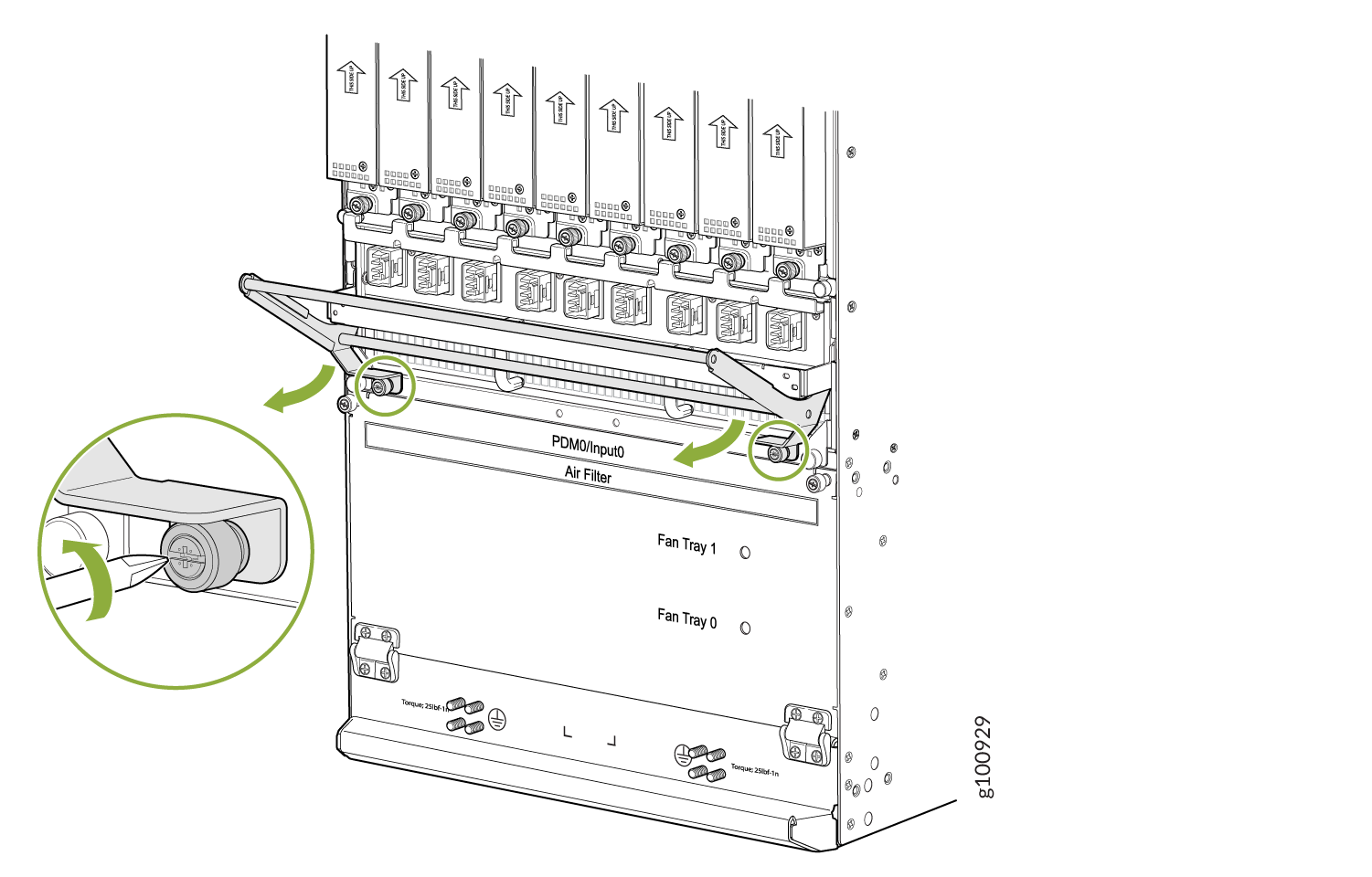

Figure 3: Removing the Extended Cable Manager for DC PDM (240 V China) and the Universal (HVAC/HVDC) PDM
Grasp the cable manager, lift up and pull straight out from the PDM on the rear of the chassis.
Place the cable manager into an electrostatic bag and set it aside.

To install the extended cable manager (see Figure 4):

Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
Position the extended cable manager on the studs below the lower card cage.
Attach the extended cable manager using eight screws as shown in Figure 4.
Replace the cable manager cover, and secure it with the two captive screws.

Figure 4: Installing the Extended Lower Cable Manager

To install the extended DC cable manager (see Figure 5):

Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
Position the extended DC cable manager over the two slots located on both sides of the DC PDM.
Lift the extended DC cable manager slightly up while inserting the two flanges into the slots on both sides of the DC PDM.
Push the extended DC cable manager into place.
Tighten the two captive screws to secure the extended DC cable manager.

Figure 5: Installing the Extended DC Cable Manager

To install the extended cable manager for the DC PDM (240 V China) or the universal (HVAC/HVDC) PDM (see Figure 6):

Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
Position the cable manager over the two slots located on both sides of the PDM.
Lift the cable manager slightly up while inserting the two flanges into the slots on both sides of the PDM.

Figure 6: Installing the Extended Rear Cable Manager on the DC PDM (240 V China) and Universal (HVAC/HVDC) PDM
Push down to secure the extended cable manager in place. Tighten the screws using a screwdriver. See Figure 6.
