Installing the Pallet Jack Attachment

To install the pallet jack attachment to the pallet jack:

  1. Remove the pallet jack attachment from the shipping crate.
  2. Place the pallet jack attachment across both pallet jack legs.
  3. Using a 9/16-in. (14 mm) socket wrench, loosen and remove the eight shipping bracket support torque fasteners that are located on the top of the pallet jack attachment platform.
  4. Using a 9/16-in. (14 mm) socket wrench, loosen the torque fasteners that are located on the four adjustable pallet jack attachment brackets.
  5. Adjust the four pallet jack attachment brackets until they fit under the pallet jack legs.
  6. Tighten the torque fasteners by using a 9/16-in. (14 mm) socket wrench to secure the brackets on the pallet jack attachment to the pallet jack (see Figure 1).

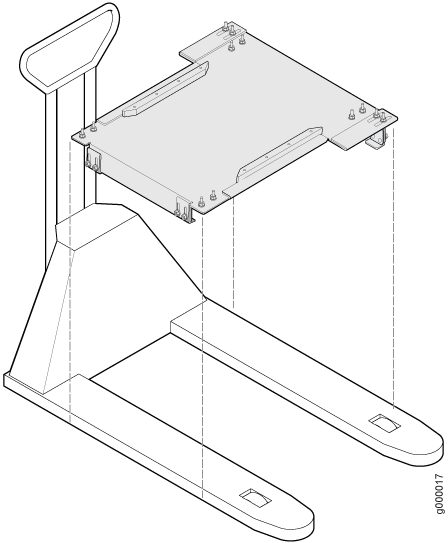

    Figure 1: Installing Pallet Jack Attachment onto Pallet JackInstalling Pallet Jack Attachment onto Pallet Jack
