QFX5210 Power System
QFX5210 AC Power Supply
The two power supplies in QFX5210 are hot-removable and hot-insertable field-replaceable units (FRUs). The power supplies are installed in the switch at the factory. You can install replacement power supplies from the management panel without powering off the switch or disrupting the switching function. See Figure 1 and Figure 2 for examples of the QFX5210 AC power supply.
1 — AC appliance inlet | 3 — Fault LED |
2 — Handle | 4 — Ejector lever |
Each of the 1100-W power supplies has a single AC input. and a 12-VDC output, with a standby voltage of 12 VDC. Each power supply provides sufficient power for all of the components in the device. This redundant configuration is known as 2N redundancy. A 2N redundant power system transfers the electrical load without interruption if a power supply fails or is removed.
Each power supply module has an internal fan that assists device cooling. The airflow for the power supplies must match the airflow of the fans. Power supplies and fans are color-coded for each airflow.Table 1 shows the different power supplies and their airflow direction.
Product Number |
Direction of Airflow |
Color of Power Supply Handle |
---|---|---|
JPSU-1100W-AC-AFI |
FRU-to-port |
Juniper Azure Blue |
JPSU-1100W-AC-AFO |
Port-to-FRU |
Juniper Gold |
To avoid electrical injury, carefully follow instructions in Connecting AC Power to a QFX5210 or Connecting DC Power to a QFX5210.
Do not mix power supplies with different airflow or different wattage. The system raises an alarm when a power supply having a different airflow or wattage is inserted into the chassis.
See Also
QFX5210 AC Power Specifications
Table 2 describes the AC power specifications for a QFX5210.
Item |
Specification |
---|---|
AC input voltage |
Operating range:
|
AC input line frequency |
50–60 Hz |
Maximum AC input current rating |
|
Typical power consumption |
680 W, with SR4 transceivers at 25 C ambient temperature |
Maximum power consumption |
960 W, with high-wattage optics at maximum ambient temperature |
See Also
AC Power Cord with Type C15 Coupler Specifications

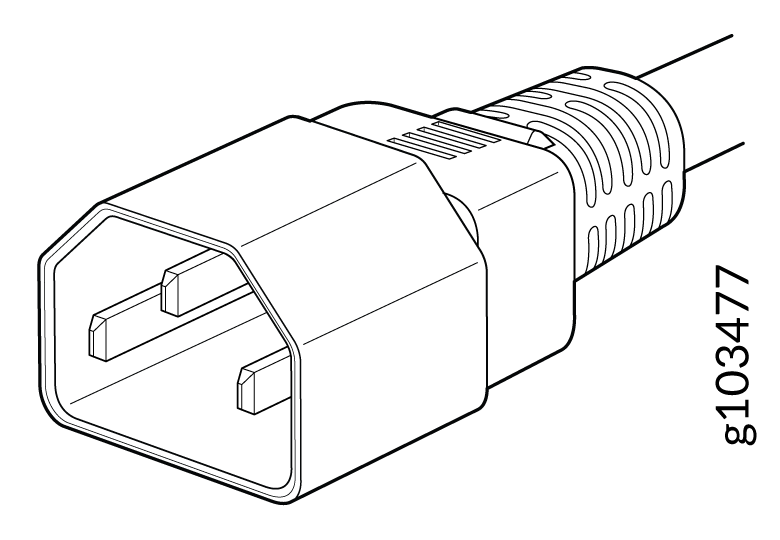

Detachable AC power cords are shipped with the chassis, if you include them as part of your order. Some country-specific plugs are only available as spare orders. The coupler is type C15 as described by International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.
In North America, AC power cords must not exceed 14.75 feet (approximately 4.5 meters) in length to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52, and Canadian Electrical Code (CEC) Section 4-010(3). The cords that can be ordered for the QFX Series switches are in compliance with these guidelines.
Table 3 lists the AC power cord specifications provided for each country or region.
Country/Region |
Electrical Specifications |
Plug Standards |
Juniper Model Number |
Spare Juniper Model Number |
Graphic |
---|---|---|---|---|---|
Argentina |
250 VAC, 10 A, 50 Hz |
IRAM 2073 Type RA/3 |
– |
CBL-PWR-C15M-HITEMP-AR |
|
Australia |
250 VAC, 10 A, 50 Hz |
AS/NZS 3112-2000 Type SAA/3 |
CG_CBL-C15-02-AU |
CBL-PWR-C15M-HITEMP-AU |
|
Brazil |
250 VAC, 10 A, 50 Hz |
NBR 14136 Type BR/3 |
– |
CBL-PWR-C15M-HITEMP-BR |
|
China |
250 VAC, 10 A, 50 Hz |
GB 2099/GB 1002 Type PRC/3 |
CG_CBL-C15-02-CH |
CBL-PWR-C15M-HITEMP-CH |
|
Europe (except Italy, Switzerland, and United Kingdom) |
250 VAC, 10 A, 50 Hz |
CEE (7) VII Type VIIG |
CG_CBL-C15-02-EU |
CBL-PWR-C15M-HITEMP-EU |
|
Italy |
250 VAC, 10 A, 50 Hz |
CEI 23-16 Type I/3G |
CG_CBL-C15-02-IT-CH |
CBL-PWR-C15M-HITEMP-IT |
|
Japan |
125 VAC, 15 A, 50 Hz |
JIS 8303 Type 498GJ |
CG_CBL-C15-02-JP |
CBL-PWR-C15M-HITEMP-JP |
|
North America |
125 VAC, 15 A, 50 Hz |
NEMA 5-15 Type 498G |
CG_CBL-C15-02-US |
CBL-PWR-C15M-HITEMP-US |
|
South Africa and India |
250 VAC, 10 A, 50 Hz |
SABS 164/1:1992 Type ZA/3 |
– |
CBL-PWR-C15M-HITEMP-SA |
|
South Korea and some parts of Europe |
250 VAC, 10 A, 50 Hz |
CEE(7) VII Type VIIG |
– |
CBL-PWR-C15M-HITEMP-KR |
|
Switzerland |
250 VAC, 10 A, 50 Hz |
SEV 1011/6534-2 Type 12G |
CG_CBL-C15-02-SZ |
CBL-PWR-C15M-HITEMP-SZ |
|
United Kingdom |
250 VAC, 10 A, 50 Hz |
BS 1363/A Type BS89/13 |
CG_CBL-C15-02-UK |
CBL-PWR-C15M-HITEMP-UK |
See Also
QFX5210 DC Power Supply
The two DC power supplies in QFX5210 switches are hot-removable and hot-insertable field-replaceable units (FRUs). You can install the power supplies without powering off the switch or disrupting the switching function.
The two DC power supplies in QFX5210 switches (see Figure 3 and Figure 4) are hot-removable and hot-insertable field-replaceable units (FRUs). You can install the power supplies without powering off the switch or disrupting the switching function.
The DC power supply in QFX5210 is 1100 W with dual feeds for power resiliency.
1 — Terminal block | 3 — FaultLED |
2 — Handle | 4 — Ejector lever |
To avoid electrical injury, carefully follow instructions in Maintaining QFX5210 Power Supplies.
See Also
QFX5210 DC Power Specifications
Table 4 describes the QFX5210 DC power specifications.
Item |
Specifications |
---|---|
DC input voltage |
|
DC input current rating |
25 A maximum |
Typical power consumption |
680 W |
Maximum power consumption |
980 W |
See Also
QFX5210 Power Supply LEDs
The QFX5210 power supplies have a single bi-color LED indicator for power status. Figure 5 shows the location of the LED on the power supply and Table 5 provides descriptions of the LED behavior.
1 — AC power supply LED |
Color |
State |
Description |
---|---|---|
Unlit |
Off |
All power supplies are disconnected from power, or power is not coming into either power supply. |
Green |
Flashing |
AC power is present; the power supply is in standby mode. |
On steadily |
DC output power is present. The power supply is operating correctly. |
|
Alternating with red |
The power supply has issued a warning. Monitor or replace the power supply. |
|
Red |
Flashing |
The power supply has failed. Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it. |
Alternating with green |
The power supply has issued a warning. Monitor or replace the power supply. |
See Also
QFX5210 DC Power Supply LEDs
Figure 6 show the location of the power LED on the QFX5210 DC power supply.
1 — Power LED |
The V+ terminals are shunted internally together, as are the V- terminals. The same polarity terminal can be wired together from the same source to provide an additional current path in a higher power chassis. Do not connect the terminals to different sources.
Color |
State |
Description |
---|---|---|
Unlit |
Off |
The power supply is disconnected from power, or power is not coming into the power supply. |
Blue |
Blinking |
The PSU is in standby mode. Power is coming into the power supply at +5V. |
On steadily |
The power supply is sending out power correctly. |
|
Alternating red/blue |
Blinking |
Power supply warning. Check the logs for related messages. |
Red |
On steadily |
An error has been detected in the power supply. Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it. |
Blinking |
One power supply is receiving DC power; the other power supply has no power. Check the failing power supply. |
