Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame Rack
date_range
01-Sep-23
To install the mounting shelf on the front rails of a four-post rack or cabinet, or on the rails of an open-frame rack:
- If needed, install cage nuts in the holes specified in Table 1.
- On the back of each rack rail, partially insert a mounting screw into the lowest hole specified in Table 1.
- Install the mounting shelf on the back of the rack rails. Rest the bottom slot of each flange on a mounting screw.
- Partially insert screws into the open holes in each flange of the mounting shelf (see Figure 1 or Figure 2).
- Tighten all the screws completely.
Hole (Starting from U Division) | Distance Above U Division | |
|---|---|---|
4 | 2.00 in. (5.1 cm) | 1.14 U |
3 | 1.51 in. (3.8 cm) | 0.86 U |
2 | 0.88 in. (2.2 cm) | 0.50 U |
1 | 0.25 in. (0.6 cm) | 0.14 U |

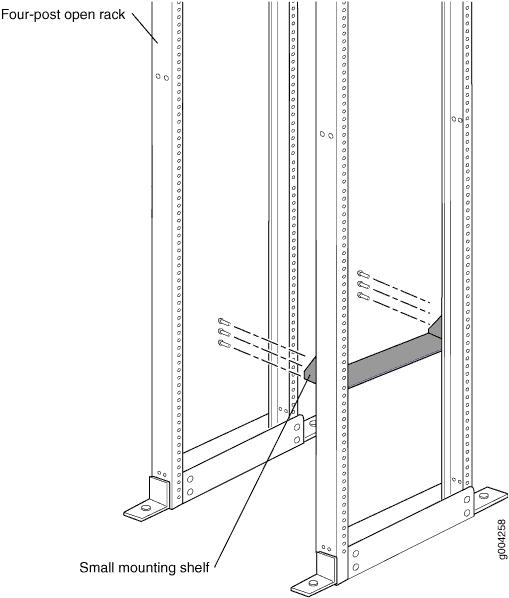

Figure 1: Mounting Hardware
for a Four-Post Rack or Cabinet
Figure 2: Mounting Hardware
for an Open-Frame Rack
Proceed to Step 3: Install the SRX4600 Firewall.
