Connect the SRX2300 to External Devices

Connect Your Device to a Network for Out-of-Band Management

Ensure that you have an Ethernet cable that has an RJ-45 connector at each end.

To connect a device to a network for out-of-band management:

  1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.
  2. Connect one end of the Ethernet cable to the management port on the device.
  3. Connect the other end of the cable to the management device.

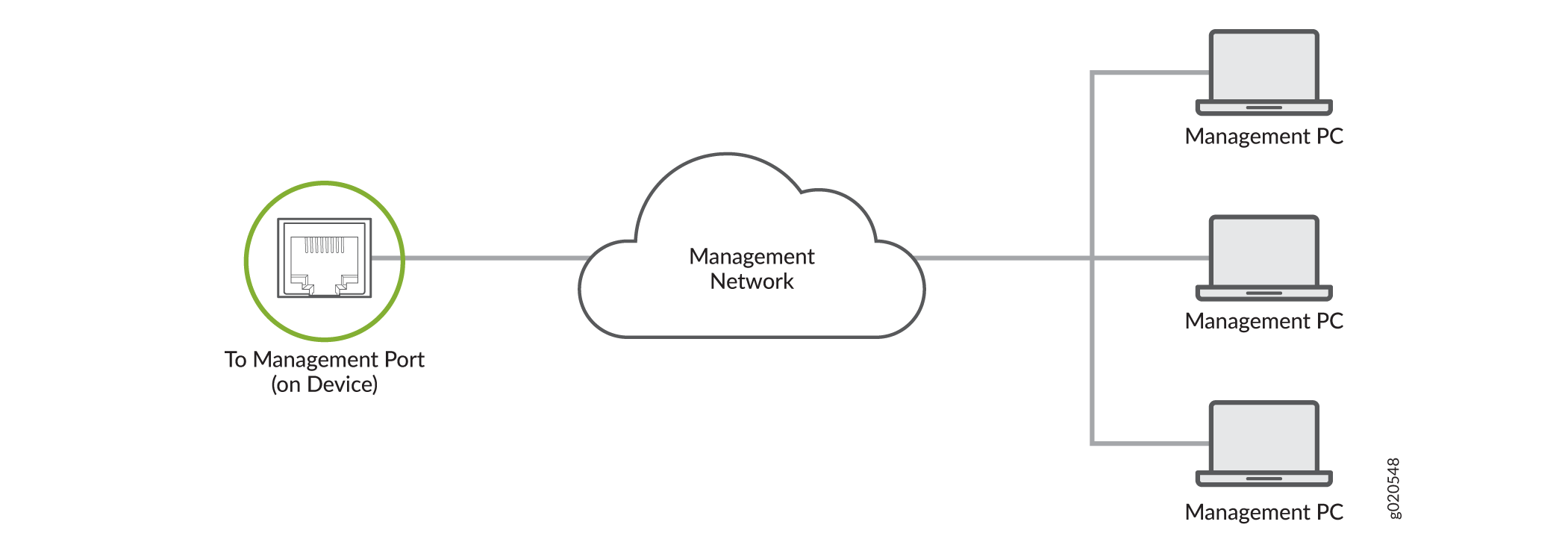

    Figure 1: Connecting Your Device to a Network for Out-of-Band Management Connecting Your Device to a Network for Out-of-Band Management

Connect Your Device to a Management Console Using an RJ-45 Connector

Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. You will also need the appropriate adapter (not provided) depending upon your console server or management console.

You can order the following separately from Juniper:

  • RJ-45 to DB-9 adapter (JNP-CBL-RJ45-DB9)

  • RJ-45 to USB-A adapter (JNP-CBL-RJ45-USBA)

  • RJ-45 to USB-C adapter (JNP-CBL-RJ45-USBC)

Note:

If you want to use the RJ-45 to USB-A or RJ-45 to USB-C adapter you must have X64 (64-Bit) Virtual COM port (VCP) driver installed on your PC. See https://ftdichip.com/drivers/vcp-drivers/ to download the driver.

To connect the device to a management console:

  1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.
  2. Connect one end of the Ethernet cable to the console port on the device.
  3. Connect the other end of the cable to the console server.
    Figure 2: Connecting Your Device to a Management Console through a Console Server Connecting Your Device to a Management Console through a Console Server

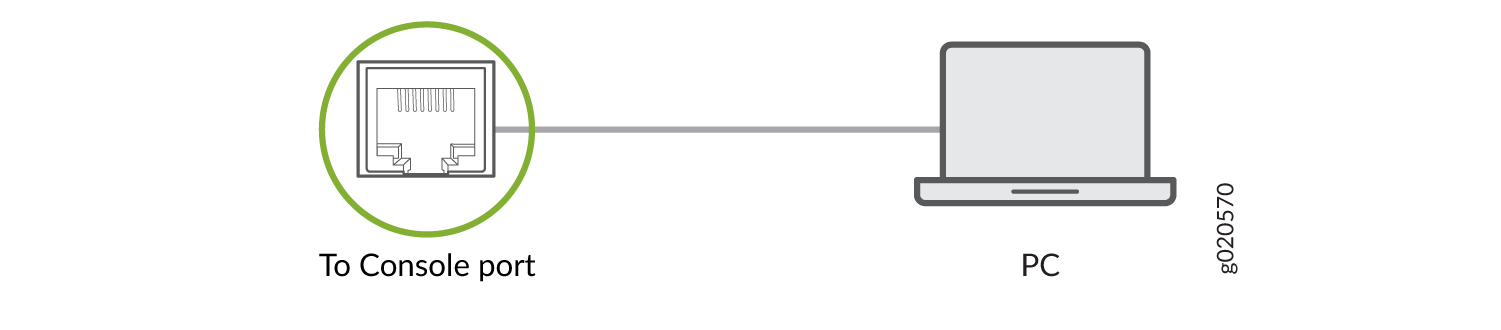

    Figure 3: Connecting the Your Device directly to a Management Console Connecting the Your Device directly to a Management Console
