1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Overview

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the physical connection to T1 or E1 network media types and also performs T1 or E1 framing and line-speed signaling.

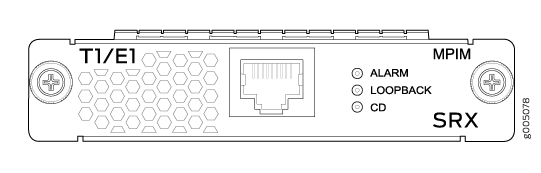

Figure 1 shows the front panel of the 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R).

Figure 1: 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Front Panel

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the following key features:

Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate external device
56-Kbps and 64-Kbps operating modes
Independent internal and external clocking option
Alarm reporting with a 24-hour history maintained
Loopback, BERT, FDL (T1 only), and Long Buildout (T1 only) diagnostics
Multilink Frame Relay and Multilink PPP support

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) supports the following standards:

ANSI TI.107, TI.102
GR 499-core, GR 253-core
AT&T Pub 54014
ITU G.751, G.703

1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Hardware Specifications

Table 1 gives the physical specifications of the 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM).

Table 1: 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R) Physical Specifications
Description	Value
Dimensions (H x W x L)	0.80 in. x 3.75 in. x 5.9 in.(2.0 cm x 9.5 cm x 14.5 cm )
Weight	2.88 oz (82 g)
Connector type	RJ-48
Form factor	Mini-PIM
Environmental operating temperature	32°F through 104°F (0°C through 40°C)
Storage temperature	–40°F through 158°F (–40°C through 70°C)
Relative humidity	5% to 90% noncondensing

1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) LEDs

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) has three LEDs. Table 2 describes the LED states.

Table 2: 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R) LED States
LED	Color	State	Description
ALARM	Yellow	On	Indicates that there is a local or remote alarm; device has detected a failure.
ALARM	Yellow	Off	Indicates that there are no alarms or failures.
LOOPBACK	Yellow	On	Indicates that a loopback or line state is detected.
LOOPBACK	Yellow	Off	Indicates that the loopback is not active.
CD (Carrier Detector)	Green	On	Indicates that the Mini-PIM link is up.
CD (Carrier Detector)	Green	Off	Indicates that carrier detect is not active.

1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Supported Loopback Diagnostics

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) has the following loopback diagnostics:

Local, remote, payload
Test patterns (BERT)
All ones
All zeros
Alternating ones and zeros (AA/55)
1:3 or 1-in-4 pattern
1:7 or 1-in-8 pattern
3:24 - 3 bits set in every 24 bits
QRSS20 (Modified PRBS 2^20-1, with 14 zero suppression)
PRBS 2^7-1 - PRBS 2^9-1 (as specified in ITU-T O.153)
PRBS 2^11-1 (as specified in ITU-T O.153)/2047 pattern
PRBS 2^15-1 (as specified in ITU-T O.151/O.153)
PRBS 2^20-1 (as specified in ITU-T O.153)
Programmable word or 32-bit programmable pattern
Network (T1) alarms
LOS, LOF, AIS, YLW

1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Network Interface Specifications

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) has the network interface specifications given in Table 3.

Table 3: 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R) Network Interface Specifications
Specification	T1 Specification	E1 Specifications
Network interface specifications
Transmit bit rate	1.544 Mbps	2.048 Mbps
Receive bit rate	1.544 Mbps	2.048 Mbps
Line encoding	AMI/B8ZS	HDB3
Mode	Framed Clear Channel	Framed Clear Channel, Unframed Clear Channel
Fractional Framing	Superframe (D4/SF), Extended Superframe (ESF)	G704 without CRC4 Unframed
HDLC features
N x 64 Kbps or N x 56 Kbps, nonchannelized data rates	(T1:N=1 to 24)	(E1:N=1 to 31)
CRC	16/32	16/32
Shared Flag	Supported	Supported
Idle flag/fill	Supported	Supported
Counters:	Runts, Giants, FCS, Error, Abort Error, Align Error	Runts, Giants, FCS, Error, Abort Error, Align Error

Cable Specifications and Pinouts

RJ-48 Connector to RJ-48 Connector Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R)
RJ-48 Connector to DB-15 Connector Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R)
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Basic Configuration

RJ-48 Connector to RJ-48 Connector Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R)

The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) uses an RJ-48 cable, which is not supplied with the Mini-PIM.

CAUTION:

To maintain agency approvals, use only a properly constructed, shielded cable.

Table 4 lists the RJ-48 connector to RJ-48 connector (straight) pinouts.

Table 4: RJ-48 Connector to RJ-48 Connector (Straight) Pinouts
RJ-48 Pin (on 1-Port T1/E1 Mini-PIM)	RJ-48 Pin (Data Numbering Form)	Signal
1	1	RX, Ring, –
2	2	RX, Tip, +
4	4	TX, Ring, –
5	5	TX, Tip, +
3	3	Shield/Return/Ground
6	6	Shield/Return/Ground
7	No connect	No connect
8	No connect	No connect

Table 5 lists the RJ-48 connector to RJ-48 connector (crossover) pinouts for the 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM).

Table 5: RJ-48 Connector to RJ-48 Connector (Crossover) Pinouts
RJ-48 Pin (on T1/E1 Mini-PIM)	RJ-48 Pin (Data Numbering Form)	Signal
1	4	RX/Ring/– <––>TX/Ring/–
2	5	RX/Tip/+ <––>TX/Tip/+
4	1	TX/Ring/– <––>RX/Ring/–
5	2	TX/Tip/+ <––>RX/Tip/+
3	3	Shield/Return/Ground
6	6	Shield/Return/Ground
7	No connect	No connect
8	No connect	No connect

RJ-48 Connector to DB-15 Connector Pinouts for the 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R)

Table 6 lists the RJ-48 connector to DB-15 connector (straight) pinouts.

Table 6: RJ-48 Connector to DB-15 Connector (Straight) Pinouts
RJ-48 Pin (on T1/E1 Mini-PIM)	DB-15 Pin (Data Numbering Form)	Signal
1	11	RX/Ring/– <––>RX/Ring/–
2	3	RX/Tip/+ <––>RX/Tip/+
4	9	TX/Ring/– <––>TX/Ring/–
5	1	TX/Tip/+ <––>TX/Tip/+
3	4	Shield/Return/Ground
6	2	Shield/Return/Ground
7	No connect	No connect
8	No connect	No connect
9	No connect	No connect
10	No connect	No connect
11	No connect	No connect
12	No connect	No connect
13	No connect	No connect
14	No connect	No connect
15	No connect	No connect

Table 7 lists the RJ-48 connector to DB-15 connector (crossover) pinouts.

Table 7: RJ-48 Connector to DB-15 Connector (Crossover) Pinouts
RJ-48 Pin (on T1/E1 Mini-PIM)	DB-15 Pin (Data Numbering Form)	Signal
1	9	RX/Ring/– <––>TX/Ring/–
2	1	RX/Tip/+ <––>TX/Tip/+
4	11	TX/Ring/– <––>RX/Ring/–
5	3	TX/Tip/+ <––>RX/Tip/+
3	4	Shield/Return/Ground
6	2	Shield/Return/Ground
7	No connect	No connect
8	No connect	No connect
9	No connect	No connect
10	No connect	No connect
11	No connect	No connect
12	No connect	No connect
13	No connect	No connect
14	No connect	No connect
15	No connect	No connect

1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Basic Configuration

To enable the 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) installed on the services gateway, you must configure the basic settings for the PIM. You can perform the configuration tasks for this using either the J-Web interface or the CLI.

Using the J-Web Interface
Using the CLI

Using the J-Web Interface

To perform basic configuration for the 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) and to configure network interfaces for the services gateway using the J-Web interface:

In the J-Web interface, select Configure>Interfaces.
The Interfaces page displays and lists the network interfaces present on the services gateway, along with configuration information (if configured).
Select the interface name (t1-1/0/0 or e1–1/0/0) and click Add > Logical Interfaces. Enter the details and click OK. To use the port on the Mini-PIM, assign an IP address to the port and assign it to a security zone, other than the Null zone. If there are no security zones listed, proceed to the next step to add a security zone.
Add a security zone to the interface:
1. Select Configure>Security>Zones/Screens.
2. Add or select a security zone other than Null; for example, Trust. Assign the interface to the zone.
3. For Host Inbound Traffic-Zone, set the following:
  - System Services=Allow All
  - Protocols=Allow All
4. Click OK to save changes, and select Commit>Commit to apply the configuration and other pending changes (if any).
To use the port on the Mini-PIM, you must also set security policies. Select the following settings:
1. Select Configure>Security>Security Policy.
2. Select Global Options > Policy Options.
3. Set Policy Action: Default Policy Action=Permit-All.
4. Click OK to save changes, and select Commit>Commit to apply the configuration and other pending changes (if any).

Using the CLI

To perform basic configuration for the 1-Port T1/E1 Mini-PIM (for the T1 interface) and to configure network interfaces for the services gateway with the CLI:

Verify that the T1/E1 interface is installed on the device:

show chassis hardware
Verify the status of the interface:

show interfaces terse
Assign the port an IP address:

For T1 interfaces:

set interfaces t1-1/0/0 unit 0 family inet address interface address/destination prefix

For E1 interfaces:

set interfaces e1-1/0/0 unit 0 family inet address interface address/destination prefix
Add or select a security zone; for example, Trust:

For T1 interfaces:

set security zones security-zone trust interfaces t1-1/0/0.0 host-inbound-traffic system-services all

For E1 interfaces:

set security zones security-zone trust interfaces e1-1/0/0.0 host-inbound-traffic system-services all
Add or select security zones for host inbound traffic protocol options:

For T1 interfaces:

set security zones security-zone trust interfaces t1-1/0/0.0 host-inbound-traffic protocols all

For E1 interfaces:

set security zones security-zone trust interfaces e1-1/0/0.0 host-inbound-traffic protocols all
Set security policies:

set security policies default-policy permit-all

Note:

You can use the CLI commands set interfaces t1–1/0/0 or set interfaces e1–1/0/0 to enable the 1-Port T1/E1 Mini-PIM to function as a T1 or an E1 interface.
