SSR1500 Fan Maintenance

SUMMARY Maintaining the SSR1500 includes removing and installing the fans.

The SSR1500 has five independent, field-replaceable fans (part number: JNP-FAN-SSRHE) installed on the rear of the chassis.

Each fan is a hot-removable and hot-insertable field-replaceable unit (FRU), which means that you can remove and replace the fans while the appliance is running. You can remove and replace the fans without turning off power to the appliance or disrupting its functions.

Ensure that you have the following parts and tools available:

  • Electrostatic discharge (ESD) grounding strap

  • Replacement fan

  • A Phillips (+) screwdriver, number 1 or 2 (optional), for the captive screw

Remove a Fan from the SSR1500

CAUTION:

Do not remove a fan unless you have a replacement fan available.

To remove an SSR1500 fan:

  1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to one of the ESD points on the chassis.
  2. Loosen the captive screw with a Phillips screwdriver or by unscrewing the screws with your thumb and forefinger.
  3. Grasp the captive screw and pull the fan completely out of the chassis. See Figure 1.

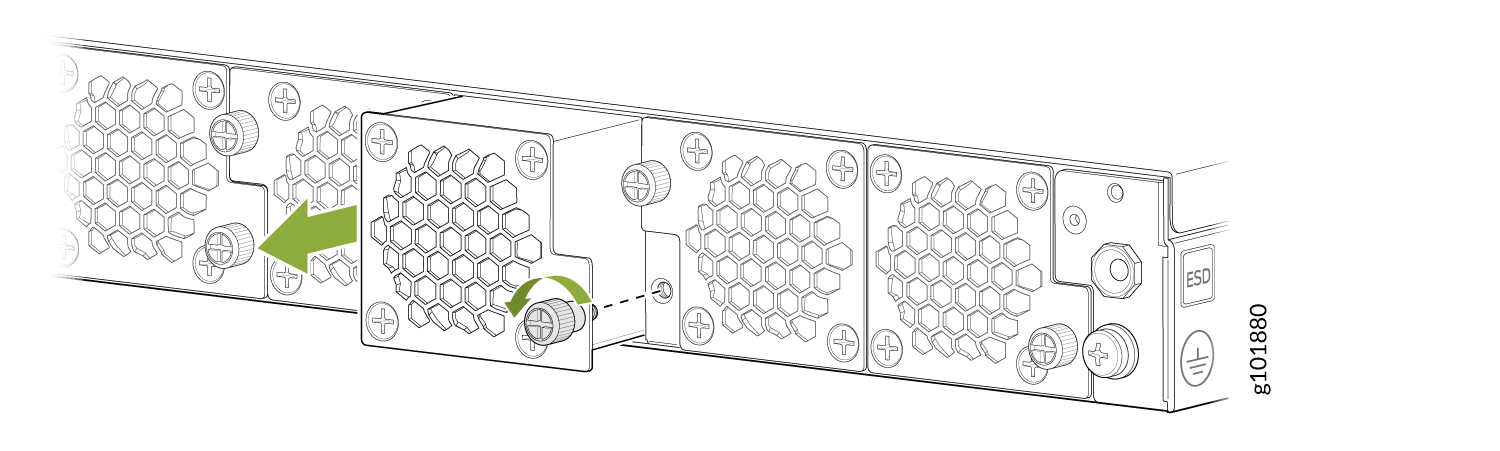

    Figure 1: Remove an SSR1500 Fan Remove an SSR1500 Fan
  4. Place the fan in the antistatic bag or on the antistatic mat placed on a flat, stable surface.
    CAUTION:

    Replace a fan immediately to avoid chassis overheating.

Install a Fan in the SSR1500

To install an SSR1500 fan:

  1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to one of the ESD points on the chassis.
  2. Align the bottom of the fan with the bottom of the fan slot.
  3. Rest the bottom edge of the fan in the slot and slide the fan into place so it is fully seated.
  4. Tighten the captive screw until it is finger tight. See Figure 2.
Figure 2: Install an SSR1500 Fan Install an SSR1500 Fan
