Step 1: Begin

This guide walks you through the simple steps to get a new cloud-ready Juniper Networks® SSR130 router up and running in the Juniper Mist™ cloud portal. You can onboard a single device using your mobile phone, or one or more devices using your computer. Once onboarded, we'll walk you through the steps to create a basic configuration.

You'll need your Juniper Mist WAN Assurance subscription and your login credentials for the Juniper Mist portal.

Note:

Before you begin, you must set up your organization and sites and activate your subscriptions. For more information, see Create a Mist Account and Organization.

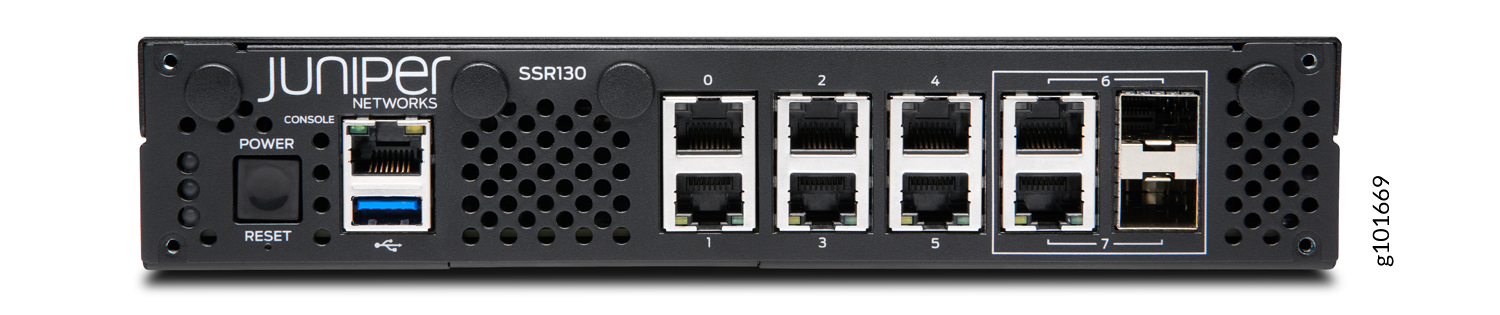

Meet the SSR130

The Juniper Networks SSR130 network appliance is part of the Juniper® Session Smart™ Routing portfolio. The SSR130 features six 1 GbE ports and two 1 GbE RJ-45/SFP combo ports.

The SSR130 runs the FIPS 140-2 Level 1 compliant Juniper® Session Smart™ Routing (SSR) software, which provides secure and resilient WAN connectivity.

The SSR130 is available in models with or without LTE support.

Onboarding the SSR130

The SSR130 comes ready to install and manage using the Juniper Mist™ Cloud portal. You can onboard one or more routers using your computer, or a single router using your mobile phone.

To onboard your SSR130 using your mobile phone, see Onboard the SSR130 Using the Mist AI Mobile App.

To manually onboard your SSR130, see Onboard the SSR130 Using a Web Browser.

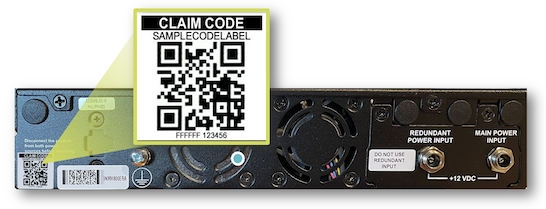

To perform either onboarding process, you will need to locate the SSR130 claim code label on the rear panel of your device.

Onboard the SSR130 Using the Mist AI Mobile App

From your mobile phone:

Download and install the Mist AI app from the Google Play Store or Apple App Store.
Open the Mist AI app and log in using your account credentials. If you do not have an account, see Create a Mist Account and Organization for details about creating one.
Select your organization.

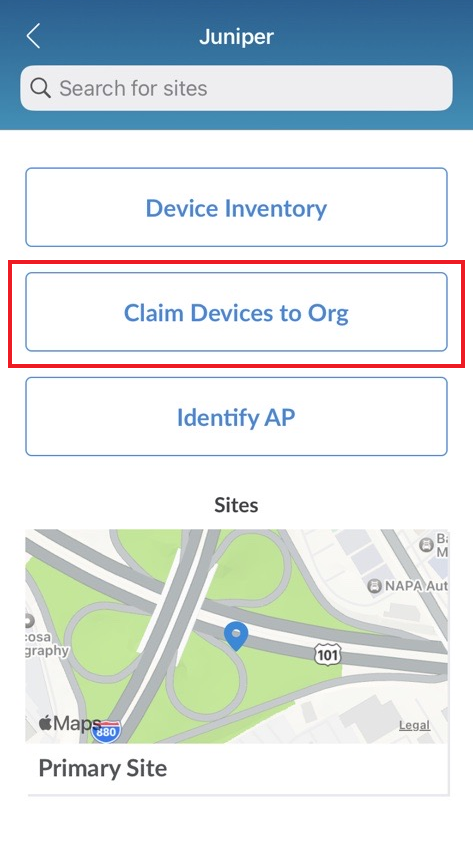

Tap Claim Devices to Org and focus the camera on the QR code on the claim code label. The app automatically claims the device and adds it into your organization's inventory.
On the Organization screen, tap Device Inventory → Routers → Unassigned.
Review the MAC address.

Onboarding Complete!

Fantastic, the SSR130 is in your inventory! To provision the SSR130, see Step 2: Up and Running and continue with Add the Network.

Onboard the SSR130 Using a Web Browser

Onboarding multiple switches— When you purchase multiple switches, we provide you with an activation code along with your PO information. Make a note of this code.

Onboarding a single switch— Locate the QR code on your switch and make a note of the alphanumeric claim code directly above it.

Log in to your account at https://manage.mist.com/.
If you do not have an account, see Create a Mist Account and Organization for details about creating one.
Log in to your Mist organization's dashboard.

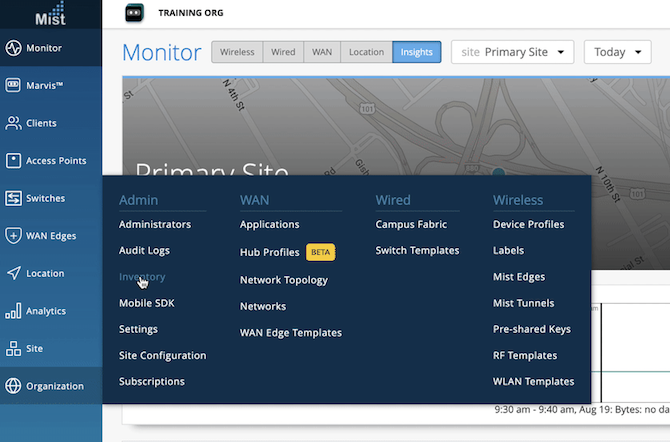

Navigate to your organization's inventory, and select the WAN tab at the top.
Select the Claim WAN Edges button in the upper right of the inventory screen.
Add the claim code into the list of devices to claim.
Clear the Assign claimed WAN edges to site check box. This places the SSR into inventory, to be assigned to a site later.
Click the Claim button to claim the SSR into your inventory.
If you claim multiple routers, expect a slight delay for the Router Claim Results window to pop up.

Review the information and Close the window.

View your new router or routers on the Inventory page. Expect to see the status as Disconnected.
