Juniper Device Profiles

Overview

Predefined device profiles for most qualified Juniper devices ship with Apstra software. For a complete list of qualified and recommended Juniper device series and Junos versions, see Qualified Device and NOS. Juniper device profile constraints are specified below.

Juniper QFX10002

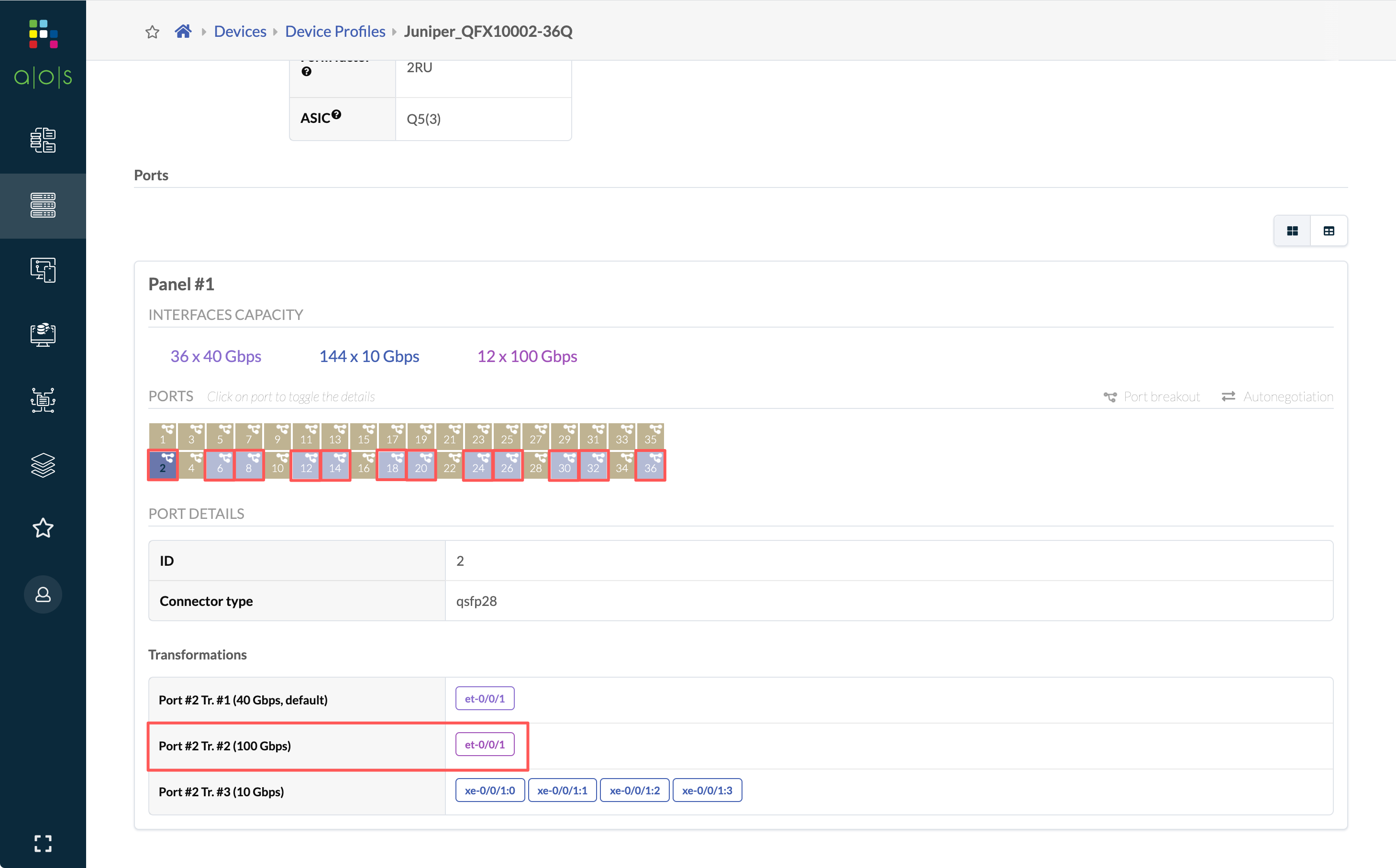

The 36-port Juniper QFX10002-36Q and 72-port QFX10002-72Q are qualified devices. Both of these models have a port constraint where only certain ports can be used with QSFP28 100G transceivers.

If these ports are used as 100G, then the adjacent QSFP 40G ports can't be used. The device profile can't automatically disable the adjacent QSFP 40G ports. You must create an interface map with these ports unused and disabled.

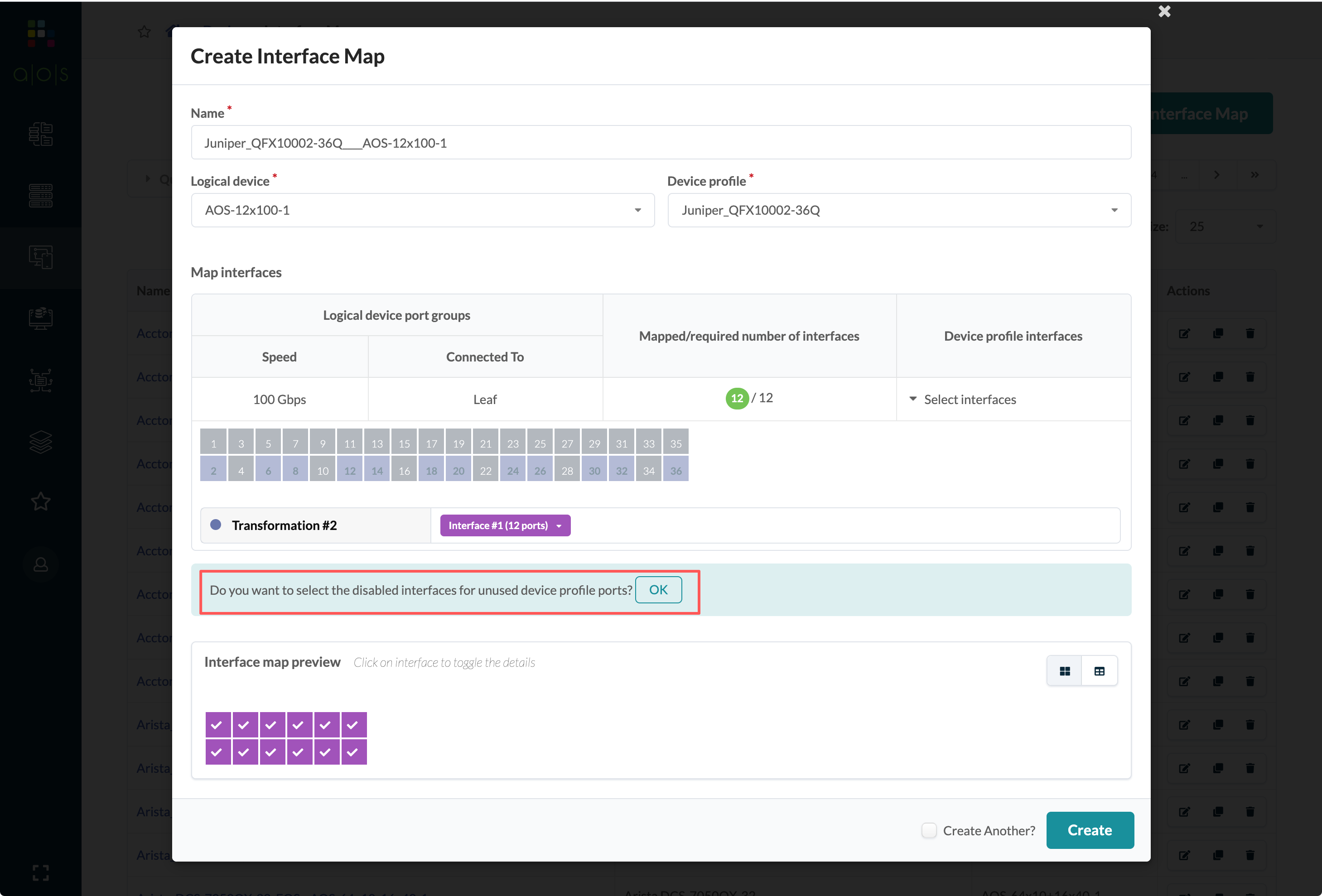

When you select the 100G ports while you're creating the interface map for QFX10002, you are asked if you want to select the disabled interfaces for unused device profile ports. For 100G ports on the QFX10002, click OK so the unused QSFP ports are disabled and can't be used.
