Update LAG Mode

Release: Juniper Apstra 4.2

date_range 07-Feb-24

arrow_backward

arrow_forward

From the blueprint, navigate to Staged > Physical > Topology and select the MLAG member that needs an updated link LAG mode.
Select the interface check box to see the operations available for that interface (and that you have permissions for).

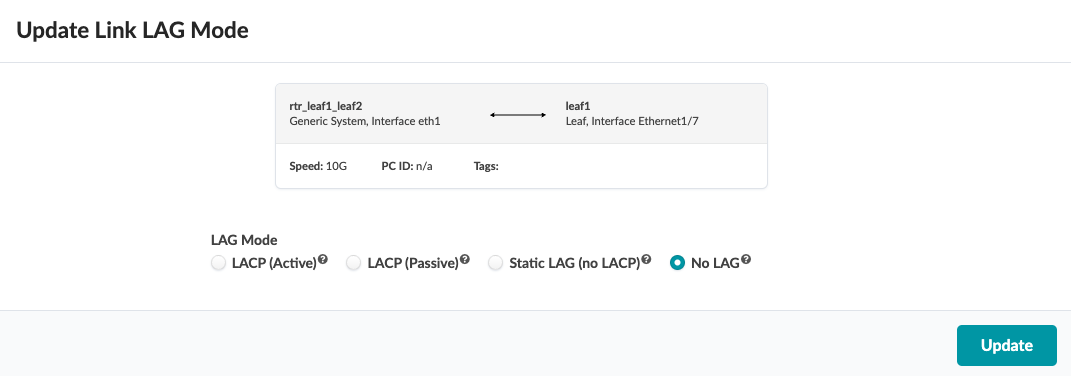

Click Update LAG mode and select the new LAG mode:
- LACP (Active) - actively advertises LACP BPDU even when neighbors do not.
- LACP (Passive) - doesn't generate LACP BPDU until it sees one from a neighbor.
- Static LAG (no LACP) - Static LAGs don't participate in LACP and will conditionally operate in forwarding mode.
- No LAG - The link is not part of a LAG.
Click Update to stage your changes and return to the Topology view.

When you're ready to activate your changes, commit them from the Uncommitted tab.

arrow_backward PREVIOUS Break LAG

NEXT arrow_forward Update Link Tag (Datacenter)
