Update Port Channel ID Range

You can add and update the port channel ID range on generic systems and, as of Apstra version 4.2.0, external generic systems. You can do this from Topology view or the Nodes view.

CAUTION:

Changing port channel range is an invasive operation and may lead to reassigning existing port channel IDs.

Update Port Channel ID Range (from Topology View)

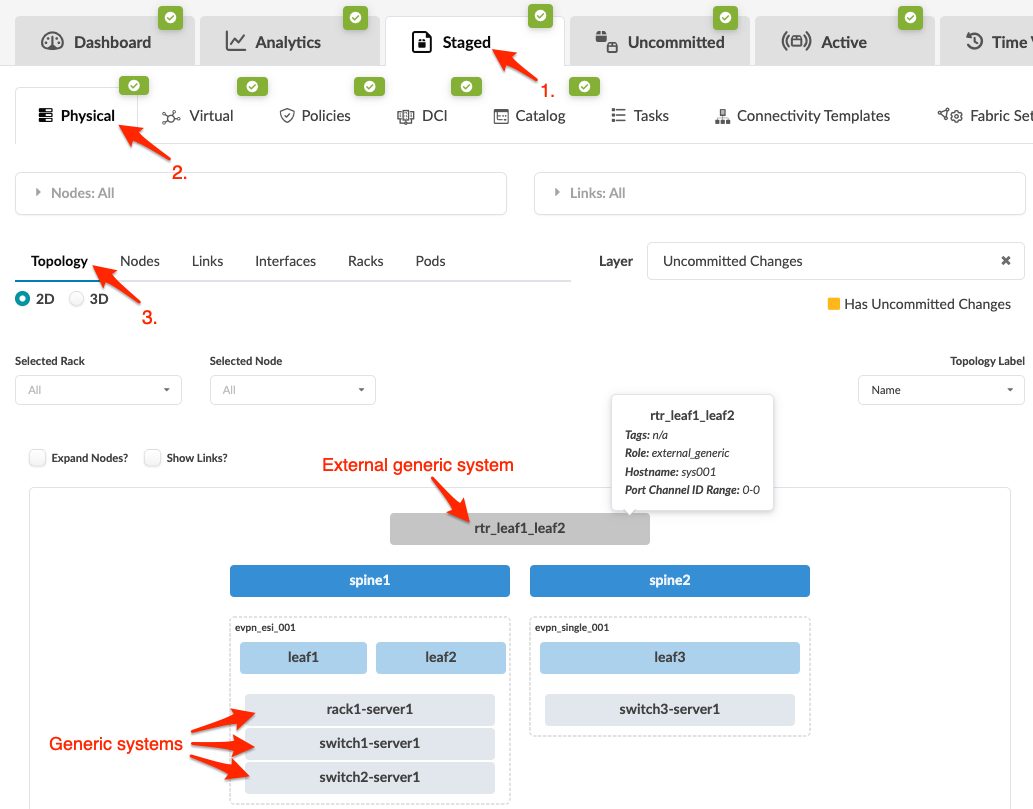

  1. From the blueprint, navigate to Staged > Physical > Topology and select the generic system or external generic system to update.

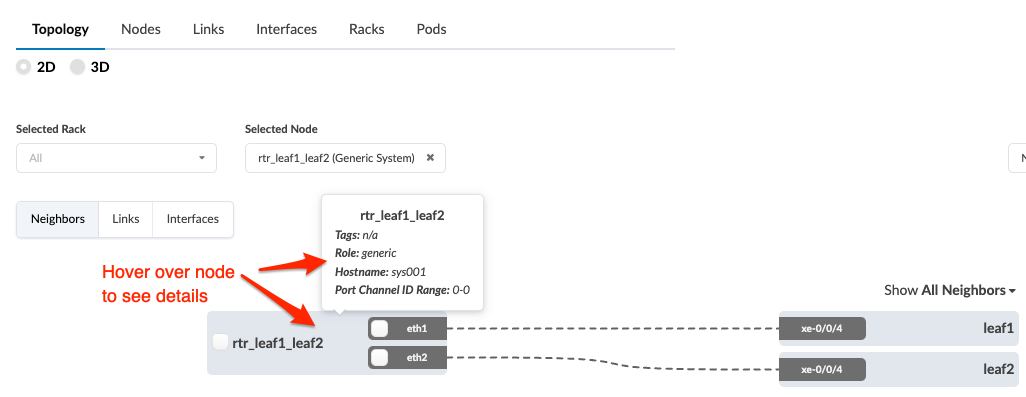

  2. To see the current port channel ID range (and other details) hover over the system.

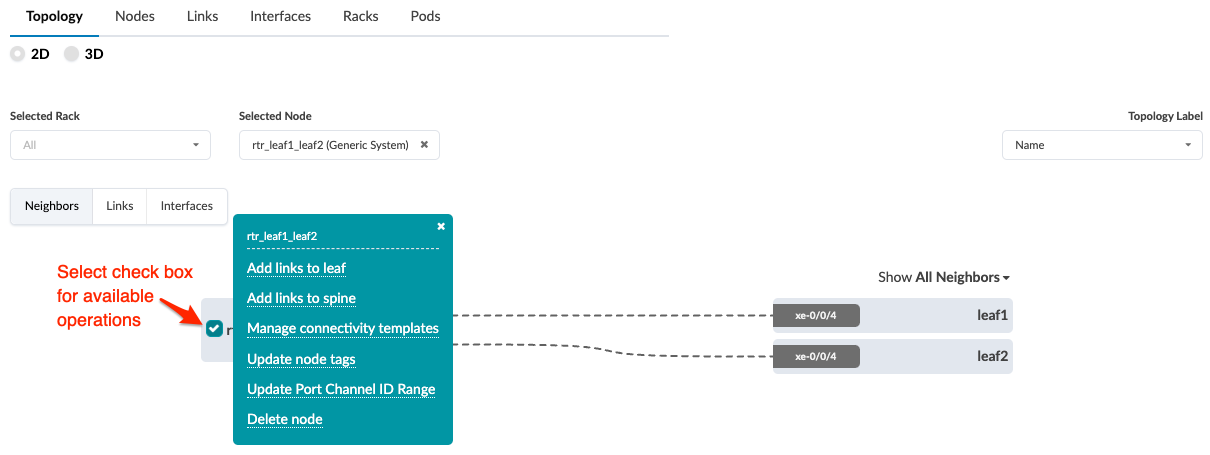

  3. Select the check box for the system to see operations available for that system (and that you have permissions for).
  4. Click Update Port Channel ID Range and edit the min and/or max values, as needed. (Prior to Apstra version 4.2.0, all non-default port channel numbers had to be unique per blueprint. Port channel ranges could not overlap. This requirement has been relaxed, and now they need only be unique per system.)
  5. Click Update to stage your changes and return to the Topology view.

Update Port Channel ID Range (from Nodes view)

  1. From the blueprint, navigate to Staged > Physical > Nodes and click the Edit Port Channel ID Range button.
  2. In the table of generic systems and external generic systems, edit the min and/or max port channel ID values, as needed. (Prior to Apstra version 4.2.0, all non-default port channel numbers had to be unique per blueprint. Port channel ranges could not overlap. This requirement has been relaxed, and now they need only be unique per system.)
  3. Click Update to stage your changes and return to the Nodes view.
