Change Assigned ASN (Datacenter)

SUMMARY Assign or change an individual ASN

Normally, you would let Apstra pull ASNs from resource pools for you, but there may be times when you need to assign a specific ASN or change one that was already assigned. In these cases, you can select the device and assign or change the ASN from the Properties tab. See below for details.
  1. From the blueprint, navigate to Staged > Physical > Topology and select the device to update. (Alternatively, you can navigate to Staged > Physical > Nodes and select the device from the Nodes table.)
    The Selection panel on the right becomes active and populates with information about the selection.

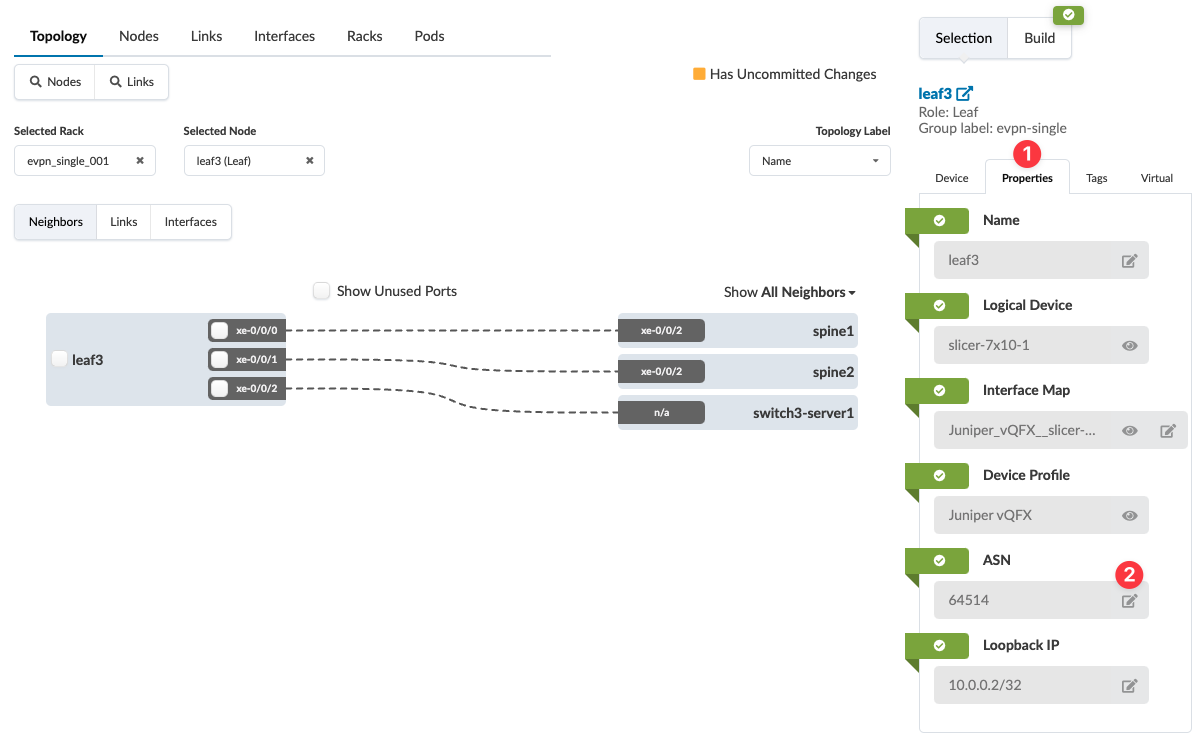

  2. Click the Properties tab in the Selection panel, then click the Edit button for the ASN field.
    The ASN field becomes available to change.

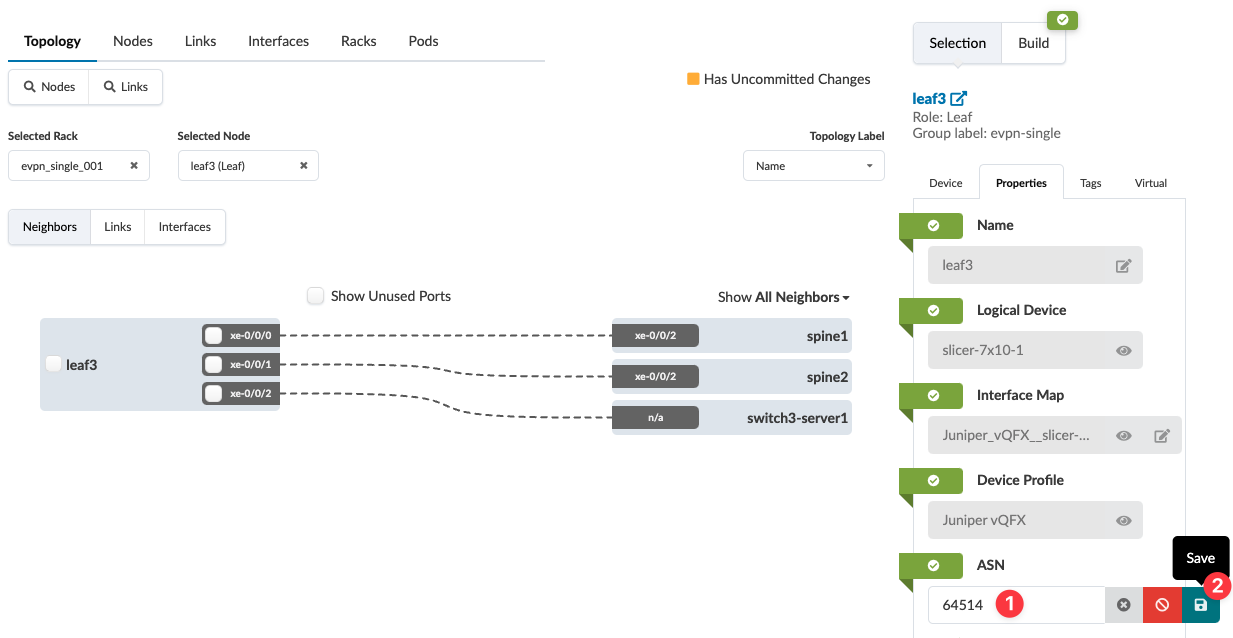

  3. Enter the new ASN value, then click the Save button to stage your changes.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
