Change Assigned Link IP Addresses (Datacenter)

SUMMARY Assign or change an individual Link IP Address

Normally, you would let Apstra pull IP addresses from resource pools for you, but there may be times when you need to assign a specific IP address or change one that was already assigned. In these cases, you can select the device and assign or change the IP address from the Properties tab. See below for details.

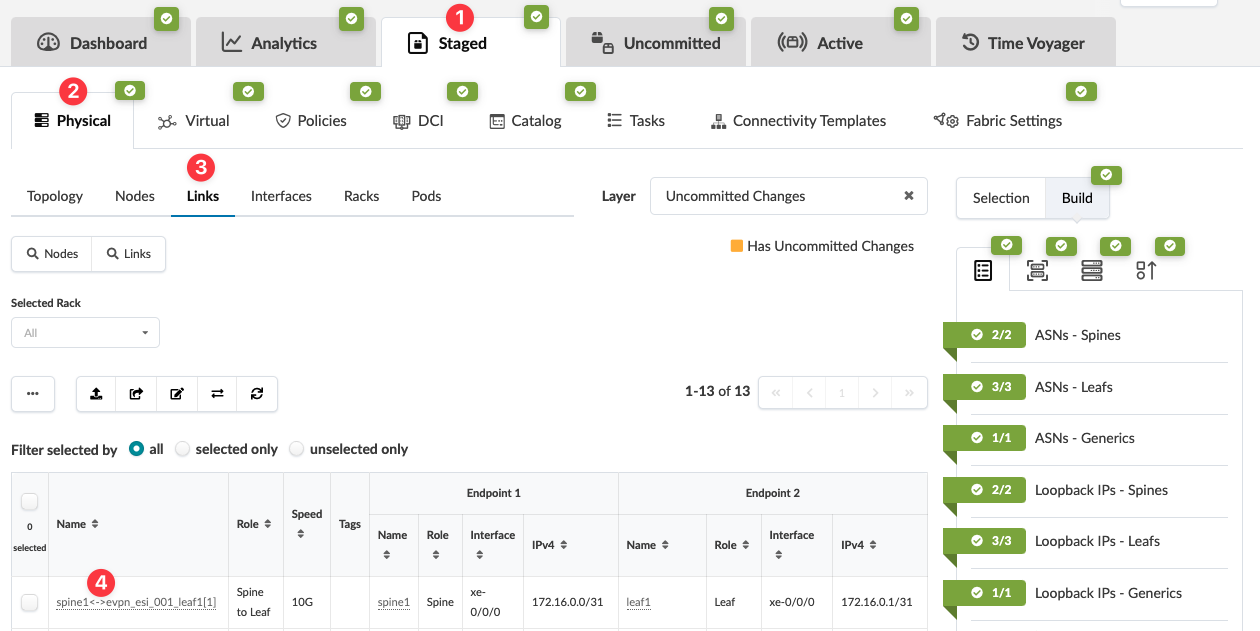

  1. From the blueprint, navigate to Staged > Physical > Links and select the link to update.
    The Selection panel on the right becomes active and populates with information about the selection.

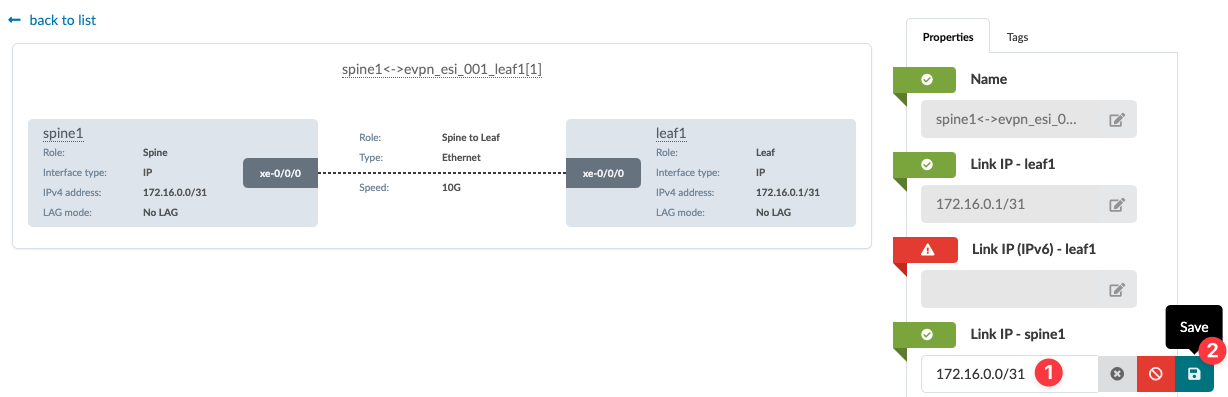

  2. In the Properties tab in the Selection panel click the Edit button for the Link IP field to change.
    The Link IP field becomes available to change.
  3. Enter the new link IP address value, then click the Save button to stage your changes.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
