Change Assigned Loopback IP Address (Datacenter)

SUMMARY Assign or change an individual loopback IP Address

Normally, you would let Apstra pull IP addresses from resource pools for you, but there may be times when you need to assign a specific IP address or change one that was already assigned. In these cases, you can select the device and assign or change the IP address from the Properties tab. See below for details.

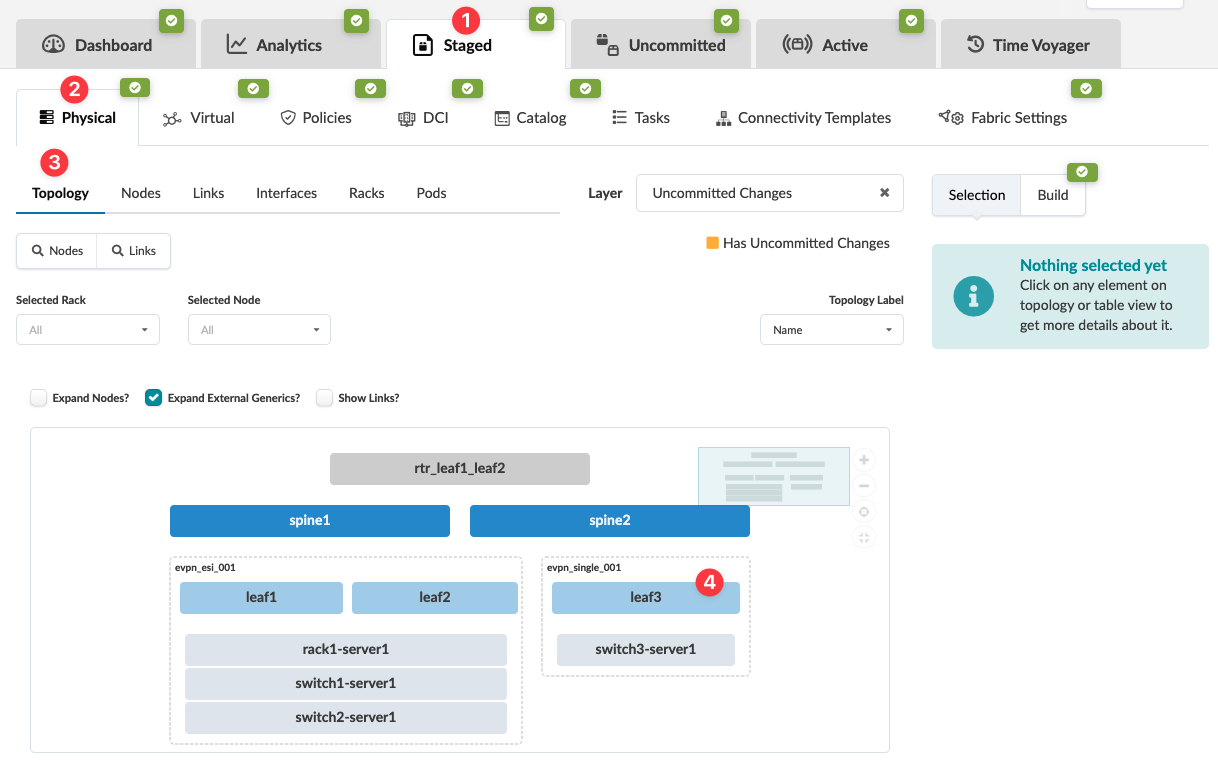

  1. From the blueprint, navigate to Staged > Physical > Topology and select the device to update. (Alternatively, you can navigate to Staged > Physical > Nodes and select the device from the Nodes table.)
    The Selection panel on the right becomes active and populates with information about the selection.

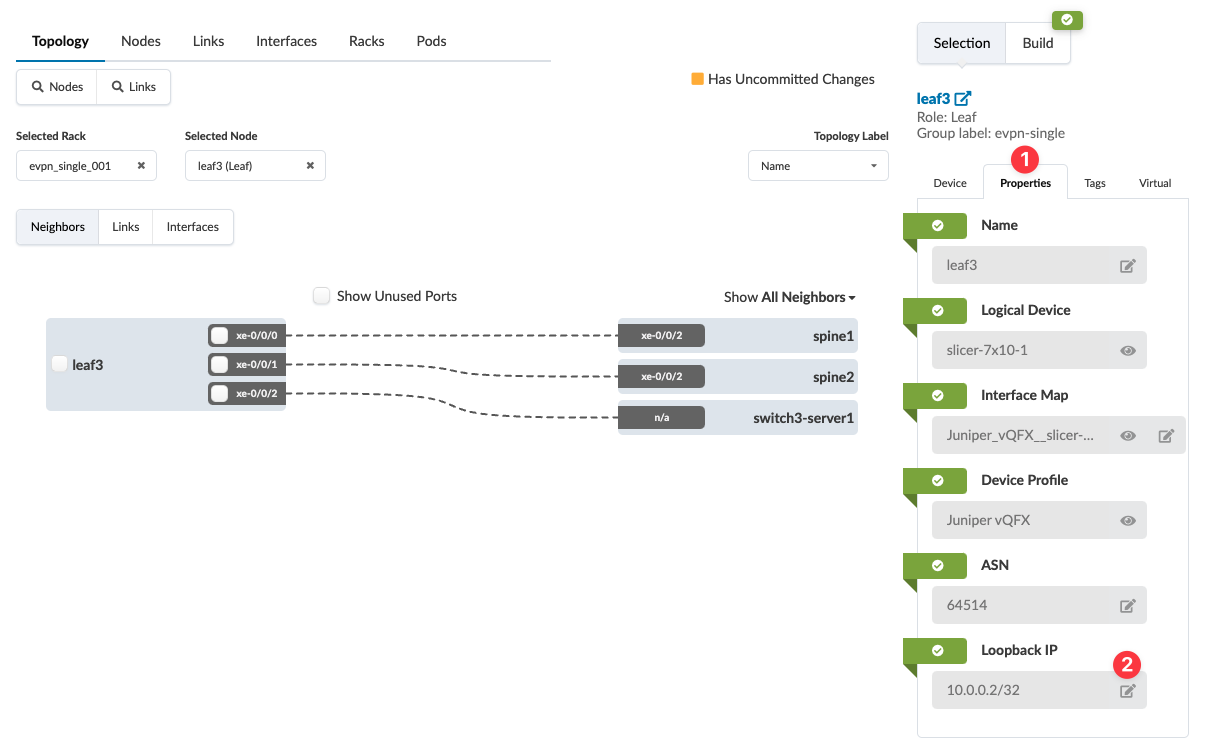

  2. Click the Properties tab in the Selection panel, then click the Edit button for the Loopback IP field.
    The Loopback IP field becomes available to change.

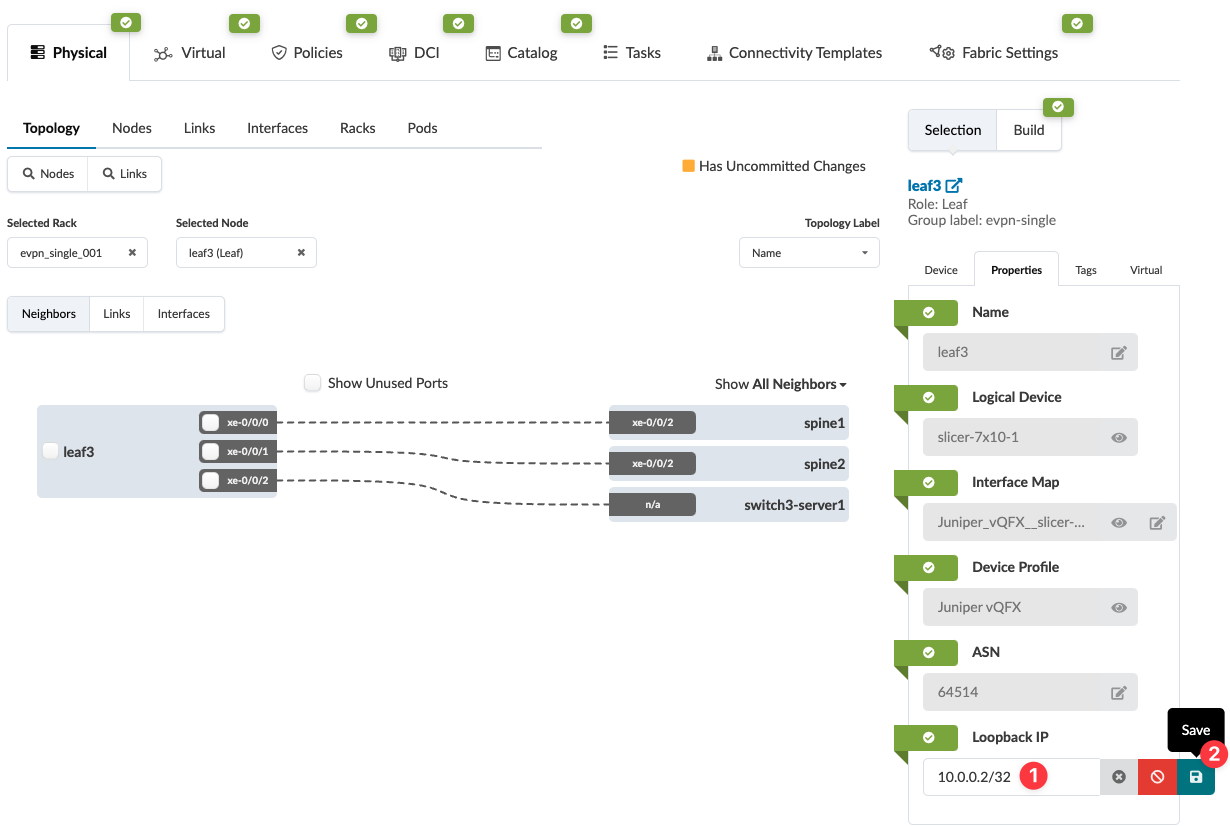

  3. Enter the new Loopback IP address value, then click the Save button to stage your changes.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
