Break LAG

Release: Juniper Apstra 5.0

date_range 04-Nov-24

arrow_backward

arrow_forward

It’s common to break a LAG towards a server into individual links, then reform the LAG from individual links, all while keeping the same VLAN allocation (when re-bootstrapping the server for example). You can break a LAG while preserving any assigned connectivity templates.

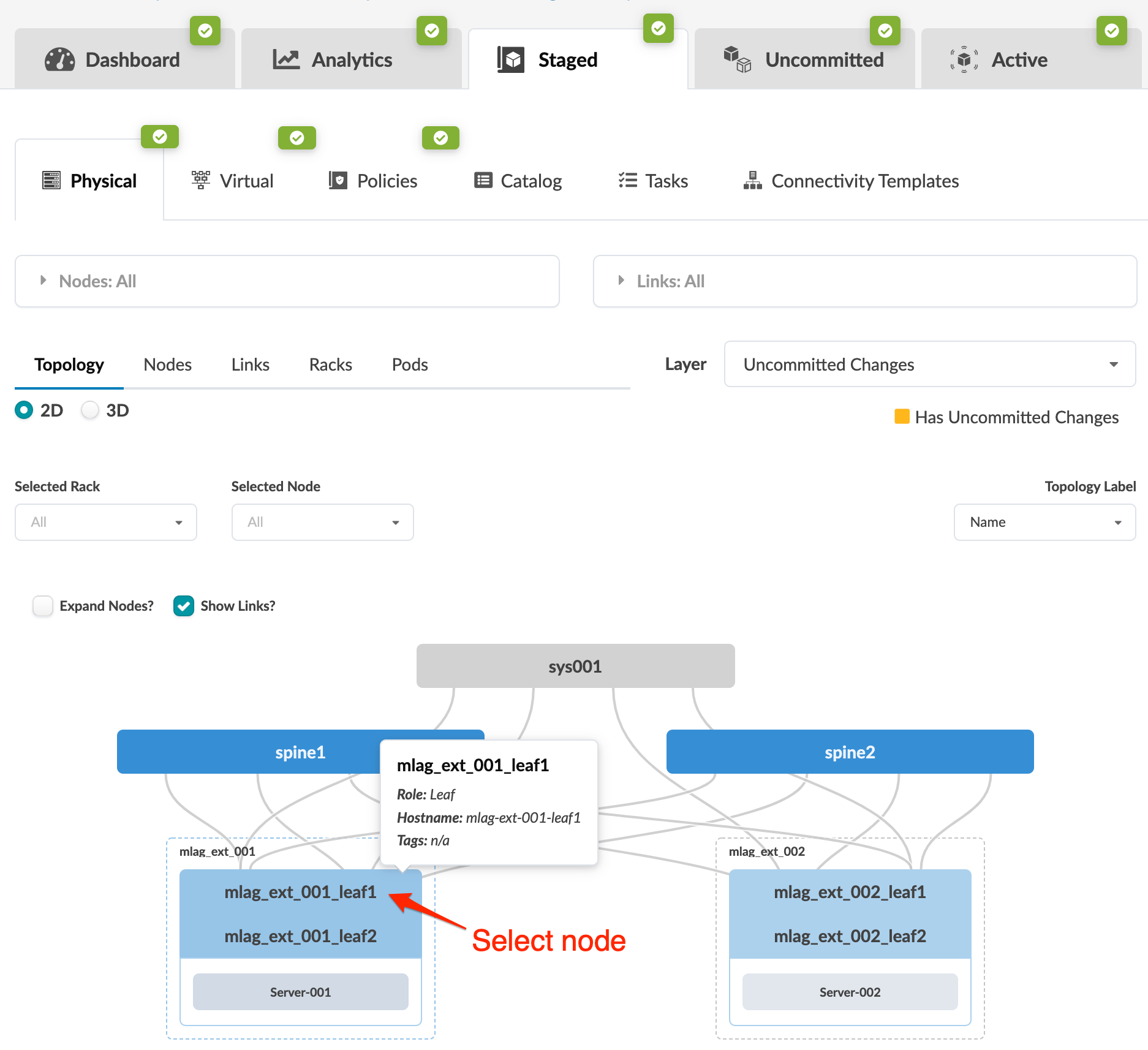

From the blueprint, navigate to Staged > Physical > Topology and select the node with the LAG to break.

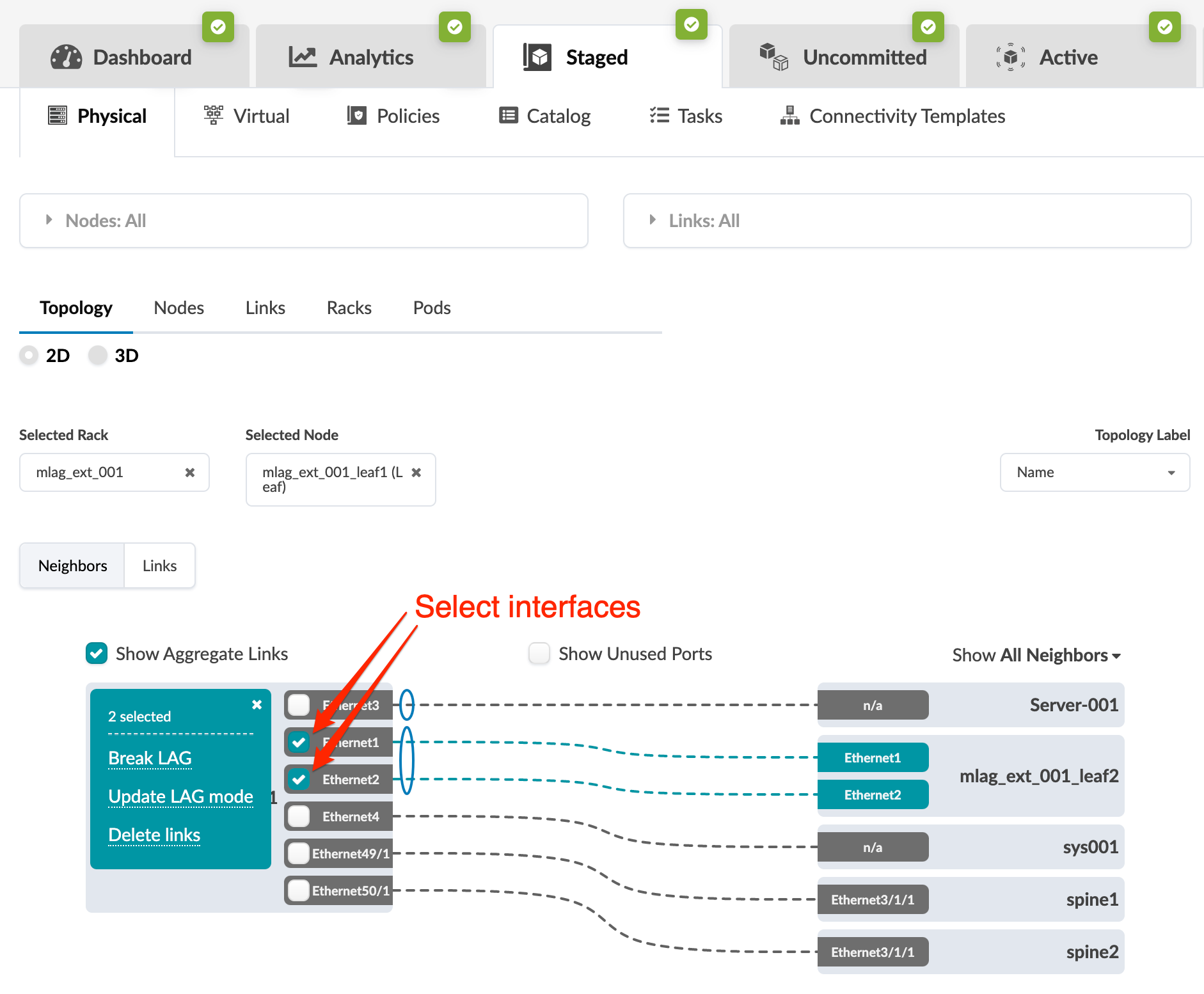

Select the interface check boxes for the LAG (or click the port-channel representation) to see the operations available for those interfaces (and that you have permissions for).

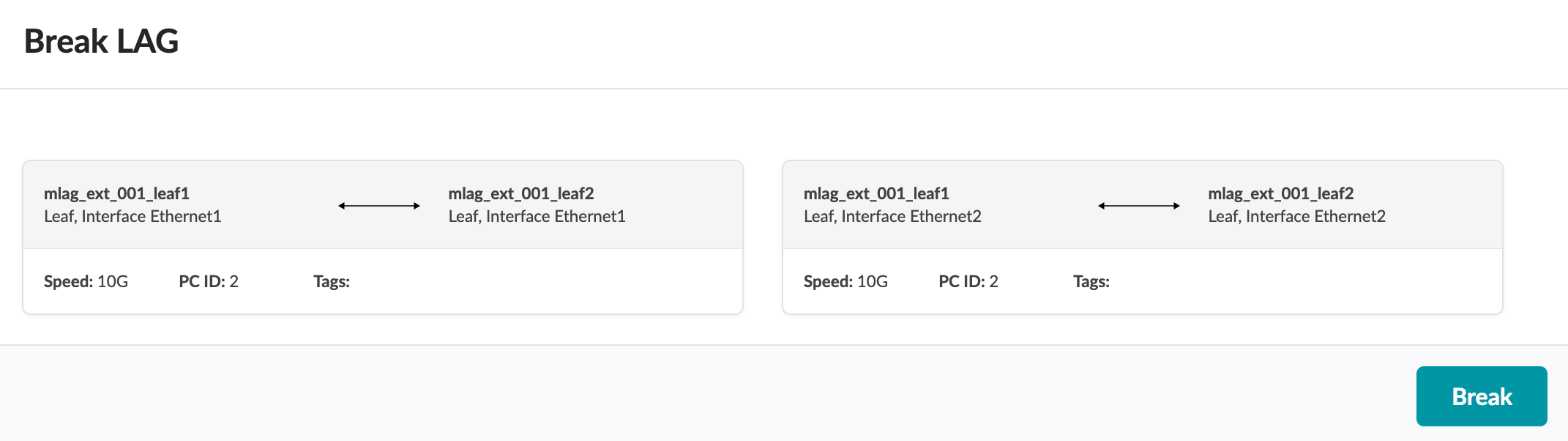

Click Break LAG to go to its dialog with details on the LAG to break.
Click Break to stage your changes and return to the Topology view.

When you're ready to activate your changes, commit them from the Uncommitted tab.
