Create Link in LAG

Release: Juniper Apstra 5.0

date_range 04-Nov-24

arrow_backward

arrow_forward

You can add a link between a LAG and a generic system.

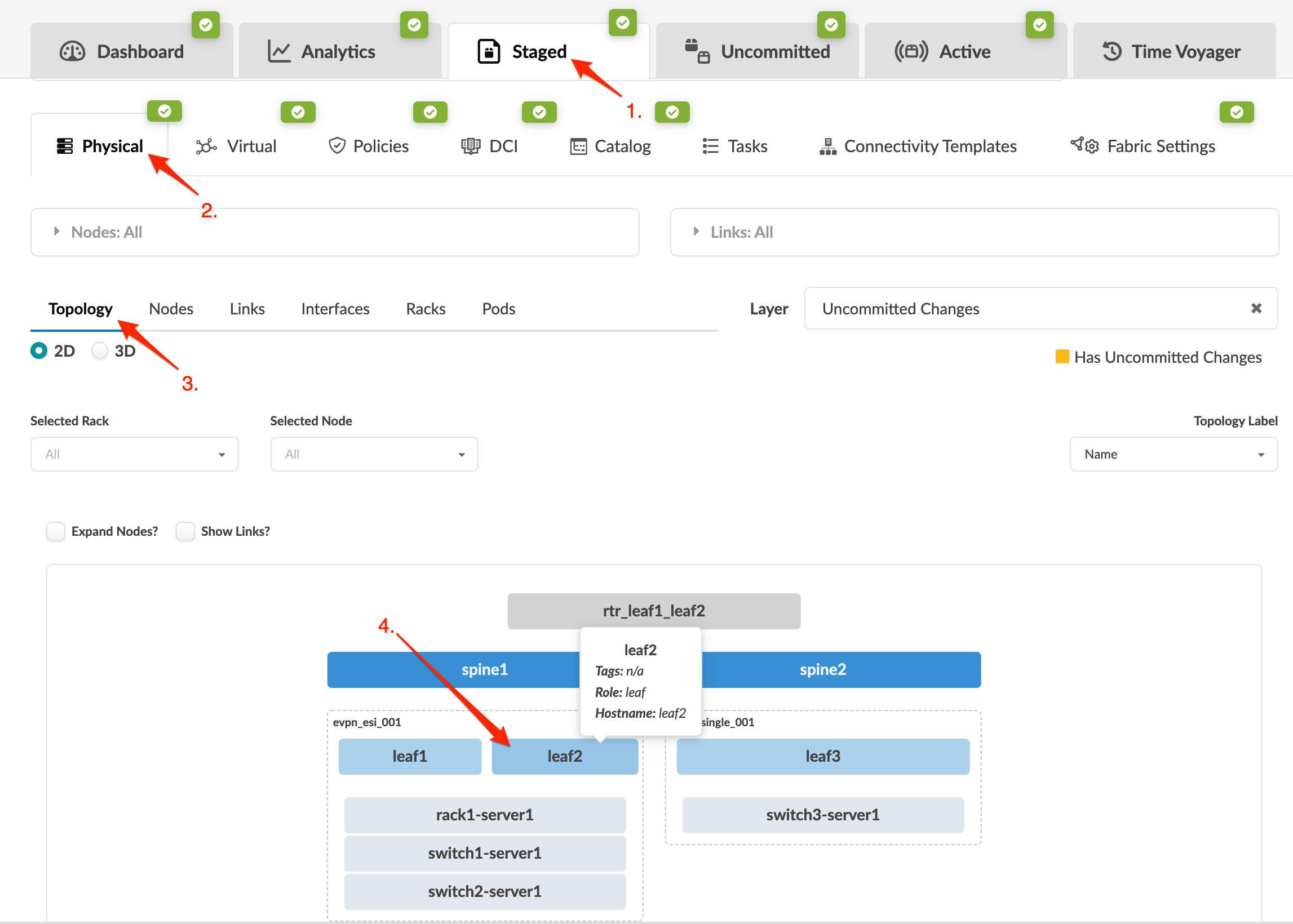

From the blueprint, navigate to Staged > Physical > Topology and select a leaf that is part of a LAG. (Alternatively, you can click the leaf name from the Nodes table at Staged > Physical > Nodes.)
Check the Show Unused Ports check box, select a LAG interface and one of the unused port interfaces, then click Create link in LAG.

The Create Link dialog opens.
Select available ports and transformations, as applicable. The gray Add Link button turns green. From the drop-down list, select the generic system to link to, then click Add Link.
Dual-attached links to leaf groups (evpn-esi) must be symmetric. Add the second link, as applicable.
Click Create to create the link and return to the Topology view.

When you're ready to activate your changes, commit them from the Uncommitted tab.

arrow_backward PREVIOUS Form LAG

NEXT arrow_forward Break LAG
