Update Link Properties

Release: Juniper Apstra 5.0

date_range 04-Nov-24

arrow_backward

arrow_forward

If you have changed server names and/or hostnames for switches, any associated link names do not automatically update to match. This may cause confusion when reviewing an updated cabling map in the Uncommitted tab. You can change link names to match your other name changes. You can also change link IP for endpoints from here.

From the blueprint, navigate to Staged > Physical > Links and click the name of the link to change.
Go to the Properties tab in the right panel.
Depending on the link chosen, you can change link properties such as name and Link IP for endpoints. The attributes that can be edited have an Edit button associated with them. Change properties as applicable.

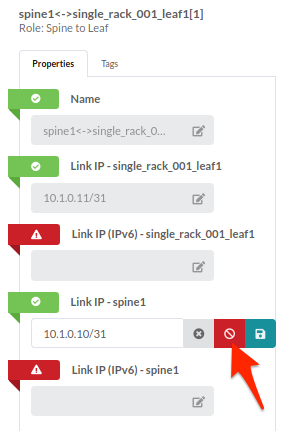

When you change link IP for an endpoint, you must remove link IP from the other endpoint first. Otherwise you will get validation error “User-specified link IPv4 addresses not in the same subnet”.

When you assign new link IP to an endpoint, the link IP for the other endpoint is automatically assigned from the same subnet.
Click the Save button to stage the changes.
