Change Interface IP Address

SUMMARY You may need to change the interface IP address after it's been assigned. You can change it from the associated routing zone.

From Main Interfaces Table

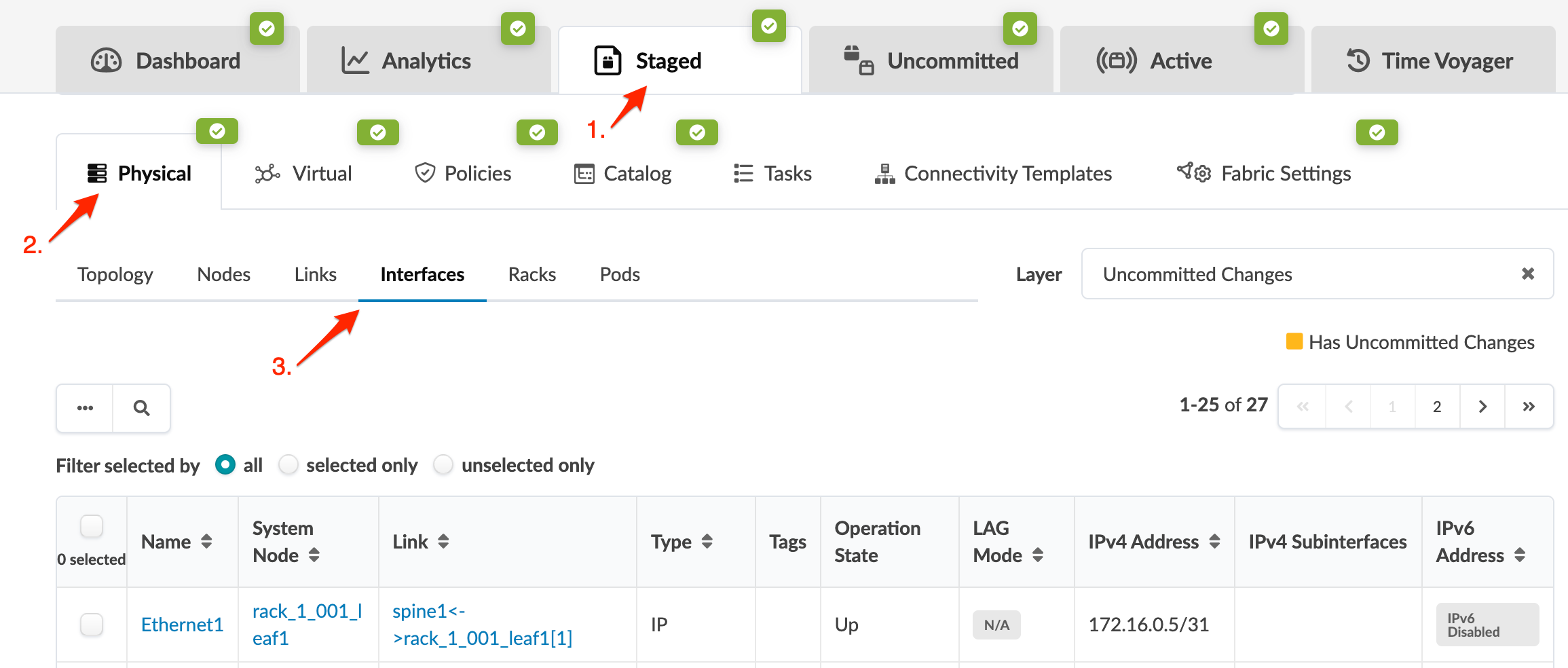

  1. From the blueprint, navigate to Staged > Physical > Interfaces.

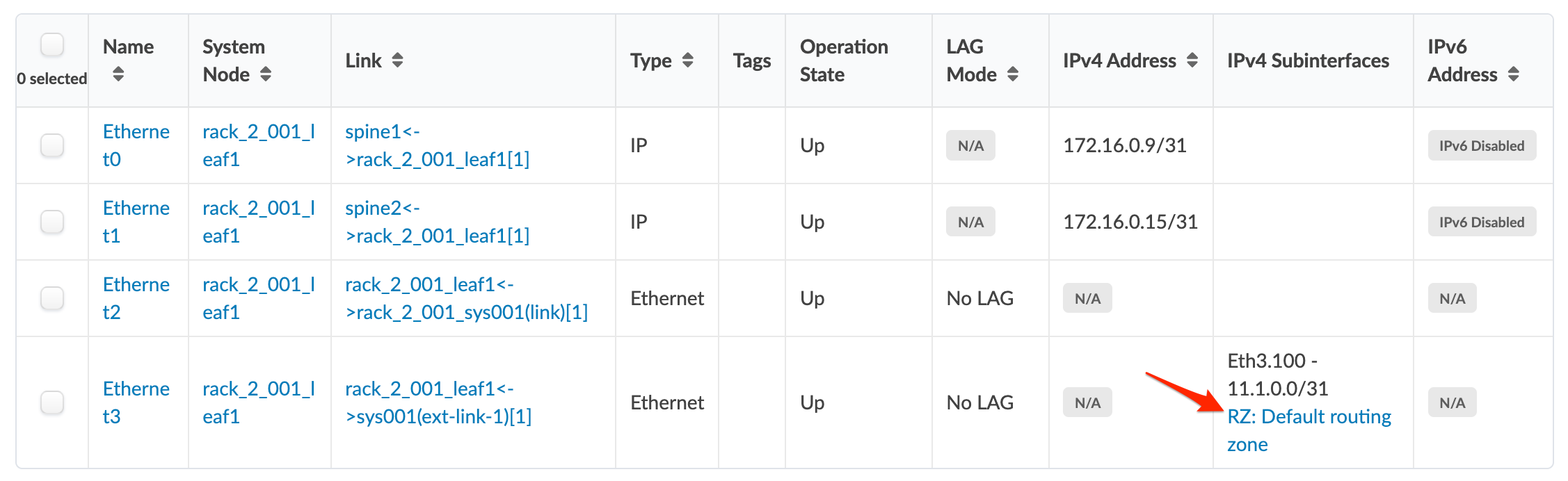

  2. Find the applicable leaf device in the System Node column, then click the corresponding routing zone in the IPv4 Subinterfaces column.

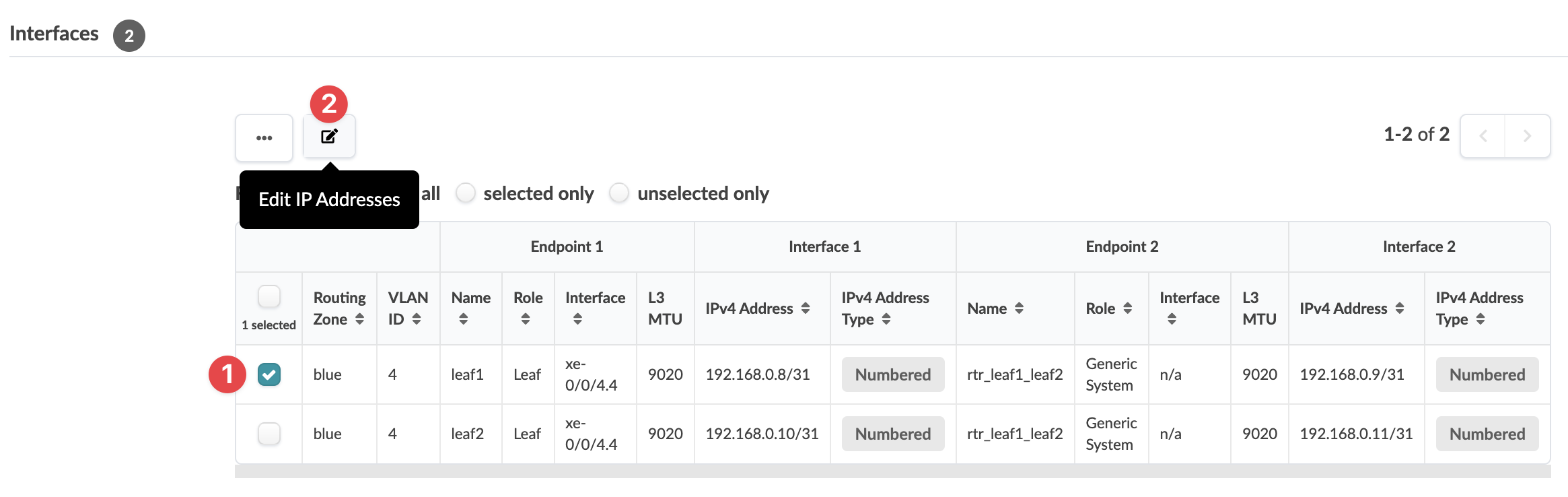

  3. From the routing zone details that appear, scroll to the Interfaces section, click the checkbox for the routing zone, then click the Edit IP Addresses button that appears above the table.

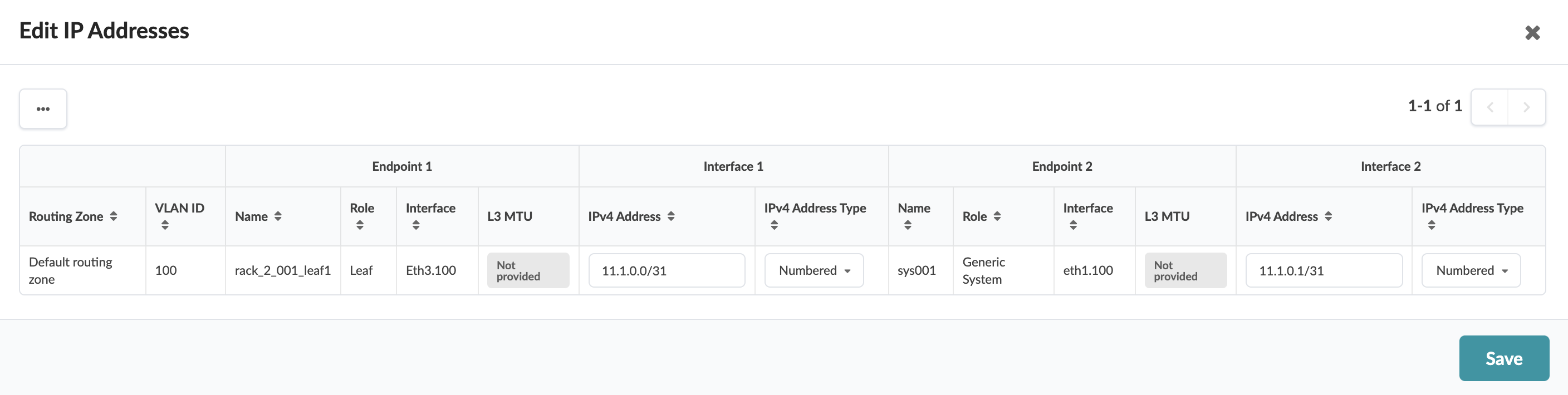

  4. In the dialog that opens, change the IP addresses (and IP address type), as applicable, then click Save to save your changes and return to the previous screen.

To deploy the change to the active blueprint, commit from the Uncommitted tab.

From Selection Interfaces Table

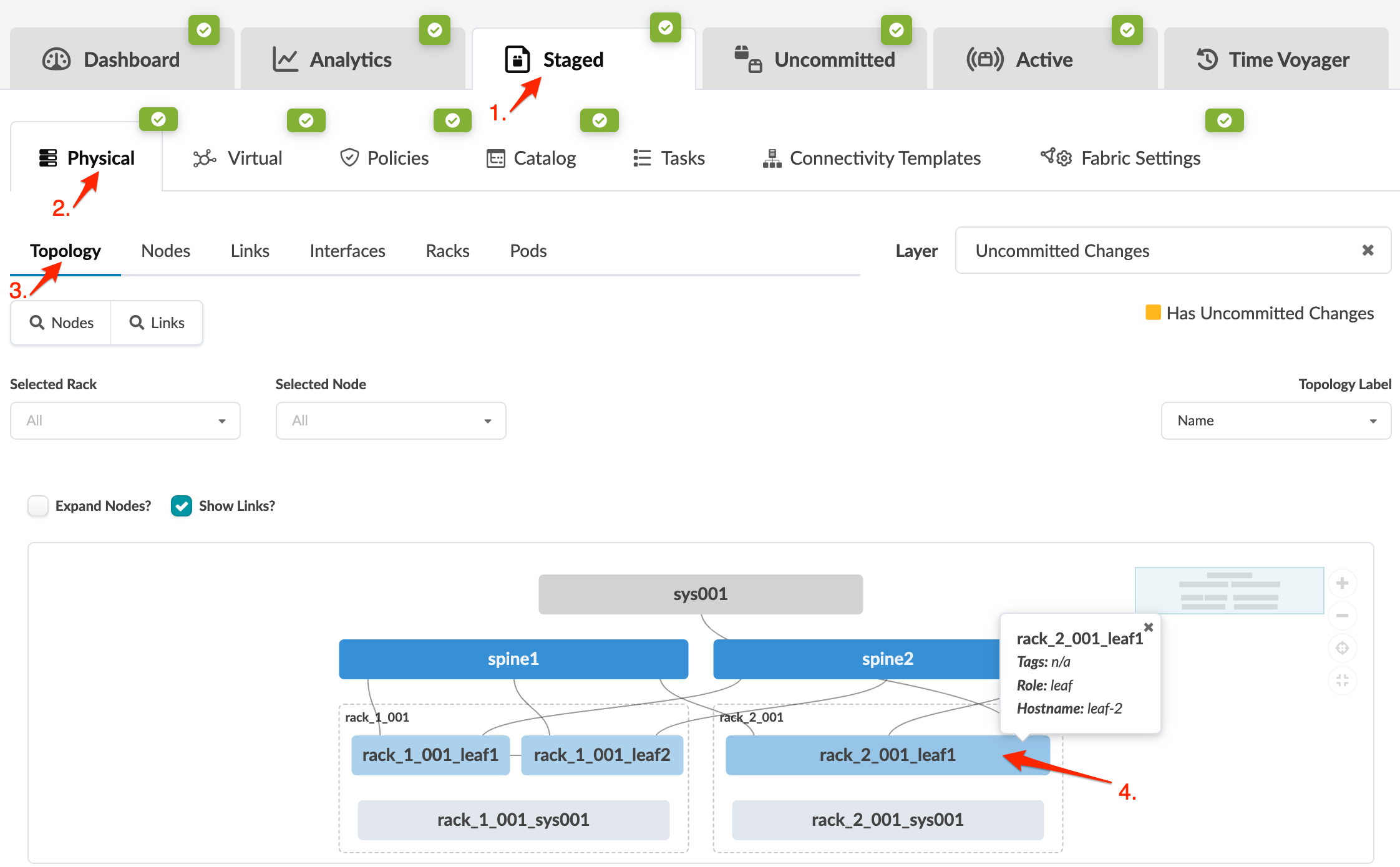

  1. From the blueprint, navigate to Staged > Physical > Topology and select the leaf with the applicable interface.

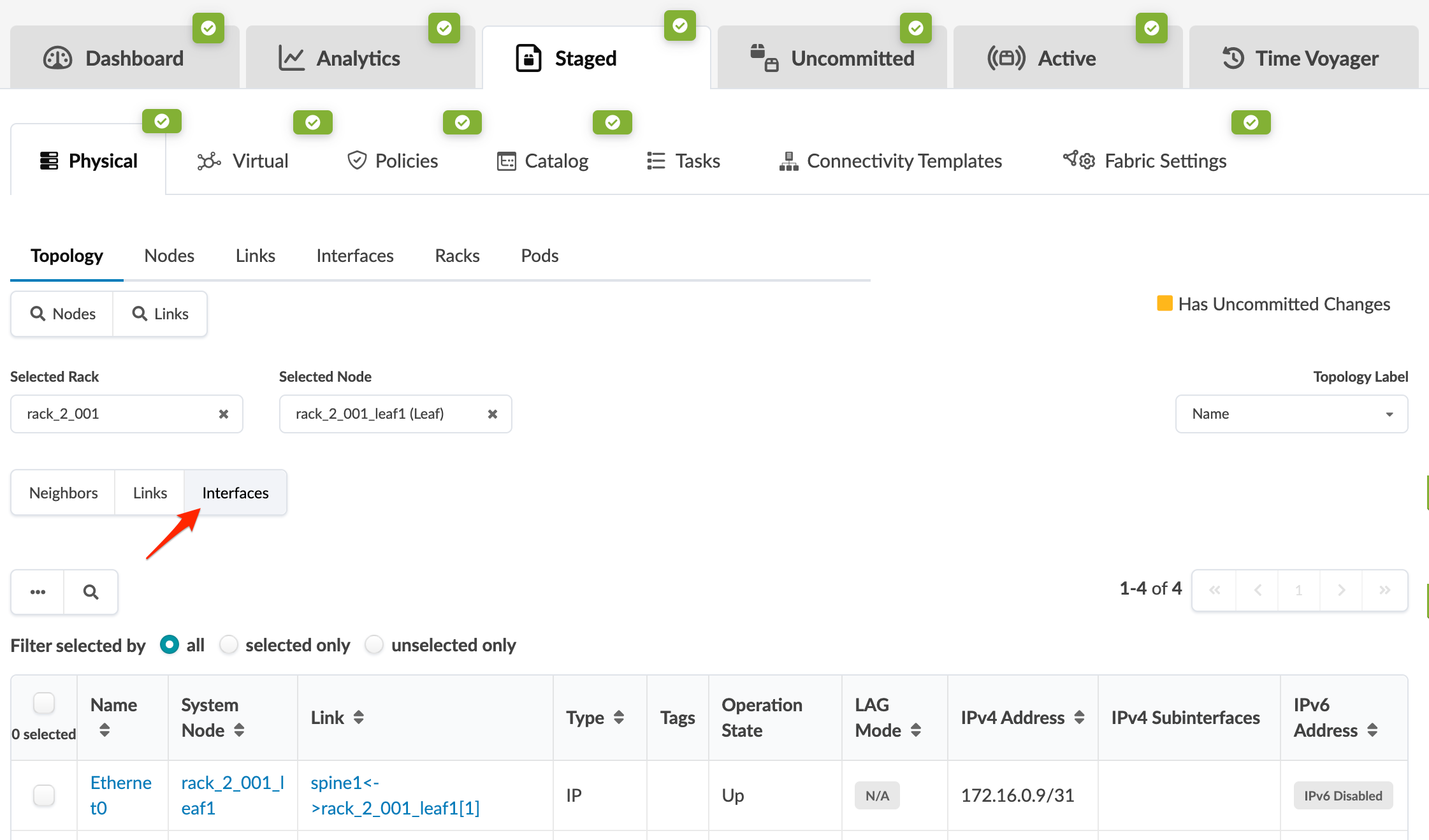

  2. Above the topology for the selected node that appears, click Interfaces (next to Neighbors and Links) to go to the Interfaces table just for that node.

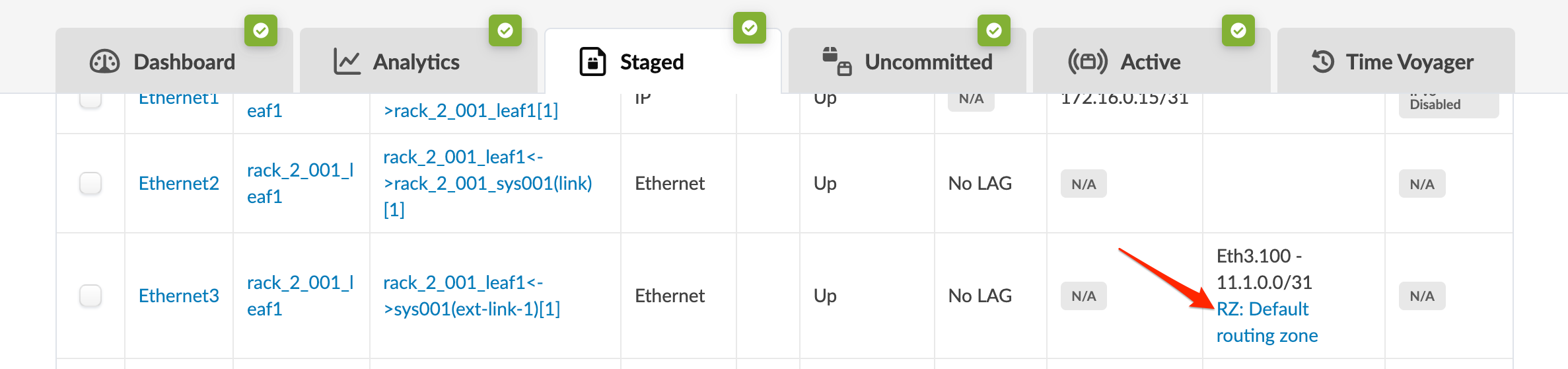

  3. Click the applicable routing zone in the IPv4 Subinterfaces column.
  4. From the routing zone details that appear, scroll to the Interfaces section, click the checkbox for the routing zone, then click the Edit IP Addresses button that appears above the table.
  5. In the dialog that opens, change the IP addresses (and IP address type), as applicable, then click Save to save your changes and return to the previous screen.

To deploy the change to the active blueprint, commit from the Uncommitted tab.

Directly from Routing Zone

  1. From the blueprint, navigate to Staged > Virtual > Routing Zones, then click the name of the VRF in the table.
  2. From the routing zone details that appear, scroll to the Interfaces section, click the checkbox for the routing zone, then click the Edit IP Addresses button that appears above the table.
  3. Change the IP addresses (and IP address type), as applicable, then click Save to save your changes and return to the previous screen.

To deploy the change to the active blueprint, commit from the Uncommitted tab.
