Creating a Secure Logging Channel

This section describes how to place the device in an evaluated configuration to provide an encrypted communication channel over an IPsec VPN tunnel, between a device running Junos OS and a remote external storage server (syslog server).

Note:

The ssh-rsa authentication method is one of the allowed algorithms in FIPS mode.

Table 1 lists all the supported algorithms for the IPsec VPN tunnel.

Table 1: IPsec VPN Tunnel Supported Algorithms
IKE Phase1 Proposal
Authentication Method	Authentication Algorithm	DH Group	Encryption Algorithm
pre-shared-keys rsa-signatures-2048 ecdsa-signatures-256 ecdsa-signatures-384	sha-256 sha-384	group14 group19 group20 group24	aes-128-cbc aes-128-gcm aes-192-cbc aes-256-cbc aes-256-gcm

IPSec Phase2 Proposal
hmac-sha1-96 hmac-sha-256-128	group14 group19 group20 group24	ESP	aes-128-cbc aes-128-gcm aes-192-cbc aes-192-gcm aes-256-cbc aes-256-gcm

IPSec Phase2 Proposal

Authentication Algorithm

DH Group (PFS)

Encryption Method

Encryption Algorithm

hmac-sha1-96

hmac-sha-256-128

group14

group19

group20

group24

ESP

aes-128-cbc

aes-128-gcm

aes-192-cbc

aes-192-gcm

aes-256-cbc

aes-256-gcm

Configuring a Trusted Path or Channel Between a Device Running Junos OS and a Remote External Storage Server

This section describes the configuration details required to provide an encrypted communication channel between a device running Junos OS and the remote external storage server through an IPsec VPN tunnel.

Note:

The remote external storage server is a Linux-based syslog server on which the IPsec VPN Tunnel is terminated at the outbound interface Eth1. The log data transferred from the device is sent to the syslog termination interface Eth2 and the StrongSwan application to provide the IPsec VPN capability.

Table 2 lists the IPsec VPN tunnel details used in this example.

Table 2: IPsec VPN Tunnel Information
Phase 1 Proposal (P1, IKE)				Phase 2 Proposal (P2, IPSec)
Authenticat ion Method	Authenticat ion Algorithm	DH Group	Encryption Algorithm	Authenticat ion Algorithm	DH Group (PFS)	Encryption Method	Encryption Algorithm
pre- shared-keys	sha-256	group14	aes-128-cbc	hmac-sha1 -96	group14	ESP	aes-128-cbc

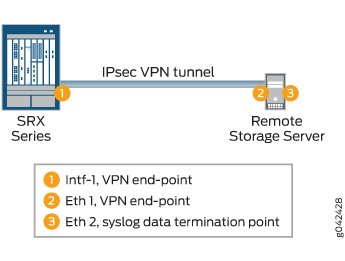

Figure 1 illustrates the encrypted communication channel between a device running Junos OS and a remote external storage server. An IPsec tunnel is established between a devices egress interface (Intf-1) and a remote syslog server outbound interface (Eth1). Data is then forwarded internally on the remote external storage server from its outbound interface Eth1; that is, the VPN endpoint to Eth2.

Figure 1: IPsec VPN Tunnel

Table 3 provides the interface and IP configuration details used in this example.

Table 3: Interface and IP Configuration Details for the Trusted Path
Device Running Junos OS	Remote Storage Server
IP Address: “Intf-2” interface: GE-0/0/1 – IP Address: 198.51.100.2 “Intf-1” interface: GE-0/0/2 - IP Address: 198.51.100.1 Enable: Syslog logging to remote syslog server	IP Address: Eth1: 198.51.100.3 Eth2: 203.0.113.1 Gateway Eth1: 198.51.100.1 Tools: SSH and Strongswan (for IPsec VPN)

To configure the trusted path or channel between a device running Junos OS and a remote external storage server:

Enable stream logging for traffic logs.
Note:
192.168.2.1 is the IP address of the syslog server outbound interface at which the IPsec VPN tunnel is terminated, and 20.20.20.2 is the IP address of the syslog server interface for which log data is destined.

Enable syslog on the device.

Enable VPN on the device.

IKE setup:

IPsec setup:

Perform the following additional configurations on the device.

IKE trace log:

Flow trace:

Route options:

Address book configuration:

Zone configuration:

Policy configuration:
