Onboard Greenfield Devices

You can use zero-touch-provisioning (ZTP) to deploy greenfield devices.

Follow these steps to deploy greenfield devices by using the Contrail Command UI.

  1. Click Infrastructure>Fabrics.

    The Fabrics page is displayed.

  2. Click Create.

    You are prompted to select a provisioning option.

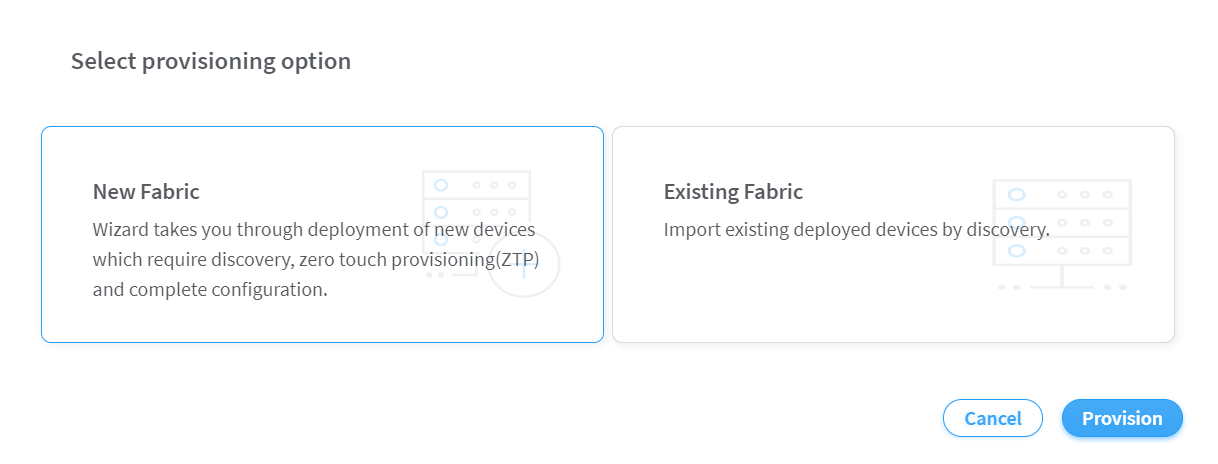

  3. Click New Fabric to deploy new (greenfield) devices by discovery. See Figure 1.
    Figure 1: Select Existing FabricSelect Existing Fabric
  4. Click Provision.

    The Create Fabric page is displayed.

  5. Enter the information given in Table 1 if you have selected New Fabric as the provisioning option.
    Table 1: Provisioning Option - New Fabric

    Field

    Action

    Name

    Enter a name for the fabric.

    The name identifies the fabric on all fabric configuration and monitoring pages.

    Device credentials

    Enter root user password.

    The password entered in this field becomes the root password to access every device in the fabric.

    Overlay ASN (iBGP)

    Enter autonomous system (AS) number in the range of 1-65,535.

    If you enable 4 Byte ASN in Global Config, you can enter 4-byte AS number in the range of 1-4,294,967,295.

    Device Info

    Upload YAML file.

    This YAML file contains the serial numbers of each device in the fabric for device discovery. Click browse and navigate to the local directory and select the YAML file. Click Open to confirm.

    Alternatively, you can drag and drop the .yaml or .yml file in the Device Info box.

    To create this YAML file, click (*.yml) in the Template field, download the file, modify the file to include the serial numbers and hostnames for your fabric devices, and save the file.

    For a sample YAML file, see #id-provision-existing-fabric__sample-yml-device-info-ztp.

    Node profiles

    Add node profiles.

    You can add more than one node profile.

    All preloaded node profiles are added to the fabric by default. You can remove a node profile by clicking X on the node profile. For more information, see View Node Profile Information.

    For more information on supported hardware platforms, associated node profiles and roles, see Contrail Networking Supported Hardware Platforms and Associated Roles And Node Profiles.

    Upgrade devices during the process?

    Select the Upgrade devices during the process? check box as given in Figure 2 to enable the OS Version list.

    Starting with Contrail Networking Release 1907, you can upgrade a device during the ZTP process.

    OS Version

    Select the OS version you want to upgrade the device to, from the OS Version list.

    The OS Version list is enabled when you select the Upgrade devices during the process? check box.

    Note:

    The options in the OS Version list are the OS versions of the images that you uploaded.

    Disable VLAN-VN Uniqueness Check

    Select this check box when you are using the enterprise style of configuration but want to disable the requirement that every VLAN ID must have a 1:1 mapping with a VNI. Enterprise style of configuration is enabled by selecting the VLAN-ID Fabric-Wide Significance check box.

    VLAN-ID Fabric Wide Significance

    Select the VLAN-ID Fabric Wide Significance check box to enable enterprise style of configuration for the CRB-Access role on QFX devices. Deselect the check box to enable service provider style of configuration for the CRB-Access role. The check box is selected by default since enterprise style is the default setting.

    Once configured you can modify the enterprise style setting to service provider style of configuration. However, you cannot modify the service provider style to enterprise style of configuration without having to recreate the fabric.

    Note:

    Contrail Networking Release 1909 supports QFX10002-60C devices running Junos OS Release 19.1R2 and later. QFX10002-60C device works only if enterprise style of configuration is enabled. To enable enterprise style of configuration, select the VLAN-ID Fabric Wide Significance check box when onboarding the QFX10002-60C device. For more information on enterprise style of configuration, see Configuring EVPN VXLAN Fabric with Multitenant Networking Services.

    For more information on supported hardware platforms and roles, see Contrail Networking Supported Hardware Platforms and Associated Roles And Node Profiles.

    Underlay ASNs (eBGP)

    Enter autonomous system (AS) number in the range of 1-65,535.

    If you enable 4 Byte ASN in Global Config, you can enter 4-byte AS number in the range of 1-4,294,967,295.

    • Enter minimum value in ASN From field.

    • Enter maximum value in ASN To field.

    Management subnets

    Enter the following information to auto-assign management IP addresses to devices:

    CIDR—Enter the block of IP addresses that will be assigned as management IP addresses. The field value must include a CIDR with an IP address and a subnet mask. For example, 192.0.20/24.

    Gateway—Enter gateway address for the devices in the management subnet that connect to the fabric.

    Fabric subnets (CIDR)

    Enter fabric CIDR address. The field value must include a CIDR with an IP address and a subnet mask. For example, 192.0.20/24.

    Fabric subnets are used to assign IP addresses to interfaces that connect to leaf or spine devices.

    Loopback subnets (CIDR)

    Enter loopback subnet (lo0) address.

    The field value must include a CIDR with an IP address and a subnet mask. For example, 192.0.20/24.

    Loopback subnets are used to auto-assign loopback IP addresses to the fabric devices.

    LR Loopback subnets

    Enter an IP subnet to be assigned as loopback interface (lo0) addresses used in Logical Routers (LR). The LR loopback interface IP address is required for eBGP peering to external or unmanaged devices.

    The field value must include a CIDR with an IP address and a subnet mask. For example, 192.0.20/24.

    PNF Servicechain subnets

    Enter the IP subnet for allocating IP addresses in the PNF Servicechain subnets field to establish EBGP session between PNF device and SPINE switch. This is an optional field that should be left blank when you are not creating service chains.

    Advanced interface filters

    Create an interface filter to filter the interfaces to include in the fabric. By default, all interfaces identified as participating in Contrail are imported into the fabric during the fabric provisioning process. If an interface filter is set, the fabric provisioning process includes the interfaces that are participating in Contrail and that match the interface filter in the fabric.

    To create an interface filter, choose the operation as regex and enter the filter characters in the Expression field. The Expression field supports all characters - including metacharacters - allowed in Python regex filters. For example, you can enter ^xe in the Expression field to filter out all 10Gbps xe interfaces from the fabric.

    Import configured interfaces

    Choose this option if configured interfaces need to be imported into the fabric in addition to runtime interfaces. With some exceptions, a configured interface is generally an interface that has been configured in the Junos OS software.

    A runtime interface is generally an interface that has not been configured in Junos OS. You can confirm which interfaces are configured interfaces by entering the show interfaces command at the configuration mode prompt(#) in Junos. Only runtime interfaces are imported into the fabric by default.

    Sample YAML File Snippet

    where,

    supplemental_day_0_cfg is the additional configuration that is pushed on to the device during ZTP.

    serial_number is the serial number of the device that is added to the fabric.

    hostname is the device host name. If host name is not set, the serial number of the device is set as the device host name by default.

    Figure 2: Deploy Greenfield DevicesDeploy Greenfield Devices
  6. Click Next.

    The Device discovery page is displayed.

    The Device discovery progress bar on the Device discovery page displays the progress of the device discovery job.

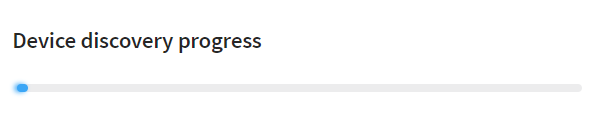

    Figure 3: Device Discovery Progress BarDevice Discovery Progress Bar

    The list of devices discovered are listed in the Discovered devices page.

  7. Select the device you want to add by selecting the check box next to the device name.

    You can select more than one device.

  8. Click Next to assign roles.

    Assign the Roles page is displayed.

  9. From the assign to devices table, select the device you want to assign a role to by selecting the check box next to the device name.

    Click the Assign icon at the end of the row to assign roles. The Assign role to devices pop-up is displayed.

  10. You can now assign physical roles and routing-bridging roles.

    1. Select a physical role from the Physical Role list.

    2. Select a routing-bridging role from the Routing Bridging Roles list.

    Assigning Roles for Spine Devices:

    • Select spine from the Physical Role list.

    • Select CRB-Gateway from the Routing Bridging Roles list.

    Assigning Roles for Leaf Devices:

    • Select leaf from the Physical Role list.

    • Select CRB-Access from the Routing Bridging Roles list.

    Assigning Roles for PNF Devices:

    • Select PNF from the Physical Role list.

    • Select CRB-Access and PNF-Servicechain from the Routing Bridging Roles list.

    Note:

    The number of PNF instances you can create depends on the subnet mask of the pnf-servicechain-subnet that you provided during fabric onboarding. You can create multiple /29 subnets from the pnf-servicechain-subnet.

    For example, if a /24 subnet is provided for the pnf-servicechain-subnet, then, you can create 25= 32(29-24=5) subnets out of it. Each PNF uses a pair of /29 subnets. Thus, for a /24 subnet, you can have a maximum of 16 PNFs.

    Assigning Roles for VNF Devices:

    • Select VNF from the Physical Role list.

    • Select CRB-Access from the Routing Bridging Roles list.

      Note:

      ERB-UCAST-Gateway routing bridging role is also supported.

    Click Assign to confirm selection.

  11. Click Autoconfigure to initiate the auto-configuration job.

    The Autoconfigure page is displayed.

    The Autoconfigure progress bar on the Discovered devices page displays the progress of the auto-configuration job. Once the auto-configuration job is completed, click Next. The Assign Telemetry Profiles page is displayed.

    Starting with Contrail Networking Release 2008, you can apply MTU, admin state, flow control, LACP force up, interface type attributes to physical interfaces; and MTU to logical interfaces. These attributes are applied to physical and logical interfaces after you Autoconfigure the devices.

    To apply these attributes to interfaces:

    1. Navigate to Infrastructure > Fabric.
    2. Select the desired fabric from the list.
    3. Select the desired fabric device from the list.
    4. Click Physical Interfaces > Create.
    5. Enter the required details.

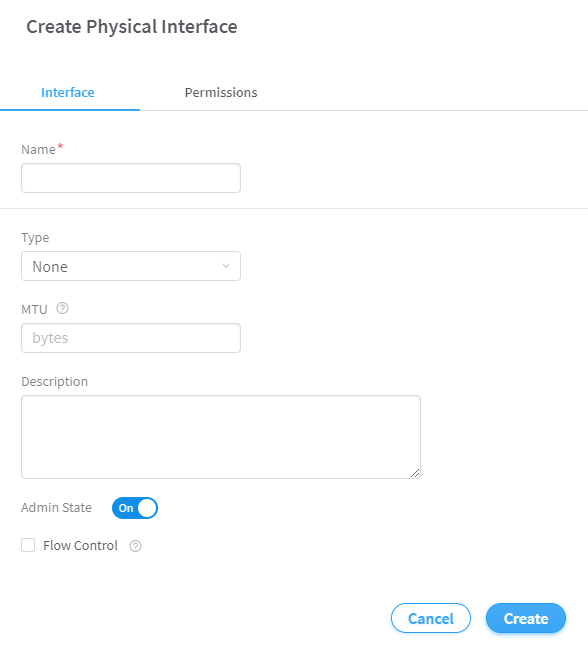

      Figure 4: Create Physical InterfaceCreate Physical Interface
    6. Click Create.

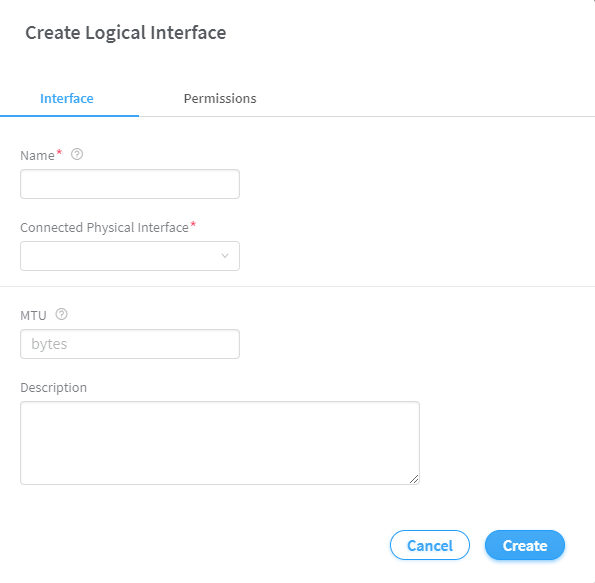

    7. Click Logical Interfaces > Create.
    8. Enter the required details.
    9. Click Create.
  12. (Optional) Assign telemetry profiles. For more information, see Assign Telemetry Profiles.

    PNF service chain and VNF service chain does not use telemetry profiles.

  13. Click Finish to exit the Create Fabric wizard.

    The onboarding job is now complete.

Note:

After the devices are onboarded, if you edit the fabric topology by adding new spine or leaf devices or by adding new links between devices, you must onboard the edited devices again. If you do not onboard the devices after edits to the initial configuration, underlay formation for the edited devices fails. You can choose to onboard individual devices by clicking the Onboard button for the selected device in the Fabric Devices tab of the Infrastructure > Fabrics > Fabric_Name page.

Change History Table

Feature support is determined by the platform and release you are using. Use Feature Explorer to determine if a feature is supported on your platform.

Release
Description
2008
Starting with Contrail Networking Release 2008, you can apply MTU, admin state, flow control, LACP force up, interface type attributes to physical interfaces; and MTU to logical interfaces.
1909
Contrail Networking Release 1909 supports QFX10002-60C devices running Junos OS Release 19.1R2 and later.
1908
Select the VLAN-ID Fabric Wide Significance check box to enable enterprise style of configuration for the CRB-Access role on QFX devices. Deselect the check box to enable service provider style of configuration for the CRB-Access role.
1907
Starting with Contrail Networking Release 1907, you can upgrade a device during the ZTP process.
