Configuring Port Mirroring for Remote Destinations

date_range 28-Nov-23

Layer 2 Port Mirroring to Remote Destination by Using Destination as VLAN

You configure port mirroring on an EX9200 switch to send copies of traffic to an output destination, such as an interface, a routing-instance, or a VLAN; and for the input traffic, you can configure a firewall filter term with various match conditions and actions.

When you configure VLAN as the output destination in a port-mirroring configuration, the traffic for each port-mirroring session is carried over a user-specified VLAN that is dedicated for that mirroring session in all participating switches. The mirrored traffic is copied onto that VLAN (also called as mirror VLAN) and forwarded to interfaces, which are members of the mirror VLAN. The destination interfaces, which are members of the mirror VLAN, can span across multiple switches in the network provided that the same remote mirroring VLAN is used for a mirroring session in all the switches.

You can use the port-mirror or port-mirror-instance action in the firewall filter configuration when you mirror traffic to remote destinations by configuring a VLAN as a port-mirroring output destination.

Configuration Layer 2 Port Mirroring to a Remote VLAN

EX9200 switches enable you to configure mirroring to send copies of packets to either a local interface for local monitoring or to a VLAN for remote monitoring. You can use mirroring to copy the following packets:

  • Packets entering or exiting a port

  • Packets entering or exiting a VLAN

Best Practice:

Mirror only necessary packets to reduce potential performance impact. We recommend that you:

  • Disable port mirroring that you have configured when you are not using them.

  • Specify individual interfaces as input rather than specifying all interfaces as input in a port mirroring configuration.

  • Limit the amount of mirrored traffic by:

    • Using statistical sampling.

    • Setting ratios to select statistical samples.

    • Using firewall filters.

Configuring Port Mirroring to a Remote VLAN

To filter packets to be mirrored to a port-mirroring instance, create the instance and then use it as the action in the firewall filter. You can use firewall filters in both local and remote mirroring configurations.

If the same port-mirroring instance is used in multiple filters or terms, the packets are copied to the port-mirroring output port or port-mirroring VLAN only once.

To filter mirrored traffic, create a port-mirroring instance under the [edit forwarding-options] hierarchy level, and then create a firewall filter. The filter can use any of the available match conditions and must have port-mirror-instance instance-name as an action. This action in the firewall filter configuration provides the input to the port-mirroring instance.

To configure a port-mirroring instance with firewall filters:

  1. Configure the port-mirroring instance name and set the output destination to a VLAN:
    content_copy zoom_out_map
    [edit forwarding-options]
    user@switch# set port-mirroring instance instance-name output vlan (vlan-ID | vlan-name)

    For example, configure a port-mirroring instance employee-monitor and set the output destination to a VLAN ID 999:

    content_copy zoom_out_map
    [edit forwarding-options]
    user@switch# set port-mirroring instance employee-monitor output vlan 999
  2. Create a firewall filter by using any of the available match conditions and assign the port-mirroring instance name as an action in the firewall filter configuration.
    content_copy zoom_out_map
    [edit firewall family ethernet-switching]
    user@switch set filter filter-name term term-name from match-condition
    user@switch set filter filter-name term term-name then match-condition
    user@switch# set filter filter-name term term-namethen port-mirror-instance instance-name

    For example, create a firewall filter called example-filter with two terms no-analyzer and to-analyzer, and assign the to-analyzer term to the employee-monitor port-mirroring instance:

    1. Create the first term to define the traffic that should not pass through to the port-mirroring instance employee-monitor:
      content_copy zoom_out_map
      [edit firewall family ethernet-switching]
      user@switch# set filter (Firewall Filters) example-filter term no-analyzer from source-address 192.0.2.14
      [edit firewall family ethernet-switching]
      user@switch# set filter example-filter term no-analyzer from protocol tcp
      [edit firewall family ethernet-switching]
      user@switch# set filter example-filter term no-analyzer then accept
    2. Create the second term to define the traffic that should pass through to the port-mirroring instance employee-monitor:
      content_copy zoom_out_map
      [edit firewall family ethernet-switching]
      user@switch# set filter example-filter term to-analyzer from destination-port 80
      [edit firewall family ethernet-switching]
      user@switch# set filter example-filter term to-analyzer then port-mirror-instance employee–monitor
      [edit firewall family ethernet-switching]
      user@switch# set filter example-filter term to-analyzer then accept
  3. Apply the firewall filter to an interface or VLAN that provides input to the port-mirroring instance.

    To apply a firewall filter to an interface:

    content_copy zoom_out_map
    [edit]
    user@switch# set interfaces interface-name unit 0 family ethernet-switching filer (input | output) filter-name

    To apply a firewall filter to a VLAN:

    content_copy zoom_out_map
    [edit]
    user@switch# set vlan (vlan-ID or vlan-name) filter (input | output) filter-name

    For example, to apply the example-filter firewall filter to the ge-0/0/1 interface:

    content_copy zoom_out_map
    [edit]
    user@switch# set interfaces ge-0/0/1 unit 0 family ethernet-switching filter input example-filter

    For example, to apply the example-filter filter to the source-vlan VLAN:

    content_copy zoom_out_map
    [edit]
    user@switch# set vlan source-vlan filter input example-filter

Example: Configuring Layer 2 Port Mirroring to Remote VLAN

EX9200 switches enable you to configure mirroring to send copies of packets to either a local interface for local monitoring or to a VLAN for remote monitoring. You can use mirroring to copy these packets:

  • Packets entering or exiting a port

  • Packets entering or existing a VLAN

You can analyze the mirrored traffic by using a protocol analyzer application running on a remote monitoring station if you are sending mirrored traffic to an analyzer VLAN.

This topic includes two related examples that describe how to mirror traffic entering ports on the switch to the remote-analyzer VLAN so that you can perform analysis from a remote monitoring station. The first example shows how to mirror all traffic entering the ports connected to employee computers. The second example shows the same scenario but includes a filter to mirror only the employee traffic going to the Web.

Best Practice:

Mirror only necessary packets to reduce potential performance impact. We recommend that you:

  • Disable your configured mirroring sessions when you are not using them.

  • Specify individual interfaces as input to analyzers rather than specifying all interfaces as input.

  • Limit the amount of mirrored traffic by using firewall filters.

This example describes how to configure remote mirroring:

Requirements

Before you configure remote mirroring, be sure that:

  • You have an understanding of mirroring concepts.

  • The interfaces that port-mirroring will use as output interfaces have been configured on the switch.

Overview and Topology

This topic includes two related examples that describe how to configure mirroring to the remote-analyzer VLAN so that analysis can be performed from a remote monitoring station. The first example shows how to configure a switch to mirror all traffic from employee computers. The second example shows the same scenario, but the setup includes a filter to mirror only the employee traffic going to the Web.

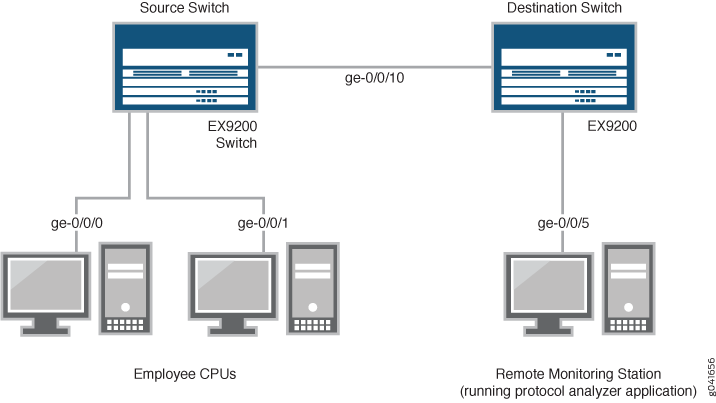

Figure 1 shows the network topology for both these example scenarios.

Topology

Figure 1: Remote Mirroring Network Topology ExampleRemote Mirroring Network Topology Example

In this example:

  1. Interface ge-0/0/0 is a Layer 2 interface, and interface ge-0/0/1 is a Layer 2 interface (both interfaces on the source switch) that serve as connections for employee computers.

  2. Interface ge-0/0/10 is a Layer 2 interface that connects the source switch to the destination switch.

  3. Interface ge-0/0/5 is a Layer 2 interface that connects the destination switch to the remote monitoring station.

  4. VLAN remote-analyzer is configured on all switches in the topology to carry the mirrored traffic.

Mirroring Employee-to-Web Traffic for Remote Analysis

To configure port mirroring for remote traffic analysis of employee-to-Web traffic, perform these tasks:

Procedure

CLI Quick Configuration

To quickly configure port-mirroring to mirror employee traffic to the external Web, copy the following commands and paste them into the switch terminal window:

  • Copy and paste the following commands in the source switch terminal window:

    content_copy zoom_out_map
    [edit]
    set forwarding-options port-mirroring instance employee-web-monitor output vlan 999
     set vlans remote-analyzer vlan-id 999
     set interfaces ge-0/0/10 unit 0 family ethernet-switching interface-mode access
     set interfaces ge-0/0/10 unit 0 family ethernet-switching vlan members 999
     set firewall family ethernet-switching filter watch-employee term employee-to-corp from destination-address 192.0.2.16/28
     set firewall family ethernet-switching filter watch-employee term employee-to-corp from source-address 192.0.2.16/28
     set firewall family ethernet-switching filter watch-employee term employee-to-corp then accept
     set firewall family ethernet-switching filter watch-employee term employee-to-web from destination-port 80
     set firewall family ethernet-switching filter watch-employee term employee-to-web then port-mirror-instance employee-web-monitor
    set interfaces ge-0/0/0 unit 0 family ethernet-switching filter input watch-employee
     set interfaces ge-0/0/1 unit 0 family ethernet-switching filter input watch-employee
  • Copy and paste the following commands in the destination switch terminal window:

    content_copy zoom_out_map
    [edit]
     set vlans remote-analyzer vlan-id 999
     set interfaces ge-0/0/10 unit 0 family ethernet-switching interface-mode access
     set interfaces ge-0/0/10 unit 0 family ethernet-switching vlan members 999
     set interfaces ge-0/0/5 unit 0 family ethernet-switching interface-mode access
    set interfaces ge-0/0/5 unit 0 family ethernet-switching vlan members 999
Step-by-Step Procedure

To configure port mirroring of all traffic from the two ports connected to employee computers to the remote-analyzer VLAN for use from a remote monitoring station:

  1. On the source switch:

    1. Configure the employee-web-monitor port-mirroring instance:

      content_copy zoom_out_map
      [edit ]
      user@switch# set interfaces ge-0/0/10 unit 0 family ethernet-switching port mode access
      user@switch# set forwarding-options port-mirroring instance employee-web-monitor output vlan 999
    2. Configure the VLAN ID for the remote-analyzer VLAN:

      content_copy zoom_out_map
      [edit vlans]
      user@switch# set remote-analyzer vlan-id 999
    3. Configure the interface to associate it with the remote-analyzer VLAN:

      content_copy zoom_out_map
      [edit interfaces]
      user@switch# set ge-0/0/10 unit 0 family ethernet-switching vlan members 999

    4. Configure the firewall filter called watch-employee:

      content_copy zoom_out_map
      [edit firewall family ethernet-switching]
      user@switch# set filter watch-employee term employee-to-corp from destination-address 192.0.2.16/28
      user@switch# set filter watch-employee term employee-to-corp from source-address 192.0.2.16/28
      user@switch# set filter watch-employee term employee-to-corp then accept
      user@switch# set filter watch-employee term employee-to-web from destination-port 80
      user@switch# set filter watch-employee term employee-to-web then port-mirror-instance employee-web-monitor

      In this configuration, the employee-to-corp term defines that traffic from destination-address 192.0.2.16/28 and source address 192.0.2.16/28 can be accepted to pass through the switch, and the employee-to-web term defines that traffic from port 80 must be sent to the port-mirroring instance employee-web-monitor.

    5. Apply the firewall filter to the employee interfaces:

      content_copy zoom_out_map
      [edit interfaces]
      user@switch# set ge-0/0/0 unit 0 family ethernet-switching filter input watch-employee
      user@switch# set ge-0/0/1 unit 0 family ethernet-switching filter input watch-employee
  2. On the destination switch:

    • Configure the VLAN ID for the remote-analyzer VLAN:

      content_copy zoom_out_map
      [edit vlans]
      user@switch# set remote-analyzer vlan-id 999
    • Configure the interface on the destination switch for access mode and associate it with the remote-analyzer VLAN:

      content_copy zoom_out_map
      [edit interfaces]
      user@switch# set ge-0/0/10 unit 0 family ethernet-switching interface-mode access
      user@switch# set ge-0/0/10 unit 0 family ethernet-switching vlan members 999
    • Configure the interface connected to the destination switch for access mode and associate it with the remote-analyzer VLAN:

      content_copy zoom_out_map
      [edit interfaces]
      user@switch# set ge-0/0/5 unit 0 family ethernet-switching interface-mode access
      user@switch# set ge-0/0/5 unit 0 family ethernet-switching vlan members 999
Results

Check the results of the configuration on the source switch:

content_copy zoom_out_map
[edit]
user@switch> show
interfaces {
    ge-0/0/10 {
        unit 0 {
            family ethernet-switching {
                interface-mode access;
                vlan {
                    members remote-analyzer;
                }
            }
        }
    }
    ge-0/0/0 {
        unit 0 {
            family ethernet-switching {
                filter {
                    input watch-employee;
                }
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family ethernet-switching {
                filter {
                    input watch-employee;
                }
            }
        }
    }
}
firewall {
     family ethernet-switching {
        filter watch-employee {
            term employee-to-corp {
                from {
                    source-address {
                        192.0.2.16/28;
                    }
                    destination-address {
                        192.0.2.16/28;
                    }
                }
                then accept;
            }
            term employee-to-web {
                from {
                    destination-port 80;
                }
                then port-mirror-instance employee-web-monitor;
            }
        }
    }
}
 forwarding-options {
    analyzer employee-web-monitor {
        output {
            vlan {
                999;
            }
        }
    }
vlans {
    remote-analyzer {
        vlan-id 999;
    }
}

Check the results of the configuration on the destination switch:

content_copy zoom_out_map
[edit]
user@switch> show
vlans {
    remote-analyzer {
        vlan-id 999;
    }
}
interfaces {
    ge-0/0/10 {
        unit 0 {
            family ethernet-switching {
                interface-mode access;
                vlan {
                    members remote-analyzer;
                }
            }
        }
    }
    ge-0/0/5 {
        unit 0 {
            family ethernet-switching {
                interface-mode access;
                vlan {
                    members remote-analyzer;
                }
            }
        }
    }
}

Verification

To confirm that the configuration is working properly, perform these tasks:

Verifying That the Port-Mirroring Instance Has Been Correctly Created

Purpose

Verify that the port-mirror instance employee-web-monitor has been created on the switch with the appropriate output VLAN.

Action

You can verify that the port-mirror is configured as expected by using the show forwarding-options port-mirror command. To view previously created analyzers that are disabled, go to the J-Web interface.

To verify that the port-mirror is configured as expected while monitoring employee traffic on the source switch, run the show forwarding-options port-miror command on the source switch. The following output is displayed for this configuration example:

content_copy zoom_out_map
user@switch> show forwarding-options port-mirror

Instance Name: employee-web-monitor
  Instance Id: 3
  Input parameters:
    Rate                  : 1
    Run-length            : 0
    Maximum-packet-length : 0
  Output parameters:
    Family              State     Destination          			     Next-hop
    ethernet-switching  up       default-switch/remote-analyzer
Meaning

This output shows that the employee-web-monitor instance has a ratio of 1 (mirroring every packet, which is the default), the maximum size of the original packet that was mirrored (0 indicates the entire packet), the state of the configuration is up (which indicates the proper state and that the analyzer is programmed, is mirroring the traffic entering ge-0/0/0 and ge-0/0/1, and is sending the mirrored traffic to the VLAN called remote-analyzer).

footer-navigation
