Subscriber Secure Policy Traffic Mirroring Architecture Using RADIUS

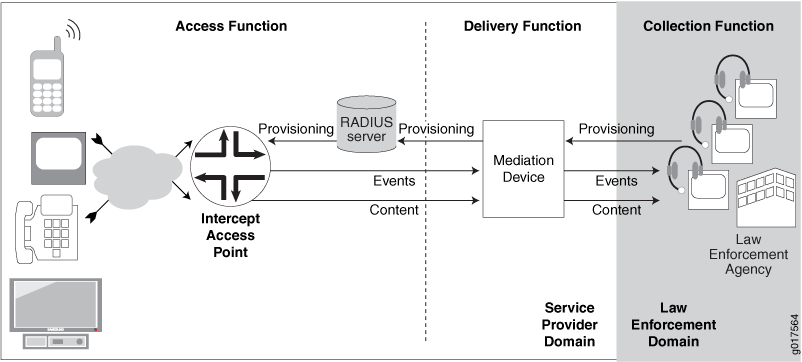

Figure 1 shows the architecture of the RADIUS-initiated subscriber secure policy mirroring environment.

Figure 1: RADIUS-Initiated Subscriber Secure Policy ArchitectureRADIUS-Initiated Subscriber Secure Policy Architecture

Table 1 describes the functions and components of a RADIUS-initiated subscriber secure policy traffic mirroring environment.

Table 1: RADIUS-Initiated Subscriber Secure Policy Functions and Components

Function or Component

Description

Collection function

The collection function is responsible for collecting intercepted content and identifying information from the delivery function.

The collection function is the responsibility of the law enforcement agency (LEA).

Delivery function

The delivery function delivers information that it receives from the access function to the collection function.

The delivery function is performed by the mediation device.

Access function

The access function has access to the intercept target’s traffic content and intercept-related events. It is responsible for collecting this information and sending it to the delivery function.

The access function is the responsibility of intercept access points (IAPs).

Events

Intercept-related events, such as login or logout events or mirroring session activation or deactivation. The router sends the events to the mediation device in SNMP traps.

LEA

Law enforcement agency. The LEA provides intercept targets to the service provider who provisions the mediation device.

Mediation device

The mediation device receives provisioning information from the LEA, and it uses the information to send provisioning information to the RADIUS server.

The mediation device also receives intercept-related events and intercepted content from the router, and delivers the events and intercepted content to the LEA.

RADIUS server

The RADIUS server receives provisioning information from the mediation device. It identifies subscribers whose traffic is to be mirrored, and triggers mirroring sessions on the IAP (the router) by including mirroring-related RADIUS attributes and VSAs in Access-Accept or CoA-Request messages that it sends to the IAP.

IAP

Intercept access point. In a subscriber access network the Juniper Networks router is the IAP.

Using subscriber secure policies, the IAP intercepts traffic to and from the subscriber whose traffic is being mirrored. It encapsulates the intercepted content in a packet header and delivers it to the mediation device, while also sending the content to the intended destination.

The IAP also sends intercept-related events to the mediation device using SNMP traps.
