Campus Fabric IP Clos Components
date_range
05-Apr-24
This configuration example uses the following devices:
- Two EX9204 Switches as core devices, software version: Junos OS Release 22.4R2-Sx or later
- Two QFX5120 Switches as distribution devices, software version: Junos OS Release 22.4R2-Sx or later
- Two access layer EX4400 Switches, software version: Junos OS Release 22.4R2-Sx or later
- One MX80 WAN router, software version: Junos OS Release 21.2R3-Sx or later
- Juniper Access Points
- Two Linux desktops that act as wired clients
Note:
Juniper’s recommended software version for Campus Fabric IP Clos is available under the EVPN/VXLAN ERB section at:https://supportportal.juniper.net/s/article/Junos-Software-Versions-Suggested-Releases-to-Consider-and-Evaluate?language=en_US

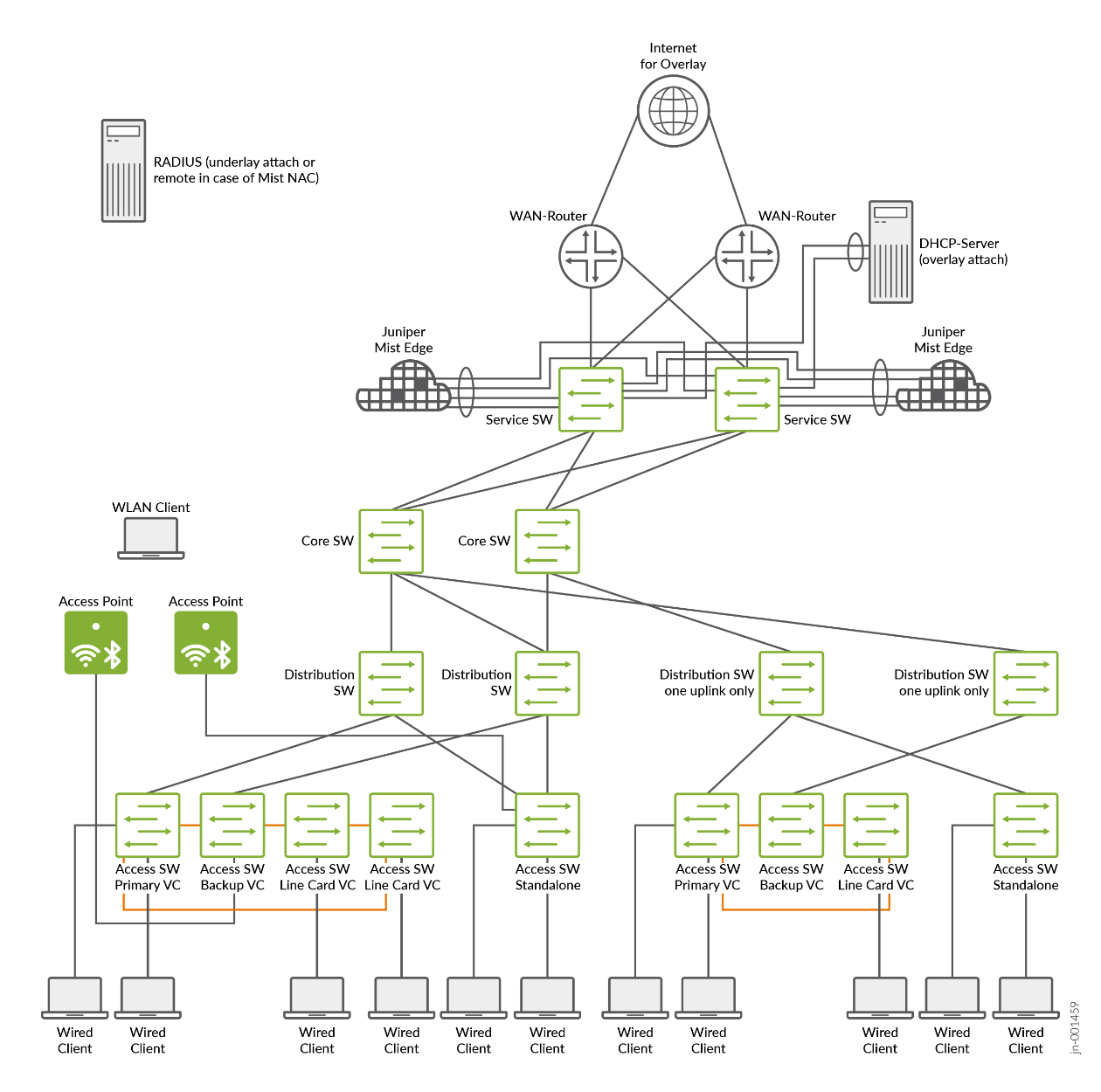

Figure 1: Campus Fabric IP
Clos Topology
