Adding One-Hop Tunnels

Using the one-hop tunnel feature, users can create a pair of one-hop tunnels for each link, one for each direction. These tunnels are created with an explicit route that force them to use the direct link.

The following commands are the corresponding Cisco commands for creating one-hop tunnels:

Note:

The one-hop tunnel feature should only be used for networks where an IGP is deployed on the interfaces for which a one-hop tunnel will be created.

Select Modify > Elements > User Parameters. Click on the Tunnel tab. Then click “Add...” and add a user parameter to store the Tunnel Group ID, such as TunnelGroupID.

Figure 1: Adding a User Parameter for TunnelGroupID. Software interface for adding tunnel user parameters with active Tunnel tab. Open dialog box titled Add User Parameter for Tunnel with text field TunnelIDGroup and OK and Cancel buttons.

Software interface for adding tunnel user parameters with active Tunnel tab. Open dialog box titled Add User Parameter for Tunnel with text field TunnelIDGroup and OK and Cancel buttons.

Select Modify > Elements > Tunnel ID Groups... In the selection menu, select the tunnel user parameter that was just created. Then click Add... to enter in a group name and ID range. The One Hop Tunnels you create will be given the group name as prefix and a number in the ID range as suffix.

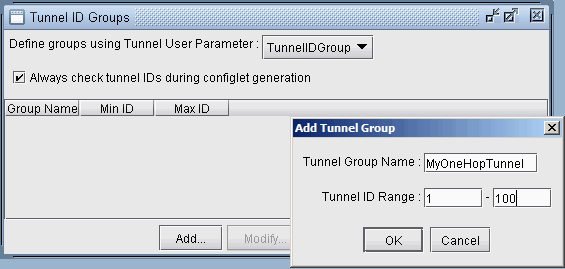

Figure 2: Adding a Tunnel ID Group Software interface for configuring Tunnel ID Groups with checked option to always check tunnel IDs. Empty table with Add and Modify buttons. Popup for adding tunnel group MyOneHopTunnel with ID range 1 to 100.

Note that you can only add one-hop tunnels for links that have an IGP enabled. To enable an IGP protocol, modify the links through Modify > Elements > Links... and click the Modify button. In the Protocols tab turn on either OSPF or ISIS and click OK.

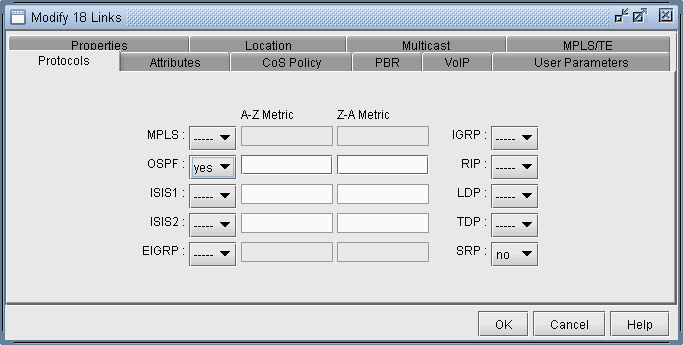

Figure 3: Enabling OSPF or ISIS on the Links Network configuration interface showing 'Modify 18 Links' window with Protocols tab active for configuring routing protocols such as MPLS, OSPF, ISIS, EIGRP, and RIP.

Network configuration interface showing 'Modify 18 Links' window with Protocols tab active for configuring routing protocols such as MPLS, OSPF, ISIS, EIGRP, and RIP.

Select Modify > Elements >Tunnels, Add > One Hop Tunnels... Select some links by filtering for them. An easy way is to highlight them on the map and then click Filter from Map. Select the Tunnel ID Group to use to create the one hop tunnels and add a tunnel bandwidth. Click “OK” to add the one hop tunnels.

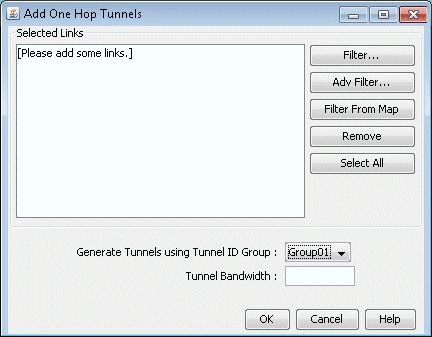

Figure 4: Add One Hop Tunnels Software interface window titled Add One Hop Tunnels for configuring network tunnels with options to filter, select and remove links.

Software interface window titled Add One Hop Tunnels for configuring network tunnels with options to filter, select and remove links.

Select Modify > Elements > Tunnels to view the newly added one hop tunnels. Several nodes can have tunnels with the same TunnelID but different tunnels originating from a node should have unique tunnelIDs.

Figure 5: Results of One Hop Tunnel Additions Table showing network tunnel details: Tunnel ID, NodeA, NodeZ, Bandwidth 0, Type R, Priority 07, Preemption 07, Current Route, Configuration, Comments, and partial Secondary column.

Table showing network tunnel details: Tunnel ID, NodeA, NodeZ, Bandwidth 0, Type R, Priority 07, Preemption 07, Current Route, Configuration, Comments, and partial Secondary column.

Note the explicit path given in the Configured column of the following table. Double-click on a newly added one-hop tunnel to view the configured route. Then select the User Parameters tab. The tunnel user parameter for Tunnel ID Group is specified here.

To generate configlets for these one hop tunnels, switch to Tunnel Layer and Design mode and then select Design > Configlets/Delta > LSP Configlet... Click “Submit” in the resulting window. The configlet includes in the description line the interface name used for the first hop of the tunnel.
