L2M (Layer2-Martini) VPN

The L2M (Layer2 Martini) VPN, based on the IETF Martini set of drafts, supports the configuration of Layer2 Martini, AToM (Any Transport Over MPLS), and VLL (Virtual Leased Line) VPNs. The following steps illustrate how to configure a L2M VPN:

  1. Bring up the Add VPN window by selecting Layer 2 Martini. Then type in a circuit name by filling in the Ckt.Name box (e.g., L2Martini_1).
  2. Click on Next to take you to the Common Properties window to select the two PEs. You may then assign a VCID for the circuit. You may also optionally assign a bandwidth value for the circuit.
    Figure 1: Select two PEs and assign a bandwidth valueConfiguration interface for setting up Layer 2 VPN using Martini protocol. Bandwidth 100 Mbps, VCID 98. Selected PE Devices: JUNIPER_EDGE_A, JUNIPER_EDGE_B.
  3. Click on Next to take you to the screen where you can specify or add the (PE facing CE) interfaces as needed. The following figures illustrate the adding of the interface ge-1/1/0.98 and assigning of the VLAN ID 98 to the JUNIPER_EDGE_B router. This window is opened by selecting the JUNIPER_EDGE_B router from the upper left list of PEs and then clicking the “Add” button above the lower right list of interfaces for the selected router. The same steps are used to add the interface and to assign the VLAN ID to the JUNIPER_EDGE_A router.
    Figure 2: Add a gigabit ethernet interface, ge-1/1/0.98GUI for adding a network interface with fields for interface name ge-1/1/0.98, node JUNIPER_EDGE_B, IP 10.10.10.12/30. OK, Cancel, and Help buttons.
    Figure 3: Assigning a VLAN ID of 98 to the interface ge-1/1/0.98Graphical user interface for configuring a network interface with fields for VC/ID/CLI, VPN, VRF, VRouter, HSRP, Encapsulation, CoS Policy, Multipoint, APS Group, VLAN ID 98, Aggregated Link, Area, CoS Out Policy. Includes checkboxes for OSPF, ISIS, IGRP, EIGRP, RIP, and buttons for OK, Cancel, Help.
  4. The following figure shows the result of both interfaces assigned, after selecting each PE router, adding the appropriate sub-interface to the interface list in the bottom right, and then dragging and dropping that new interface to the appropriate PE in the PE list.
    Figure 4: Finished assigning interfaces on the PEsScreenshot of a network configuration interface for adding VPN L2Martini_1 between JUNIPER_EDGE_A and JUNIPER_EDGE_B with network topology and action buttons.
  5. Next, click on the Details tab to take you to the following screen, where the VCID and Encapsulation can be assigned. Note that the VCID only needs to be assigned if it was not already done so in the Common Properties window. The LSPs can also be assigned if necessary.

    The following figure shows both the VCID and the encapsulation assigned.

    Figure 5: Encapsulation and VCID assignedConfiguration interface for setting up L2VPN named L2Martini_1 on Juniper Networks equipment, showing VPN details, endpoints, interfaces, encapsulation, bandwidth, and action buttons.

    Note that the Encapsulation drop-down can take on the values as described in the following table.

    Field

    Description

    Encapsulation

    For Juniper, the interface encapsulation types include: aal0, atm-aal5, atm-ccc-vc-mux, atm-cell, atm-cell-port-mode, atm-cell-vc-mode, atm-cell-vp-mode, cisco-hdlc, ethernet, ethernet-vlan, frame, frame-relay, frame-relay-ccc, interworking, and ppp.

    For Cisco, the interface encapsulation types include: aal0, aal5, dot1Q, frame-relay, hdlc, and ppp.

  6. Next click Finish to complete the adding of the L2M VPN. The following figures show both the single and summary topology (with the added Martini circuit highlighted in pink) views for the L2M VPN just added.

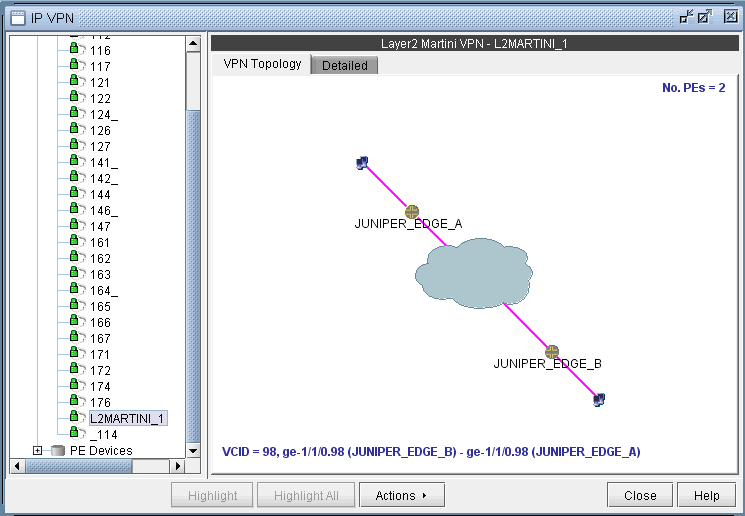

    Figure 6: Topology view for the L2M VPN addedLayer 2 Martini VPN topology with JUNIPER_EDGE_A and JUNIPER_EDGE_B connected via pink line, VCID 98.
    Figure 7: L2M VPN summary topology view with newly-added circuit (VCID 98) highlightedNetwork topology diagram showing a Layer 2 Martini VPN circuit between JUNIPER_EDGE_A and JUNIPER_EDGE_B with VCID 98.
