L2K (Layer2-Kompella) VPN

The L2K (Layer2 Kompella) VPN, based on the IETF Kompella draft, is implemented by Juniper only. To configure a L2K VPN, the user would perform the following sequence of steps:

  1. Bring up the Add VPN window and selecting Layer 2 Kompella. Then type in a name for the VPN (e.g. L2Kompella_3).
  2. Click on Next to bring up the Common Properties window where you can assign the Route Distinguisher, Route Target Exports, and Route Target Imports for the chosen AS and PEs. The program automatically recommends values based on the chosen AS or you may provide your own.
    Figure 1: For the chosen AS, select RD, RT, and two PEsConfiguration window for setting up a Layer 2 VPN using Kompella method. Shows common properties like AS 65301 and route distinguisher 65301:65018, and device selection section with available and selected PE devices. Includes buttons for managing device selection and navigation.
  3. Click on Next to bring up the following window where you would identify PEs and assign the PE facing CE interfaces (in the same manner as described under the L3 (Layer 3) VPN section). The following figure shows the result of the assignment of the interfaces.

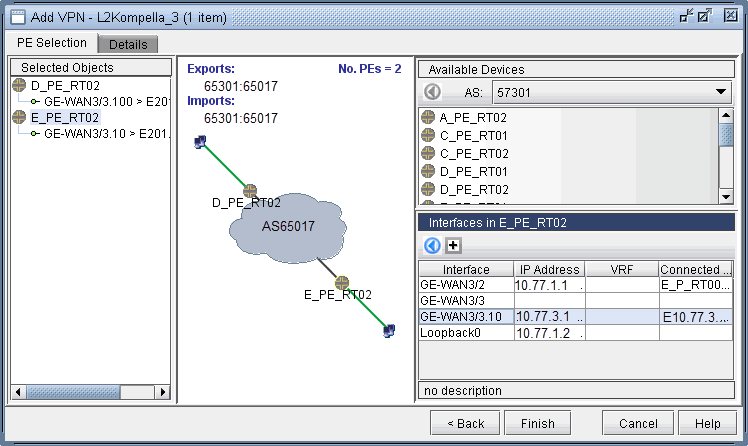

    Figure 2: Interfaces have been assigned to the PEsScreenshot of a network configuration interface for adding Layer 2 VPN L2Komppella_3. Shows selected devices with interfaces, network topology with PE routers connected in AS65017, available devices in AS57301, and interfaces in E_PE_RT02. Navigation buttons include Back, Finish, Cancel, and Help.
  4. Next, click on the Details tab to specify the Encapsulation, Site, Site Identifier. Optionally, you may also specify the Transmit LSP and the Receive LSP. The following figure shows that Site, Site Identifier, and Encapsulation have been assigned.

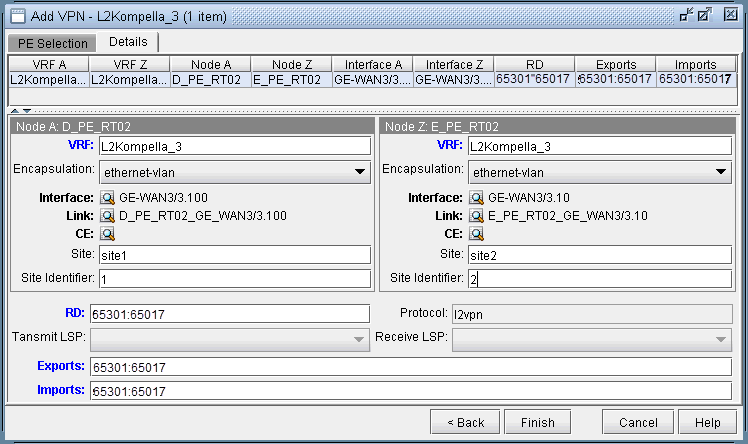

    Figure 3: Details tab showing the completed assignment of Site, Site ID, and EncapsulationConfiguration interface for setting up a Layer 2 VPN using the Kompella method, including fields for VRF, encapsulation, interface, link, CE, site identifier, RD, protocol, LSP, exports, and imports, with action buttons for navigation and completion.

    Note that the Encapsulation drop-down can take on the values as described in the following table.

    Field

    Description

    Encapsulation

    For Juniper, the interface encapsulation types include: aal0, atm-aal5, atm-ccc-vc-mux, atm-cell, atm-cell-port-mode, atm-cell-vc-mode, atm-cell-vp-mode, cisco-hdlc, ethernet, ethernet-vlan, frame, frame-relay, frame-relay-ccc, interworking, and ppp.
  5. Finally, click on Finish to complete the adding of the L2K VPN.

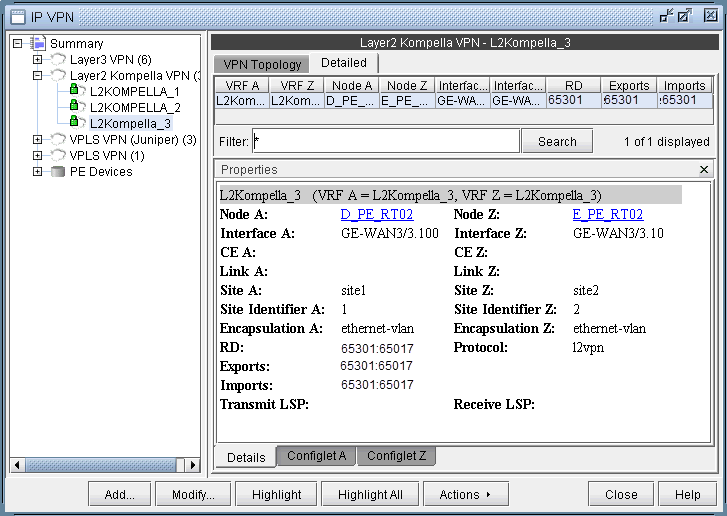

    Figure 4: Newly added L2K VPNScreenshot of a network management tool showing Layer 2 Kompella VPN configuration for VPN L2Kompella_3. Displays VPN topology with VRF names, nodes, interfaces, RD, exports, imports, and detailed properties of Node A (D_PE_RT02) and Node Z (E_PE_RT02). Action buttons at the bottom for managing VPNs.
