L2M (Layer2-Martini) VPN

The L2M (Layer2 Martini) VPN, based on the IETF Martini set of drafts, supports the configuration of Layer2 Martini, AToM (Any Transport Over MPLS), and VLL (Virtual Leased Line) VPNs. The following steps illustrate how to configure a L2M VPN:

  1. Bring up the Add VPN window by selecting Layer 2 Martini. Then type in a circuit name by filling in the Ckt.Name box (e.g., L2Martini_1).
  2. Click on Next to take you to the Common Properties window to select the two PEs. You may then assign a VCID for the circuit. You may also optionally assign a bandwidth value for the circuit.

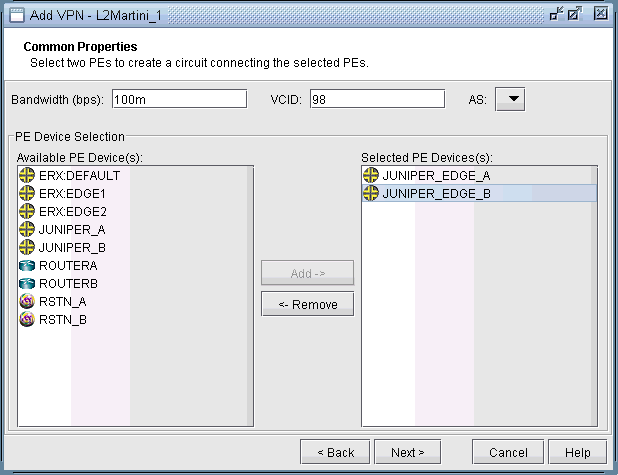

    Figure 1: Select two PEs and assign a bandwidth valueConfiguration window for Layer 2 VPN setup titled Add VPN - L2Martini_1. Bandwidth set to 100 Mbps, VCID 98. Selected PE devices: JUNIPER_EDGE_A, JUNIPER_EDGE_B.
  3. Click on Next to take you to the screen where you can specify or add the (PE facing CE) interfaces as needed. The following figures illustrate the adding of the interface ge-1/1/0.98 and assigning of the VLAN ID 98 to the JUNIPER_EDGE_B router. This window is opened by selecting the JUNIPER_EDGE_B router from the upper left list of PEs and then clicking the “Add” button above the lower right list of interfaces for the selected router. The same steps are used to add the interface and to assign the VLAN ID to the JUNIPER_EDGE_A router.

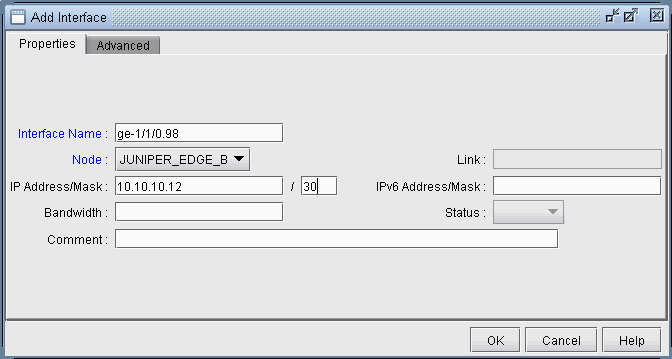

    Figure 2: Add a gigabit ethernet interface, ge-1/1/0.98Graphical interface for adding a network interface, with fields for interface name, node, IP address, IPv6 address, link, bandwidth, status, and comment. Tabs for properties and advanced settings. Buttons for OK, Cancel, and Help.

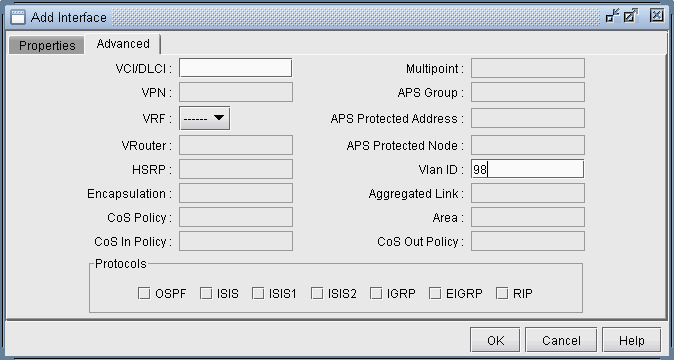

    Figure 3: Assigning a VLAN ID of 98 to the interface ge-1/1/0.98GUI for configuring a network interface with fields for VC/ID/LCI, VPN, VRF, VRouter, HSRP, Encapsulation, CoS Policy, Multipoint, APS Group, APS Protected Address, APS Protected Node, Vlan ID 98, Aggregated Link, Area, CoS Out Policy. Includes checkboxes for OSPF, ISIS, IGRP, EIGRP, RIP and buttons for OK, Cancel, Help.
  4. The following figure shows the result of both interfaces assigned, after selecting each PE router, adding the appropriate sub-interface to the interface list in the bottom right, and then dragging and dropping that new interface to the appropriate PE in the PE list.

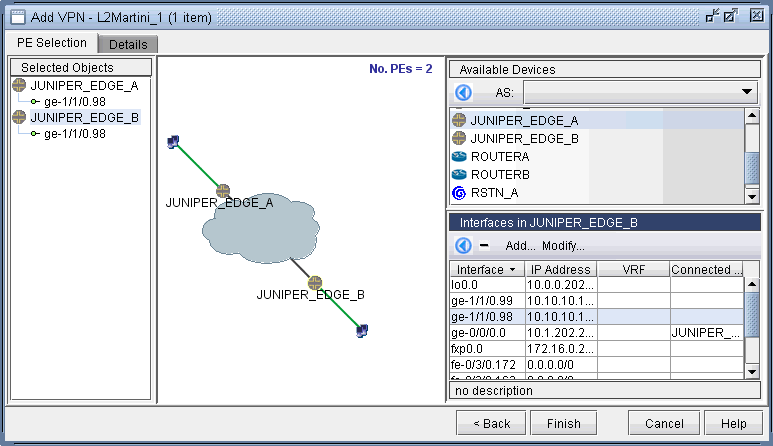

    Figure 4: Finished assigning interfaces on the PEsNetwork configuration interface for L2Martini_1 VPN showing topology with JUNIPER_EDGE_A and JUNIPER_EDGE_B. Left panel lists selected objects; right panel displays available devices and interfaces for JUNIPER_EDGE_B. Options to add or modify interfaces and navigation buttons are at the bottom.
  5. Next, click on the Details tab to take you to the following screen, where the VCID and Encapsulation can be assigned. Note that the VCID only needs to be assigned if it was not already done so in the Common Properties window. The LSPs can also be assigned if necessary.

    The following figure shows both the VCID and the encapsulation assigned.

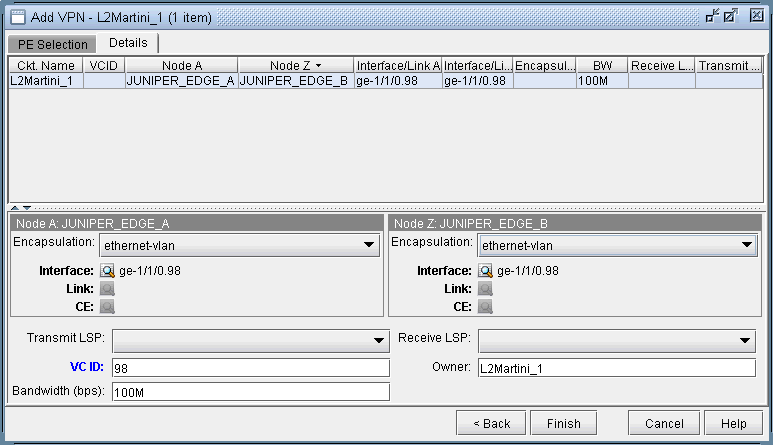

    Figure 5: Encapsulation and VCID assignedAdd VPN configuration interface for L2Martini_1 on Juniper devices; includes PE selection table with VCID 98, nodes JUNIPER_EDGE_A and B, ethernet-vlan encapsulation, and 100M bandwidth.

    Note that the Encapsulation drop-down can take on the values as described in the following table.

    Field

    Description

    Encapsulation

    For Juniper, the interface encapsulation types include: aal0, atm-aal5, atm-ccc-vc-mux, atm-cell, atm-cell-port-mode, atm-cell-vc-mode, atm-cell-vp-mode, cisco-hdlc, ethernet, ethernet-vlan, frame, frame-relay, frame-relay-ccc, interworking, and ppp.

    For Cisco, the interface encapsulation types include: aal0, aal5, dot1Q, frame-relay, hdlc, and ppp.

  6. Next click Finish to complete the adding of the L2M VPN. The following figures show both the single and summary topology (with the added Martini circuit highlighted in pink) views for the L2M VPN just added.

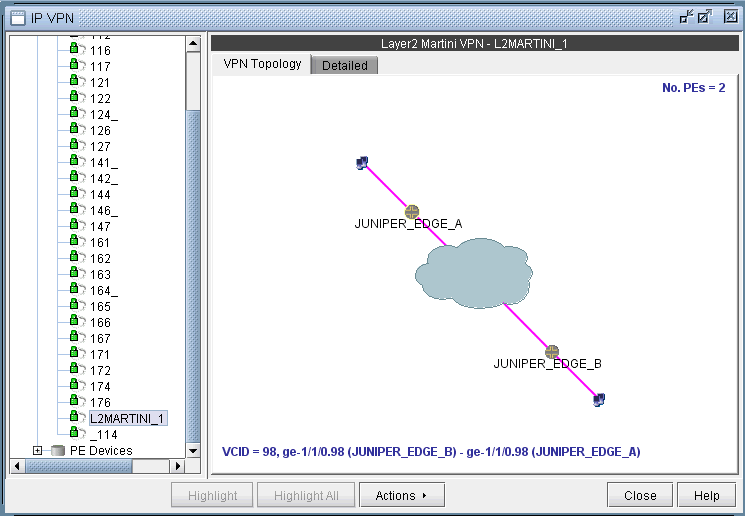

    Figure 6: Topology view for the L2M VPN addedNetwork topology diagram for a Layer 2 Martini VPN labeled L2MARTINI_1. Shows two Provider Edge devices JUNIPER_EDGE_A and JUNIPER_EDGE_B connected via Layer 2 VPN tunnel with VCID 98. Cloud icon represents MPLS backbone.

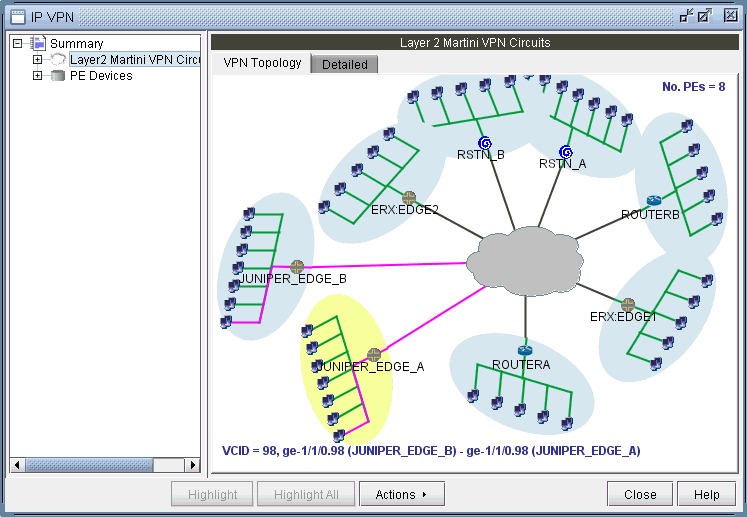

    Figure 7: L2M VPN summary topology view with newly-added circuit (VCID 98) highlightedLayer 2 Martini VPN circuit diagram showing a highlighted connection between JUNIPER_EDGE_A and JUNIPER_EDGE_B with VCID 98.
