Viewing the Integrity Checks Reports

Once the network model has been loaded, the user may wish to examine the Configuration Reports (accessible via the Report > Report Manager menu) to check for any potential VPN configuration issues. The following figure shows an example of a Summary of Integrity Checks report, where certain VPN integrity checks are reported.

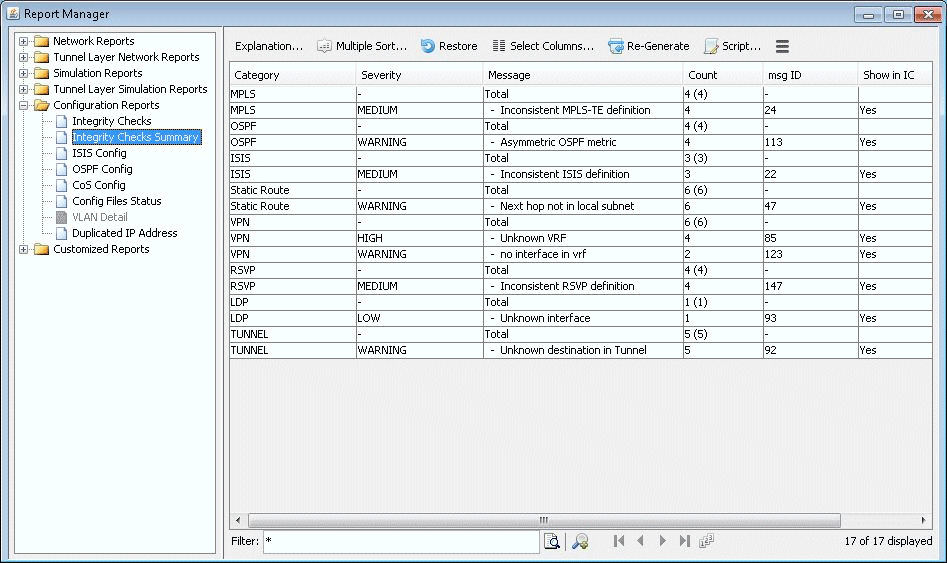

Figure 1: View the Integrity Checks Reports to Check for Potential VPN Configuration Issues Report Manager interface for network configuration analysis. Left panel shows categories like Network Reports and Configuration Reports. Right panel displays a table with columns: Category, Severity, Message, Count, msg ID, and Show in IC. Selected category is Integrity Checks Summary.

Report Manager interface for network configuration analysis. Left panel shows categories like Network Reports and Configuration Reports. Right panel displays a table with columns: Category, Severity, Message, Count, msg ID, and Show in IC. Selected category is Integrity Checks Summary.
