Using the Multicast Tree Design Feature

For other P2MP multicast trees in the network that do not belong to a particular Diversity Group, you can still select the tree and perform a tuning in order to reduce the multicast tree’s cost (which is defined the total length (physical or admin-cost) of the tree). For instance, the following figure shows espntv P2MP tree is not part of Diversity Group and is a candidate for tuning.

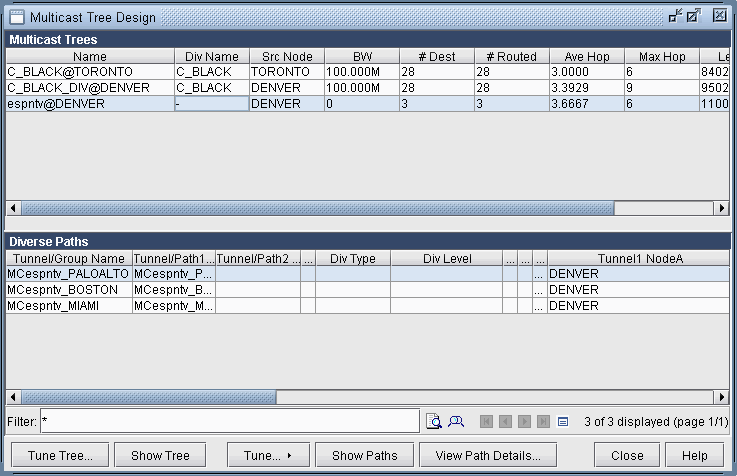

Figure 1: Tuning a single P2MP diverse multicast treeScreenshot of Multicast Tree Design software interface showing multicast trees and diverse paths. Displays tree names, source nodes, bandwidth, destinations, and hops. Shows tunnel names, path details, and diversity levels. Contains buttons like Tune Tree, Show Tree, Show Paths, and Close for network design and optimization.
