Additional Methods to Access VPN Information

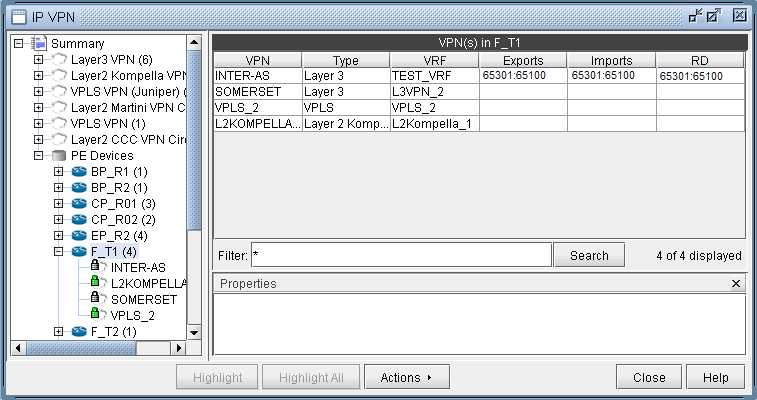

There are multiple ways of accessing VPN information. To access it for a specific VPN or a specific router, you can select an option from the relevant map’s right-click menu. For instance, from the IP VPN map, you can right-click on a VPN and select View VPN. From the Standard map, you can right-click on a router and select View > IP VPN at Node to bring up the IP VPN window, with the selected router in expanded view. For instance, the following figure shows the window view displayed when you right-click on the router F_T1 and then select View > IP VPN at Node.

Figure 1: Viewing all the VPNs at a Node by right-clicking on a node Graphical interface for managing IP VPNs with a navigation pane listing VPN types and devices, and a details pane showing VPN name, type, VRF, exports, imports, and RD.

Graphical interface for managing IP VPNs with a navigation pane listing VPN types and devices, and a details pane showing VPN name, type, VRF, exports, imports, and RD.

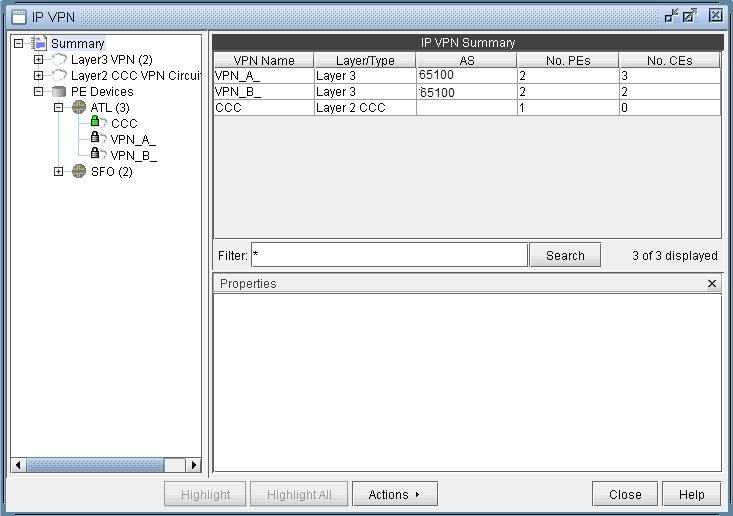

Another way to view all of the associated VPNs for a particular router is to expand on the router by clicking on the + box from the tree view in the IP VPN window. The following picture shows that router ATL is associated with three different VPNs (CCC, VPN_A_, and VPN_B_).

Figure 2: Viewing all the VPNs at a Node by navigating the tree view Screenshot of a network management interface for IP VPNs showing a summary of VPN configurations and details. The left panel lists VPNs and PE devices by location. The right panel displays a table with columns for VPN Name, Layer/Type, AS, No. PEs, and No. CEs. Filter and search options are available.
