VPN-Related Reports

date_range 02-Nov-23

arrow_backward

arrow_forward

You can view the Demand Route Cost Report under the Network Reports > Demand Reports folder to view demand information per VPN.
To view planned bandwidth and worst delay information for VPN-related demands, select the CoS Demands Report and find the VPN of interested (listed in the Owner column).

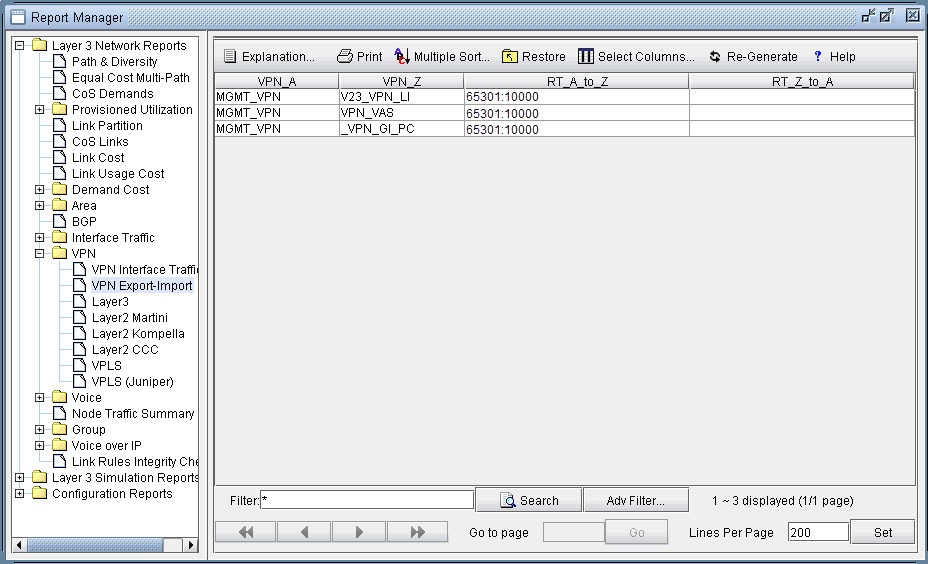

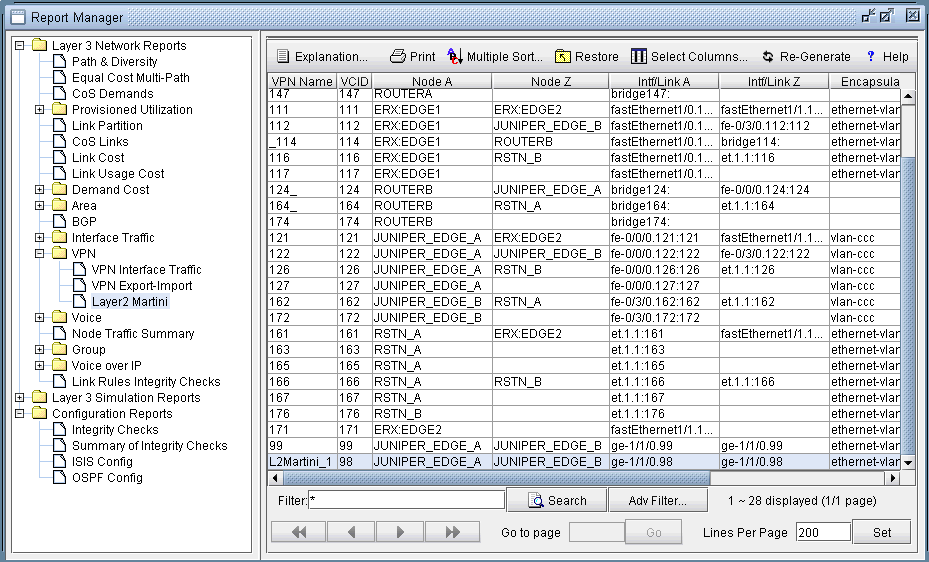

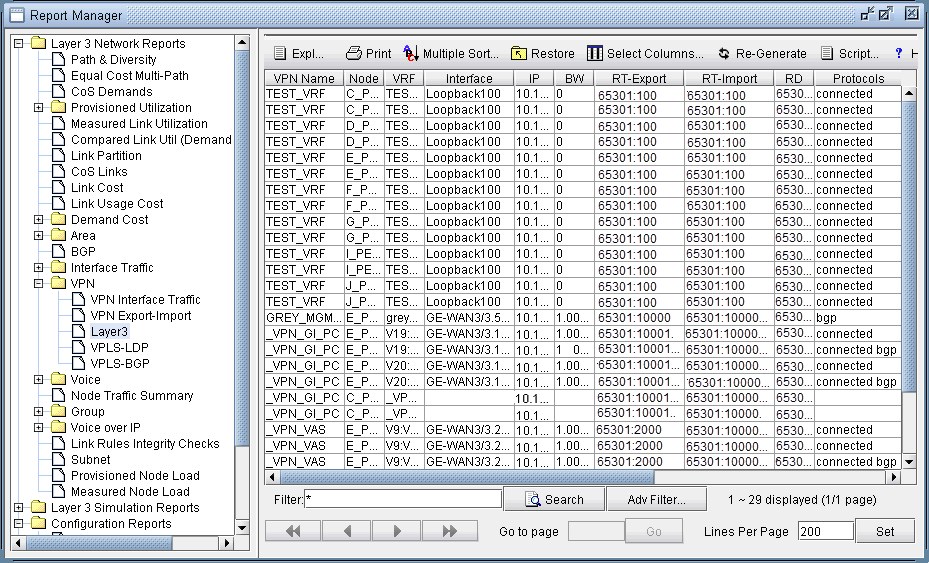

To view details of the particular types of VPNs in your network, select the appropriate report from the Network Reports > VPN folder (e.g. the Layer 3 report).

arrow_backward PREVIOUS VPN Traffic Generation

NEXT arrow_forward VPN Monitoring and Diagnostics
