L3 Hub-and-Spoke VPN

Merging Hub and Spokes

For the existing hub-and-spoke VPNs, Paragon Planner does not automatically group together the vrf associated with the hub and the vrf associated with the spoke. This should not affect routing, but for readability purposes, users can manually group together the hub and spoke into one VPN using the following procedures.

  1. If you are in the Online mode, click the Offline button to switch into the Offline mode.
  2. Select Network > VPN, and identify the vrf’s to combine. If you select the To Import/Export Relation View from the VPN Topology tab, it will show you which other instances to combine together.

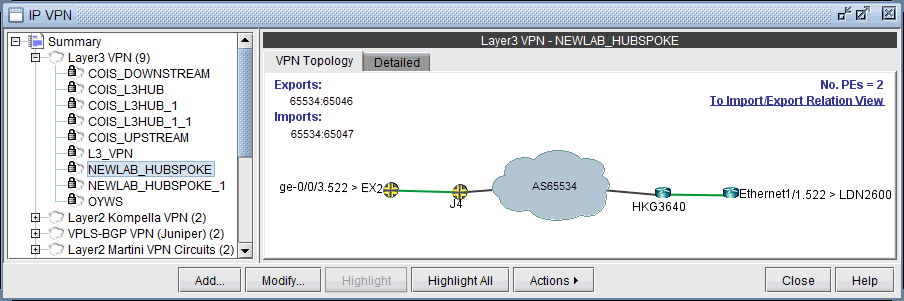

    Figure 1: Spoke View Screenshot of a network management interface showing the configuration of an IP VPN named NEWLAB_HUBSPOKE. The left panel lists VPNs; the right panel displays the VPN's topology with AS65534, two PEs, and nodes J4 and HKG3640. Route targets are 65534:65046 for export and 65534:65047 for import. Action buttons include Add, Modify, Highlight, and Highlight All.
    Figure 2: Import/Export Relation View (Spoke -> Hub) Network management interface showing IP VPN configuration. NEWLAB_HUBSPOKE in Layer3 VPN category with hub-and-spoke design. Exports 65534:65046, Imports 65534:65047. 2 PEs associated. Options for "Add," "Modify," "Highlight," "Actions," and "To VPN View" link.

    Since some hub-and-spoke VPN’s can have an upstream and downstream spoke, it may be best to check the Import/Export Relation View of the hub.

  3. Select the hub-and-spoke components from the Summary > Layer 3 VPN list on the right pane and use the Actions > Set Service menu to provide a name for the hub-and-spoke VPN.

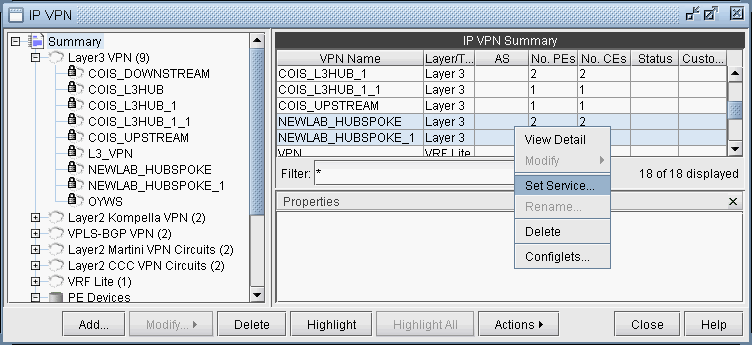

    Figure 3: Specifying the Hub and Spoke VPN via “Set Service” Network management interface for IP VPNs showing VPN categories in a tree view, with a summary table listing VPN details, and a context menu for managing VPN configurations.
  4. Select the newly defined service from the Services category to view the VPN topology of the hub and spoke VPN.

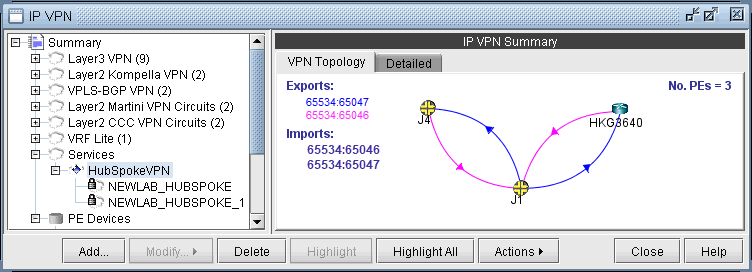

    Figure 4: Hub and Spoke VPN Topology Screenshot of a network management interface showing IP VPN configuration: HubSpokeVPN selected, topology with PE devices J4, J1, HKG640, route targets 65534:65047 and 65534:65046, with buttons for management actions.
  5. For the combined VPN, select the Modify > Protocol. To identify the Hub PE node, right-click the table column header and select Table Options, and add the property “Hub” to the “Selected Items” list on the right-hand side, to see the Hub checkbox column.

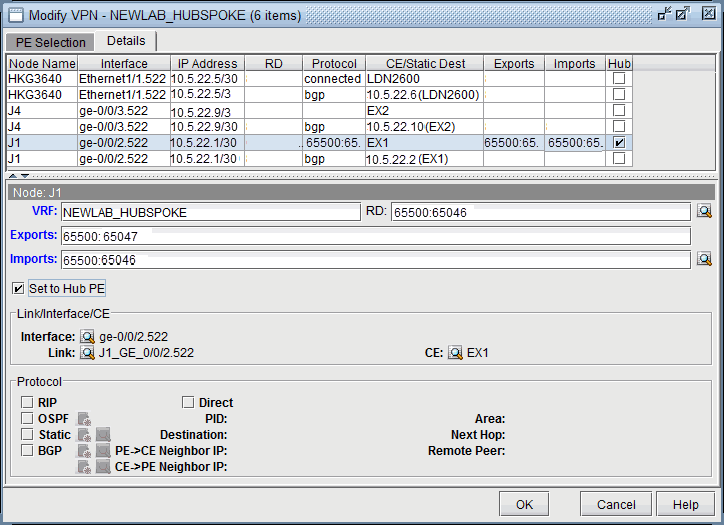

    Figure 5: Hub Checkbox Column Screenshot of a network configuration interface for configuring a VPN named NEWLAB_HUBSPOKE with nodes, interfaces, IP addresses, routing protocols, and configuration options.
  6. By looking at the Exports and Imports, you can identify 2 sets of nodes with opposite imports and exports. One set of nodes should be specified as the Hub PE. For the Node which is a Hub PE, select the row corresponding to the outgoing interface, and then select the “Set to Hub PE” checkbox. Click OK when you are done.
  7. To update the network, select Modify > Update Network State. Then reopen the VPN window from Modify > Services > VPN.
  8. If you are working on the live network (online module), you will want to preserve this setting for future use, so that it does not have to be repeated. To do this, first create the directory /u/wandl/data/.network_plan from the File Manager, if it does not exist.
  9. Click the Design mode button to switch back to Design mode.
  10. Save the network to /u/wandl/data/.network_plan via the File > Save Network... menu using the default runcode x.
  11. Now that the network is saved into the .network_plan directory, switch back to Online mode.
  12. From Admin > Task Manager, New Task, rerun a Scheduling Live Network Collection task. Be sure to select the checkbox option to consolidate with existing data. At this point, it is only necessary to process the network configuration files and not to recollect the entire network, so for the “Data to Be Collected or Processed”, you can “Deselect All” and select only the “Process” checkbox for the Configuration type. Select Next and then Finish.
  13. Once the task is complete, open Network > Services > VPN and check to ensure that the changes have been preserved.

Adding a New Layer 3 Hub-and-Spoke VPN

Configuring a L3 Hub-and-Spoke VPN is similar to configuring a regular L3 full-meshed VPN, except for the following additional steps.

  1. First follow the steps outlined in previous section on L3 VPN configuration until you reach the Hub-and-Spoke configuration window. Click on the checkbox that says Configure Hub-and-Spoke MPLS VPN, and then move each PE to the appropriate list (Spoke Site Device(s) list or Hub Site Device(s) list) by using the Hub-> and <-Spoke buttons. The VPN Wizard automatically suggests RT exports and imports for both the hub sites and the spoke sites in order to establish a hub-and-spoke relationship. As before, you have the option to change the RT list by editing the suggested export or import values or by using RTs from the Route Targets table (by clicking on the magnifying glass icon).

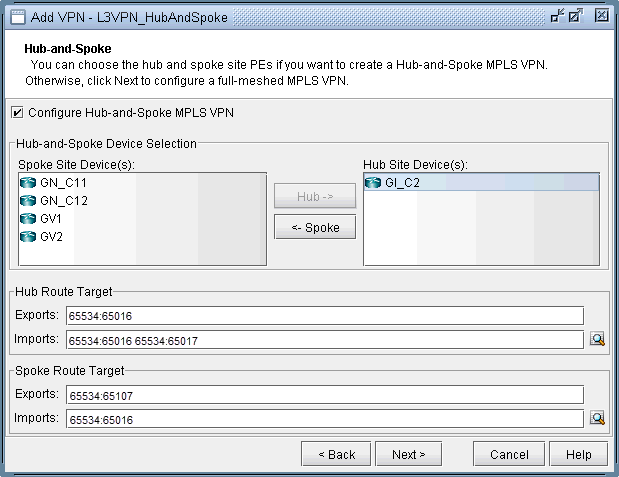

    Figure 6: Hub-and-spoke VPN configurationConfiguration window for setting up a Hub-and-Spoke MPLS VPN, showing L3VPN_HubAndSpoke setup with selected hub GI_C2 and spokes GN_C11, GN_C12, GV1, and GV2. Route targets: Hub exports 65534:65016, imports 65534:65016 and 65534:65017; Spoke exports 65534:65017, imports 65534:65016. Navigation buttons: Back, Next, Cancel, Help.

  2. Click on Next to get to the window where you would configure PE facing CE interfaces as described in the previous section on L3 VPN configuration. The following figure shows what the configuration looks like after the interfaces have been assigned. Notice that GI_C2 is configured as the hub site.

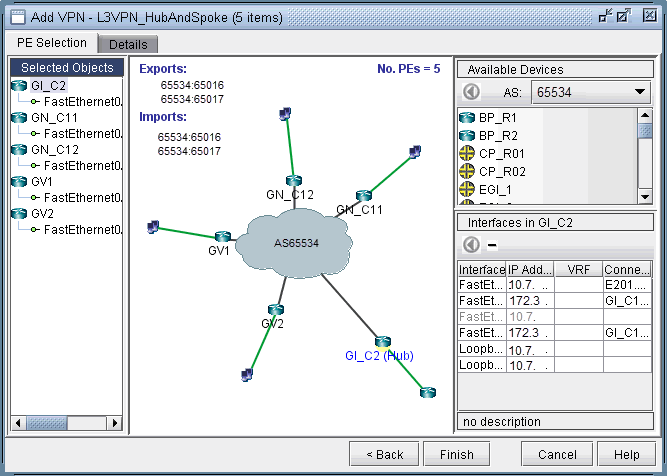

    Figure 7: Assigning PE facing CE interfaces in the Hub-and-Spoke VPNGraphical representation of a Layer 3 VPN with Hub-and-Spoke topology, central cloud AS65534, hub Gl_C2, and spokes GN_C11, GN_C12, GV1, GV2. Routes exported and imported from hub to spokes.

  3. After configuring the PE-CE protocol details under the Details tab (as described in the previous section on L3 VPN configuration), the resultant L3 hub-and-spoke VPN is shown in the following figure. Notice that Import RT 65534:65016 is highlighted to indicate that it is only an import RT for the HuB site(s).

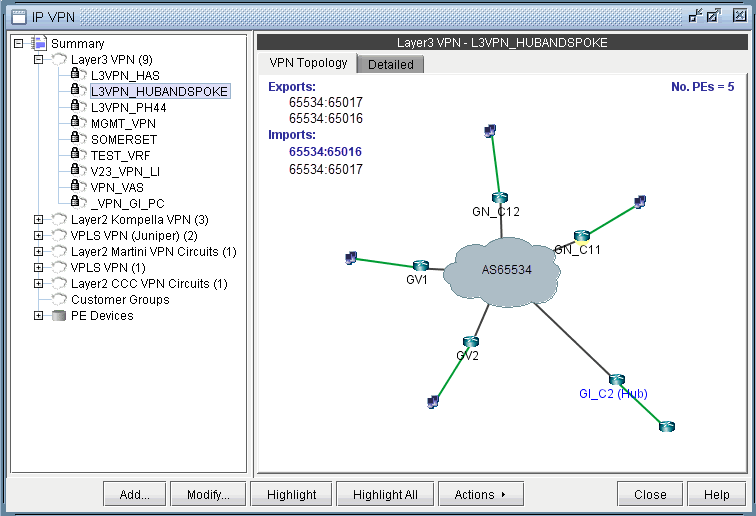

    Figure 8: Newly created Hub and Spoke VPN Network management interface showing a tree structure with VPN categories. Selected VPN is L3VPN_HUBANDSPOKE. Right panel displays a hub-and-spoke topology with central node AS65534 and connected nodes GN_C12, GN_C11, GV1, GV2, GI_C2. Options for VPN configuration are available.
