ACX7100-48L Chassis

Management Panel of ACX7100-48L Routers

The management panel of ACX7100-48L routers is located on the front of the router along with the interface ports. Figure 1 shows the management panel components on an ACX7100-48L router.

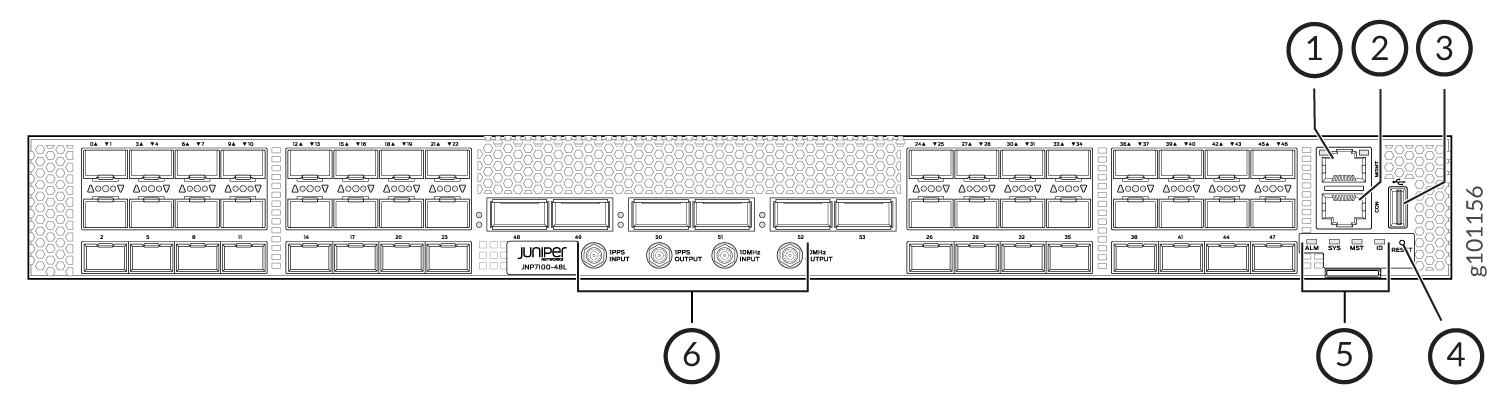

Figure 1: Management Panel Components on ACX7100-48L Routers

1 — Management (MGMT) port	4 — RESET button
2 — Console (CON) port. An optional GPS time of day (TOD) device is also supported. To connect to both a console and a TOD device simultaneously, you must use the breakout cable that is provided with the device.	5 — Status LEDs
3 — USB port	6 — 1-PPS and 10-MHz GPS input and output ports

The management panel on an ACX7100-48L router displays the router product number, and consists of the following components:

Status LEDs—ALM, SYS, MST, and ID LEDs.
Management (MGMT) port—10/100/1000BASE-T management port that uses an RJ-45 connector to connect to a management device for out-of-band management. See Connect an ACX7100-48L Router to a Network for Out-of-Band Management
Console (CON) port—uses an RJ-45 connector to connect to a console management device. An optional GPS Time of Day (TOD) is also supported. To connect to both console and ToD simultaneously, you must use the breakout cable that is provided with the device.

Note:
If you connect to both console and ToD simultaneously using a breakout cable, you must ensure that you have not configured the log-out-on-disconnect statement at the [edit system ports console] hierarchy level.
USB port for image updates
Reset button to reset the device
SMB connector ports that support 1-PPS and 10-MHz timing devices

Management Port LEDs on ACX7100-48L Routers

The ACX7100-48L has one management port that has separate LEDs to indicate link status and link activity. The port is located on the management panel and is labeled MGMT. Figure 2 shows the location of the LEDs.

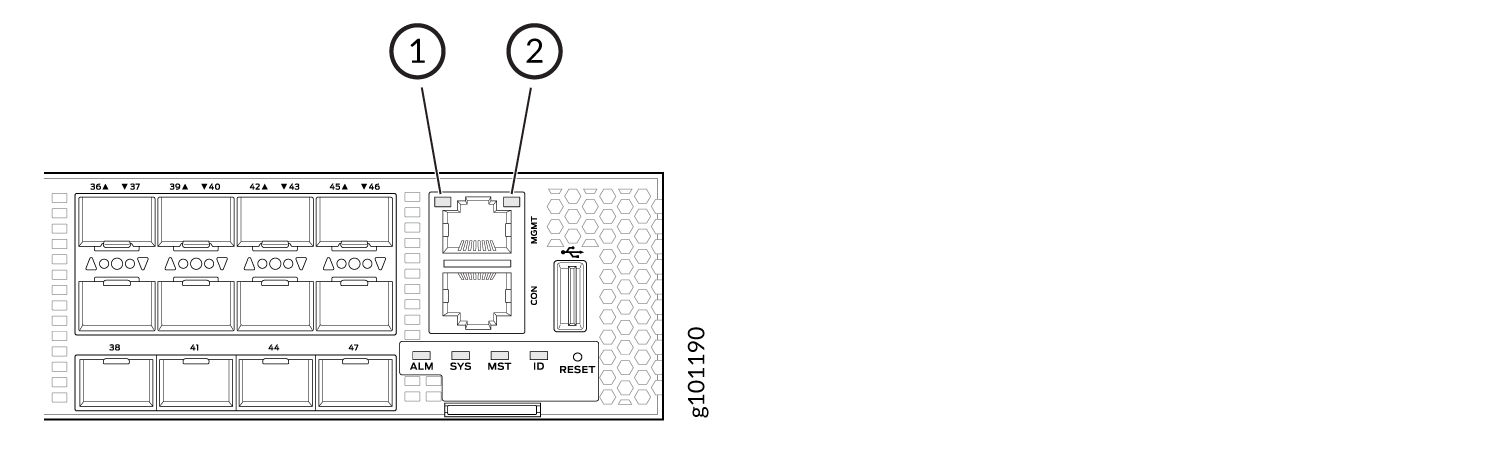

Figure 2: Management Port LEDs on an ACX7100-48L Router

1

—

Link activity LED (RJ-45)

2

—

Status LED (RJ-45)

Table 1 describes the RJ-45 management port LEDs on ACX7100-48L routers.

Table 1: Management Port LEDs on ACX7100-48L Routers
LED	Color	State	Description
Link activity LED	Green	Blinking	A link is established, and there is link activity.
Status LED	Unlit	Off	No link is established, or the port speed is 10Mbps.
	Yellow	On steadily	The port speed is 100 Mbps.
	Green	On steadily	The port speed is 1 Gbps.

Port Panel of ACX7100-48L Routers

The port panel of an ACX7100-48L router has the following port configurations:

Forty-seven small form-factor pluggable (SFP56) ports (ports 0 through 46) that operate at 50-Gbps speed when you use SFP56 transceivers, at 25-Gbps speed when you use small form-factor pluggable (SFP28) transceivers, or at 10-Gbps speed when you use small form-factor pluggable plus (SFP+) transceivers.
One small form-factor pluggable (SFP28) port (port 47) that operates at 25-Gbps speed when you use SFP28 transceivers or at 10-Gbps speed when you use SFP+ transceivers.

Note:
If PTP is configured, the port 47 is not available.
Six double density quad small form-factor pluggable (QSFP56-DD) ports (ports 48 through 53) that are configured as 400GbE ports by default.

The QSFP56-DD network ports support:
- QSFP56-DD transceivers
- QSFP28-DD transceivers
- QSFP28 transceivers
- QSFP+ transceivers
- Active optical cables (AOC)
- Direct attach copper (DAC) cables

Note:

Be aware of the following ambient temperature conditions for ACX7100-48L devices:

For ACX7100-48L AFO models, at an ambient temperature greater than 40°C (at 6000 feet altitude above sea level), you can install only 100G transceivers in any of the QSFP56-DD ports.
For ACX7100-48L AFI models, the supported ambient temperature is 40°C (at 6000 feet altitude above sea level).

Note:

The QDD-400G-ZR and QDD-400G-ZR-M transceivers are supported only in the ACX7100-48L AFO models. To support the QDD-400G-ZR-M transceivers, you must update the temperature thresholds of the inlet sensors. However, for the QDD-400G-ZR transceivers, you need not update the default temperature threshold values. For more information about supporting the QDD-400G-ZR-M transceivers on ACX7100-48L AFO models, see Guidelines for Using QDD-400G-ZR-M and JCO400-QDD-ZR-M Transceivers on ACX7100-48L AFO Models.

Figure 3 shows the port panel on an ACX7100-48L router.

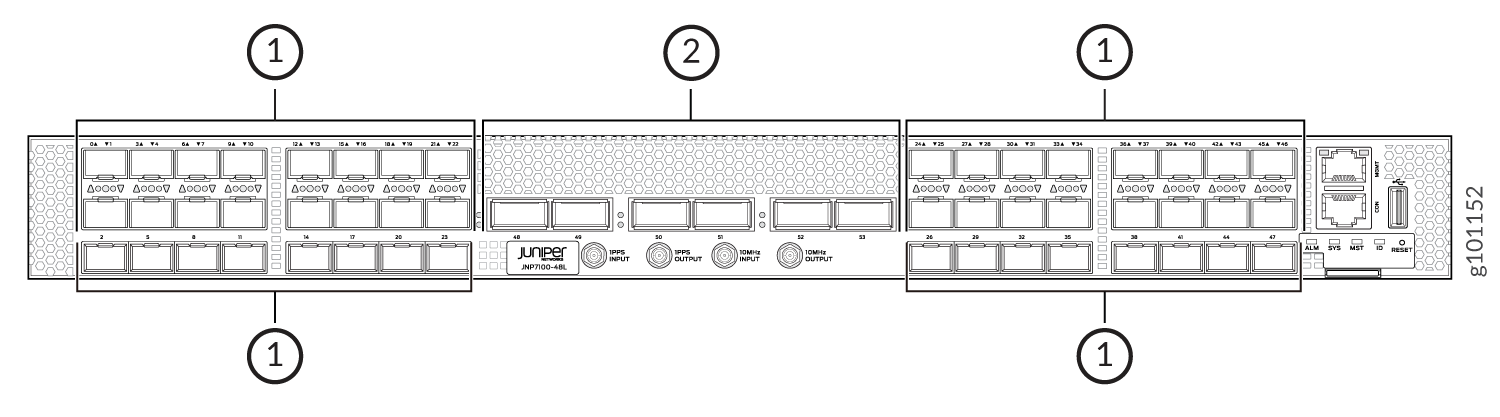

Figure 3: ACX7100-48L Router Port Panel

1

—

50GbE ports (48 SFP ports)

2

—

400GbE ports (6 QSFP56-DD ports)

Note:

To understand all the potential restrictions and validate different port configurations on an ACX7100‑48L router, use the Port Checker Tool.

Guidelines for Using QDD-400G-ZR-M and JCO400-QDD-ZR-M Transceivers on ACX7100-48L AFO Models

Before you install the QDD-400G-ZR-M and JCO400-QDD-ZR-M transceivers, you must update the temperature thresholds of the inlet sensors to facilitate an increase in fan speeds. This prevents the transceivers from powering off. We recommend that you update the temperature thresholds at ambient room temperature (23°C to 27°C).

Update the Temperature Thresholds
Verify the Updated Temperature Thresholds

Update the Temperature Thresholds

The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see the CLI User Guide.

To update the temperature thresholds, in configuration mode, perform the following steps on an ACX7100-48L device:

Update the temperature thresholds for the Main PCBLeft temperature sensor by executing the following commands:

for QDD-400G-ZR-M:

for JCO400-QDD-ZR and JCO400-QDD-ZR-M:

Update the temperature thresholds for the Main PCBRight temperature sensor by executing the following commands:

for QDD-400G-ZR-M:

for JCO400-QDD-ZR-M:

Commit the configuration.

In the above example, the threshold values are updated to support the JCO400-QDD-ZR-M and QDD-400G-ZR-M transceivers. If you are not using the JCO400-QDD-ZR-M and QDD-400G-ZR-M transceivers, you will need to delete the changes made to the temperature thresholds. To do this, in configuration mode, perform the following steps:

Delete the Main PCBLeft and Main PCBRight temperature sensors.

Commit the configuration.

Verify the Updated Temperature Thresholds

You can verify the changes made to temperature thresholds by using any of the following methods:

In operational mode, run the show chassis enhanced-temperature-thresholds command to view the configured thresholds for all the sensors.

In configuration mode, execute the following command:

Network Port LEDs on ACX7100-48L Routers

Each ACX7100-48L network port uses a single bicolored LED to indicate link status, activity on the link, or a fault condition. Figure 4 and Figure 5 show the location of the LEDs on an ACX7100-48L device.

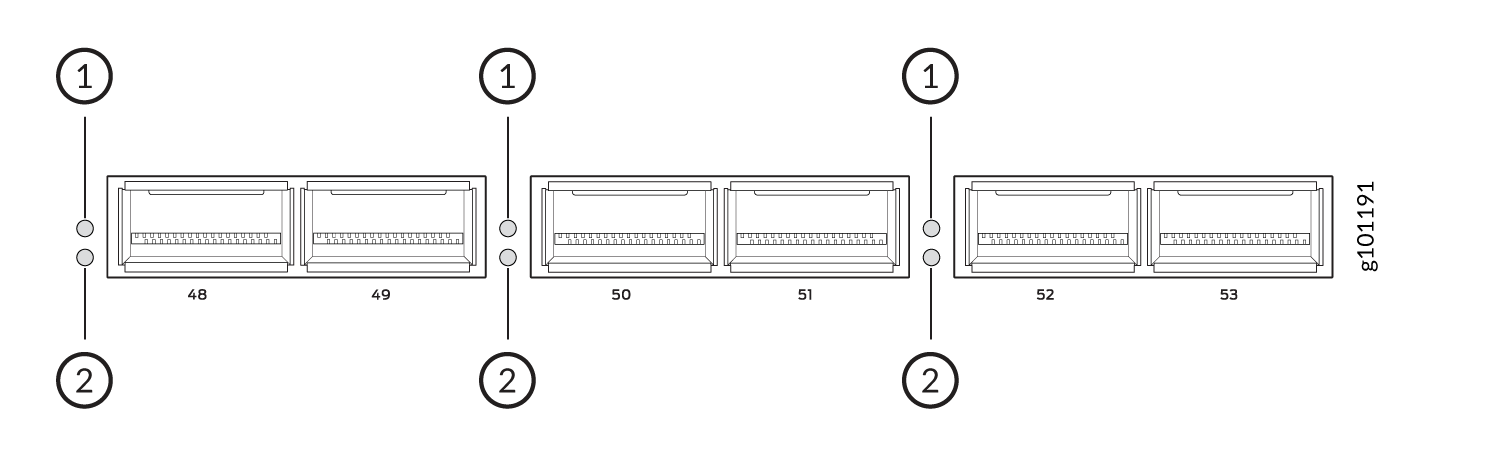

Figure 4: QSFP56-DD Port LEDs

1

—

Left port LED

2

—

Right port LED

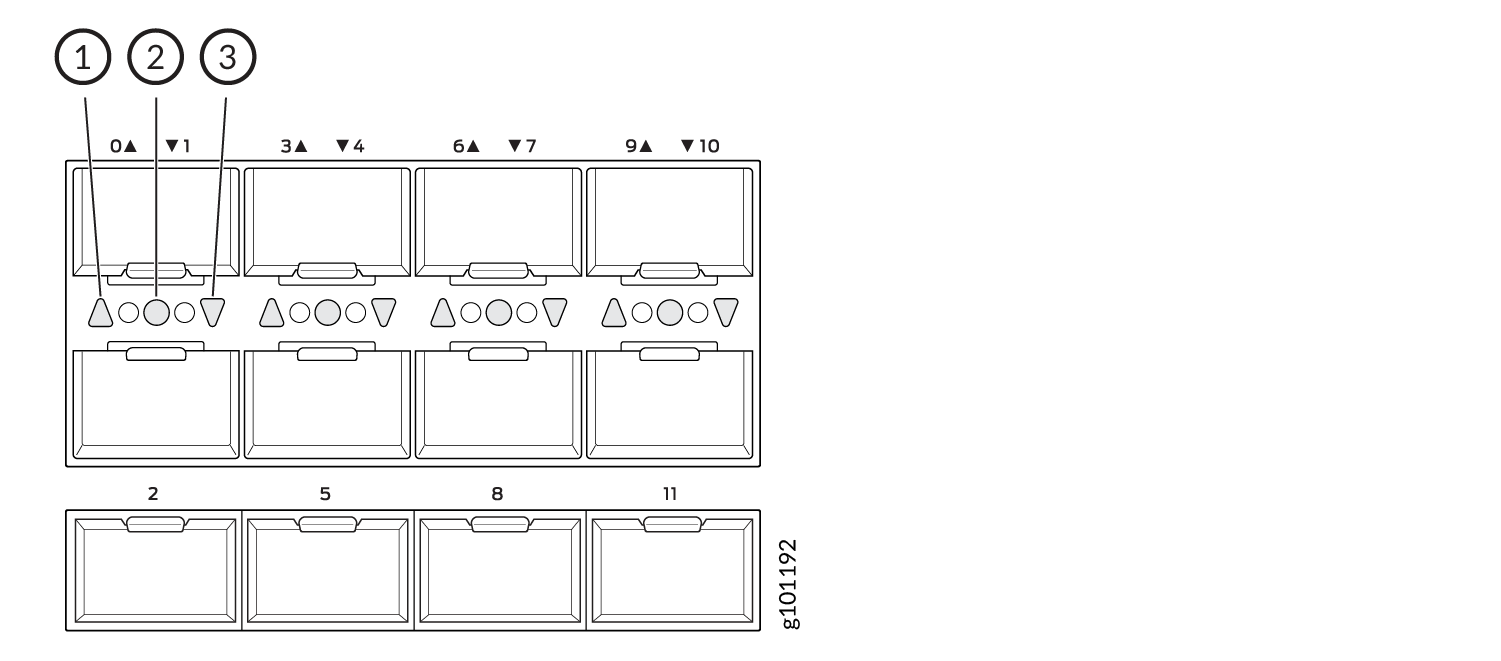

Figure 5: SFP56 Port LEDs

1 — Upper port LED	3 — Lower port LED
2 — Middle port LED

The number next to the LED indicates the port number to which the LED belongs. All network port LEDs behave the same. Table 2 describes the network port LEDs on ACX7100-48L routers, their colors and states, and the status that they indicate.

Table 2: Network Port LEDs on ACX7100-48L Routers
LED Color	LED State	Description
Unlit	Off	The port is administratively disabled, there is no power, the link is down, or a transceiver is not present.
Green	On steadily	A link is established, and all channels are up.
Green	Blinking	The beacon function is enabled on the port.
Amber	On steadily	One or more channels are up. At least one channel has activity, but not all connections are active.
Red	On steadily	All channels are down.

Chassis Status LEDs on ACX7100-48L Routers

The ACX7100-48L routers have four status LEDs that indicate the system status. You can find these LEDs to the right of the network ports (see Figure 6).

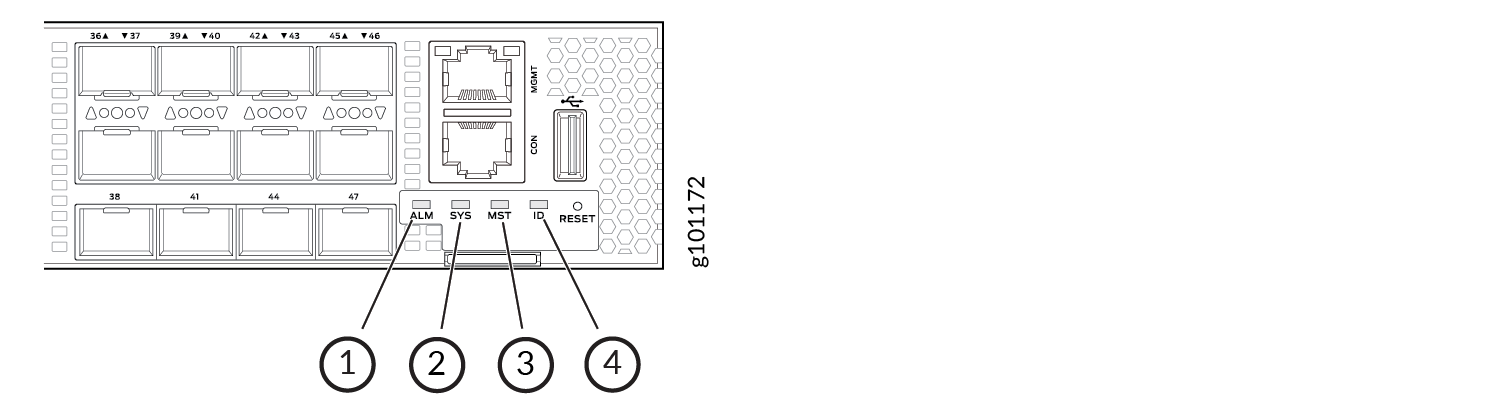

Figure 6: Chassis Status LEDs on an ACX7100-48L Router

1 — ALM (Alarm)	3 — MST (Primary)
2 — SYS (System)	4 — ID (Identification)

Table 3 describes the chassis status LEDs on ACX7100-48L routers, their colors and states, and the status that they indicate. You can view the colors of the LEDs remotely through the CLI by running the operational mode command show chassis led.

Table 3: Chassis Status LEDs on ACX7100-48L Routers
Name	Color	State	Description
ALM—Alarm LED	Unlit	Off	The router is halted, or there is no alarm.
	Red	On steadily	A major hardware fault has occurred, such as a temperature alarm or power failure, and the router has halted (except during a single rotor failure in a fan module). Switch off power to the router and unplug the power cords. Correct any voltage or site temperature issues, and allow the router to cool down. Power on the router, and monitor the power supply and fan LEDs to determine where the error is occurring.
	Red	Blinking	Indicates the presence of a major and a minor alarm.
	Amber	On steadily	A minor alarm has occurred, such as a software error. Switch off power to the router and unplug the power cords. Power on the router, and monitor the status LEDs to ensure that Junos OS Evolved boots up properly.
	Amber	Blinking	Indicates the presence of a major and a minor alarm.
SYS—System LED	Unlit	Off	The router is powered off or halted.
	Green	On steadily	Junos OS Evolved is loaded on the router.
		Blinking	The device is loading the Software or the device is powering off.
		Slow blinking	The device is powering up.
MST—Primary LED	Unlit	Off	The router is a linecard member.
MST—Primary LED	Green	On steadily	The router is a standalone router.
ID—Identification LED	Unlit	Off	The beacon feature is not enabled on the router. You can enable this feature by using the `request chassis beacon` command.
ID—Identification LED	Blue	Blinking	The beacon feature is enabled on the router. You can disable this feature by using the `request chassis beacon` command.
