Maintain the PTX10001-36MR Power Supplies

The power supplies in a PTX10001-36MR are hot-removable and hot-insertable field-replaceable units; You can remove and replace them without powering off the PTX10001-36MR or disrupting routing functions.

CAUTION:

Do not mix AC/HVDC and DC power supplies in the same chassis.

Here are the parts and tools you’ll need to replace a power supply:

  • ESD grounding strap (provided)

  • Antistatic bag or an antistatic mat (not provided)

  • (For a DC power supply) Phillips (+) screwdriver, number 2 (not provided)

Remove the AC/HVDC Power Supply from the PTX10001-36MR

Warning:

Turn off the power source before disconnecting the power cord to prevent damage to the power connector contact.

Warning:

If you need to replace all the power supplies installed in your PTX10001-36MR, you must power off the PTX10001-36MR before removing the power supplies. See Power Off the PTX10001-36MR.

CAUTION:

Replace the power supply within two minutes of removal to prevent chassis overheating. Before removing the power supply, ensure you have a replacement power supply available.

CAUTION:

The AC/HVDC power supply you are installing must use the same airflow direction as the fan trays installed in the router. Labels on the power supply handle indicate the direction of airflow. See PTX10001-36MR Cooling System.

CAUTION:

Before you replace a power supply in a PTX10001-36MR, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see Prevention of Electrostatic Discharge Damage).

  1. Place the antistatic bag or the antistatic mat on a flat, stable surface.
  2. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to the ESD point on the device.
  3. Disconnect power to the PTX10001-36MR power supply you are going to replace. If the AC input power source outlet has a power switch, set it to the off (O) position. If the AC input power source outlet does not have a power switch, gently pull out the plug end of the power cord connected to the power source outlet.
  4. Remove the power cord from the power supply by pressing in the locking button on the side of the power connector and gently pulling the connector out of the power supply faceplate. Refer to Figure 1.

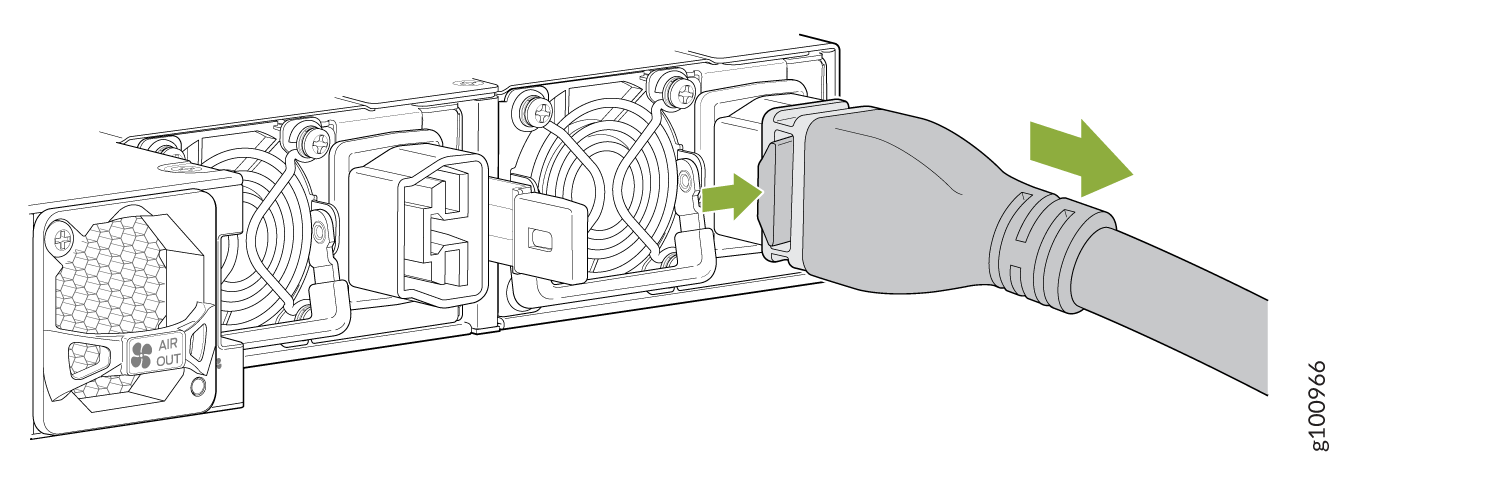

    Figure 1: Remove the Power Cord from the Power SupplyRemove the Power Cord from the Power Supply
  5. Slide the ejector lever on the power supply toward the orange handle until it stops.
  6. Place one hand under the power supply to support it and slide it completely out of the chassis. Take care not to touch power supply components, pins, leads, or solder connections. See Figure 2.

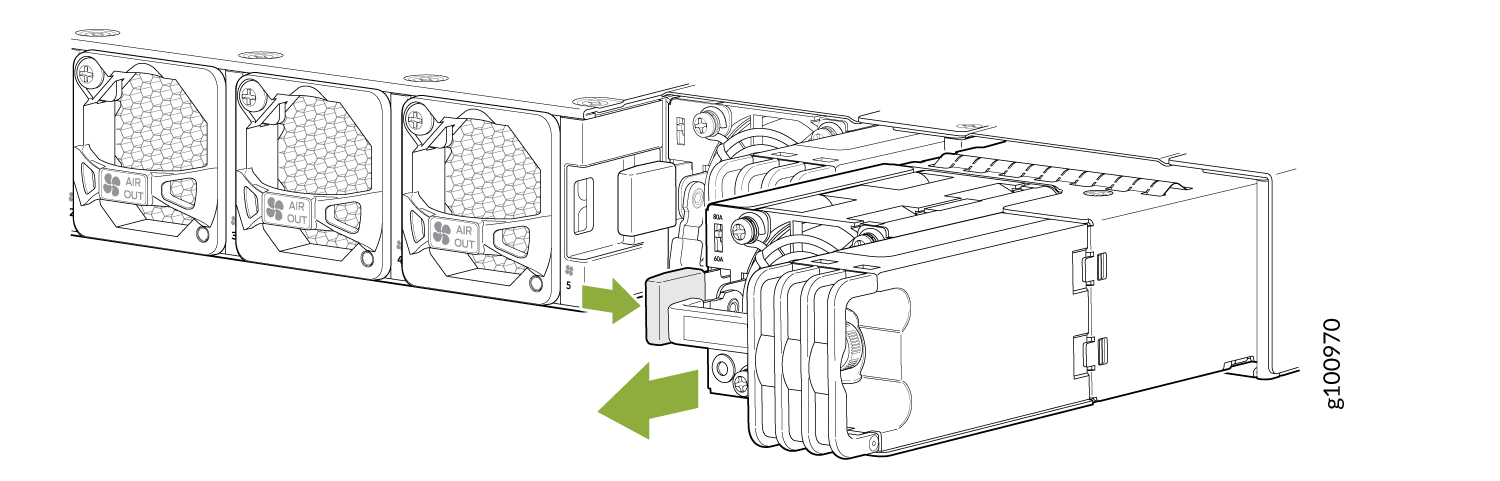

    Figure 2: Remove an AC/HVDC Power SupplyRemove an AC/HVDC Power Supply
  7. Place the power supply in the antistatic bag or on the antistatic mat placed on a flat, stable surface.
  8. Install a new power supply within two minutes of removing the old one.

Install the AC/HVDC Power Supply in the PTX10001-36MR

CAUTION:

Install the power supply within two minute of removal to prevent chassis overheating. Before removing the power supply, ensure you have a replacement power supply available.

  1. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to the ESD point on the device.
  2. If the power supply has protective plastic wrap, peel and remove the plastic wrap from all four sides of the power supply.
  3. Taking care not to touch power supply components, pins, leads, or solder connections, remove the power supply from its bag.
  4. Using both hands, place the power supply in the power supply slot on the field replaceable units (FRU) panel of the PTX10001-36MR and slide it in until it is fully seated and the ejector lever slides into place. See Figure 3.
Figure 3: Install a PTX10001-36MR AC/HVDC Power SupplyInstall a PTX10001-36MR AC/HVDC Power Supply
Note:

Each power supply must be connected to a dedicated power source outlet.

Note:

If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.

Remove the DC Power Supply from the PTX10001-36MR

Warning:

Turn off the circuit breaker for the DC power source before disconnecting the power cord from the power supply. Unplugging an DC connection while the power supply is powered up might damage the electrical connectors.

Warning:

If you need to replace all the power supplies installed in your PTX10001-36MR, you must power off the PTX10001-36MR before removing the power supplies. See Power Off the PTX10001-36MR.

CAUTION:

Replace the power supply within two minutes of removal to prevent chassis overheating. Before removing the power supply, ensure you have a replacement power supply available.

CAUTION:

The DC power supply you are installing must use the same airflow direction as the fan trays installed in the router. Labels on the power supply handle indicate the direction of airflow. See PTX10001-36MR Cooling System.

CAUTION:

Before you replace a power supply in a PTX10001-36MR, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see Prevention of Electrostatic Discharge Damage).

  1. Place the antistatic bag or the antistatic mat on a flat, stable surface.
  2. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to the ESD point on the device.
  3. Turn off the circuit breaker for the power feed to the power supply that you are replacing. Be sure the LEDs turn off on the power supply that you are removing.
  4. Loosen the thumbscrews for the power cable. Gently pull out the socket end of the power plug connected to the power supply faceplate.
  5. Disconnect a connector for the power cables or release each of three cables from the power supply (requires a standard screwdriver).
  6. Grasp the power supply handle while pressing the release latch towards the power supply handle.
  7. Place one hand under the power supply to support it and slide it completely out of the chassis. Take care not to touch power supply components, pins, leads, or solder connections. See Figure 4.

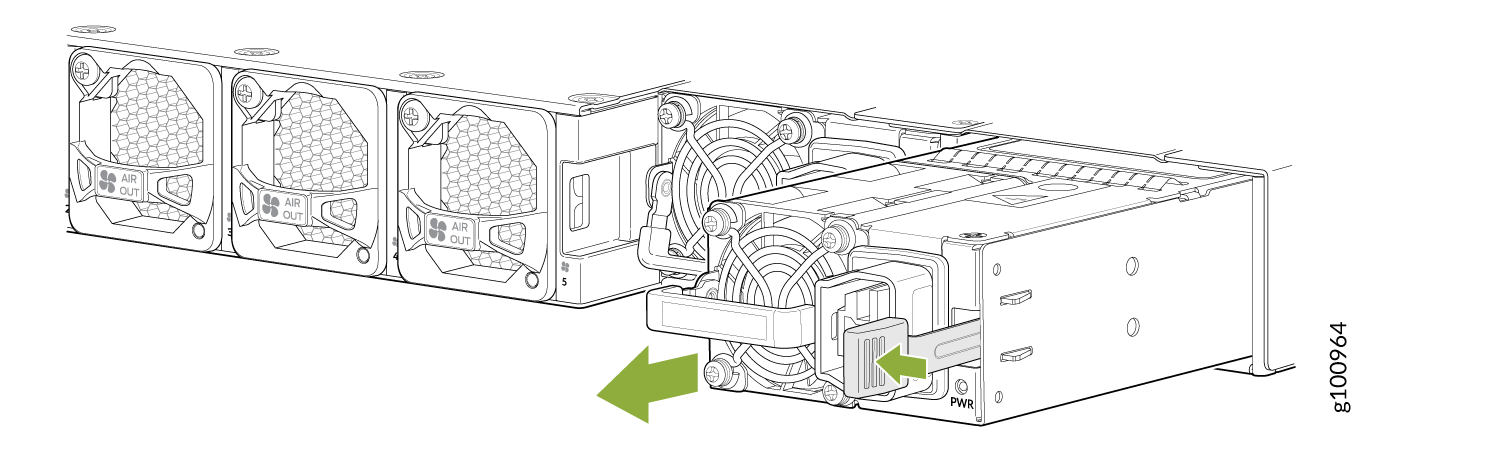

    Figure 4: Remove a DC Power SupplyRemove a DC Power Supply
  8. Place the power supply in the antistatic bag or on the antistatic mat placed on a flat, stable surface.
  9. Install a new power supply within two minutes of removing the old one.

Install the DC Power Supply in the PTX10001-36MR

CAUTION:

Install the power supply within two minutes of removal to prevent chassis overheating. Before removing the power supply, ensure you have a replacement power supply available.

  1. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to the ESD point on the device.
  2. If the power supply has protective plastic wrap, peel and remove the plastic wrap from all four sides of the power supply.
  3. Taking care not to touch power supply components, pins, leads, or solder connections, remove the power supply from its bag.
  4. To prevent damage to the equipment caused by static discharge, attach an ESD grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
  5. Taking care not to touch power supply components, pins, leads, or solder connections, remove the power supply from its bag.
  6. Using both hands, place the power supply in the power supply slot on the field replaceable units (FRU) panel of the PTX10001-36MR and slide it in until it is fully seated and the locking lever slides into place. See Figure 5.
Figure 5: Install a DC Power SupplyInstall a DC Power Supply
Note:

Each power supply must be connected to a dedicated power source outlet.

Note:

If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.
