Static VXLAN

Juniper Networks supports the static Virtual Extensible LAN (VXLAN) feature in a small multichassis link aggregation group (MC-LAG) network and in small networks on Layer 2 (L2) VXLAN gateway devices.

Understanding Static VXLAN

Static Virtual Extensible LAN (VXLAN), also known as unicast VXLAN, enables you to statically configure source and destination virtual tunnel endpoints (VTEPs) for a particular traffic flow. A source VTEP encapsulates and a destination VTEP de-encapsulates L2 packets with a VXLAN header, thereby tunneling the packets through an underlying Layer 3 IP network.

Note:

Although this feature is also known as unicast VXLAN, static VXLAN tunnels can support both unicast and broadcast, unknown unicast, and multicast (BUM) traffic. We support BUM traffic replication and forwarding using ingress replication.

Starting in Junos OS Release 14.1X53-D40, Juniper Networks supports static VXLAN on devices that act as L2 VXLAN gateway devices. Here we show sample environments with a small MC-LAG network or leaf in a classic spine and leaf fabric.

Benefits of Static VXLAN

  • Instead of using an Ethernet VPN (EVPN) control plane to learn the MAC addresses of hosts, static VXLAN uses a flooding-and-learning technique in the VXLAN data plane. Therefore, using static VXLAN reduces complexity in the control plane.

  • For a small MC-LAG network, EVPN might be overly complex to configure and maintain. Static VXLAN provides the benefits of VXLAN and is relatively easy to design and configure.

How Static VXLAN Works

To enable static VXLAN on a Juniper Networks device that functions as a VTEP, you must configure:

  • A list that includes one or more remote VTEPs with which the local VTEP can form a VXLAN tunnel.

  • Ingress node replication.

  • The VTEP’s loopback interface (lo0):

    • Configure an anycast IP address as the primary interface.

    • Specify this interface as the source interface for a VXLAN tunnel.

When a VTEP receives a BUM packet, the VTEP uses ingress node replication to replicate and flood the packet to the statically defined remote VTEPs on your list. The remote VTEPs in turn flood the packet to the hosts in each VXLAN of which the VTEPs are aware.

The VTEPs learn the MAC addresses of:

  • Remote hosts from the VTEPs on the remote VTEP list.

  • Local hosts from the local access interfaces

Upon learning a MAC address of a host, the device adds the MAC address to the Ethernet switching table.

You can view information about remote static VXLAN VTEP interfaces using the following CLI show commands:

  • show ethernet-switching vxlan-tunnel-end-point-remote—Shows the remote VTEPs on the device, including their IP addresses and VTEP interface names . See the RVTEP-IP and Interface output fields.

  • show interfaces vtep-interface-name—Displays status of a VTEP interface. The VTEP interfaces you configure as static VXLAN VTEPs display the value Configured-remote in the VXLAN Endpoint type output field of this command.

For example, with static VXLAN remote VTEPs configured for VLANs 200 and 300 in an L2 routing instance named ri1:

Small MC-LAG Network Static VXLAN Use Case

Here we show a static VXLAN at the global level in a small network that uses MC-LAGs.

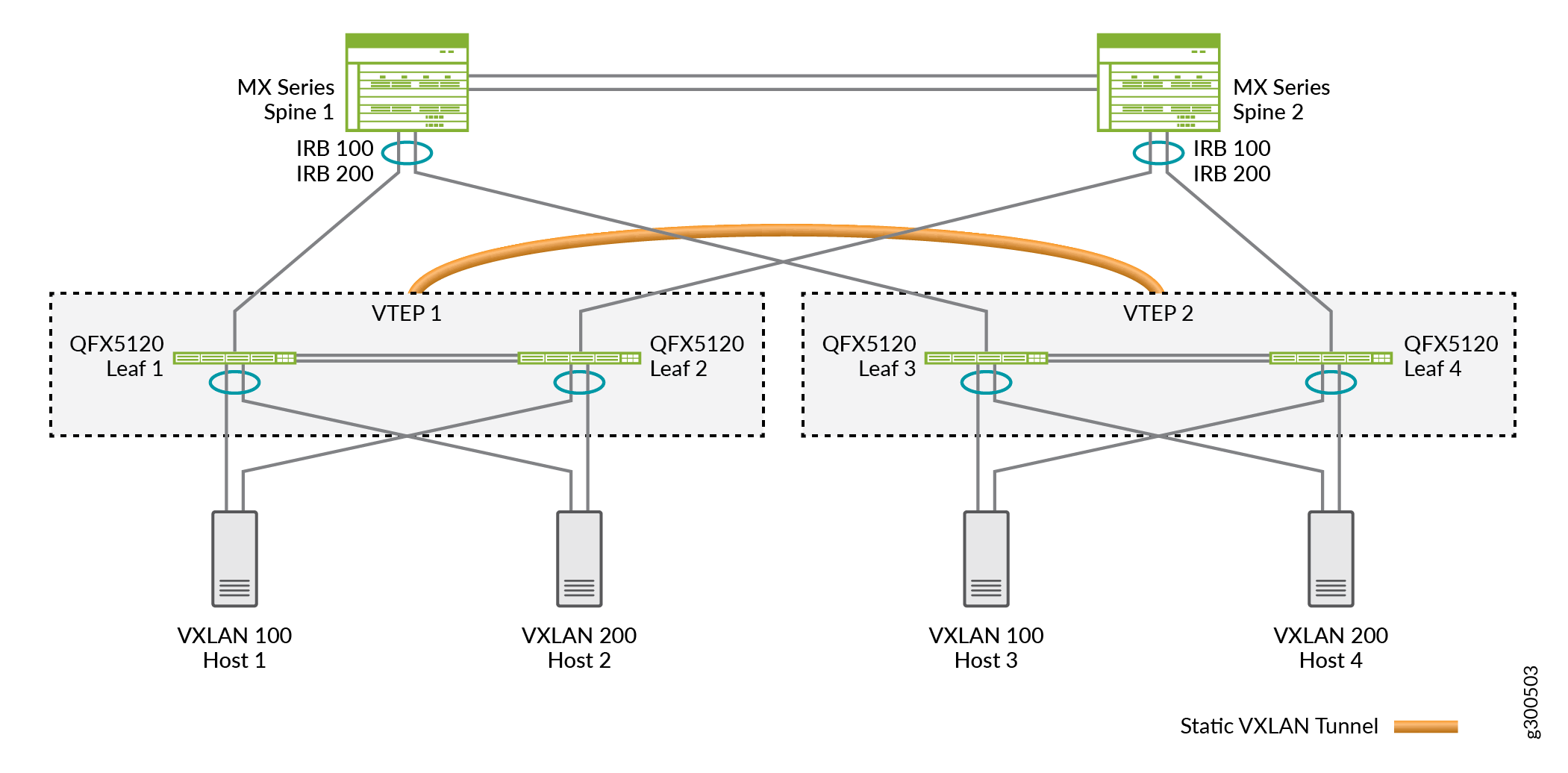

Figure 1: Sample MC-LAG Network with Static VXLANSample MC-LAG Network with Static VXLAN

In the MC-LAG network in Figure 1:

  • The bottom layer includes hosts (Host 1 through Host 4), each of which is multihomed to leaf devices and is a member of a VXLAN.

  • The middle layer includes leaf devices (Leaf 1 through Leaf 4), each of which functions as an L2 VXLAN gateway. In addition, Leaf 1 and Leaf 2 form an MC-LAG and together, both leaf devices function as VTEP 1. Leaf 3 and Leaf 4 form another MC-LAG and function as VTEP 2.

  • The top layer includes spine devices (Spine 1 and Spine 2), which form an MC-LAG. These devices function as IP routers.

Note the following about the configuration of Leaf 1 through Leaf 4 on which static VXLAN is configured:

  • Instead of EVPN-VXLAN, here we enable static VXLAN.

  • Each leaf device is an MC-LAG member and functions along with its MC-LAG peer as a VTEP. That is, two physical leaf devices make up each virtual VTEP. This situation impacts the configuration in the following ways:

    • On each leaf device that forms a VTEP, you must configure the same loopback address.

    • On each leaf device that forms a VTEP, you must configure the same remote VTEP list.

    For a sample configuration of this use case, see Configure Static VXLAN at the Global Level.

  • Instead of an IP multicast feature, we enable ingress node replication.

VLAN or Bridge Domain Level Static VXLAN Use Case

On some platforms, you can set up an L2 VXLAN gateway without EVPN at the VLAN or bridge domain level, In this case, you statically configure a list of one or more remote VTEPs at the global level, and map the list to a particular VLAN or bridge domain.

Note:

You don’t configure EVPN as part of a static VXLAN configuration. However, you can have EVPN-VXLAN and static VXLAN configurations on the same device, as long as the two configurations use different sets of remote peer VTEPs.

First, statically configure a global list of remote VTEPs using the remote-vtep-list [...] statement. Then map the same list of remote VTEPs at the VLAN or bridge domain level using the static-remote-vtep-list [...] statement. Each VLAN must also have a VXLAN network identifier (VNI) mapping.

Note:

When you configure static VXLAN in EVPN-VXLAN deployments on the PTX10000 line of routers running Junos OS Evolved, you must also enable the tunnel-termination option at the [edit forwarding-options] hierarchy level. This enables the termination of tunnels on all interfaces at the global level.

We support configuring static VXLAN at the global level, VLAN level, and bridge domain level as follows:

Table 1: Supported Static VXLAN Configurations
Static VXLAN Configuration Supported Platforms

In the default switch instance

MX Series

QFX Series

In a virtual-switch routing instance

MX Series

PTX10000 line of routers running Junos OS Evolved

At the global level

MX Series

QFX Series

PTX10000 line of routers running Junos OS Evolved

At the VLAN level

MX Series

QFX Series

PTX10000 line of routers running Junos OS Evolved

At the bridge domain level

MX Series

When you specify the remote VTEPs at the VLAN or bridge domain level:

  • In the default switch instance:

    You must also specify the same VTEPs at the global level in the default switch instance at the [edit switch-options] hierarchy level.

  • In a virtual-switch routing instance:

    You must also specify the same VTEPs at the global level in the same routing instance at the [edit routing-instances name] hierarchy level.

To replicate and flood BUM traffic over static VXLAN tunnels at the VLAN or bridge domain level for VXLANs, you must also configure ingress node replication mode (ingress-node-replication option) at that level. This mode restricts the BUM traffic flood domain to only those VTEPs mapped to the particular VLAN or bridge domain.

For a sample configuration of this use case, see Configure Static VXLAN at the VLAN or Bridge Domain Level on L2 VXLAN Gateway Devices.

Q-in-Q VLAN Tunnels in a Spine-and-Leaf Network with Static VXLAN

Starting in Junos OS Release 23.4R1, Junos OS supports Q-in-Q tunnels in an MC-LAG spine-and-leaf network with static VXLAN tunnels. You must use service provider style configuration to configure Q-in-Q tunnels.

Service providers use Q-in-Q tunnels (VLAN translation) to segregate or bundle customer traffic into fewer or different VLANs by adding another layer of 802.1Q tags. In Q-in-Q tunneling, as a packet travels from a customer VLAN (C-VLAN) to a service provider's VLAN, Junos OS adds a service-provider defined VLAN (S-VLAN) tag to the packet. This additional 802.1Q tag allows service providers to create an L2 Ethernet connection between two customer sites in different geographic locations. As the packets exits the service provider's VLAN, Junos OS removes the extra 802.1Q (S-VLAN) tag.

Figure 2 shows how Junos devices handle Q-in-Q VLAN traffic in a spine-and-leaf topology. Leaf 1 and Leaf 2 are configured as static VXLAN gateway devices. Leaf 1 and Leaf 2 are also configured as MC-LAG peers to provide redundancy and load balancing. The VTEPs on the leaf devices is responsible for pushing the S-VLAN tag to the C-VLAN packet when it sends traffic to the spine and for popping the S-VLAN tag when it receives packets from the spine. In the event of a link failure between a leaf device and CE device, the packet is sent to the other leaf device. In which case, the leaf devices hold onto the S-VLAN tag.

Figure 2: VLANs in a Spine-and-Leaf NetworkVLANs in a Spine-and-Leaf Network

For more information about configuring the different elements in this features, see:

Configure Static VXLAN at the Global Level

You can implement VXLAN using the static VXLAN feature on L2 VXLAN gateway devices. Here we show using a static VXLAN in a small multichassis link aggregation group (MC-LAG) network. In the MC-LAG network, Juniper Networks devices function as source and destination virtual tunnel endpoints (VTEPs). In this environment, static VXLAN serves two purposes:

  • To learn the MAC addresses of hosts in a VXLAN. To accomplish this task, static VXLAN uses the ingress node replication feature to flood BUM packets throughout a VXLAN. The VTEPs learn the MAC addresses of remote hosts from the VTEPs on the remote VTEP list and the MAC addresses of local hosts from the local access interfaces. Upon learning of a host’s MAC address, the MAC address is then added to the Ethernet switching table.

  • To encapsulate L2 packets with a VXLAN header and later de-encapsulate the packets, thereby enabling them to be tunneled through an underlying Layer 3 IP network. For this task to be accomplished, on each VTEP, you configure a list of statically defined remote VTEPs with which the local VTEP can form a VXLAN tunnel.

This sample configuration shows the steps and a sample configuration with the default switch instance rather than an explicitly configured L2 routing instance.

Note:

See Configure Static VXLAN at the VLAN or Bridge Domain Level on L2 VXLAN Gateway Devices for a sample configuration with a different use case—static VXLAN at the VLAN or bridge domain level. That configuration shows configuration steps and a sample configuration with an L2 routing instance of type virtual-switch.

Before You Begin

  • Verify that Ethernet VPN (EVPN) is not enabled on the Juniper Networks devices that function as leaf devices.

  • Verify that IP multicast is not enabled on the leaf devices.

In the sample MC-LAG network shown in Figure 3, note that each VTEP (VTEP 1 and VTEP 2) comprises two physical leaf devices. That is, the two physical leaf devices function as a single virtual entity. As a result, for both leaf devices that compose a VTEP, you must configure the following:

  • The same loopback anycast IP address.

  • The same remote VTEP list.

Figure 3: Sample MC-LAG Network with Static VXLANSample MC-LAG Network with Static VXLAN

Table 2 shows the sample loopback address and remote VTEP list configured on each leaf device in the network.

Table 2: Sample Static VXLAN Configurations

Static VXLAN Parameters

VTEP 1: Leaf 1 Configuration

VTEP 1: Leaf 2 Configuration

VTEP 2: Leaf 3 Configuration

VTEP 2: Leaf 4 Configuration

Loopback anycast IP address

192.168.99.110/32

192.168.99.110/32

192.168.99.120/32

192.168.99.120/32

Remote VTEP list

192.168.99.120

192.168.99.120

192.168.99.110

192.168.99.110
Note:

This procedure focuses on configuring the static VXLAN feature. It does not show how to configure peripheral but related entities such as interfaces, VLANs, and so on. However, the sample configuration that follows the procedure includes a more comprehensive configuration, including the related entities.

To enable static VXLAN on a leaf device:

  1. Configure the loopback interface (lo0).
    1. Specify an anycast IP address as the primary address for the loopback interface.
    2. Specify the loopback interface as the source interface for VXLAN tunnels.
  2. Create a list of statically defined remote VTEPs.
  3. For each VXLAN, enable ingress node replication.

Sample Static VXLAN Configuration

These show configuration output snippets display a static VXLAN sample configuration for leafs 1 and 2 (VTEP 1) and include the parameters outlined in Table 2.

Configure Static VXLAN at the VLAN or Bridge Domain Level on L2 VXLAN Gateway Devices

In small spine and leaf networks, you can enable the static VXLAN feature on L2 VXLAN gateway devices that function as source and destination virtual tunnel endpoints (VTEPs). The L2 VXLAN gateway devices tunnel L2 packets over a VXLAN tunnel through an underlying Layer 3 IP network by:

  • Encapsulating L2 packets with a VXLAN header when sending the packets to remote VTEPs.

  • De-encapsulating the packets when receiving them from the tunnel to send to the destination hosts.

In this case, for each VTEP on the L2 VXLAN gateway devices, at the global level, statically configure the list of remote VTEPs with which the local VTEP can form a VXLAN tunnel. Then map the VTEP list to a particular VLAN or bridge domain in an L2 routing instance.

  1. Statically configure a global list of remote VTEPs using the remote-vtep-list statement as follows:

    In the default switch instance:

    In a virtual-switch routing instance:

  2. Map the remote VTEPs list to a particular VLAN or bridge domain as follows:

    • Configure the VLAN with a VXLAN VNI mapping

    • Map the remote VTEPs list to the VLAN using the static-remote-vtep-liststatement:

      In the default switch instance:

      In a virtual-switch routing instance:

See VLAN or Bridge Domain Level Static VXLAN Use Case for an overview of how static VXLAN works in this case. See Table 1 for a summary of the supported static VXLAN configurations.

Note:

If you configure a global list of remote VTEPs in a routing instance using the remote-vtep-list statement, but you don't also configure the static-remote-vtep-list statement for a VLAN in the routing instance, then that VLAN inherits all the globally configured remote VTEPs.

Here we include the configuration steps and a simple sample configuration on two L2 VXLAN gateway devices to set up static VXLAN tunnels between them at the VLAN level. Table 3 shows the parameters for this configuration. We use L2 routing instances of type virtual-switch, so you configure most elements in the routing instance at the [edit routing-instances name] hierarchy level. Each step notes the statement hierarchy differences for the default switch instance instead.

Table 3: Sample Static VXLAN Configuration at the VLAN Level
Device lo0 IP Address L2 Instance Name Associated VLAN VLAN to VNI mapping Remote VTEP IP Addresses
VXLAN-GW1 192.168.4.1 rt1 v100 (VLAN ID 100) 100 192.168.5.1
v200 (VLAN ID 200) 200
VXLAN-GW2 192.168.5.1 rt1 v100 (VLAN ID 100) 100 192.168.4.1
v200 (VLAN ID 200) 200
  1. Configure the loopback interface (lo0).
    1. Specify an anycast IP address address for the loopback interface.

      For example, for VXLAN-GW1 in Table 3:

    2. Specify the loopback interface as the source interface for VXLAN tunnels in the routing instance.

      For example, in L2 routing instance rt1:

      If your configuration uses the default switch instance, set lo0.0 as the vtep-source-interface at the [edit switch-options] hierarchy level instead of in a routing instance.

  2. Configure the VLANs in the L2 routing instance (or the default switch instance) with an associated interface. Map each VLAN to a VNI for the VXLAN tunnel.

    For example, for VXLAN-GW1 in Table 3:

    If your configuration uses the default switch instance, set the VLAN parameters above globally at the [edit vlans] hierarchy level instead of in a routing instance.

  3. Create the list of statically defined remote VTEPs in the L2 routing instance at the global level.
    For example, Table 3 shows VXLAN-GW1 has VXLAN-GW2 as its remote VTEP:

    If your configuration uses the default switch instance, set remote VTEPs list at the [edit switch-options] hierarchy level instead of in a routing instance.

  4. Statically map the remote VTEPs to particular VLANs in the L2 routing instance.

    For example, on VXLAN-GW1, use the static-remote-vtep-list statement at the VLAN level in the routing instance rt1 to map the same remote VTEP from the global list to VLANs v100 and v200:

    If your configuration uses the default switch instance, set the VLAN level remote VTEPs list at the [edit vlans vlan-name vxlan] hierarchy level instead of in a routing instance.

  5. For each VXLAN, enable ingress node replication to replicate and flood BUM traffic only to those VTEPs you map to the associated VLAN(s):
    Note:

    On supported QFX5100 and QFX5120 switches, to ensure that BUM traffic is flooded to only those VTEPs mapped to a particular VLAN, we strongly recommend you configure the static VTEP lists on all of those switches symmetrically. We recommend these settings to avoid situations where, for example:

    • Switch 1’s list includes switches 2 and 3,

    • Switch 2’s list includes switches 1 and 3, and

    • Switch 3’s list includes only switch 2.

    Because of this asymmetric configuration, when switch 1 sends BUM traffic to switch 2 and switch 3 on its list, Switch 3 forwards the BUM traffic to its local ports in the VLAN.

    If your configuration uses the default switch instance, set the vxlan ingress-node-replication option at the [edit vlans name] hierarchy level instead of in a routing instance.

See the following sample set command configuration blocks that show complementary configurations on VXLAN-GW1 and VXLAN-GW2. Using the parameters in Table 3, these commands set up a static VXLAN tunnel between the two devices in L2 routing instance rt1 at the VLAN level for VLANs 100 and 200.

VXLAN-GW1:

VXLAN-GW2:

Change History Table

Feature support is determined by the platform and release you are using. Use Feature Explorer to determine if a feature is supported on your platform.

Release
Description
20.4R1
Starting in Junos OS Release 20.4R1, Juniper Networks supports configuring static VXLAN VTEPs at the VLAN or bridge domain level as well as at the previously supported global level.
14.1X53-D40
Starting in Junos OS Release 14.1X53-D40, Juniper Networks supports static VXLAN in small MC-LAG networks.
