Local User Authentication Using Pre-shared Key

After logging in successfully, you land on the Basic Settings page.

1. After you click IPsec VPN, the IPsec VPN page appears.

2. At the right corner of the page, select Create VPN > Remote Access > Juniper Secure Connect to create the IPsec VPN setting for Juniper Secure Connect.

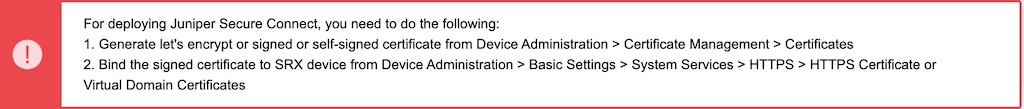

   The following warning message appears:

   Figure 1: Warning Message To Generate And Bind Self-signed Certificate

   As mentioned in the warning message, create a self-signed certificate and bind the certificate to the SRX Series Firewall. For more information, see Deploy Certificates for Juniper Secure Connect.

   For detailed information about creating a remote access VPN, see Create a Remote Access VPN—Juniper Secure Connect.

3. Again navigate to Network > VPN > IPsec VPN and at the right corner of the page, select Create VPN > Remote Access > Juniper Secure Connect to create the IPsec VPN setting for Juniper Secure Connect. The Create Remote Access (Juniper Secure Connect) page appears.

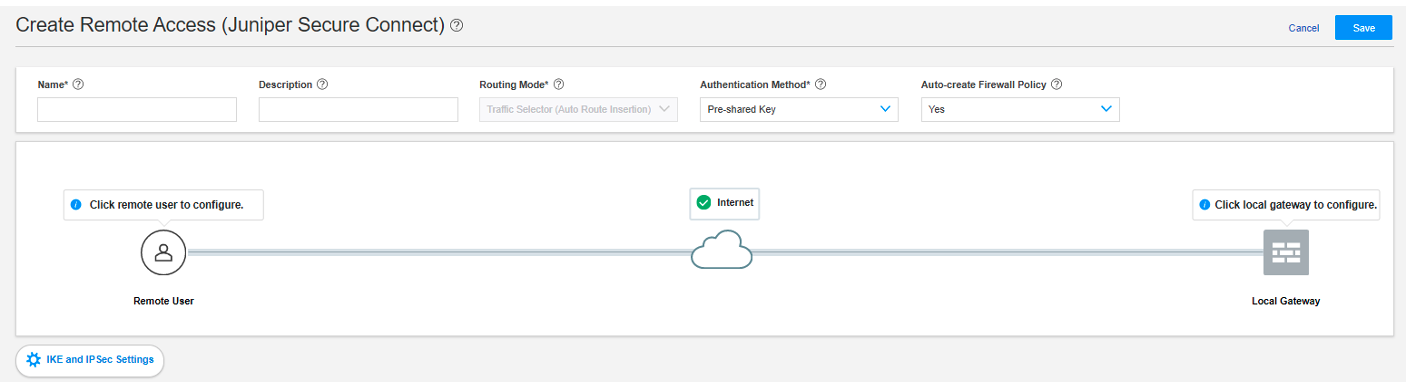

   Figure 2 shows an example of the create remote access page with pre-shared key authentication method.

   Figure 2: Create Remote Access Page For Pre-shared Key Authentication Method

1. Enter the name for the Remote Access Connection (this is the name that will be displayed on the End Users Realm Name in Juniper Secure Connect application) and a description.

2. The routing mode is set to Traffic Selector (Auto Route Insertion) by default.

3. Select the authentication method. For this example, let’s select Pre-shared Key from the drop-down list.

4. Select Yes to create the firewall policy automatically using the Auto-create Firewall Policy option.

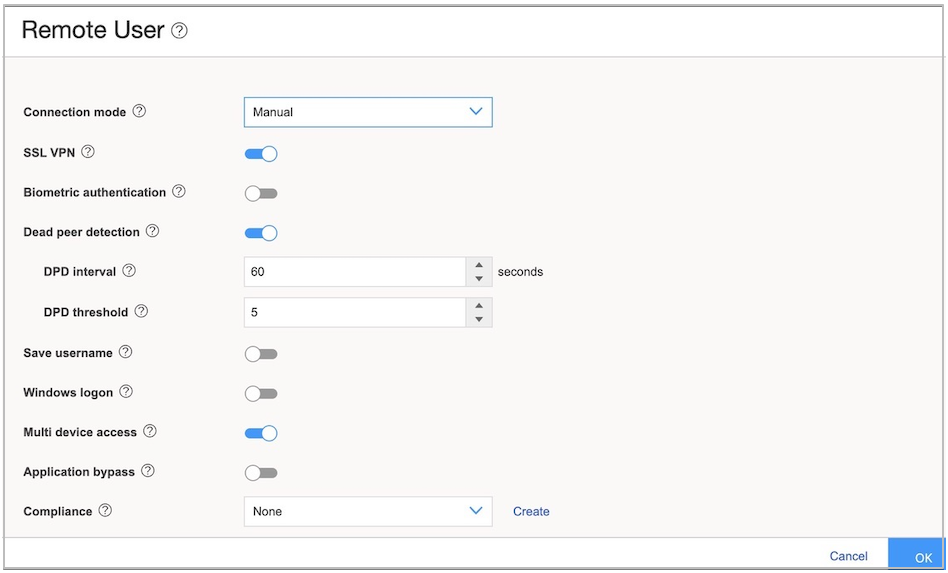

Figure 3 shows an example of the Remote User page.

Configure the remote user client by selecting the options on the Remote User page and then clicking OK :

Table 1 summarizes the remote user settings options.

Table 1: Remote User Settings Options

Remote User Settings	Description
Default Profile	The Default Profile is enabled by default. If you do not want this profile to be the default profile, click the toggle button. If you enable Default Profile for the VPN connection profile, Juniper Secure Connect automatically selects default profile as realm name (in this example: https://192.0.2.12/). In this case, it is optional to enter the realm name in Juniper Secure Connect. If you disable Default Profile for the VPN connection profile, you must enter the realm name along with the gateway address (in this example: https://192.0.2.12/JUNIPER_SECURE_CONNECT) in Juniper Secure Connect. Note: Starting in Junos OS 23.1R1 Release, default profile is deprecated in J-Web. However, in CLI—rather than immediately removing it—we provide backward compatibility and a chance to make your existing configuration conform to the changed configuration. You’ll receive a warning message if you continue to use the default-profile option in your configuration. However existing deployments are not affected if you modify the current configuration using CLI. See default-profile (Juniper Secure Connect)
Connection Mode	To establish the client connection manually or automatically, select the appropriate option. If you select Manual, then in the Juniper Secure Connect application, to establish a connection, you must either click the toggle button or select Connection > Connect from the menu. If you select Always, then Juniper Secure Connect automatically establishes the connection. Known Limitation: Android device: If you use or select Always, then the configuration is downloaded from the first used SRX device. If the first SRX Series Firewall configuration changes or if you connect to a new SRX device, the configuration does not get downloaded to the Juniper Secure Connect application. This means that once you connect in the Always mode using the Android device, any configuration changes in the SRX Series Firewall do not take effect on Juniper Secure Connect.
SSL VPN	To enable support for SSL VPN connection from the Juniper Secure Connect application to the SRX Series Firewalls, click the toggle button. Use this option when IPsec ports are not allowed. By enabling SSL VPN, the client has the flexibility in connecting the SRX Series Firewalls. By default, SSL VPN is enabled.
Biometric authentication	This option is disabled by default. If you enable this option, when you click connect in Juniper Secure Connect, Juniper Secure Connect displays an authentication prompt. This option allows the user to protect their credentials using the operating system’s built-in biometric authentication support.
Dead Peer Detection	Dead Peer Detection (DPD) is enabled by default to allow the client to detect if the SRX Series Firewall is reachable and if the device is not reachable, disable the connection till reachability is restored.
Save username	To save credentials on Juniper Secure Connect application, you can enable this option.
Windows Logon	This option allows users to logon to the local Windows system through an already established VPN tunnel (using Windows Pre-Logon), so that it is authenticated to the central Windows domain or Active Directory.
Multi device access	Provide multi access of a user from Juniper Secure Connect client using same credentials and same Gateway URL from different devices
Application bypass	To enables users of the Juniper Secure Connect application to bypass specific applications based on domain names and protocols, eliminating the need for the traffic to pass through the VPN tunnel, you select this option.
Compliance	If you enable this feature on your firewall, the Juniper Secure Connect application can establish the VPN connection based on the admission criteria that you configure. We recommend you enable this feature.

Figure 4 shows an example of the local gateway configuration settings.

1. If you enable Gateway is behind NAT, a text box appears. In the text box, enter the NAT IP address. We support only IPv4 addresses. NAT address is the external address.

2. For older J-Web versions, you need to enter an IKE ID in user@hostname.com format. For example, abc@xyz.com.

3. In the External Interface field, select the IP address for the clients to connect. You must enter this same IP address (in this example: https://192.0.2.12/) for the Gateway Address field in the Juniper Secure Connect application.

   If you enable Gateway is behind NAT, then the NAT IP address becomes the gateway address.

4. From the Tunnel Interface drop-down list, select an interface to bind it to the route-based VPN. Alternatively click Add. If you click Add, the Create Tunnel Interface page appears.

   The next available st0 logical interface number is displayed in the Interface Unit field and you can enter a description for this interface. Select the zone to add this tunnel interface to. If Auto-create Firewall Policy (in Create Remote Access page) is set to Yes, the firewall policy uses this zone. Click OK.

5. Enter the preshared key in ASCII format. We do not support hexadecimal format for remote-access VPN.

6. From the User Authentication drop-down list, select an existing access profile or click Add to create a new access profile. If you click Add, the Create Access Profile page appears.

   Enter the access profile name. From the Address Assignment drop-down list, select an address pool or click Create Address Pool. If you click Create Address Pool, the Create Address Pool page appears.

   • Enter the details for the local IP pool that is in the VPN policy for the clients. Enter a name for the IP address pool.

   • Enter the network address and the subnet that you use for the address assignment.

   • Enter your DNS server address. Enter WINS server details, if required.

   • After entering the details, click OK.

   Select the Local check box to create local authentication user, where all the authentication details are stored on the SRX Series Firewalls. If you click the add icon (+), the Create Local Authentication User window appears.

   Enter a username and password, and then click OK. Click OK again to complete the access profile configuration.

7. From the SSL VPN Profile drop-down list, select an existing profile or click Add to create a new SSL VPN profile. If you click Add, the Add SSL VPN Profile page appears.

   On the Add SSL VPN Profile page, you can configure the SSL VPN profile. Enter the SSL VPN profile name in the Name field, and enable logging using the toggle, if required. In the SSL Termination Profile field, select the SSL termination profile from the drop-down list. SSL termination is a process where the SRX Series Firewalls acts as an SSL proxy server, and terminates the SSL session from the client. If you want to create a new SSL termination profile, click Add. The Create SSL Termination Profile page appears.

   • Enter the name for the SSL termination profile and select the server certificate that you use for the SSL termination on the SRX Series Firewalls. Click Add to add a new server certificate or click Import to import the server certificate. The server certificate is a local certificate identifier. Server certificates are used to authenticate the identity of a server.

   • Click OK.

8. The Source NAT Traffic option is enabled by default. When Source NAT Traffic is enabled, all traffic from the Juniper Secure Connect application is NATed to the selected interface by default. Click the toggle button to disable the Source NAT Traffic option. If the option is disabled, you must ensure that you have a route from your network pointing to the SRX Series Firewalls for handling the return traffic correctly.

9. Under Protected Networks, click add icon (+) to select the networks that the Juniper Secure Connect application can connect to.

   By default, any network 0.0.0.0/0 is allowed. If you configure a specific network, split tunneling for Juniper Secure Connect application is enabled. If you retain the default value, you can restrict access to your defined networks by adjusting the firewall policy from the client network. Click OK, and the selected networks are now in the list of protected networks. Click OK to complete the local gateway configuration.

   IKE Settings and IPsec Settings are advanced options. J-Web is already configured with default values for the IKE and IPsec parameters. It is not mandatory to configure these settings.

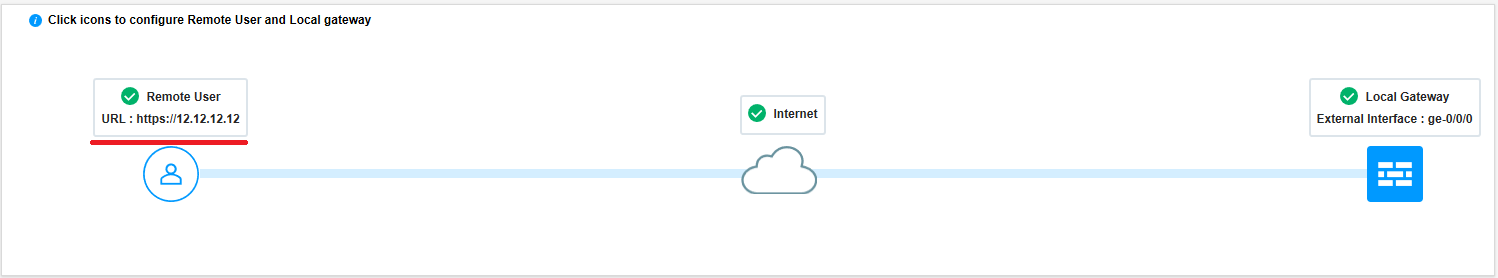

Figure 5 highlights the URL that remote user must enter in the Gateway address field in Juniper Secure Connect application to establish remote access connection.

1. Click Save to complete the Juniper Secure Connect VPN configuration and associated policy if you have selected the auto policy creation option.

2. Click the highlighted Commit button (at the top right of the page next to Feedback Button) to commit the configuration.
