SIP ALG Plugin

The Session Initiation Protocol (SIP)1 is a signaling protocol used for initiating, maintaining, and terminating real-time sessions that include voice, video and messaging applications. SIP is a text based protocol and exchanges IP address information within its messages as a means to establish signaling and media sessions between endpoints. When the SIP clients are behind NAT this poses a particular challenge since the addresses in the SIP messages for such clients will be private IPs which are not reachable beyond the NAT boundaries.

When the SSR is present at the edge of the NAT boundary, it is capable of performing a Application Layer Gateway (ALG) function for SIP protocol by doing packet inspection and re-writing the private IP address information in the SIP messages for both SIP headers and Session Description Protocol (SDP)2. This enables both signaling and media traffic to traverse the NAT and makes the communication possible between the client behind the NAT and the remote SIP endpoint(s). The SIP ALG function can be enabled by installing and configuring the 128T-sip-alg plugin.

note

The instructions for installing and managing the plugin can be found here.

Configuration​

The sip-alg configuration can be enabled on a router. In order to configure sip-alg, it is important to consider the following:

  • Static IP mappings
  • Services for making inbound and outbound calls
  • Additional changes to the SDP to enable SIP interworking
important

The SSR sip-alg function only supports a scenario whereby all the SIP endpoints on the private network communicate via a SIP enabled PBX device.

The following configuration shows an example of what the configuration for a single PBX device would look like:

authority
    router router1
        sip-alg                   PBX
            name                        PBX
            enabled                     true
            proxy-ip                    172.16.2.128

            ip-mappings                 192.168.2.128
                private-ip  192.168.2.128
                public-ip   172.16.2.128
            exit

            sip-service                 outbound
                direction       outbound

                egress-service  sip-outbound-dc1
                    name           sip-inbound

                    access-policy  lan
                        source      lan
                        permission  allow
                    exit
                exit

                egress-service  sip-outbound-dc2
                    name           sip-outbound

                    access-policy  lan
                        source      lan
                        permission  allow
                    exit
                exit
            exit

            sip-service                 inbound
                direction       inbound

                egress-service  sip-inbound-pbx
                    name           sip-inbound-pbx

                    access-policy  datacenter
                        source      datacenter
                        permission  allow
                    exit

                    additional-address   192.168.2.128
                    ingress-service-policy  custom
                exit
            exit

            remove-sdp-lines-by-prefix  a=candidate
        exit
    exit
exit
note

The 128T-sip-alg plugin supports multiple branch PBXs by letting the user configure multiple sip-alg instances on the router. There is a limit of 10 sip-alg configurations per router.

Proxy IP and IP Mappings​

The proxy-ip represents a non-private address for the branch PBX that the remote endpoint (such as a data center server) can use for all inbound and outbound calls. The ip-mappings on the other hand provide the translation to the private IP address that can be used to reach the branch PBX. In the above example, the mappings are a way to indicate that any inbound calls on the 172.16.2.128 from the remote endpoint will be routed to the 192.168.2.128 address. This information is also useful for fixing all the relevant IP addresses in the SIP messages. For the outbound calls, the proxy-ip is used to replace the private branch PBX IP address with a non-private address that represents the branch from the perspective of the data center.

Inbound and Outbound Services​

The sip-alg plugin operates on the concept of SFC where all traffic is routed using KNIs to and from Linux. The SSR uses kamailio3 to then fix all SIP messages and perform additional routing to manage both inbound and outbound calls. For each of the inbound and outbound calls the plugin requires two services - an ingress service to route the traffic to the KNI and an egress service to route the traffic to the other SIP endpoint. The user is responsible for configuring the egress service and corresponding routes. The plugin automatically generates the ingress service and associated routes using the egress service and plugin configuration.

Outbound Service and Config Auto Generation​

The outbound service is used for initial registration between the branch PBX and the SIP server as well as making all outbound calls to remote endpoints. A typical call flow originates from the private LAN network, routed via the SSR sip-alg function that transforms the SIP messages, which are then routed over the WAN interface to the remote endpoint. Consider the following example:

authority
    service  sip-outbound-dc1
        name           sip-outbound-dc1
        service-group  all
        description    "outbound service for sip towards data center 1"
        enabled        true
        scope          private

        transport      udp
            protocol    udp

            port-range  5060
                start-port  5060
            exit
        exit
        address        172.16.2.102/32

        access-policy  _internal_
            source      _internal_
            permission  allow
        exit
    exit
exit

The service sip-outbound-dc1 captures all SIP UDP traffic towards port 5060 originating from the _internal_ tenant. This is a special tenant associated with the SFC KNIs. The sip-service > outbound for the sip-alg configuration refers to this user configured service in the above example. In this process, the plugin will inherit all the address and transport configuration from this service, combined with the defined access-policy on the plugin, will generate the configuration for SIP traffic received on the lan tenant. The ingress-service-policy can be used to provide a custom policy to be applied to the generated service. More details on service policy design can be found here

note

If the egress service has no transport configured, the plugin assumes the default SIP port of 5060 for both TCP and UDP.

note

Custom SIP ports are supported by configuring the appropriate ports for the inbound and outbound services

SIP ALG outbound call

The overall sessions for an outbound SIP call will appear as follows:

admin@node1.router1# show sessions
Tue 2020-07-07 21:37:11 UTC

Node: node1

====================================== ===== =================================================== ============ ============== ====== ======= ============== ========== ============== =========== ========= ========== =========== ========= =========
 Session Id                             Dir   Service                                             Tenant       Dev Name       VLAN   Proto   Src IP         Src Port   Dest IP        Dest Port   NAT IP    NAT Port   Payload     Timeout   Uptime
                                                                                                                                                                                                                       Encrypted
====================================== ===== =================================================== ============ ============== ====== ======= ============== ========== ============== =========== ========= ========== =========== ========= =========
 1fe41d38-9385-4e4d-a801-19204ddde325   fwd   outbound-ingress_router1_PBX-                       lan          lan               0   udp     192.168.2.128       5060   172.16.2.102        5060   0.0.0.0          0   false          3590   0 days
                                              outbound-dc1                                                                                                                                                                                   0:00:16
 1fe41d38-9385-4e4d-a801-19204ddde325   rev   outbound-ingress_router1_PBX-                       lan          sip-private0      0   udp     172.16.2.102       5060   192.168.2.128        5060   0.0.0.0          0   false          3590   0 days
                                              outbound-dc1                                                                                                                                                                                   0:00:16
 0b70b390-0704-4504-911a-08cc93306e59   fwd   sip-outbound-dc1                                    _internal_   sip-public0       0   udp     172.16.2.128       5060   172.16.2.102        5060   0.0.0.0          0   false          3590   0 days
                                                                                                                                                                                                                                             0:00:16
 0b70b390-0704-4504-911a-08cc93306e59   rev   sip-outbound-dc1                                    _internal_   wan               0   udp     172.16.2.102       5060   172.16.2.128        5060   0.0.0.0          0   false          3590   0 days
                                                                                                                                                                                                                                             0:00:16

Completed in 0.04 seconds
admin@node1.router1#

Inbound Service and Config Auto Generation​

The inbound service is used for processing all incoming calls to the branch PBX from the remote server. A typical call flow originates from the public WAN network, routed via the SSR sip-alg function that transforms the SIP messages, which are then routed over the LAN interface to the branch PBX. The user is responsible for configuring the ingress service and the associated service-routes. Consider the following example:

authority
    service  sip-inbound-pbx
        name           sip-inbound-pbx
        service-group  all
        description    "inbound service for sip towards branch PBX"
        enabled        true
        scope          private
        security       aes1

        transport      udp
            protocol    udp

            port-range  5060
                start-port  5060
            exit
        exit
        address        172.16.2.128

        access-policy  _internal_
            source      _internal_
            permission  allow
        exit
    exit
exit

The service sip-inbound-pbx captures all SIP UDP traffic towards port 5060 originating from the _internal_ tenant. This is a special tenant associated with the SFC KNIs. The sip-service > inbound for the sip-alg configuration refers to this user configured service in the above example. In this process, the plugin will inherit all the address and transport configuration from this service, combined with the defined access-policy on the plugin, will generate the configuration for SIP traffic received on the datacenter tenant. The ingress-service-policy can be used to provide a custom policy to be applied to the generated service. More details on service policy design can be found here

note

If the ingress service has no transport configured, the plugin assumes the default SIP port of 5060 for both TCP and UDP.

note

The additional-address configuration can be used to add the proxy-ip address to the generated service.

SIP ALG inbound call

The overall sessions for an inbound SIP call will appear as follows:

admin@node1.router1# show sessions
Tue 2020-07-07 21:42:32 UTC

Node: node1

====================================== ===== ================================================== ============ ============== ====== ======= ============== ========== ============== =========== ========= ========== =========== ========= =========
 Session Id                             Dir   Service                                            Tenant       Dev Name       VLAN   Proto   Src IP         Src Port   Dest IP        Dest Port   NAT IP    NAT Port   Payload     Timeout   Uptime
                                                                                                                                                                                                                      Encrypted
====================================== ===== ================================================== ============ ============== ====== ======= ============== ========== ============== =========== ========= ========== =========== ========= =========
 6997aaf4-8d20-40bc-827e-494bb881563c   fwd   inbound-ingress_router1_PBX-                        wan          wan               0   udp     172.16.2.102       5060   172.16.2.128        5060   0.0.0.0          0   false          3538   0 days
                                              inbound-pbx                                                                                                                                                                                   0:01:07
 6997aaf4-8d20-40bc-827e-494bb881563c   rev   inbound-ingress_router1_PBX-                        wan          sip-public0       0   udp     172.16.2.128       5060   172.16.2.102        5060   0.0.0.0          0   false          3538   0 days
                                              inbound-pbx                                                                                                                                                                                   0:01:07
 f62248d7-a003-4e6b-b586-d196c4b23d3d   fwd   sip-inbound-pbx                                    _internal_   sip-private0      0   udp     172.16.2.128       5060   192.168.2.128        5060   0.0.0.0          0   false          3538   0 days
                                                                                                                                                                                                                                            0:01:07
 f62248d7-a003-4e6b-b586-d196c4b23d3d   rev   sip-inbound-pbx                                    _internal_   lan               0   udp     192.168.2.128       5060   172.16.2.128        5060   0.0.0.0          0   false          3538   0 days
                                                                                                                                                                                                                                            0:01:07

Completed in 0.05 seconds
admin@node1.router1#

Remove SDP Prefixes​

Some of the SDP options can include private IP addresses and pose additional challenges with the SIP NAT inter-working. The remove-sdp-lines-by-prefix can be used to remove such lines from the SIP messages. As shown in the above example, the a=candidate line is configured to be removed from all SIP messages.

SIP Message Changes​

The SSR sip-alg functionality is completely stateless and works by applying NAT rules to every SIP message sent and received. The SIP stack, however, is aware of directionality and uses this information to fix the messages with the correct set of IP addresses.

Outbound Call Changes​

Consider an outbound SIP INVITE message received from the PBX destined towards a remote endpoint.

INVITE sip:service@172.16.2.102:5060 SIP/2.0
Via: SIP/2.0/UDP 192.168.2.128:5060;branch=z9hG4bK-4178-1-0
From: sipp <sip:sipp@192.168.2.128:5060>;tag=4178SIPpTag001
To: service <sip:service@172.16.2.102:5060>
Call-ID: 1-4178@192.168.2.128
CSeq: 1 INVITE
Contact: sip:sipp@192.168.2.128:5060
Max-Forwards: 70
Subject: Performance Test
Content-Type: application/sdp
Content-Length:   135

v=0
o=user1 53655765 2353687637 IN IP4 192.168.2.128
s=-
c=IN IP4 192.168.2.128
t=0 0
m=audio 6000 RTP/AVP 0
a=rtpmap:0 PCMU/8000

The above message, contains the private address 192.168.2.128 in several key places such as Contact header and the c= line in the SDP. These fields are typically used by the remote server to communicate with the endpoint and establish a call. In the scenario where the endpoint is behind a NAT, these addresses are not reachable. After passing through the sip-alg function, the above SIP INVITE message is fixed up as shown below:

INVITE sip:service@172.16.2.102:5060 SIP/2.0
Record-Route: <sip:172.16.2.128;lr;ftag=4178SIPpTag001>
Via: SIP/2.0/UDP 172.16.2.128:5060;branch=z9hG4bK9d03.16530dac338af7723b8b1d42857c6b6d.0
Via: SIP/2.0/UDP 192.168.2.128:5060;branch=z9hG4bK-4178-1-0
From: sipp <sip:sipp@172.16.2.128:5060>;tag=4178SIPpTag001
To: service <sip:service@172.16.2.102:5060>
Call-ID: 1-4178@192.168.2.128
CSeq: 1 INVITE
Contact: sip:sipp@172.16.2.128:5060
Max-Forwards: 70
Subject: Performance Test
Content-Type: application/sdp
Content-Length:   135

v=0
o=user1 53655765 2353687637 IN IP4 172.16.2.128
s=-
c=IN IP4 172.16.2.128
t=0 0
m=audio 6000 RTP/AVP 0
a=rtpmap:0 PCMU/8000

A few important aspects of the changes made to the original SIP INVITE are as follows:

  • A SIP Record-Route header is added to the INVITE to ensure that the router stays in path of all requests associates with this call-id.
  • A new Via header is added to insert the router in paths of all responses associated with this call-id. The information related to the client is encoded in the branch cookie within the Via header.
  • The Contact, Call-ID, SDP and any other header that referenced the private address of 192.168.2.128 has been replaced with the corresponding proxy address of 172.16.2.128.

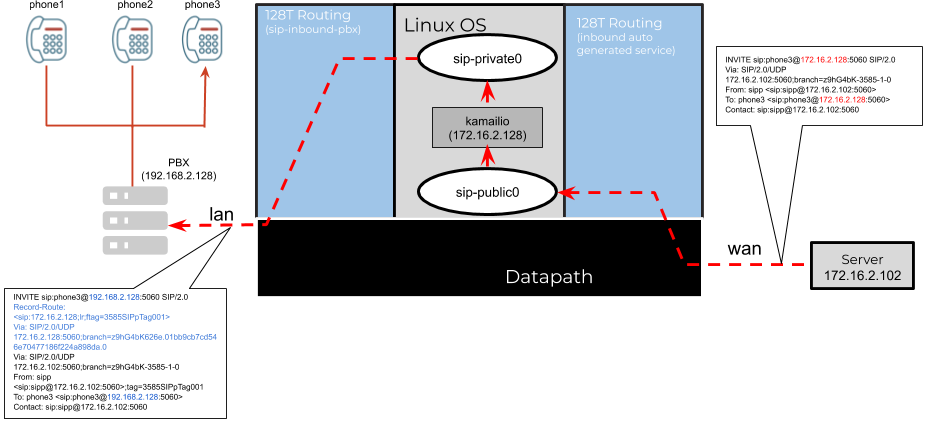

Inbound Call Changes​

Consider an inbound SIP call received from the server 172.16.2.102 on the proxy-ip representing the PBX.

INVITE sip:phone3@172.16.2.128:5060 SIP/2.0
Via: SIP/2.0/UDP 172.16.2.102:5060;branch=z9hG4bK-3585-1-0
From: sipp <sip:sipp@172.16.2.102:5060>;tag=3585SIPpTag001
To: phone3 <sip:phone3@172.16.2.128:5060>
Call-ID: 1-3585@172.16.2.102
CSeq: 1 INVITE
Contact: sip:sipp@172.16.2.102:5060
Max-Forwards: 70
Subject: Performance Test
Content-Type: application/sdp
Content-Length:   135

v=0
o=user1 53655765 2353687637 IN IP4 172.16.2.102
s=-
c=IN IP4 172.16.2.102
t=0 0
m=audio 6000 RTP/AVP 0
a=rtpmap:0 PCMU/8000

The above message is sent to kamailio which in turn converts the public IPs to private addresses and forwards the message to the branch PBX. The new message will look as follows:

INVITE sip:phone3@192.168.2.128:5060 SIP/2.0
Record-Route: <sip:172.16.2.128;lr;ftag=3585SIPpTag001>
Via: SIP/2.0/UDP 172.16.2.128:5060;branch=z9hG4bK626e.01bb9cb7cd546e70477186f224a898da.0
Via: SIP/2.0/UDP 172.16.2.102:5060;branch=z9hG4bK-3585-1-0
From: sipp <sip:sipp@172.16.2.102:5060>;tag=3585SIPpTag001
To: phone3 <sip:phone3@192.168.2.128:5060>
Call-ID: 1-3585@172.16.2.102
CSeq: 1 INVITE
Contact: sip:sipp@172.16.2.102:5060
Max-Forwards: 70
Subject: Performance Test
Content-Type: application/sdp
Content-Length:   135

v=0
o=user1 53655765 2353687637 IN IP4 172.16.2.102
s=-
c=IN IP4 172.16.2.102
t=0 0
m=audio 6000 RTP/AVP 0
a=rtpmap:0 PCMU/8000

In the inbound case, the following modifications were performed:

  • The Record-Route header was added to ensure that the proxy is in the path for all future requests for the call.
  • The Via header is added to ensure the proxy remains in path for all response messages.
  • The Request URI and the To headers are fixed to point to the PBX private address instead of the proxy-ip.

Troubleshooting​

Inspecting Kamailio​

The SSR sip-alg function launches a kamailio service which is responsible for fixing up all the SIP messages. The operation of the process can be inspected via querying the systemd service for the appropriate sip-alg instance. For example:

# systemctl status t128-sip-alg@PBX.service
● t128-sip-alg@PBX.service - Kamailio service running in PBX
   Loaded: loaded (/etc/systemd/system/t128-sip-alg@.service; disabled; vendor preset: disabled)
   Active: active (running) since Wed 2020-07-08 18:52:33 UTC; 10h ago
 Main PID: 22261 (kamailio)
   CGroup: /system.slice/system-t128\x2dsip\x2dalg.slice/t128-sip-alg@PBX.service
           ├─22261 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22264 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22265 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22266 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22267 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22268 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22269 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22270 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22271 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22272 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22273 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22274 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22275 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22276 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22277 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22278 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22279 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22280 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22281 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           ├─22282 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4
           └─22283 /usr/sbin/kamailio -DD -P /var/run/kamailio/kamailio.pid -f /etc/kamailio/kamailio.PBX.cfg -m 64 -M 4

Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ TO service <sip:service@172.16.2.102:5061>;tag=11336SIPpTag015 ]
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ CONTACT <sip:172.16.2.102:5061;transport=UDP> ]
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: It is a response to an outbound request
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: Reverse natting From header
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: Sending natted reply as:
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ STATUS 200 OK ]
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ VIA SIP/2.0/UDP 172.16.2.128:5061;branch=z9hG4bK4911.716b96ecc6684d3543e468d8454f285e.0, SIP/2.0/UDP 172.16.1.1...hG4bK-12741-5-7 ]
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ FROM sipp <sip:sipp@192.168.2.128:5060>;tag=12741SIPpTag005 ]
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ TO service <sip:service@172.16.2.102:5061>;tag=11336SIPpTag015 ]
Jul 08 18:57:36 t190-dut2.openstacklocal PBX[22278]: INFO: {2 Cseq: 2 BYE CId: 5-12741@192.168.2.128} <script>: [ CONTACT <sip:172.16.2.102:5061;transport=UDP> ]
Hint: Some lines were ellipsized, use -l to show in full.
#

The kamailio configuration can be found under /etc/kamailio/kamailio.PBX.cfg and should reflect the ip-mappings and other configuration from the plugin configuration.

note

Users should not make any manual changes to the kamailio config as it would get overwritten from the SSR conductor.

Inspecting the sip-alg Namespace​

All of the sip-alg function, including kamailio, operate from within a network namespace. Some of the common commands and the expected outputs are shown below.

The following example shows the KNI configuration and the default route on a running system

# ip netns exec PBX ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
62: sip-private0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 66:2e:6e:54:ac:cb brd ff:ff:ff:ff:ff:ff
    inet 169.254.129.18/30 scope global sip-private0
       valid_lft forever preferred_lft forever
    inet6 fe80::642e:6eff:fe54:accb/64 scope link
       valid_lft forever preferred_lft forever
63: sip-public0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 3e:01:42:65:a9:fc brd ff:ff:ff:ff:ff:ff
    inet 169.254.129.22/30 scope global sip-public0
       valid_lft forever preferred_lft forever
    inet6 fe80::3c01:42ff:fe65:a9fc/64 scope link
       valid_lft forever preferred_lft forever
#
# ip netns exec PBX ip route
default via 169.254.129.21 dev sip-public0
169.254.129.16/30 dev sip-private0 proto kernel scope link src 169.254.129.18
169.254.129.20/30 dev sip-public0 proto kernel scope link src 169.254.129.22
192.168.2.128 via 169.254.129.17 dev sip-private0
#

The kamailio process would be listening on the configured SIP port to intercept and fix the SIP messages. The behavior can be validated by running the following command:

# ip netns exec PBX netstat -pant
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 169.254.129.22:5060     0.0.0.0:*               LISTEN      19098/kamailio
tcp        0      0 169.254.129.18:5060     0.0.0.0:*               LISTEN      19098/kamailio

Finally, the namespace is configured with a set of iptables rules to enable the static mapping from public to private. A typical set of rules can be seen below.

# ip netns exec PBX iptables -t nat -nvL
Chain PREROUTING (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
    4  1776 DNAT       all  --  sip-private0 *       0.0.0.0/0            0.0.0.0/0            to:169.254.129.18
    5  2558 DNAT       all  --  sip-public0 *       0.0.0.0/0            0.0.0.0/0            to:169.254.129.22

Chain INPUT (policy ACCEPT 9 packets, 4334 bytes)
 pkts bytes target     prot opt in     out     source               destination

Chain OUTPUT (policy ACCEPT 10 packets, 5485 bytes)
 pkts bytes target     prot opt in     out     source               destination

Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
   10  5485 SNAT       all  --  *      *       0.0.0.0/0            0.0.0.0/0            to:172.16.2.128

Release Notes​

Release 4.0.2​

Release Date: Nov 14, 2024

Issues Fixed​

  • PLUGIN-2776 Resolve OS specific salt state issue for CentOS

Release 4.0.1​

Release Date: Oct 31, 2024

Issues Fixed​

  • PLUGIN-2721 Resolve on plugin downgrade config removal

Release 4.0.0​

Image based install and upgrade (IBU) support for SSR 6.3.0.

Release Date: Sep 30, 2024

Release 3.2.3​

Release Date: Mar 20, 2024

Issues Fixed​

  • PLUGIN-2393 Reduce pillar generation time for large scale deployments

    Resolution Limit xml xpath operations during generation

Release 3.2.2​

Release Date: Dec 02, 2022

Router Version

  • 128T-sip-alg-router-1.2.0-2

Issues Fixed​

  • PLUGIN-1955 Reducing the default resource allocation of SIP ALG plugin causes call setup issues

    Resolution The defaults were restored to the original number of child processes running on the system

Release 3.2.1​

Release Date: Nov 04, 2022

Router Version

  • 128T-sip-alg-router-1.2.0-2

Issues Fixed​

  • PLUGIN-1908 SIP ALG plugin consumes a lot of memory on a running system

    Resolution Reduced the overall number of child processes running on the system as well as stopped default kamailio service which is not used.

Release 3.2.0​

New Features and Improvements​

  • PLUGIN-1839 Reduce time to apply salt states in large scale deployments

By using Saltstack data files, the time to apply high states across all assets is significantly reduced.

Release 2.4.0, 3.1.1​

New Features and Improvements​

  • PLUGIN-756 Provide support for DSCP marking on transformed packets

The feature adds support for configuring sip-alg > dscp to specify the TOS marking to be used for the packets transformed by the SIP ALG plugin, allowing the traffic to be prioritized appropriately on the egress.

Issues Fixed​

  • PLUGIN-1131 The default log-level for the plugin on the router is too high

    Resolution: Reduce the log level by default and allow the appropriate log level to be configured for debugging and troubleshooting as needed.

  • PLUGIN-756 Missing access-policy > permission for the SIP ALG configuration caused config to fail

    Resolution: The logic for service config generation now defaults to the appropriate permission when user does not configure it

Release 3.0.0​

Issues Fixed​

  • PLUGIN-768 Support the SIP ALG plugin in SSR versions 5.1.0 and greater.

Footnotes​

  1. https://en.wikipedia.org/wiki/Session_Initiation_Protocol ↩

  2. https://en.wikipedia.org/wiki/Session_Description_Protocol ↩

  3. https://www.kamailio.org/ ↩
