Unpack the PTX10016 Router

To unpack the PTX10016 router and its components, read the following sections.

Unpack the PTX10016 Shipping Pallet

After you prepare the installation site as described in Table 1, you can unpack the router.

Note:

The chassis is maximally protected inside the shipping box. Do not unpack it until you are ready to begin installation.

Ensure that you have the following parts and tools available to unpack the PTX10016:

  • A 13/32-in. (10-mm) open-end or socket wrench to remove the bolts from the shipping pallet

  • A box cutter or packing knife to slice open the nylon straps and tape that seal the crate and boxes

The chassis ships in a cardboard box that has a two-layer wooden pallet base with foam cushioning between the layers. The router chassis is bolted to the pallet base.

The shipper has the option to either ship the front door kit along with the chassis or separately. If the front door kit arrives with the chassis, set aside the front door kit until you are ready to verify the contents of the order.

To unpack the chassis (see Figure 1):

Figure 1: Shipping Crate and Accessory Box Shipping Crate and Accessory Box
  1
—

Corrugated cover

  4
—

PTX10016 router

  2
—

Accessory box

  5
—

Pallet

  3
—

Foam top


  1. Move the shipping box to a staging area as close to the installation site as possible. While the chassis is bolted to the pallet, you can use a forklift or pallet jack to move the shipping box. Make sure there is enough space to remove components from the chassis.
  2. Position the shipping box with the arrows pointing up.
  3. Use the box cutter to slice the nylon straps that hold the shipping boxes to the pallet.
  4. Lift the shipping box off the chassis.
  5. Remove the cardboard accessory box.
  6. Remove the foam padding from the top of the box.
  7. Remove the plastic cover from the router chassis.
  8. Use a 13/32-in. (10-mm) open-end or socket wrench to remove the four sets of bracket bolts that secure the chassis to the shipping pallet (see Figure 2).
    Figure 2: Remove the Bracket BoltRemove the Bracket Bolt
  9. Unpack the accessory box and lay out the contents so that they are ready for use.
  10. Verify that your order includes all appropriate parts. See Compare the PTX10016 Router Order to the Packing List for information about base configurations and redundant configurations.
  11. Store the shipping brackets and bolts inside the accessory box.
  12. Save the shipping box and packing materials in case you need to move or ship the router at a later time.

See Also

Unpack Line Cards, Routing Control Boards, and Switch Interface Boards for the PTX10016 Router

Before you unpack a component:

Line cards, additional Routing and Control Boards (RCBs), and additional Switch Interface Boards (SIBs) components are FRUs that are shipped separately from the router chassis. The housing for the RCBs and line cards are rigid sheet-metal structures that house the electronics. SIBs have an exposed printed circuit board (PCB) on one side and sheet metal on the other. All these components are shipped in a cardboard carton, secured with packing material.

CAUTION:

The components are maximally protected inside the shipping carton. Do not unpack them until you are ready to install the components in the router chassis.

To unpack an RCB, a SIB, or a line card (see Figure 3):

  1. Move the shipping carton to a staging area as close to the installation site as possible.
  2. Position the carton so that the arrows are pointing up.
  3. Open the top flaps on the shipping carton.
  4. Pull out the packing material that holds the component in place.
  5. Remove the component from the antistatic bag.
  6. Save the shipping carton and packing materials in case you need to move or ship the RCB, SIB, or line card later.

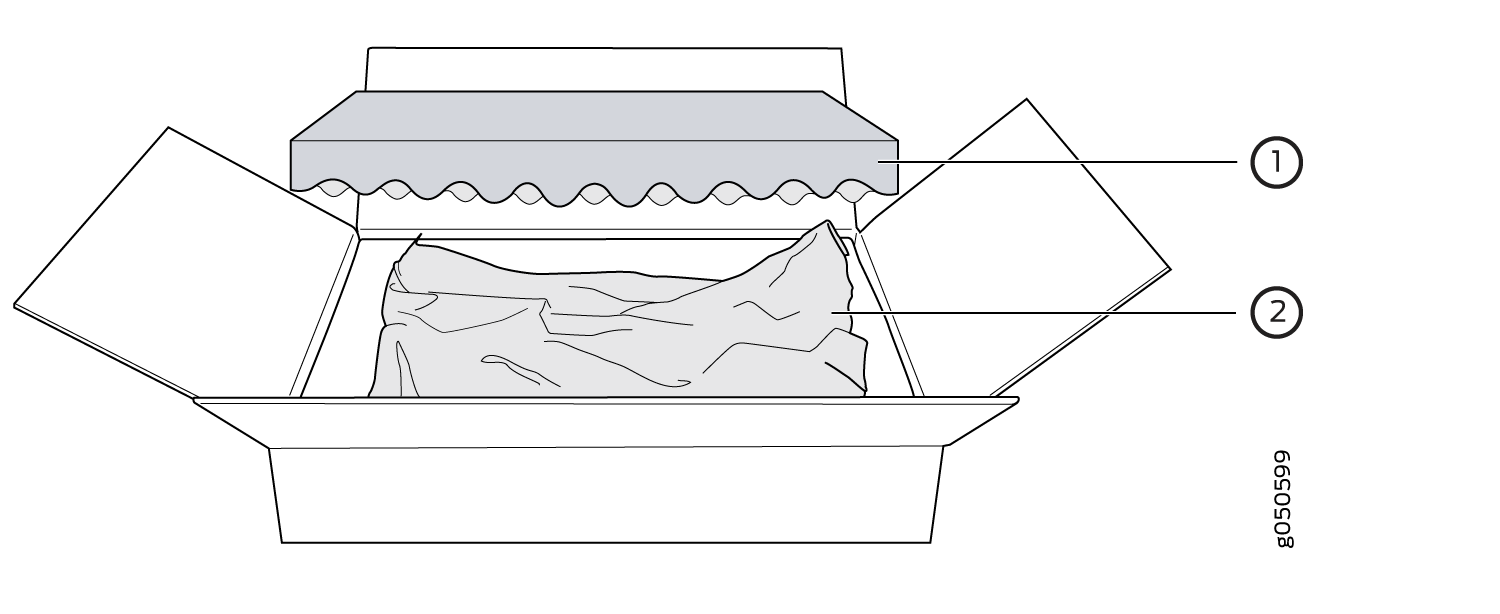

Figure 3: Unpacking a Line CardUnpacking a Line Card
  1
—

Foam packing material

  2
—

Paper packaging and antistatic bag

See Also

Compare the PTX10016 Router Order to the Packing List

The router chassis shipment includes a packing list. Check the parts you receive in the shipping crate against the items on the packing list. The packing list specifies the part number and description of each part in your order.

If any part on the packing list is missing, contact your customer service representative, or contact Juniper Networks Customer Care from within the U.S. or Canada by telephone at 1-888-314-5822. For international-dial or direct-dial options in countries without toll-free numbers, see https://www.juniper.net/support/requesting-support.html.

Items that ship separately from the chassis are:

  • Line cards

  • Front door kit (JNP10016-FRNT-PNL or JNP10016-FRPNL1) depending on your order

  • Cable management kit (part number: JLC-CBL-MGMT-KIT)

    Note:

    The front door kit and cable management kit are spare parts. The shipper has the option to either ship the kits along with the chassis or separately.

Use the following procedure to compare the sales order and packing list against the contents of the chassis shipping crate.

  1. Determine the configuration. See PTX10016 Components and Configurations. The parts shipped depend on the configuration you order.
  2. Compare premium configuration orders using Table 1.
    Table 1: Premium Redundant Configuration Order

    Component

    Quantity

    Chassis, including power bus

    1

    RCBs

    2

    Fan tray controllers

    2

    Fan trays

    2

    Power supplies

    10

    SIBs

    6

    Blank cover panels in the line card slots (part number: JNP10K-LC-BLNK)

    16

    Accessory kit (see Table 3)

    1

    Rack mount kit (see Table 4)

    1

    Front door kit (see Table 5)

    1

    Documentation Roadmap card

    1
  3. Compare the base configuration orders by using Table 2.
    Table 2: Base Configuration Order

    Component

    Quantity

    Chassis, including power bus

    1

    RCBs

    1

    Blank cover panel in the RCB slot (part number: JNP10K-RE-BLNK)

    1

    Fan tray controllers

    2

    Fan trays

    2

    Power supplies

    5

    SIBs

    5

    Cover in a SIB slot

    1

    Blank cover panels in the power supply slots

    5

    Blank cover panels in the line card slots (part number: JNP10K-LC-BLNK)

    16

    Dust covers for RCB ports

    5 for RE0; 3 for RE1

    Accessory kit (see Table 3)

    1

    Rack mount kit (see Table 4)

    1

    Front door kit, lockable (see Table 5)

    1

    Documentation Roadmap card

    1
  4. Compare the contents of the accessory kit with Table 3.
    Table 3: PTX10016 Accessory Kit

    Component

    Quantity

    AC Configurations

    DC Configurations

    Warranty card

    1

    1

    End User License Agreement (EULA)

    1

    1

    Electrostatic discharge (ESD) wrist strap with cable

    1

    1

    Media kit (flash drives, PCMCIA card adapter)

    1

    1

    Chassis ground lug, 2-hole, 10-32, 6 AWG

    1

    1

    Power cord retainer clips

    Premium = 20

    Base = 10

    –

    DC terminal lugs, 2-hole, 10-32, 4 AWG

    –

    Premium = 40

    Base = 20

    Antistatic bags

    2


    Note:

    We no longer include the RJ-45 console cable with the DB-9 adapter as part of the device package. If the console cable and adapter are not included in your device package, or if you need a different type of adapter, you can order the following separately:

    • RJ-45 to DB-9 adapter (JNP-CBL-RJ45-DB9)

    • RJ-45 to USB-A adapter (JNP-CBL-RJ45-USBA)

    • RJ-45 to USB-C adapter (JNP-CBL-RJ45-USBC)

    If you want to use RJ-45 to USB-A or RJ-45 to USB-C adapter you must have X64 (64-Bit) Virtual COM port (VCP) driver installed on your PC. See, https://ftdichip.com/drivers/vcp-drivers/ to download the driver.

  5. Compare the contents of the rack mount kit with Table 4.
    Table 4: PTX10016 Rack Mount Kit

    Component

    Quantity

    Mounting tray

    1

    Mounting blades

    2

    Safety restraint

    1

    Phillips 8-32 x .375 in. flat-head screws

    12
  6. Compare the contents of the front door kit with Table 5.
    Table 5: PTX10016 Front Door Kit

    Component

    Quantity

    Front door

    1

    Right base bracket

    1

    Left base bracket

    1

    Interchangable latch brackets

    2

    Phillips flat-head mounting screws

    8
    Side EMI deflectors

    2

    Documentation Roadmap card

    1

See Also

Register Products—Mandatory to Validate SLAs

Register all new Juniper Networks hardware products and changes to an existing installed product using the Juniper Networks website to activate your hardware replacement service-level agreements (SLAs).

CAUTION:

Register product serial numbers on the Juniper Networks website. Update the installation base data if any addition or change to the installation base occurs or if the installation base is moved. Juniper Networks is not responsible for not meeting the hardware replacement SLA for products that do not have registered serial numbers or accurate installation base data.

Register your product(s) at https://tools.juniper.net/svcreg/SRegSerialNum.jsp.Update your installation base at https://www.juniper.net/customers/csc/management/updateinstallbase.jsp.
